      Bently Nevada 330104-13-20-50-02-00
      Bently Nevada 330104-13-20-50-02-00
      Bently Nevada 330104-13-20-50-02-00
      Bently Nevada 330104-13-20-50-02-00
      Bently Nevada 330104-13-20-50-02-00
      Bently Nevada 330104-13-20-50-02-00
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      330104-13-20-50-02-00

      Armored Proximity Probe
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

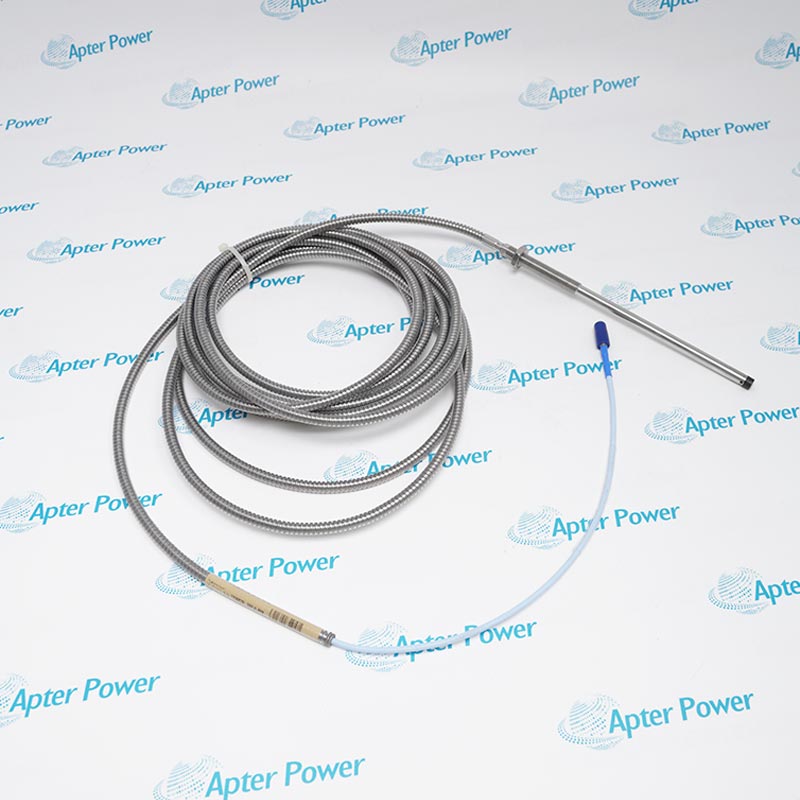

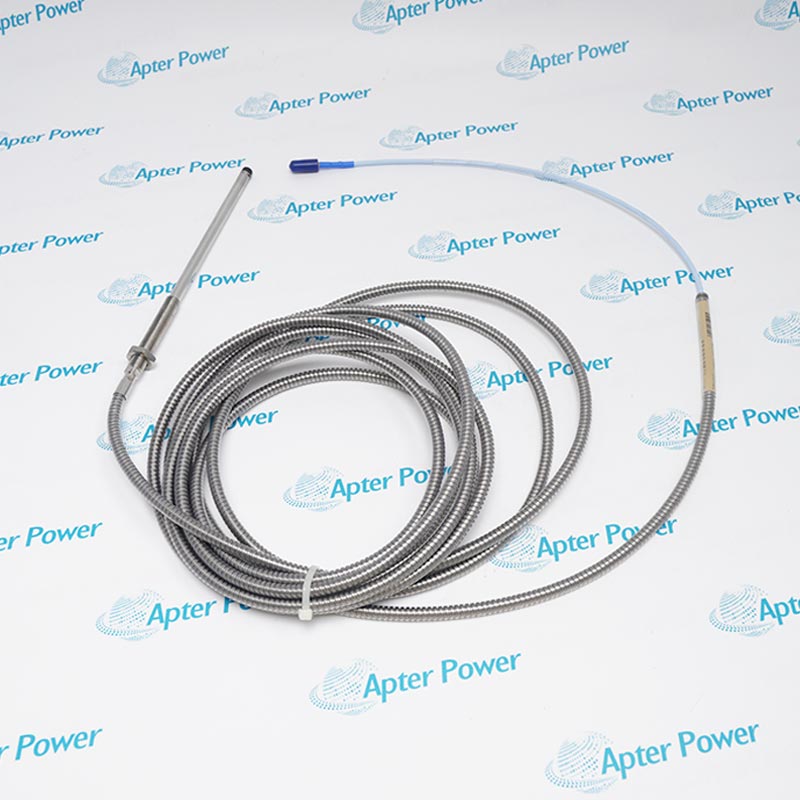

      Bently Nevada 330104-13-20-50-02-00 is an armored M10 x 1 3300 XL 8 mm proximity probe with a 5.0 m standard cable and ClickLoc connector. Its configured metric case is used for non-contacting vibration or position measurement in a matched 5 m Proximitor system.

      Ask our team:

      Get a quick price for： 330104-13-20-50-02-00
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 330104-13-20-50-02-00

      Technical specifications for 330104-13-20-50-02-00

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        330104-13-20-50-02-00
      • Estimated shipping dimensions:
        26x21.5x2cm
      • Weight:
        0.62 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Probe family:
        3300 XL 8 mm
      • Base order code:
        330104
      • Mounting thread:
        M10 x 1
      • Lead armor:
        Stainless steel
      • Unthreaded section:
        130 mm
      • Overall case length option:
        200 mm
      • Total probe length:
        5.0 m
      • Matched Proximitor system length:
        5 m
      • Cable type:
        75 ohm triaxial, FEP insulated
      • Connector:
        Miniature coaxial ClickLoc
      • Connector protector:
        Not included
      • Agency approval option:
        00 - not required
      • Probe tip material:
        Polyphenylene sulfide (PPS)
      • Case material:
        AISI 303 or 304 stainless steel
      • Minimum cable bend radius:
        25.4 mm
      • Maximum connector torque:
        0.565 N m
      • Probe DC resistance:
        8.73 +/- 0.50 ohm at 5.0 m
      • System linear range:
        2.0 mm
      • System incremental scale factor:
        7.87 V/mm
      • Maximum M10 x 1 thread engagement:
        15 mm
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Bently Nevada 330104-13-20-50-02-00 is an armored M10 x 1 3300 XL 8 mm proximity probe with a 5.0 m standard cable and ClickLoc connector. Its configured metric case is used for non-contacting vibration or position measurement in a matched 5 m Proximitor system.
      • 3300 XL 8 mm non-contacting eddy-current probe
      • M10 x 1 stainless-steel armored case
      • 130 mm unthreaded / 200 mm case
      • 5.0 m standard lead for a 5 m Proximitor

      Use 330104-13-20-50-02-00 only in the matched 3300 XL 8 mm probe, cable and Proximitor arrangement. Confirm the monitor channel and controlled response before release.

      Important Notice: The complete order code controls case geometry, lead length, connector and approval option. Keep the probe matched to the documented 3300 XL 8 mm Proximitor system and verify gap and monitor response after installation.

      330104-13-20-50-02-00 Manuals & Downloads
      330104-13-20-50-02-00 Technical Reference (PDF)330104-13-20-50-02-00 Installation & Commissioning Guide (PDF)

      These documents serve different purposes: the first records the verified product and matched-system data; the second covers installation checks, commissioning and acceptance.

      M10 radial-vibration point
      Use the 130 mm unthreaded section at the documented radial probe location.
      200 mm metric case fit
      Check the 200 mm overall case and M10 x 1 mounting bore before installation.
      Five-metre transducer loop
      Keep the 5.0 m armored lead paired with the selected 5 m Proximitor sensor.
      Probe-chain response test
      Verify the ClickLoc joint, gap voltage and monitor response after a controlled restart.
      Read the applicable Bently Nevada 3300 XL 8 mm instructions, datasheet 141194 Rev. AN before work. Verify 330104-13-20-50-02-00, the installed machine and the matched transducer chain before isolation or commissioning.
      1
      Confirm the 330104-13-20-50-02-00 label, 130 mm unthreaded section and 200 mm case.
      2
      Place the monitored machine and protection channel in the approved maintenance state.
      3
      Record the M10 x 1 mounting position, 5.0 m route and mating system components.
      4
      Inspect the armored lead, tip and miniature ClickLoc joint for damage.
      5
      Observe the 15 mm maximum M10 x 1 engagement and specified case torque.
      6
      Keep the standard cable bend radius at or above 25.4 mm.
      7
      Restore the matching 5 m Proximitor and confirm the option-02 connection.
      8
      Set the documented gap and verify the controlled monitor-channel response.

      Technical notes

      Technical notes

      Use the 5 m 3300 XL 8 mm Proximitor arrangement specified for this 50-length probe. Observe the M10 x 1 engagement limit, route the armored lead without a bend tighter than 25.4 mm and inspect the ClickLoc joint before energization.

      FAQS

      • Why is 330104-13-20-50-02-00 a metric probe?
        The 330104 base designates an armored 3300 XL 8 mm probe with an M10 x 1 thread.
      • Which section does the 13 option in 330104-13-20-50-02-00 describe?
        It is the 130 mm unthreaded portion, not the cable length.
      • How long is the 330104-13-20-50-02-00 case?
        Option 20 selects a 200 mm overall case length for this metric ordering structure.
      • What Proximitor length belongs with 330104-13-20-50-02-00?
        The 5.0 m probe is intended for the 5 m 3300 XL 8 mm Proximitor system.
      • Does 330104-13-20-50-02-00 include a ClickLoc protector?
        No. Connector option 02 supplies the miniature coaxial ClickLoc on standard cable without a protector.
      • How much M10 x 1 thread may engage for 330104-13-20-50-02-00?
        The stated maximum thread engagement is 15 mm; excessive engagement can bind the probe.
      • Which resistance helps check the 330104-13-20-50-02-00 lead?
        The nominal center-to-outer probe resistance for a 5.0 m 3300 XL 8 mm probe is 8.73 +/- 0.50 ohm.
      • Which materials form the 330104-13-20-50-02-00 tip and case?
        The probe tip uses polyphenylene sulfide (PPS), with an AISI 303 or 304 stainless-steel case.
