      Bently Nevada 330104-08-16-10-02-00
      Bently Nevada 330104-08-16-10-02-00
      Bently Nevada 330104-08-16-10-02-00
      Bently Nevada 330104-08-16-10-02-00
      Bently Nevada 330104-08-16-10-02-00
      Bently Nevada 330104-08-16-10-02-00
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      330104-08-16-10-02-00

      Armored Proximity Probe
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

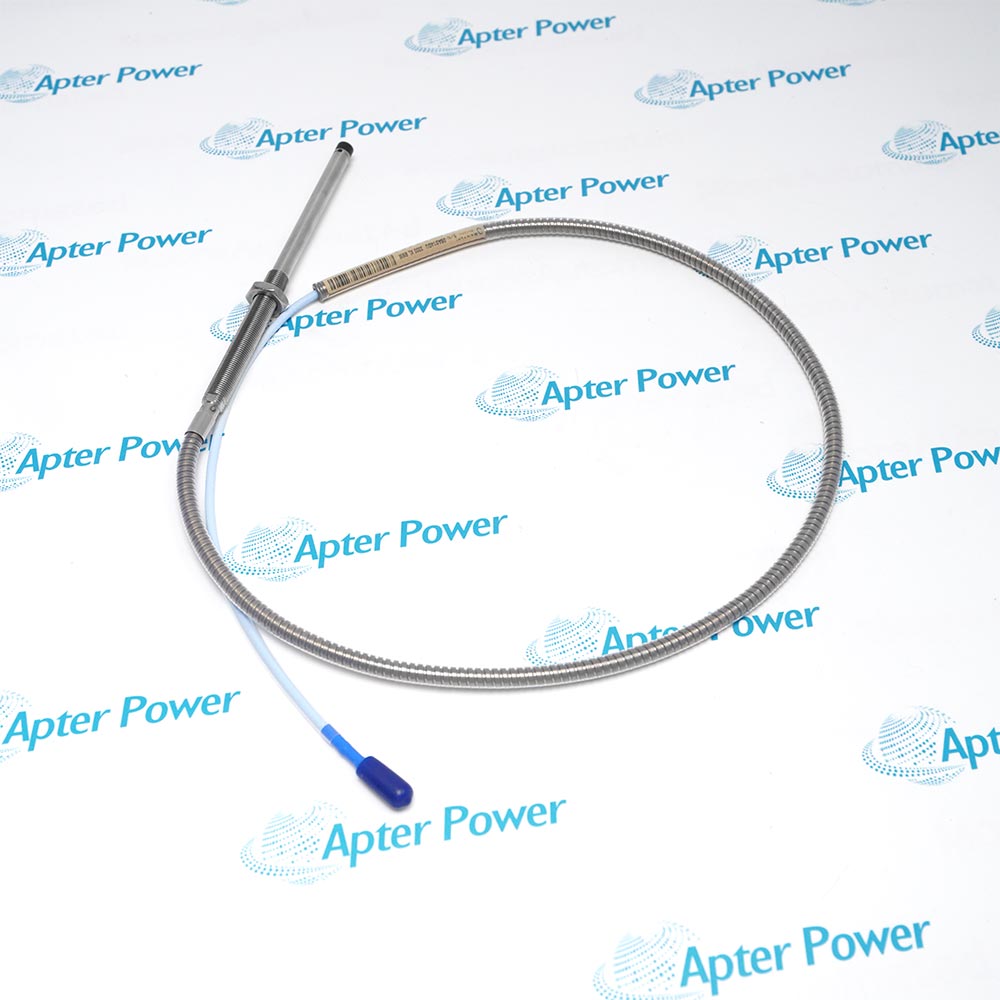

      Bently Nevada 330104-08-16-10-02-00 is an armored M10 x 1 3300 XL 8 mm proximity probe with an 80 mm unthreaded section, a 160 mm case and a 1.0 m standard cable. It is used in a matched non-contacting shaft vibration or position measurement system.

      Ask our team:

      Get a quick price for： 330104-08-16-10-02-00
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 330104-08-16-10-02-00

      Technical specifications for 330104-08-16-10-02-00

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        330104-08-16-10-02-00
      • Estimated shipping dimensions:
        112.2x2x2cm
      • Weight:
        0.14 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Probe family:
        3300 XL 8 mm
      • Base model:
        330104
      • Mounting thread:
        M10 x 1
      • Armor:
        Stainless-steel armor
      • Unthreaded length:
        80 mm
      • Overall case length:
        160 mm
      • Total probe length:
        1.0 m (3.3 ft)
      • Connector:
        Miniature coaxial ClickLoc
      • Connector protector:
        Not included
      • Cable type:
        Standard cable
      • Agency approval option:
        No approvals
      • System linear range:
        2.0 mm (80 mil)
      • System scale factor:
        7.87 V/mm (200 mV/mil)
      • Recommended initial gap:
        1.27 mm (50 mil)
      • Minimum cable bend radius:
        25.4 mm (1.0 in)
      • Maximum connector torque:
        0.565 N m (5 in-lb)
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Bently Nevada 330104-08-16-10-02-00 is an armored M10 x 1 3300 XL 8 mm proximity probe with an 80 mm unthreaded section, a 160 mm case and a 1.0 m standard cable. It is used in a matched non-contacting shaft vibration or position measurement system.
      • Armored M10 x 1 probe
      • 80 mm unthreaded section and 160 mm case
      • 1.0 m standard cable with ClickLoc
      • Matched 3300 XL 8 mm measurement system

      Confirm that the M10 x 1 mounting geometry accommodates the 80 mm unthreaded length and 160 mm overall case before installation. Match the 1.0 m probe with the correct extension cable and 3300 XL 8 mm Proximitor Sensor, and keep the ClickLoc joint clean and fully seated.

      Important Notice: Confirm the exact 330104-08-16-10-02-00 marking, matching system components, installed configuration and controlled output before release.

      330104-08-16-10-02-00 Manuals & Downloads

      These documents are different: the first consolidates verified product and system data; the second provides installation checks, commissioning steps and acceptance records.

      Protected cable routes
      Stainless-steel armor protects the 1.0 m probe lead in a compatible installation.
      Radial vibration
      Non-contacting shaft motion sensing with the matched 3300 XL 8 mm components.
      Axial position
      Position measurement with approved probe placement and target geometry.
      Machinery monitoring
      Use with the configured extension cable, Proximitor Sensor and monitor.
      Read the applicable Bently Nevada instructions before work. Verify 330104-08-16-10-02-00 and its complete matched system before installation or commissioning.
      1
      Verify 330104-08-16-10-02-00, the M10 x 1 thread and armored construction.
      2
      Check clearance for the 80 mm unthreaded portion and 160 mm overall case.
      3
      Choose the correct extension cable and Proximitor Sensor for the matched system length.
      4
      Avoid pulling or crushing the armored cable and respect its bend limits.
      5
      Clean and fully seat the miniature coaxial ClickLoc connection.
      6
      Verify target material, mounting rigidity and probe spacing before commissioning.
      7
      Set the recommended initial gap and confirm the 2.0 mm system linear range.
      8
      Log the measured output and final monitoring diagnostics.

      Technical notes

      Technical notes

      Confirm that the M10 x 1 mounting geometry accommodates the 80 mm unthreaded length and 160 mm overall case before installation. Match the 1.0 m probe with the correct extension cable and 3300 XL 8 mm Proximitor Sensor, and keep the ClickLoc joint clean and fully seated.

      FAQS

      • Why is 330104-08-16-10-02-00 classed as an armored metric probe?
        The 330104 base model is the 3300 XL 8 mm M10 x 1 probe with stainless-steel armor.
      • Which section of 330104-08-16-10-02-00 is 80 mm long?
        The 08 code designates 80 mm of unthreaded length ahead of the threaded section.
      • What mounting case length must accommodate 330104-08-16-10-02-00?
        The 16 option specifies a 160 mm overall case length.
      • How is the 10 length option applied to 330104-08-16-10-02-00?
        It specifies a 1.0 m (3.3 ft) total probe length; select the matching extension cable and Proximitor Sensor for the complete loop.
      • Does the armored 330104-08-16-10-02-00 include a ClickLoc protector?
        No. Connector option 02 specifies standard cable with a miniature coaxial ClickLoc connector and no protector.
      • Are approvals selected by the last 00 in 330104-08-16-10-02-00?
        No. The 00 approval option means no agency approvals were ordered for this execution.
      • What gap is used when commissioning a matched 330104-08-16-10-02-00 loop?
        The 3300 XL 8 mm datasheet recommends an approximately 1.27 mm (50 mil) initial gap, about -9 Vdc.
      • What response scale applies to the matched 330104-08-16-10-02-00 system?
        The nominal incremental scale factor is 7.87 V/mm (200 mV/mil) across the 2.0 mm linear range.
