      Bently Nevada 330910-10-22-10-01-CN
      Bently Nevada 330910-10-22-10-01-CN
      Bently Nevada 330910-10-22-10-01-CN
      Bently Nevada 330910-10-22-10-01-CN
      Bently Nevada 330910-10-22-10-01-CN
      Bently Nevada 330910-10-22-10-01-CN
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      330910-10-22-10-01-CN

      Armored Proximity Probe
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

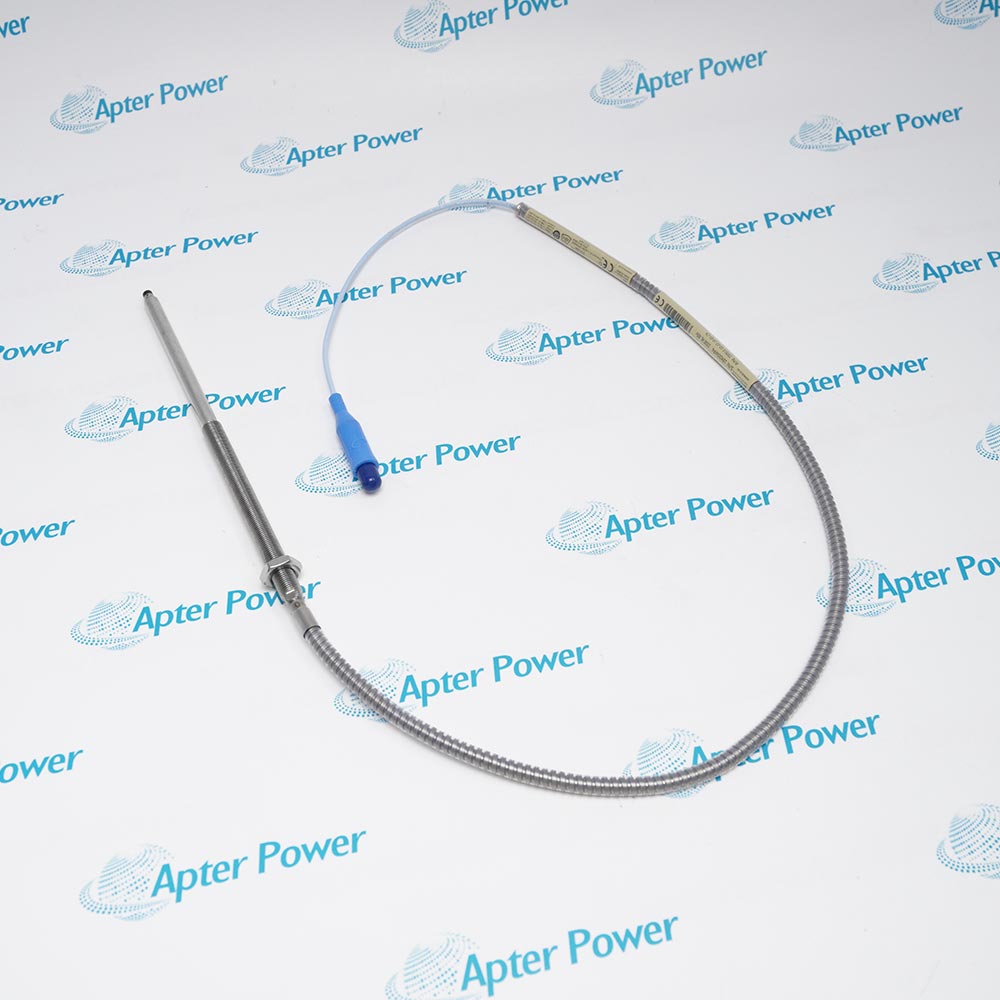

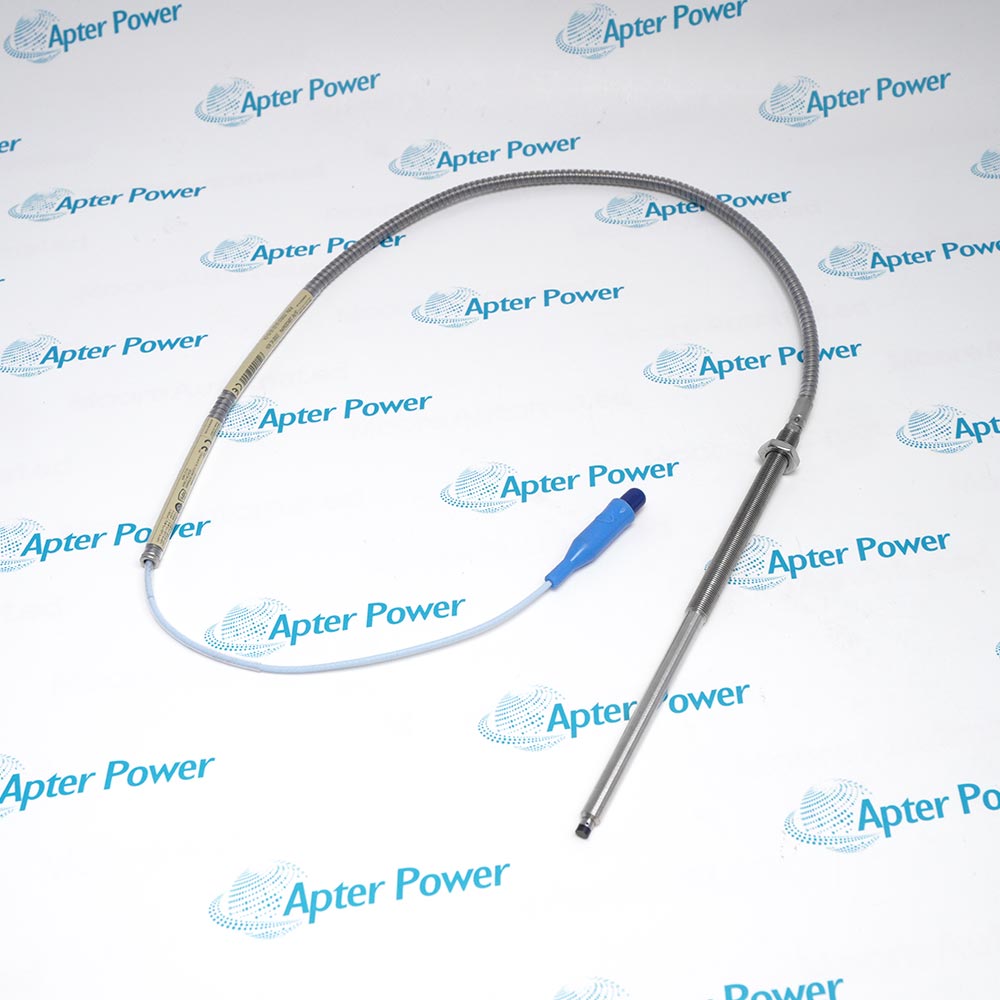

      Bently Nevada 330910-10-22-10-01-CN is an M10x1 armored 3300 NSv proximity probe for non-contact shaft vibration and position measurement in a matched 3300 XL NSv system.

      Ask our team:

      Get a quick price for： 330910-10-22-10-01-CN
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 330910-10-22-10-01-CN

      Technical specifications for 330910-10-22-10-01-CN

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        330910-10-22-10-01-CN
      • Estimated shipping dimensions:
        110x2x2cm
      • Weight:
        0.16 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Maximum thread engagement:
        15 mm
      • Typical probe mass:
        Approximately 14–150 g
      • Probe case material:
        AISI 304 stainless steel
      • Unthreaded length:
        100 mm
      • Overall case length:
        220 mm
      • Integral cable length:
        1.0 m
      • Probe tip material:
        Polyphenylene sulfide (PPS)
      • Connector torque limit:
        0.56 N·m
      • Probe thread:
        M10x1
      • Cable armor:
        Stainless steel
      • Connector:
        Protected ClickLoc, standard cable
      • Probe cable construction:
        75 Ω coaxial, FEP insulated
      • Probe operating temperature:
        −52 to +177 °C
      • Minimum cable bend radius:
        25.4 mm
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Bently Nevada 330910-10-22-10-01-CN is an armored metric 3300 NSv proximity probe for a matched non-contact shaft-motion measurement chain.
      • Designed for machinery with restricted probe installation space
      • Supports radial shaft vibration and position monitoring
      • Can serve axial position, speed or phase-reference channels
      • Operates with the selected NSv cable and Proximitor Sensor

      Keep the installed probe, extension cable, Proximitor and monitor channel configured as one matched 3300 XL NSv system. Inspect the target and connector condition before recording a controlled response.

      Important Notice: Confirm the complete 330910-10-22-10-01-CN marking, M10x1 receiving thread, probe orientation, target material, cable route and accepted channel gap before service release.

      330910-10-22-10-01-CN Manuals & Downloads
      330910-10-22-10-01-CN Technical Reference (PDF)330910-10-22-10-01-CN Installation & Commissioning Guide (PDF)

      These documents serve different purposes: the first organizes the probe and matched-system technical data; the second guides inspection, installation, commissioning and acceptance.

      Radial shaft vibrationMeasure non-contact shaft movement through the matched NSv probe, extension cable and Proximitor chain.
      Axial shaft positionMonitor thrust-position changes where the approved target and probe geometry support the installed channel.
      Speed and zero-speedUse 330910-10-22-10-01-CN at a documented target for a configured tachometer or zero-speed channel.
      Phase referenceSupply a Keyphasor reference signal to the assigned machine-monitoring channel.
      Read the applicable 3300 XL NSv instructions before work. Verify 330910-10-22-10-01-CN, the installed machine state and the complete measurement chain before isolation or commissioning.
      1
      Verify the complete 330910-10-22-10-01-CN marking and the installed NSv monitoring-channel record.
      2
      Place the machine and affected protection channel in the approved maintenance state.
      3
      Confirm the receiving M10x1 thread, insertion clearance and probe orientation before removal.
      4
      Record the existing target, gap setting, cable route and Proximitor configuration.
      5
      Inspect the armored lead, probe tip and protected ClickLoc connector for damage or contamination.
      6
      Match the probe and extension cable to the selected NSv Proximitor system length.
      7
      Route the cable without excessive bending or tension, and restore connector protection.
      8
      Check static gap, diagnostics and controlled shaft-motion response before release.

      Technical notes

      Technical notes

      Match the probe and extension cable to the configured 3300 XL NSv Proximitor system length. Before commissioning, confirm the installed target material, probe gap, connector protection and complete nameplate suffix.

      FAQS

      • What thread and armor does 330910-10-22-10-01-CN use?
        It is an armored 3300 NSv probe with an M10x1 case thread.
      • How are its two case-length codes interpreted?
        The 10 option specifies 100 mm unthreaded length; the 22 option specifies a 220 mm overall case.
      • What cable and connector are supplied on this execution?
        The 10 option is a 1.0 m integral cable, and 01 is a standard-cable ClickLoc connector with protector.
      • Which Proximitor chain should this probe join?
        Use the matching 3300 XL NSv extension cable and Proximitor Sensor; their total configured system length must agree.
      • What gap is recommended for the matched NSv system?
        The nominal recommended target gap is 1.0 mm under the specified matched-system conditions.
      • How far may the M10x1 case thread engage?
        The listed maximum thread engagement is 15 mm; check the mounting hole before installation.
      • What cable bend radius should be maintained?
        Keep a minimum 25.4 mm bend radius for the probe cable, whether armored or unarmored.
      • Why inspect the protected ClickLoc joint before startup?
        Liquid entry or a loose connector can degrade the measurement signal, so seat and protect the probe-to-extension joint.
