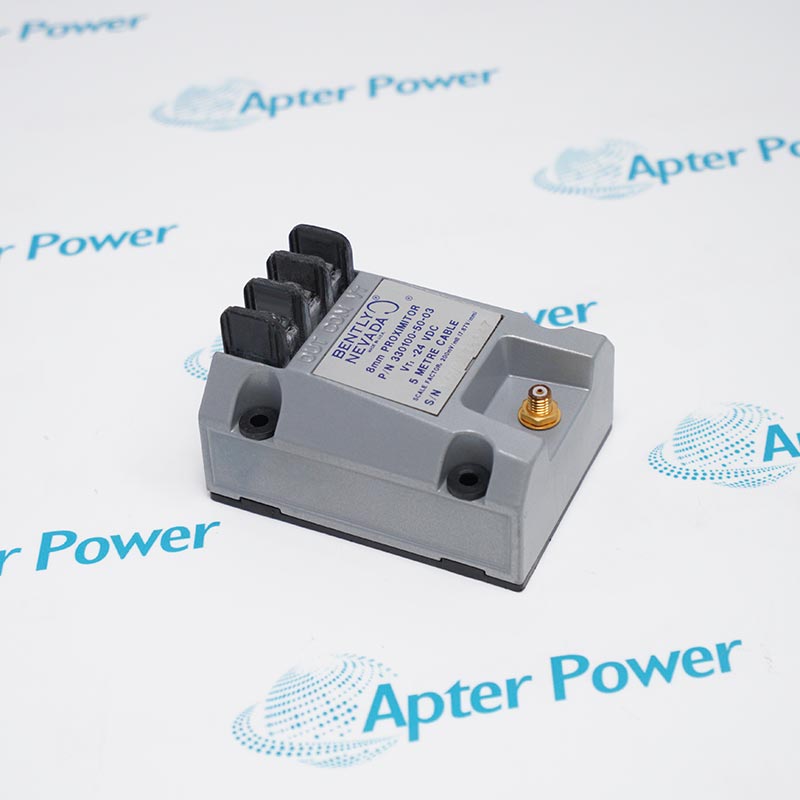

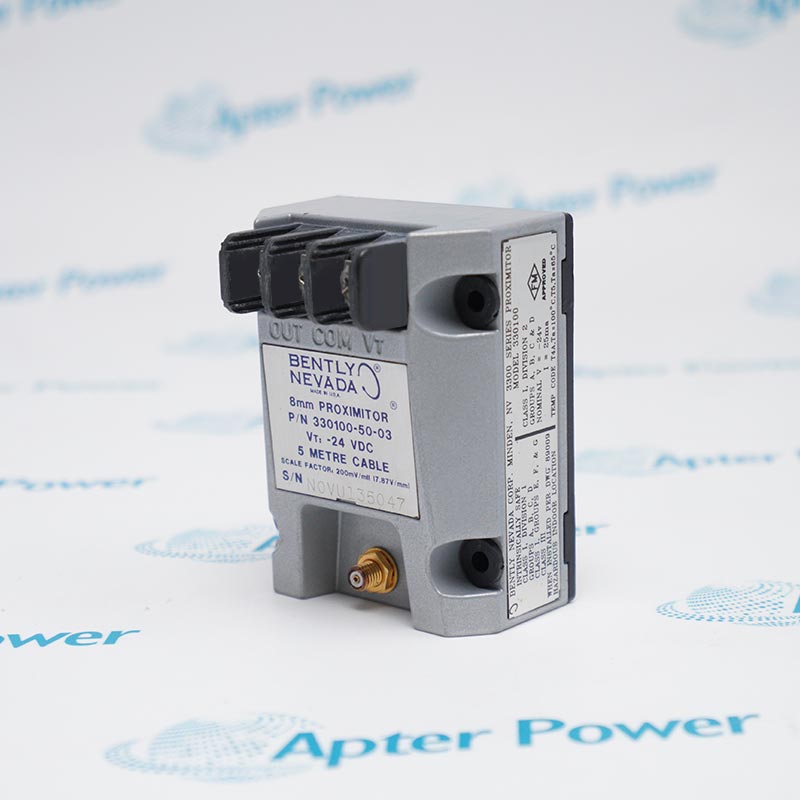

      Bently Nevada 330100-50-03
      Bently Nevada 330100-50-03
      Bently Nevada 330100-50-03
      Bently Nevada 330100-50-03
      Bently Nevada 330100-50-03
      Bently Nevada 330100-50-03
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      330100-50-03

      legacy Proximitor Sensor
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

      Bently Nevada 330100-50-03 is a legacy Proximitor Sensor for a matched 3300 proximity transducer system. Preserve the complete suffix, installed probe, extension cable, total system length and calibration record during replacement.

      Ask our team:

      Get a quick price for： 330100-50-03
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 330100-50-03

      Technical specifications for 330100-50-03

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        330100-50-03
      • Estimated shipping dimensions:
        7.8x6x4.7cm
      • Weight:
        0.28 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Manufacturer:
        Bently Nevada
      • Product family:
        3300 proximity transducer system
      • Base product:
        330100 legacy Proximitor Sensor
      • System-length field:
        50; verify the installed five-metre system arrangement
      • Final suffix:
        03; retain exactly and verify from the nameplate or controlled legacy drawing
      • Measurement principle:
        Eddy-current proximity signal conditioning
      • System components:
        Matched probe, extension cable and Proximitor Sensor
      • Measured variables:
        Static position and dynamic vibration
      • Primary applications:
        Fluid-film bearing vibration/position, Keyphasor and speed
      • Connector system:
        Matched coaxial probe and extension-cable connection
      • Target reference:
        Confirm installed target material and calibration record
      • Documentation boundary:
        Do not transfer electrical values from a neighboring model
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Bently Nevada 330100-50-03 is a legacy Proximitor Sensor for the 3300 proximity transducer system. The exact suffix is retained without transferring values from a neighboring model.
      • Retains the complete 330100-50-03 identity
      • Conditions a matched eddy-current proximity signal
      • Supports static position and dynamic vibration measurement
      • Requires exact nameplate and system-length verification

      Match 330100-50-03 to the installed nameplate, probe, extension cable, total system length, target material and monitor-channel calibration.

      Important Notice: Confirm the complete identity, installed-system configuration, approved isolation and functional acceptance record before service release.

      Bently Nevada 330100-50-03 Manuals & Downloads
      Bently Nevada 330100-50-03 Technical Reference (PDF)Bently Nevada 330100-50-03 Installation & Commissioning Guide (PDF)

      These documents are different: the first presents exact-model technical and engineering data; the second provides installation, commissioning and acceptance checks.

      Radial shaft vibration
      Conditions dynamic probe output for the assigned machinery-monitoring channel.
      Shaft position
      Provides the conditioned dc gap signal used for static position observation.
      Keyphasor or speed reference
      Supports the documented reference measurement in the approved matched system.
      Controlled legacy replacement
      Preserves the installed 330100-50-03 identity and companion probe/cable arrangement.
      Read the applicable Bently Nevada installation instructions before work. Verify 330100-50-03 and the installed-system configuration before commissioning.
      1
      Verify the complete 330100-50-03 nameplate and installed system position before work.
      2
      Place the connected machine and monitoring channel in the approved maintenance state.
      3
      Isolate the documented supply and field wiring before disconnection.
      4
      Record every terminal, cable, shield and companion component.
      5
      Protect the coaxial connection from contamination and mechanical damage.
      6
      Match the documented system length and target material before energizing.
      7
      Restore power with correct polarity and review the output for fault indications.
      8
      Complete a controlled response test and retain the final acceptance record.

      Technical notes

      Technical notes

      Do not infer suffix 03 from a neighboring model. Match 330100-50-03 to the installed nameplate, probe, extension cable, total system length, target material and monitor-channel calibration before commissioning.

      FAQS

      • What exact identity must be retained for Bently Nevada 330100-50-03?
        Retain the complete 330100-50-03 marking; do not shorten it to the 330100 base number.
      • What does the 50 field require on Bently Nevada 330100-50-03?
        Treat 50 as the controlled system-length field and verify the installed five-metre probe-plus-cable arrangement before use.
      • Can suffix 03 on Bently Nevada 330100-50-03 be replaced with another approval code?
        No. Retain 03 exactly and verify it against the nameplate or controlled legacy drawing.
      • What system components must match Bently Nevada 330100-50-03?
        The probe, extension cable and Proximitor Sensor must form the documented matched system.
      • What variables can the Bently Nevada 330100-50-03 system measure?
        The matched proximity system supports static position and dynamic vibration measurements.
      • What cable records are required before replacing Bently Nevada 330100-50-03?
        Record total electrical length, connector identity, cable route, shielding and the assigned monitor channel.
      • Why must Bently Nevada 330100-50-03 target material be checked?
        The installed target and calibration affect the proportional gap output and must match the controlled system record.
      • What is the final acceptance test for Bently Nevada 330100-50-03?
        Confirm exact identity, matched cable length, correct polarity, stable bias/gap output and a controlled functional response.
