What is Bently Nevada 330130-045-00-05?

330130-045-00-05 is a 3300 XL 8mm Standard Extension Cable used in a proximity transducer system.

What is the purpose of the 3300 XL Extension Cable?

The 3300 XL Extension Cable is a dedicated signal transmission component in the Bently Nevada 3300 XL machinery monitoring system. Its core purpose is to provide a high-fidelity, high-reliability signal transmission link for the eddy current displacement sensor system, ensuring the accuracy of mechanical vibration and displacement monitoring data and system stability.

What is the length of this extension cable?

The cable is 4.5 meters (14.8 feet) long.

Does this cable have armor protection?

No, this specific model (330130-045-00-05) features a standard, non-armored cable, whereas models with -01 or -02 in that position typically indicate armor options, as shown in this document.

What applications are suitable for this cable?

It is ideal for fluid-film bearing machines, speed measurement, and vibration monitoring on critical machinery like turbines and compressors.

Is it compatible with all Bently Nevada systems?

It is part of the 3300 XL 8mm system and is compatible with other 3300 XL components, but it is not interchangeable with 5mm systems.

330130-045-00-05

Name: 330130-045-00-05
Brand: Bently Nevada
SKU: 330130-045-00-05

3300 XL Standard Extension Cable

Bently Nevada 330130-045-00-05 extension cable coiled into a loose ring, light blue jacket with a dark blue connector boot at each end

The same extension cable with its coil pulled tighter, barcode label visible along the lower run

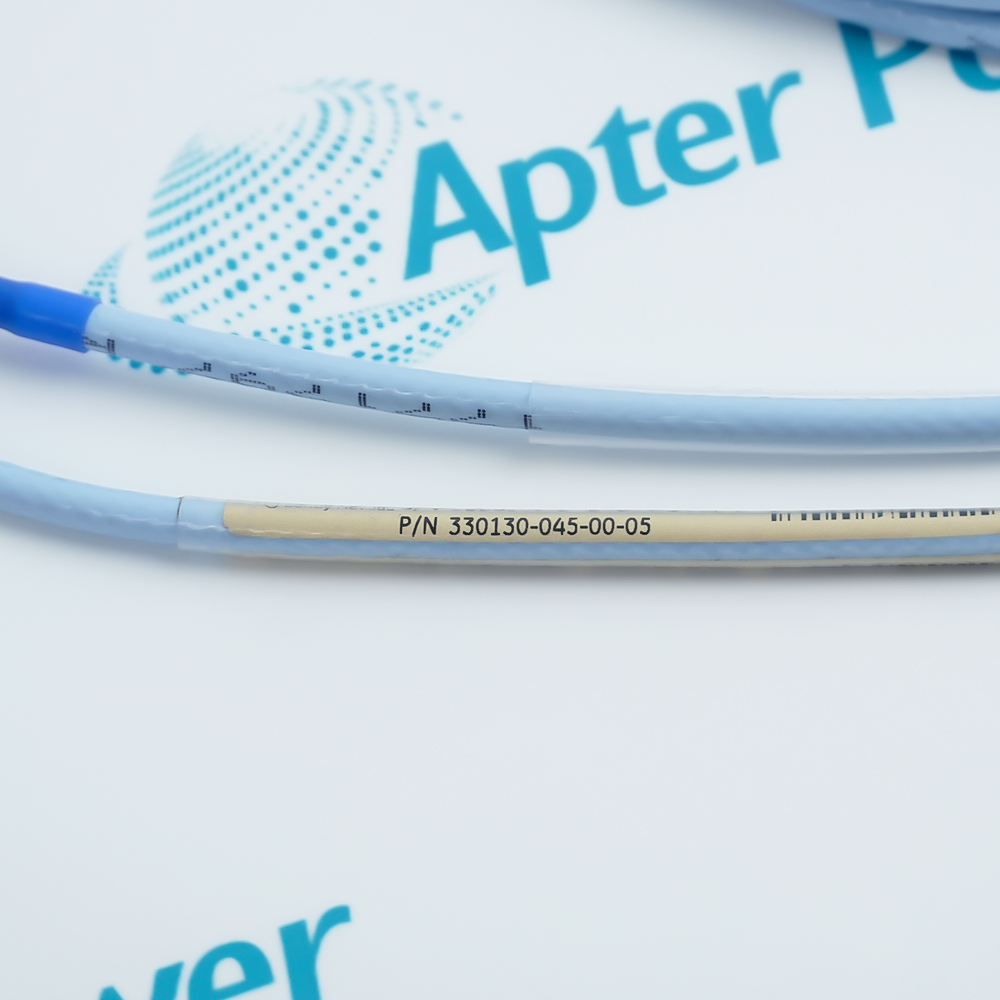

Close-up of the cable marker printed P/N 330130-045-00-05

Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe：

330130-045-00-05
3300 XL Standard Extension Cable
CABLE EXTENSION
MODEL 3300 XL
4.5 METER (14.8 FOOT) CABLE LENGTH
STANDARD CABLE
MULTIPLE APPROVALS

Ask our team:

Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com

Dispatch Planning
Confirm stock and lead time with our team.

Dedicated Manager
Personalized one-to-one VIP service

ISO 9001:2015 Certified
Trusted quality management

Get a quick price for 330130-045-00-05

E-mail *

Mobile *

Company

Content *

Quantity *

Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Get a Quote

For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

0

Why Choose Apter Power?

1.Full one year warranty on all components

2.Professional after selling team

3.Same-day dispatch payment come

4.All units are fully tested well with certificate

5.Speak With an Expert Sales Representative

6.More than 20 years experience in automation

7.Stable employees more than 10+ years working experience
1
Common Applications
- Oil
- Natural Gas
- power generation
- Chemical treatment
- Steel
- Heavy industry
2

Delivery and payment

Delivery

Logistic partners UPS, FedEx and DHL

International delivery available

Same day dispatch from warehouse inventory

Warranty

All parts new original are covered by Apterpower 12 month warranty

Returns

No hassle returns policy

Dedicated customer support team

Payment options

We accept Bank transfers and the following methods of payment:

Technical specifications for 330130-045-00-05

Manufacturer:

Bently Nevada
Product Category:

Machinery Monitoring Systems
Spare Part Number:

330130-045-00-05
Estimated shipping dimensions:

19x18x2cm
Weight:

0.16 kg
Tariff Code:

8537101190
Counliy of origin:

USA
Maximum Current:

12 mA
Operating Voltage:

-17.5 VDC to -26 VDC
Dielectric Strength:

>1500 V
Insulation Resistance:

>100 MΩ
Output Resistance:

50 Ω
Cable length:

4.5 meters (14.8 feet)
Cable Options:

Standard Extension Cable
Material:

FEP insulated coaxial cable (75 Ω)
Extension Cable:

34 g/m (0.4 oz/ft)
Extended Temperature Range cable:

75Ω triaxial, perfluoroalkoxy (PFA) insulated
Standard cable:

75 Q triaxial, fluoroethylene propylene (FEP) insulated

Ask for Quote

Information

Overview Manuals Core monitoring application Applicable mechanical types

The Bently Nevada 330130-045-00-05 is a 4.5-meter (14.8 ft) 3300 XL Standard Extension Cable, designed for high-accuracy eddy current proximity sensor systems, specifically to extend probes in vibration monitoring systems.

Ideal for Compression Systems, Speed Measurements, and Fluid-Film Bearing Machines
Extended Temperature Range Applications
Complete Interchangeability of Units and Cabling

The Bently Nevada 3300 XL 8mm Proximity Transducer System consists of one 3300 XL 8mm probe, one 3300 XL extension cable, and one 3300 XL Proximitor Sensor. The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.

Bently Nevada 330130-045-00-05 3300 XL Standard Extension Cable Manuals, Datasheets, Drivers, Link

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.

Radial vibration measurement: monitoring the real-time dynamic vibration of rotating shafts (such as turbine and compressor shafts) to identify imbalances, misalignment, or bearing wear. Axial position (thrust) monitoring: measures the axial displacement of the rotor relative to the stator to prevent catastrophic impacts caused by thrust bearing failure. Speed and zero speed measurement: In conjunction with a tachometer or monitoring system, provide accurate rotational frequency data. Keyphasor: Provides a pulse signal for each revolution, used for phase alignment and vector description in vibration analysis.

This cable is specifically designed for Fluid Film Bearing machinery, which is commonly found in the following equipment: Gas turbines and steam turbines: monitoring of core power equipment in the power industry. Centrifugal/Axial Compressors: Key transportation equipment in petroleum, natural gas, and chemical processes. Large water pumps and fans: such as industrial circulating water pumps, induced draft fans, etc. Generator and Electric Motor: Bearing Protection for High Power Rotating Electrical Machines.

FAQ View All FAQ

What is Bently Nevada 330130-045-00-05?

330130-045-00-05 is a 3300 XL 8mm Standard Extension Cable used in a proximity transducer system.
What is the purpose of the 3300 XL Extension Cable?

The 3300 XL Extension Cable is a dedicated signal transmission component in the Bently Nevada 3300 XL machinery monitoring system. Its core purpose is to provide a high-fidelity, high-reliability signal transmission link for the eddy current displacement sensor system, ensuring the accuracy of mechanical vibration and displacement monitoring data and system stability.
What is the length of this extension cable?

The cable is 4.5 meters (14.8 feet) long.

Does this cable have armor protection?

No, this specific model (330130-045-00-05) features a standard, non-armored cable, whereas models with -01 or -02 in that position typically indicate armor options, as shown in this document.
What applications are suitable for this cable?

It is ideal for fluid-film bearing machines, speed measurement, and vibration monitoring on critical machinery like turbines and compressors.
Is it compatible with all Bently Nevada systems?

It is part of the 3300 XL 8mm system and is compatible with other 3300 XL components, but it is not interchangeable with 5mm systems.
