What is 330103-00-05-05-02-CN?

330103-00-05-05-02-CN is a 3300 XL 8 mm Proximity Probes.

What is the principle of the 330103-00-05-05-02-CN probe?

Proximity sensors detect objects without touching them. They operate using principles like electromagnetic induction, changes in capacitance, reflection of ultrasonic waves, or interruption of light beams.

What are proximity probes used for?

Proximity probes are sensors that measure relative proximity. Proximity probes use changes in voltage to measure rotating or reciprotcating shaft surfaces. Because proximity probes are non-contacting transducers, mount proximity probes on a reasonably stationary mechanical structure, such as a bearing housing.

Do you offer global delivery services?

Yes. We ship globally, and we are able to quickly deliver parts globally to any corner of the world. Unless otherwise specified, we will ship your order via (DHL). We can also ship through FedEx, UPS, and TNT. We can also use your account.

How many parts do you have in stock?

We have an extensive stock base consisting of ten thousands of new and discontinued automation parts including those from leading manufacturers such as:Control Systems (DCS, PLC, CNC) ,Panel Controllers,HMI and Display Panels,Drives,Encoders and Resolvers,Power Supplies. If you are unable to find what you are looking for then don’t panic.

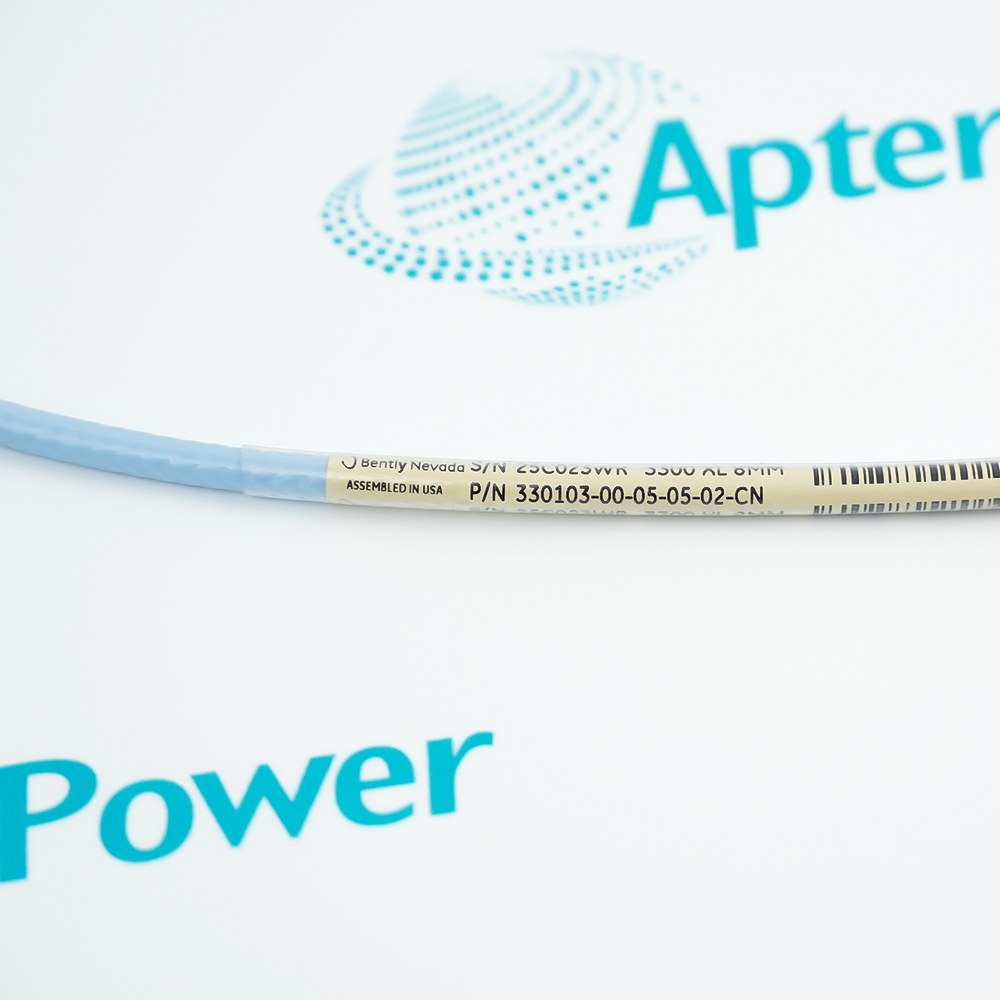

330103-00-05-05-02-CN

Name: 330103-00-05-05-02-CN
Brand: Bently Nevada
SKU: 330103-00-05-05-02-CN

Proximity Probe

Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe：

3300 XL 8 mm Probe
M10 x 1 thread
without armor
Standard Mount Configuration

Ask our team:

Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com

Dispatch Planning
Confirm stock and lead time with our team.

Dedicated Manager
Personalized one-to-one VIP service

ISO 9001:2015 Certified
Trusted quality management

Warranty Policy

Review the applicable warranty coverage and claim process.
Return Notice

Check the return process and obtain approval before sending an item back.
Shipping Method

Review shipping arrangements, transit estimates and delivery responsibilities.
Parts Availability

Browse stock listings and confirm current availability with our team.
How to order

See how to submit an enquiry, review a quotation and confirm an order.

Get a quick price for 330103-00-05-05-02-CN

E-mail *

Mobile *

Company

Content *

Quantity *

Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Get a Quote

For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

1

Requirement review

We review the part number, quantity and delivery requirements and ask for any missing details.
2

Quotation and availability

We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
3

Order confirmation and dispatch

Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 330103-00-05-05-02-CN

Manufacturer:

Bently Nevada
Product Category:

Machinery Monitoring Systems
Spare Part Number:

330103-00-05-05-02-CN
Estimated shipping dimensions:

2x1.5x58cm
Weight:

0.06 kg
Tariff Code:

8537101190
Counliy of origin:

USA
Probe Operating Temperature:

-51°C to +177°C
Maximum Connector Torque:

0.565 N•m
Unthreaded Length Option:

0 mm
Overall Case Length Option:

50 mm
Total Length Option:

0.5 meter (1.6 feet)
Connector and Cable-Type Option:

Miniature coaxial ClickLoc connector, standard cable

Ask for Quote

Information

Overview Manuals Common Applications Product Precautions

The 330103-00-05-05-02-CN is a Bently Nevada 3300 XL 8mm metric standard mount proximity probe designed for fluid-film bearing machines. Paired with a Proximitor sensor, it provides an output voltage directly proportional to the distance between the probe tip and the observed conductive surface for static position and dynamic vibration measurements, as well as Keyphasor reference and speed tracking.

One 3300 XL 8 mm probe
One 3300 XL extension cable
One 3300 XL Proximitor Sensor

The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.

Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable with other non XL 3300 series 5 mm and 8 mm transducer system components. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.

Bently Nevada 330103-00-05-05-02-CN Proximity Probe Manuals, Datasheets, Drivers, Link

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.

Thermal Power Generation

Monitoring radial vibration and shaft displacement of high, medium, and low-pressure rotors in high-power steam turbine-generator units.

Petroleum Refining

Monitoring thrust clearance and dynamic runout of rotors in main air blowers and rich gas compressor trains within heavy oil catalytic cracking units.

Petrochemical

Monitoring high-speed rotating shaft vibration of core cracked gas compressors in million-ton ethylene plants to prevent rotor failures.

Coal Chemical Industry

Monitoring oil film vibration status of bearings in main centrifugal air compressors and boosters within large air separation units.

Nuclear Power Generation

Used for monitoring the eccentricity and runout of large main feedwater pumps, condensate pumps, and steam turbine shafts in the conventional island.

Hydropower Generation

Monitoring main shaft runout of thrust bearings and radial dynamic displacement of upper/lower guide bearings in large vertical hydro-turbine generators.

When using 330103-00-05-05-02-CN, note the M10x1 metric thread and avoid over-torquing. Its 0.5-meter cable requires an extension cable to reach the Proximitor, never pull it.

Use a multimeter to precisely set the 2.0 mm initial gap (around -10V gap voltage) to prevent shaft collisions, and ensure adequate side clearance to avoid metal interference.

Alternative Names

330103 00 05 05 02 CN 330103-00-05-05-02-00 330103-00-05-05-02-05 330103-00-05-05-02-BR 330103-00-05-05-02-RU 330103-00-05-05-O2-CN 330103-00-05-O5-02-CN 330103-00-O5-05-02-CN 330103-0O-05-05-02-CN 330103-O0-05-05-02-CN 3301O3-00-05-05-02-CN 330I03-00-05-05-02-CN 33O103-00-05-05-02-CN

Technical notes

The 330103-00-05-05-02-CN has an M10 × 1 fully threaded case with 0 mm unthreaded length, a 50 mm overall case length, a 0.5-meter total cable length, and a standard unarmored cable with a gold-plated ClickLoc connector. The unit holds CN regional certification for hazardous areas.
