Get a quick price for 330103-00-04-05-02-00
For more information on how your data is processed and stored by Apterpower please read our privacy policy
Technical specifications for 330103-00-04-05-02-00
-
Manufacturer:Bently Nevada
-
Product Category:Machinery Monitoring Systems
-
Spare Part Number:330103-00-04-05-02-00
-
Estimated shipping dimensions:20.4x22.2x3.7cm
-
Weight:0.1 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Unthreaded Length:0.0 in
-
Overall Case Length:40mm
-
Total Length:0.5 meter (1.6 feet)
-
Probe Tip Material:Polyphenylene sulfide (PPS)
-
Minimum Cable Bend Radius:25.4 mm
-
Linear Range:2.0 mm (80 mils)
-
Average Scale Factor:7.87 V/mm (200 mV/mil) ± 4%
-
Probe Tip Diameter:8.0 mm
-
Maximum Rated Pressure:7.0 bar (100 psi) at probe tip
Information
Overview
Manuals
Common Applications
Product Precautions

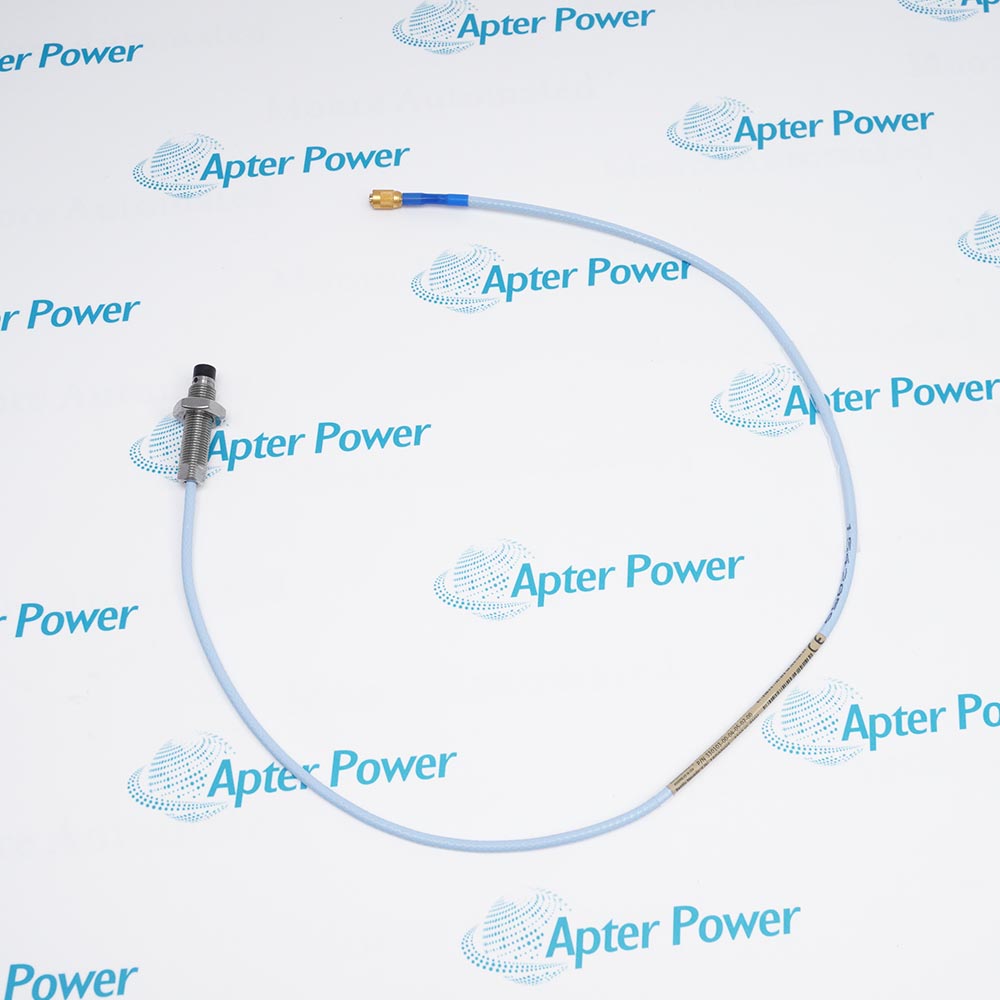

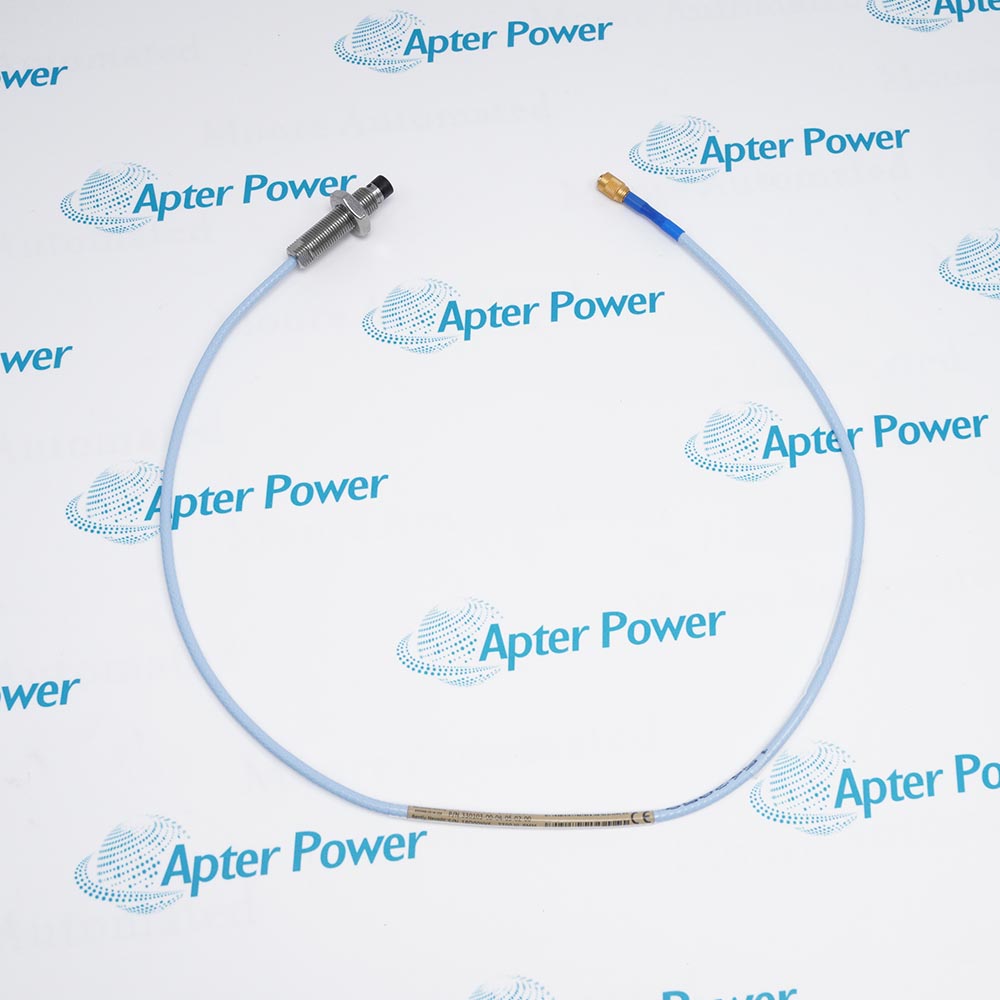

The 330103-00-04-05-02-00 is a standard 8 mm metric proximity probe belonging to the Bently Nevada 3300 XL series, featuring an M10 by 1 thread, a 40 mm case length, and a 0.5 meter cable with a miniature coaxial ClickLoc connector.
- Delivers eddy-current-based analog voltage proportional to probe-to-target gap, custom-built for high-precision rotating shaft monitoring
- A single probe capable of measuring both static (axial displacement, eccentricity, position) and dynamic (radial vibration, RPM, Keyphasor) parameters
- Fully interchangeable system components (probe, cable, Proximitor) enable direct replacement without requiring individual component bench calibration
Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable with other non XL 3300 series 5 mm and 8 mm transducer system components. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 330103-00-04-05-02-00 Proximity Probe Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Oil & Gas Exploration
Monitors shaft vibration and axial displacement in oil pipeline pumps and LNG compressors to prevent bearing burnout during high-speed operations.
Petrochemical & Refining
Installed on charge gas compressors, hydrocracking feed pumps, and large fans to measure static and dynamic oil film clearances of fluid-film bearings, ensuring continuous production.
Thermal Power Generation
Monitors large axial displacement and radial vibration of steam turbine generator sets and boiler feed pumps, while providing Keyphasor speed references.
Nuclear Power Generation
Utilized for condition monitoring of main feed pumps and turbines within the nuclear island, providing early fault warnings for high-safety-critical rotating equipment.
Hydroelectric Power Generation
Monitors the radial runout and thrust bearing displacement of hydro turbine shafts to evaluate long-period vibrations caused by hydraulic imbalance.
Steel & Metallurgy
Applied to blast furnace blowers and large high-pressure dedusting fans to monitor bearings and prevent unplanned downtime caused by hard dust particle impacts.
During installation, precisely adjust the probe gap to the center of its linear range, typically around 1.0 mm or -10 Vdc, and maintain adequate side clearance of at least twice the probe tip diameter to prevent electromagnetic interference from surrounding metals. Avoid over bending or pulling the cable, keeping the bend radius above 25.4 mm. Ensure the Miniature Coaxial ClickLoc connectors remain clean and dry, and tighten them by hand only—never use tools. Lastly, verify that the total system length of the probe plus extension cable matches the 5 meter specification required by the Proximitor sensor to guarantee measurement accuracy.
Alternative Names
330103 00 04 05 02 00
330103-00-04-05-02-CN
330103-00-04-05-02-05
330103-00-04-05-02-BR
330103-00-04-05-02-RU
330I03-00-04-05-02-00
33O1O3-OO-O4-O5-O2-OO
33OIO3-OO-O4-O5-O2-OO
Technical notes
The 330103-00-04-05-02-00 is an M10×1 metric proximity probe belonging to the Bently Nevada 3300 XL 8 mm Proximity Transducer System.Connected to a 3300 XL Proximitor Sensor and extension cable, the system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface. It can measure both static (position) and dynamic (vibration) values.
FAQ View All FAQ
-
What is 330103-00-04-05-02-00?330103-00-04-05-02-00 is a Proximity Probes.
-
What is the core working principle of 330103-00-04-05-02-00?It utilizes eddy current principles to output voltage directly proportional to the distance from the probe tip to a conductive surface.
-
What does the 330103-00-04-05-02-00 primarily measure?It measures both static values (like position) and dynamic values (like mechanical vibration).
-
What industrial standard does the 330103-00-04-05-02-00 comply with?The system fully complies with the American Petroleum Institute's (API) 670 standard for 5-meter configurations.
-
Which performances of 330103-00-04-05-02-00 are regulated by the API 670 standard?It regulates its mechanical configuration, linear range, accuracy, and temperature stability.
Manufacturers
