Technical specifications for 330103-00-14-05-02-00
-
Manufacturer:Bently Nevada
-
Product Category:Machinery Monitoring Systems
-
Spare Part Number:330103-00-14-05-02-00
-
Estimated shipping dimensions:1.8x1.6x68cm
-
Weight:0.08 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Reference Document:3300 XL 8 mm Proximity Transducer System Datasheet 141194 Rev. AN
-
Probe Family:3300 XL 8 mm proximity probe
-
Probe Thread:M10 x 1
-
Armor:Without armor
-
Unthreaded Length:0 mm
-
Overall Case Length:140 mm
-
Total Probe Length:0.5 m (1.6 ft)
-
Connector:Miniature coaxial ClickLoc
-
Cable Type:Standard 75 ohm triaxial FEP-insulated cable
-
Connector Protector:Not included with option 02
-
Agency Approval Option:00 = Not required
-
Probe Tip Material:Polyphenylene sulfide (PPS)
-
Probe Case Material:AISI 303 or 304 stainless steel
-
Nominal Probe DC Resistance:7.45 ohm +/- 0.50 ohm for 0.5 m probe
-
Probe Lead Tensile Strength:330 N (75 lbf), maximum rated
-
M10 x 1 Case Torque:33.9 N m maximum; 11.2 N m recommended
-
First Three Threads Torque:22.6 N m maximum; 7.5 N m recommended
-
Connector Torque:Finger tight recommended; 0.565 N m maximum
-
Minimum Cable Bend Radius:25.4 mm (1.0 in)
-
Maximum Thread Engagement:15 mm for M10 x 1
-
Probe Operating and Storage Temperature:-52 to +177 deg C (-62 to +350 deg F)
-
Pressure Seal:Viton O-ring; probe not pressure tested before shipment
-
System Linear Range:2 mm (80 mils), approximately 0.25 to 2.3 mm from target
Information
Overview
Manuals
Common Applications
Product Precautions

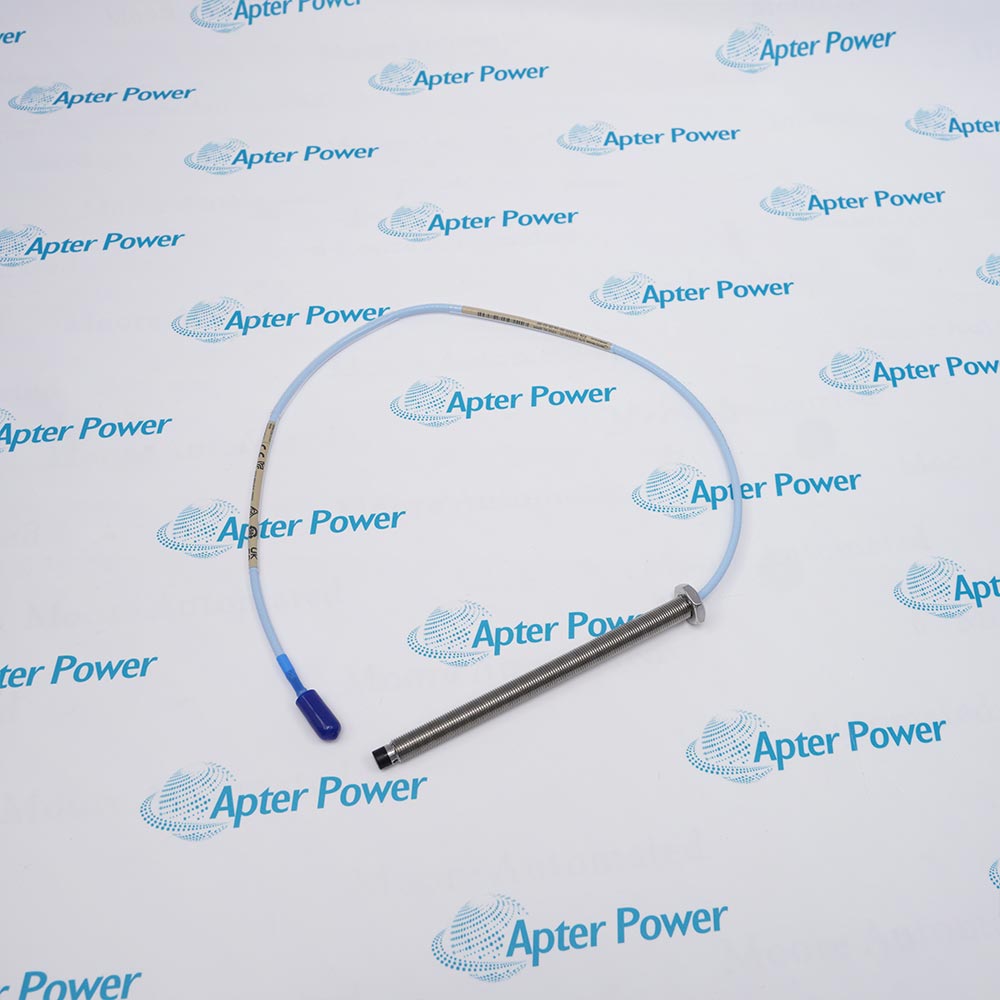

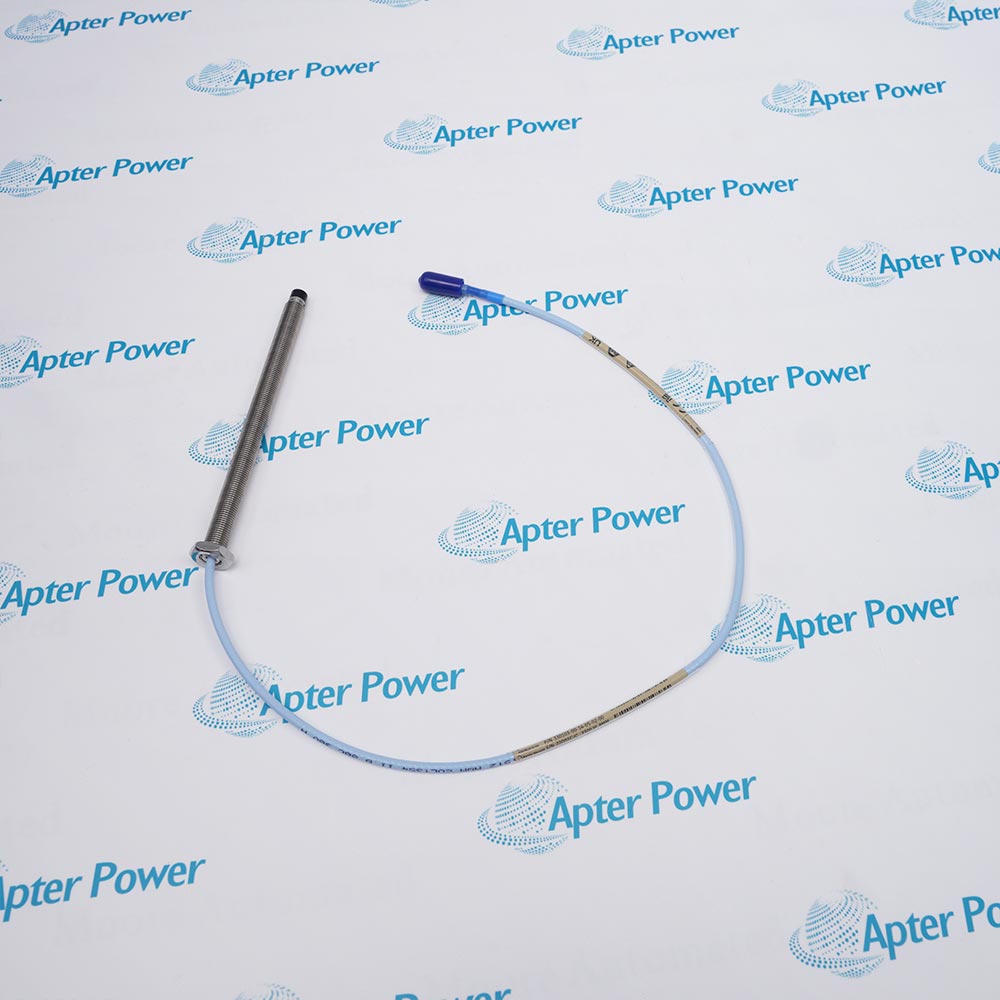

Bently Nevada 330103-00-14-05-02-00 is a proximity probe from the 3300 XL 8 mm proximity probe family. Its complete length, case, cable and approval options define the probe configuration used at the machine measurement point.
- Probe Family: 3300 XL 8 mm proximity probe.
- Probe Thread: M10 x 1.
- Armor: Without armor.
- Unthreaded Length: 0 mm.
Mounting position, thread engagement, connector condition and cable routing all affect the completed measurement chain. After installation, confirm the static gap or sensor output and compare the dynamic signal with the expected machine response.
Important Notice: Confirm the complete system length, extension cable, Proximitor Sensor, target material and installed gap before commissioning; the probe ordering code does not by itself define the full system response.
Bently Nevada 330103-00-14-05-02-00 Manuals & Downloads
Bently Nevada 330103-00-14-05-02-00 Technical Reference (PDF)Bently Nevada 330103-00-14-05-02-00 Installation & Commissioning Guide (PDF)
The technical reference explains the exact metric ordering code, probe construction, mechanical and environmental limits, 3300 XL system role and supported applications. The installation guide covers identity checks, M10 x 1 mounting, cable routing, ClickLoc protection, gap commissioning and final acceptance.
Radial vibration
Measure dynamic shaft motion on fluid-film bearing machinery using the matched 3300 XL chain.
Axial position
Observe static thrust position where target geometry and probe separation meet the installation limits.
Keyphasor reference
Provide a non-contacting phase-reference signal from an approved rotating target arrangement.
Speed measurement
Support speed-related measurement where the target, gap and response are suitable for the application.
Apply these checks to the exact Bently Nevada 330103-00-14-05-02-00 probe and its complete installed 3300 XL 8 mm transducer chain.
1
Match all six ordering fields before installation; a different case, cable, connector or approval code is a different execution.
2
Limit M10 x 1 thread engagement to 15 mm and confirm the tapped-hole depth before inserting the 140 mm case.
3
Use 11.2 N m as the recommended case torque and never exceed the 33.9 N m maximum rating.
4
Treat connector torque separately: finger tight is recommended and 0.565 N m is the published maximum.
5
Maintain at least a 25.4 mm cable bend radius and keep routing loads below the probe-lead rating.
6
Protect the ClickLoc connection from contamination and liquid entry because option 02 does not include a connector protector.
7
Review the pressure-seal duty and process medium; the Viton-sealed probe is not pressure tested before shipment.
8
Confirm target material, gap, extension cable and Proximitor identity before accepting the channel response.
Technical notes
330103-00-14-05-02-00 should be matched by its complete identifier, installed position and mating components. Before this proximity probe returns to service, inspect its mechanical fit and connections and confirm normal operation at the actual monitoring point.
FAQ View All FAQ
-
Which system is 330103-00-14-05-02-00 associated with?Probe Family is 3300 XL 8 mm proximity probe.
-
What thread detail applies to 330103-00-14-05-02-00?Probe Thread is M10 x 1.
-
What construction detail applies to 330103-00-14-05-02-00?Armor is Without armor.
-
What length detail applies to 330103-00-14-05-02-00?Unthreaded Length is 0 mm.
-
What connection detail applies to 330103-00-14-05-02-00?Connector is Miniature coaxial ClickLoc.
-
How is the agency approval option specified for 330103-00-14-05-02-00?Agency Approval Option is 00 = Not required.
-
What should be inspected before installing 330103-00-14-05-02-00?Inspect the sensing tip, case, thread, connector and cable, and confirm that the mounting position is clean and mechanically sound.
-
How should 330103-00-14-05-02-00 be checked after installation?Verify the static position or gap, secure cable routing and a stable signal that agrees with the expected machine response.
