Product image is representative; revision or series may vary. Contact us to request a specific version.
Get a quick price for 330180-91-05
For more information on how your data is processed and stored by Apterpower please read our privacy policy
Technical specifications for 330180-91-05
-
Manufacturer:Bently Nevada
-
Product Category:Machinery Monitoring Systems
-
Spare Part Number:330180-91-05
-
Estimated shipping dimensions:8.8x7x3cm
-
Weight:0.25 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Operating Voltage:24 DC
-
Frequency Range:1 kHz to 1 MHz
-
Accuracy:+/- 0.02% of full scale
-
Mounting Type:Panel Mount
-
Signal Output:4-20mA
-
Operating Temperature:-40°C to +85°C
Information
Overview
Manuals
Need More Info

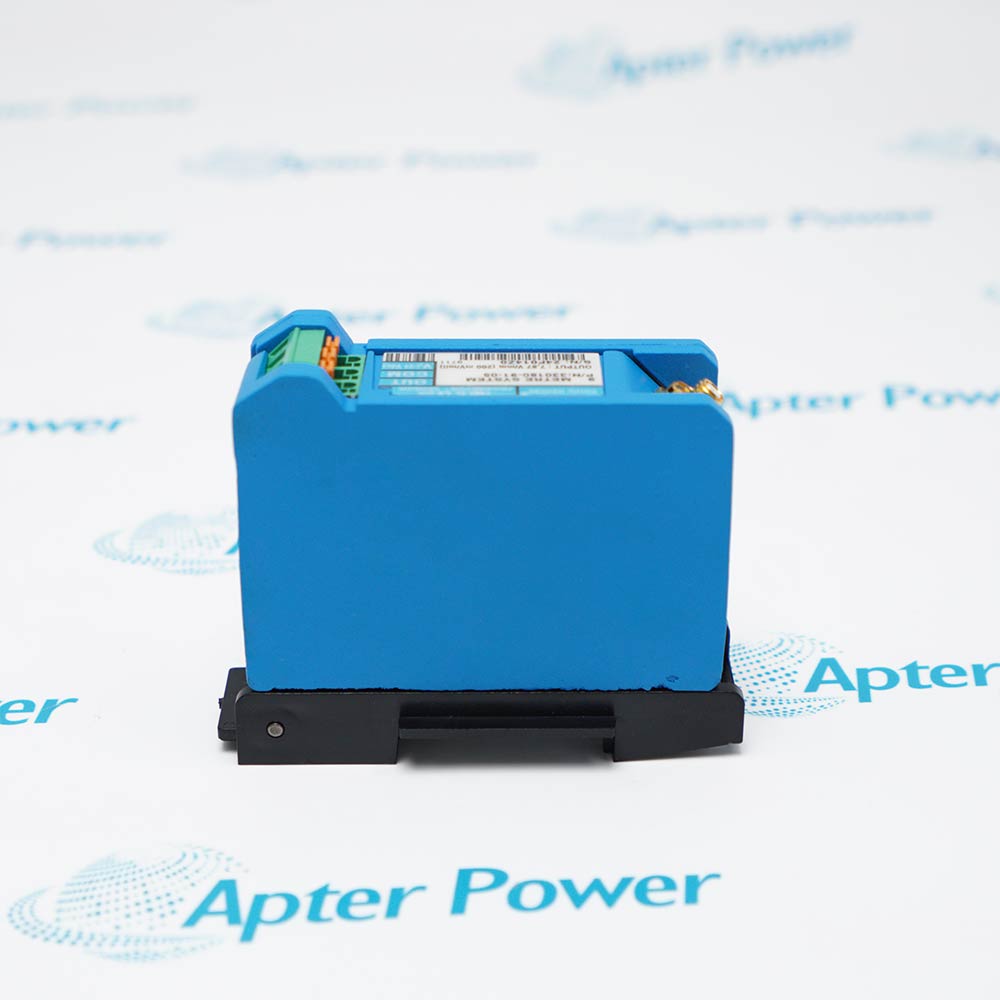

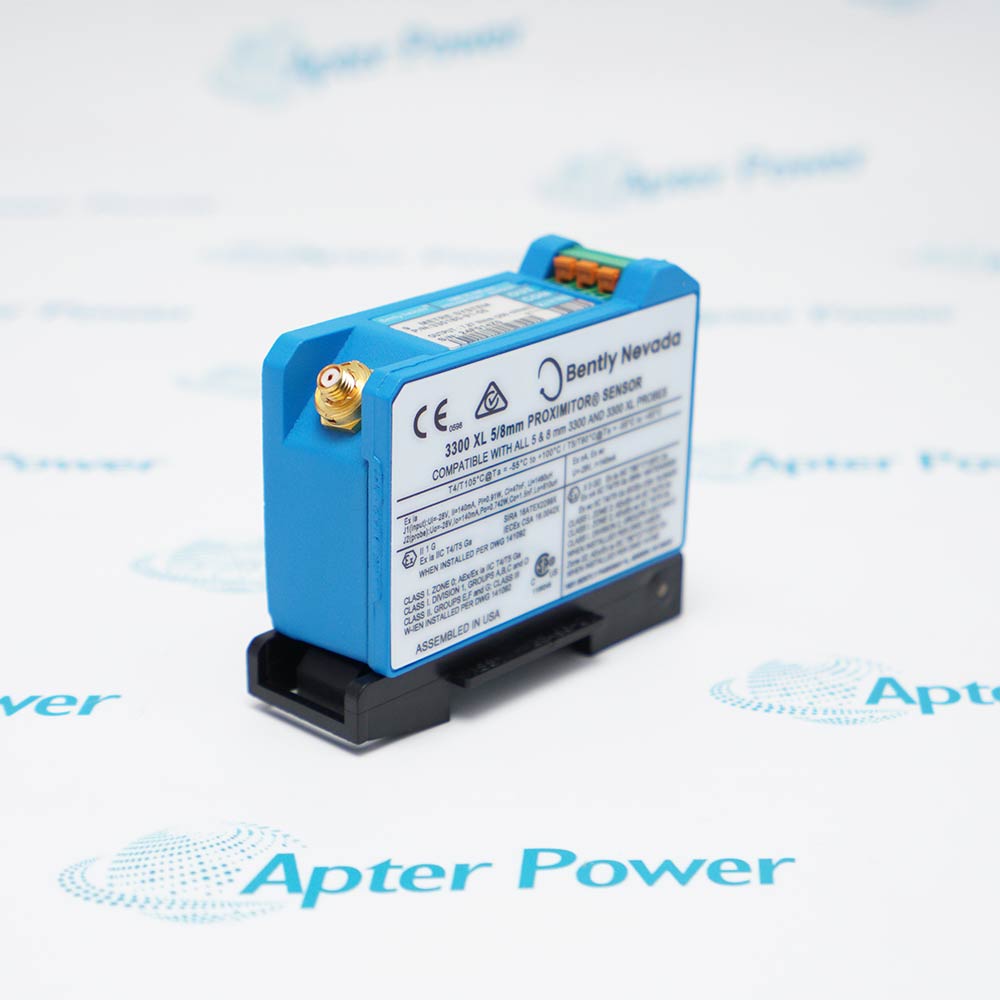

- 330180-91-05 3300 XL Proximitor Sensor
- Complete Interchangeability of Units and Cabling
- Backwards Compatible with Other Non-3300 XL Series Transducer System Components.

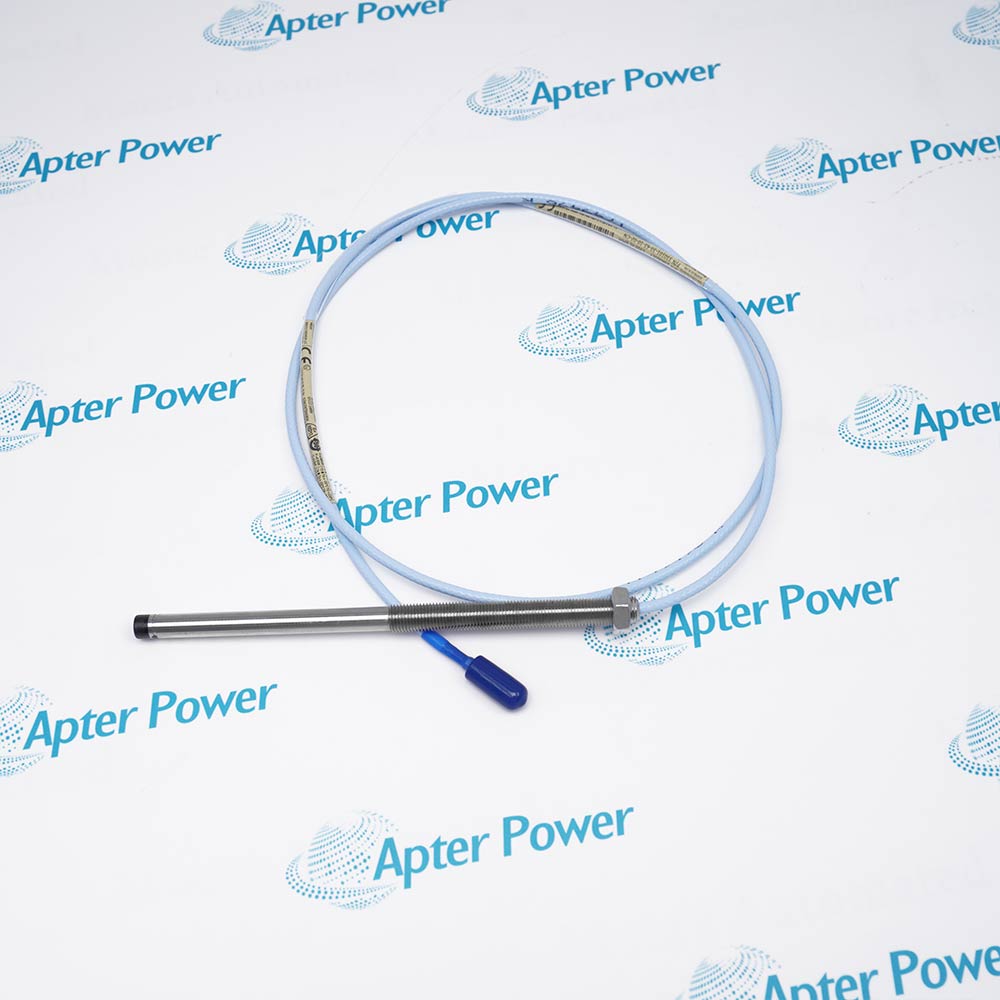

The Bently Nevada 330180-91-05 3300 XL 8mm Proximity Transducer System consists of one 3300 XL 8mm probe, one 3300 XL extension cable, and one 3300 XL Proximitor Sensor. The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values.
The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute's (API) 670 Standard (4th Edition) for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
Each 3300 XL 8 mm Transducer System component is backward-compatible and interchangeable with other non-XL 3300 series 5 mm and 8 mm transducer system components. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 330180-91-05 3300 XL Proximitor Sensor Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
We know that questions arise, and that sometimes you need more details or a closer look to make the right decision. That’s why we make it easy for you to reach out directly—so you’re never left wondering.
With our team, you’re just a message away from clarity and confidence. Whether you have a specific question, need a particular image, or want more details, the request form puts you in control. Let us know what you need, and we’ll bring the answers straight to you—no guesswork required!
FAQ View All FAQ
-
What is the 330180-91-05 Proximitor Sensor?This is an eddy current proximity probe sensor from Bently Nevada (now part of Baker Hughes) vibration and displacement monitoring systems. It is a standard industrial monitoring probe used for non-contact measurement of shaft vibration and axial displacement in rotating machinery.
-
What is the 330180-91-05 system length?The "91" in the part number indicates a 9.0-meter (29.5 feet) total system length, including the probe and extension cable.
-
What approvals does the 330180-91-05 have?The "-05" option indicates multiple approvals, including CSA, ATEX, and IECEx.
-
Is the 330180-91-05 compatible with older systems?Yes, the 3300 XL Proximitor Sensor is backward compatible with other non-3300 XL series 5mm and 8mm transducer system components.
-
What is the 330180-91-05 mounting option?It is designed for high-density DIN-rail mounting or traditional 4-hole panel mounting.
-
What is the 330180-91-05 typical lead time?It is often in stock, with shipping typically within 1–10 working days.
-
What is the 330180-91-05 input/output?It operates as an eddy current sensor, providing a voltage output proportional to the distance between the probe tip and the conductive target.
-
Does this include the 330180-91-05 probe and cable?No, Probes and Extension Cables are generally sold separately.
