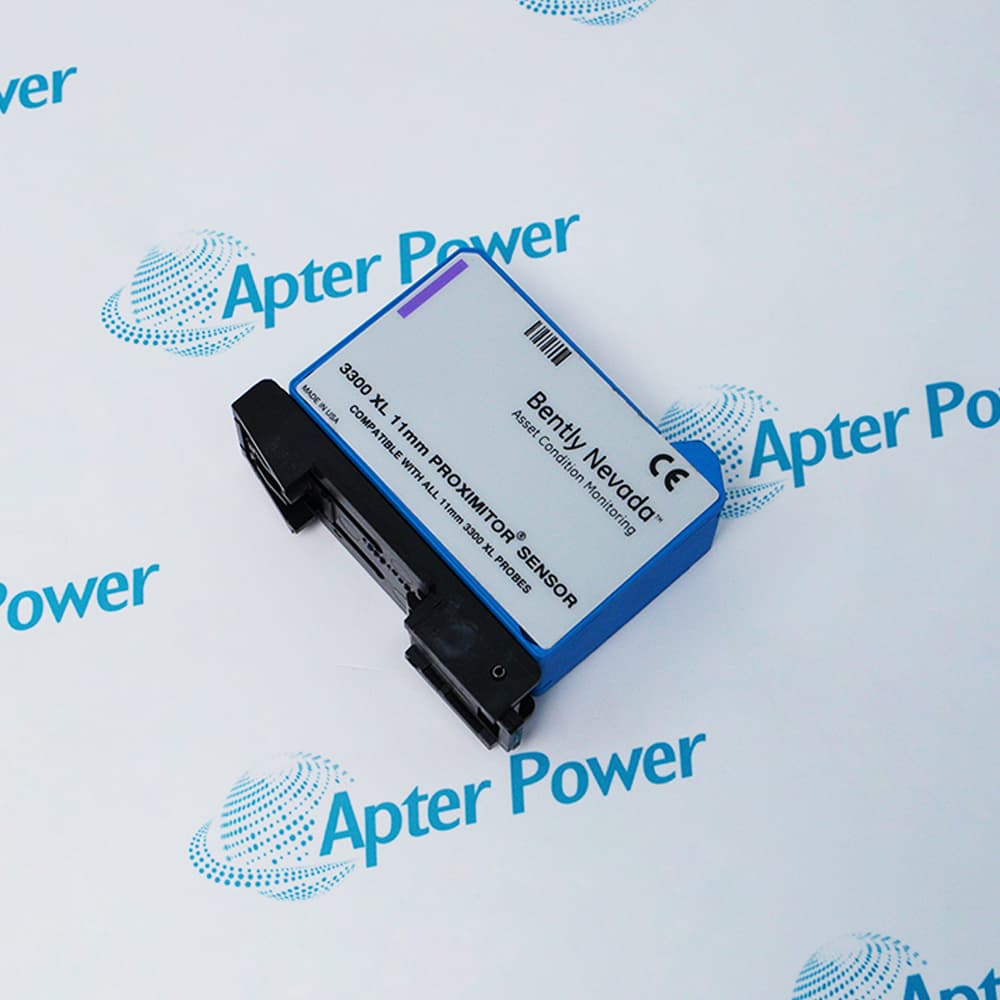

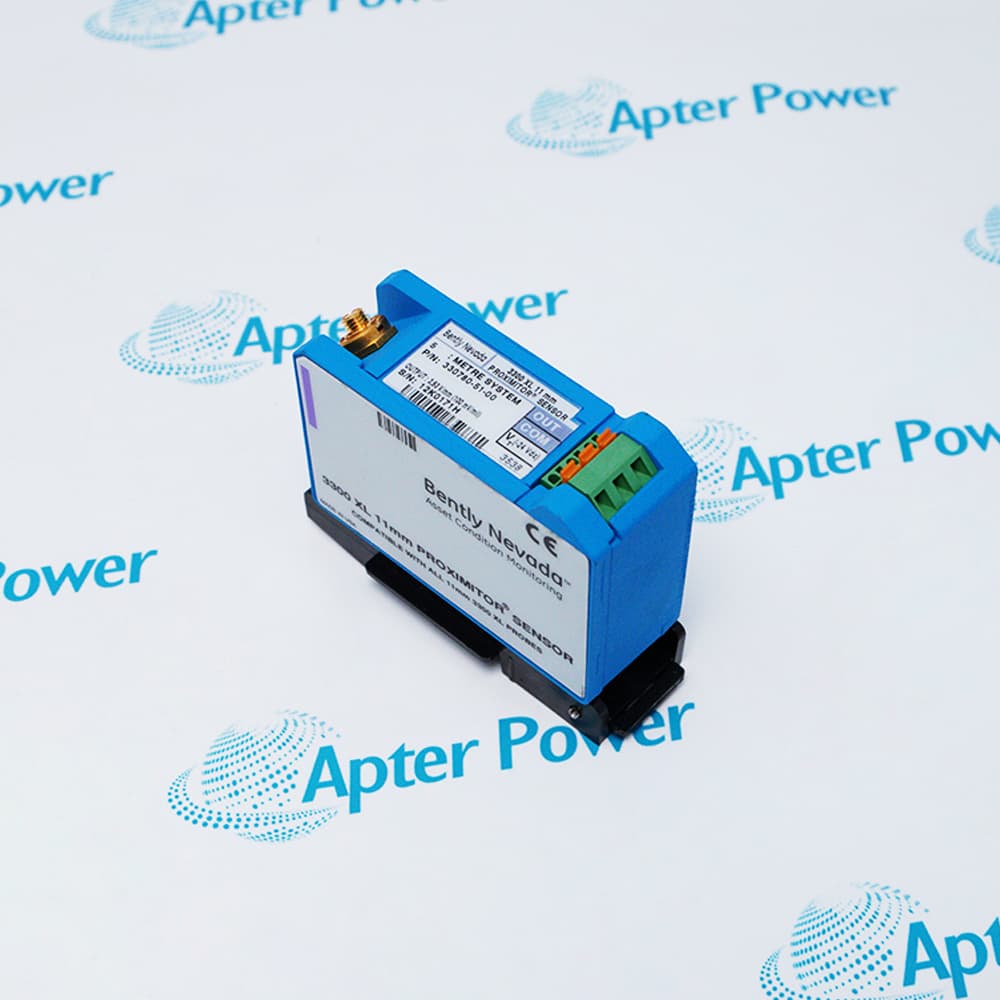

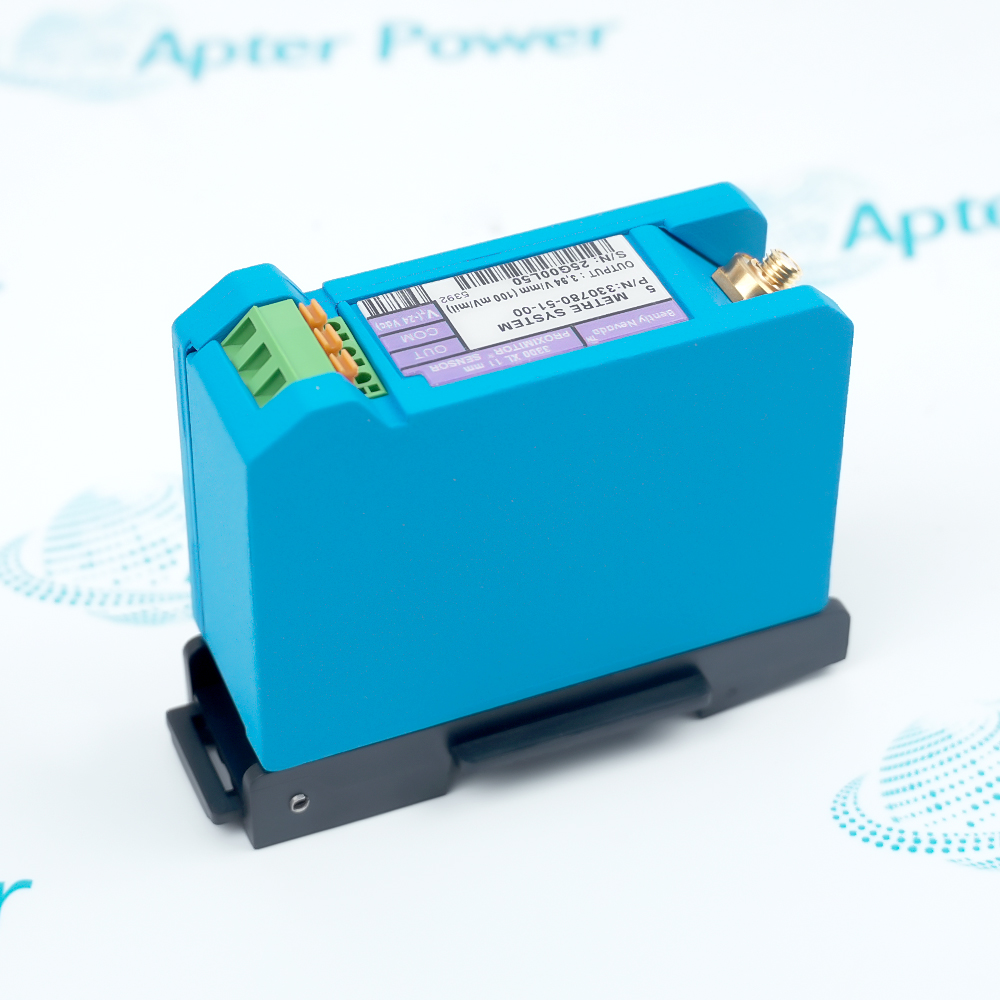

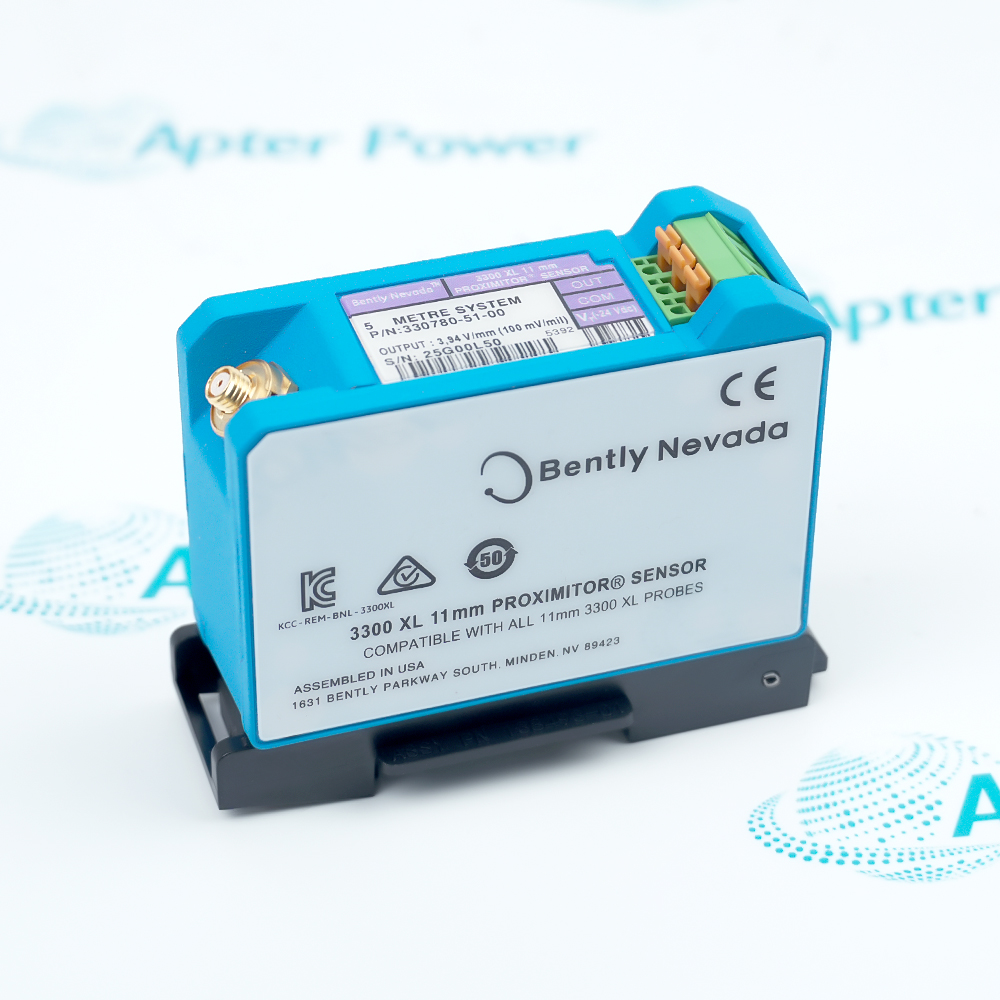

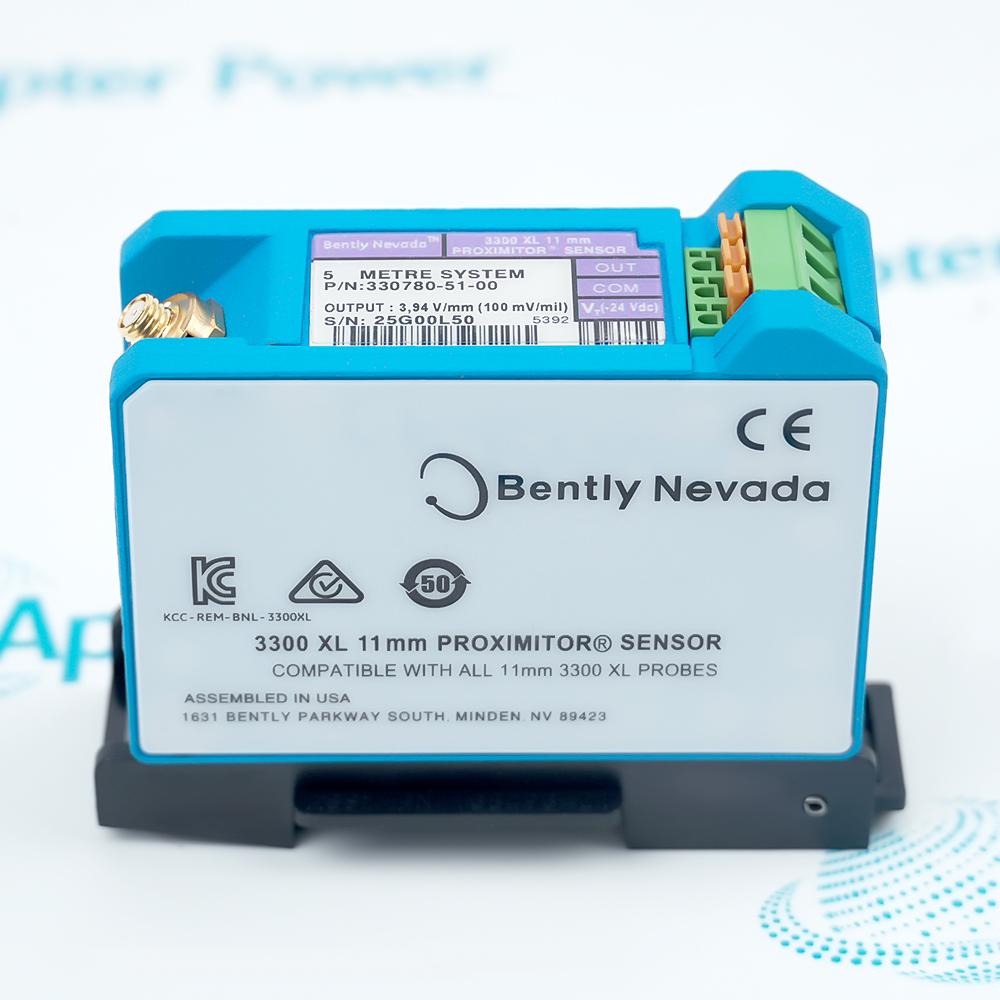

The 330780-51-00 is a preamplifier for the 3300 XL series 11 mm eddy current proximity sensor system. This product is commonly used for non-contact displacement and vibration monitoring of large rotating machinery, efficiently and accurately converting changes in mechanical clearance measured by the probe into a standard voltage output.
Axial (thrust) position measurements
Phase reference (Keyphasor) signals
Tachometer and zero speed measurements
The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have a longer linear range compared to our standard 3300 XL 8 mm Transducer System.The 3300 XL 11 mm Proximitor Sensor is designed to replace the 7200-series 11 mm and 14 mm Transducer Systems. When upgrading from the 7200-series system to the 3300 XL 11 mm system, every component must be replaced with 3300 XL 11 mm components. In addition, the monitoring system must be updated. If using a 3500 Monitoring System, an updated version of the configuration software that lists the 3300 XL 11 mm Transducer System as a compatible option is required.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 330780-51-00 Proximity Probe Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Power Generation
Monitors the rotor differential expansion of large steam turbine-generator sets. The large linear range of the 11mm system perfectly accommodates the massive thermal growth difference between the rotor and stator during startup and shutdown.
Hydropower Industry
Measures the low-frequency large radial shaft runout of giant axial or Francis hydro turbines; its larger initial installation gap prevents the shaft from striking and damaging the probe tip during high-swing events.
Petrochemical
Monitors the axial thrust displacement of million-ton scale cracked gas compressors in ethylene or hydrocracking units, sending signals to the 3500 system to trigger emergency trips during severe shaft axial movement.
Coal Chemical & Gasification Industry
Applied in thrust bearing wear monitoring for main air compressors in high-capacity Air Separation Units (ASUs), where the wide linear zone provides a larger margin for axial wear early warnings.
Nuclear Power Industry
Used for monitoring the shaft low-frequency differential expansion and eccentricity of million-kilowatt class steam turbines in conventional islands, helping the unit safely pass through critical speeds.
Ensure that the total electrical length of the system combined with the Proximitor, extension cable, and 11mm probe is strictly 5.0 meters. When snapping it onto a 35mm DIN rail, utilize its integrated base to achieve proper cabinet isolation. Mixing it with different probe systems such as 8mm or 5mm is strictly prohibited. Furthermore, coaxial cable connectors must be thoroughly protected against oil and moisture, and never hot-plug or unplug connectors while energized to prevent transient voltage from damaging the encapsulated circuitry.
It is a Proximitor Sensor belonging to the Bently Nevada 3300 XL 11 mm non-contact proximity transducer system.
What is the core function of the 330780-51-00?
It provides high-frequency excitation to the probe and conditions the gap variation into a DC/AC voltage signal proportional to the distance.
What is the standard linear measuring range of 330780-51-00?
Its standard linear range is 4.0 mm (160 mils), which is twice the range of a standard 8mm system (2.0 mm).
How to properly install and use Proximitor sensors like 330780-51-00?
Snap it onto a DIN rail inside the control cabinet, wire its terminals to an external power supply and monitor rack, and connect it to an 11mm probe via an extension cable.
Can the 330780-51-00 be mixed into a 3300 XL 8mm probe system?
No. The internal circuitry of the 11mm Proximitor is customized for the impedance and range of an 11mm probe. Mixing it with an 8mm probe will cause severe signal distortion.
