      Bently Nevada 330103-00-05-05-02-00
      Bently Nevada 330103-00-05-05-02-00
      Bently Nevada 330103-00-05-05-02-00
      Bently Nevada 330103-00-05-05-02-00
      Bently Nevada 330103-00-05-05-02-00
      Bently Nevada 330103-00-05-05-02-00

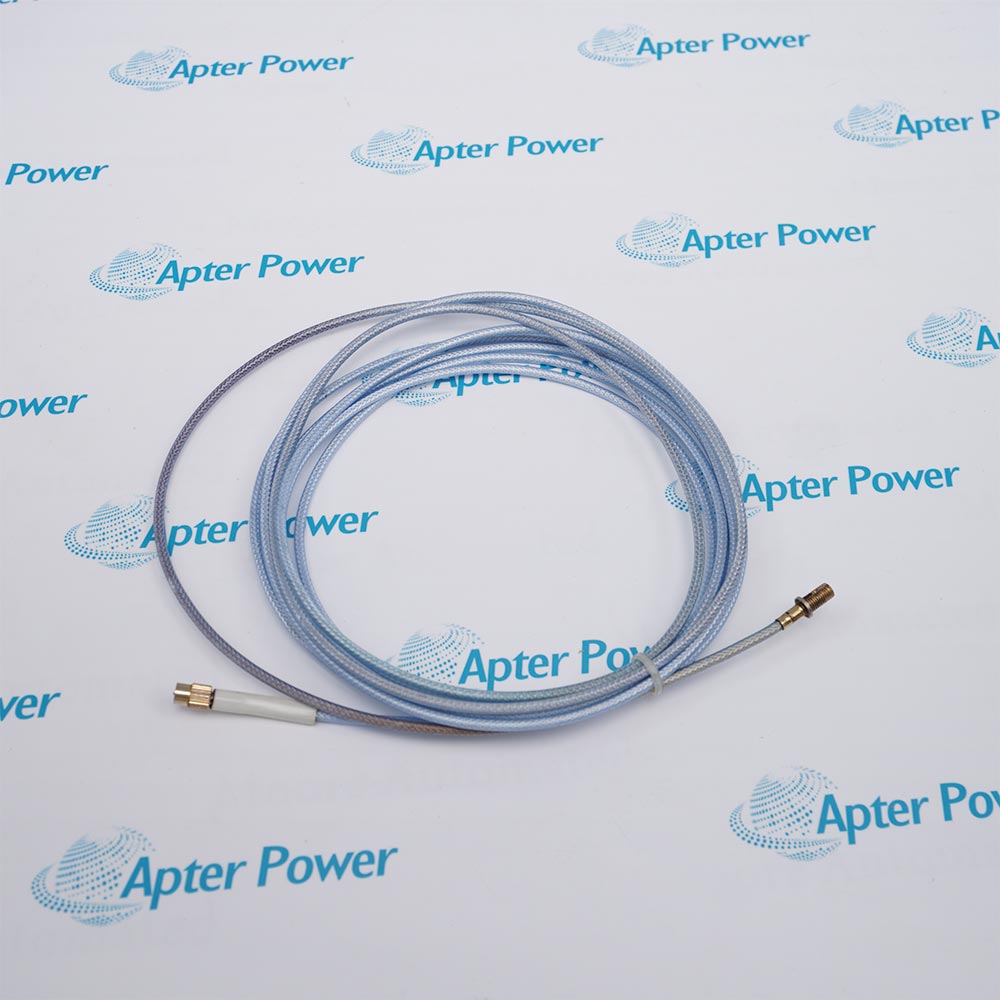

      Product image is representative; revision or series may vary. Contact us to request a specific version.

      330103-00-05-05-02-00

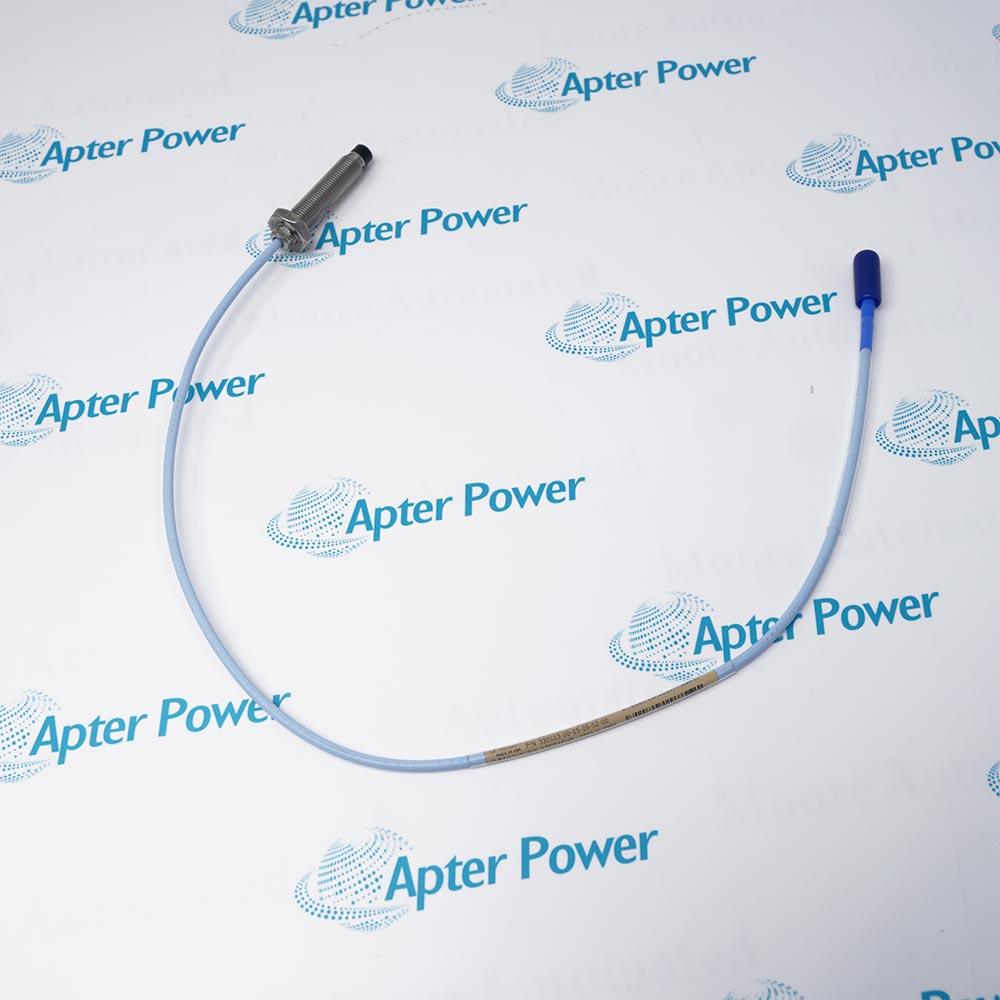

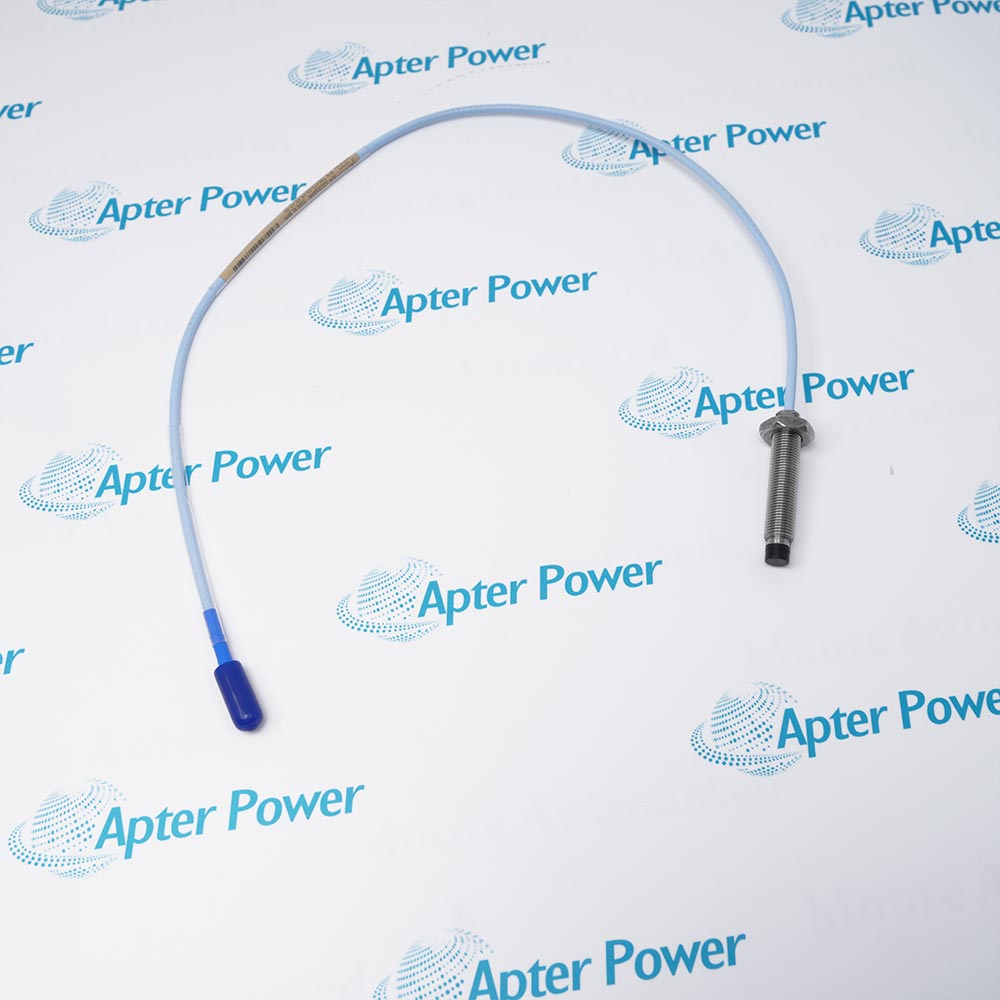

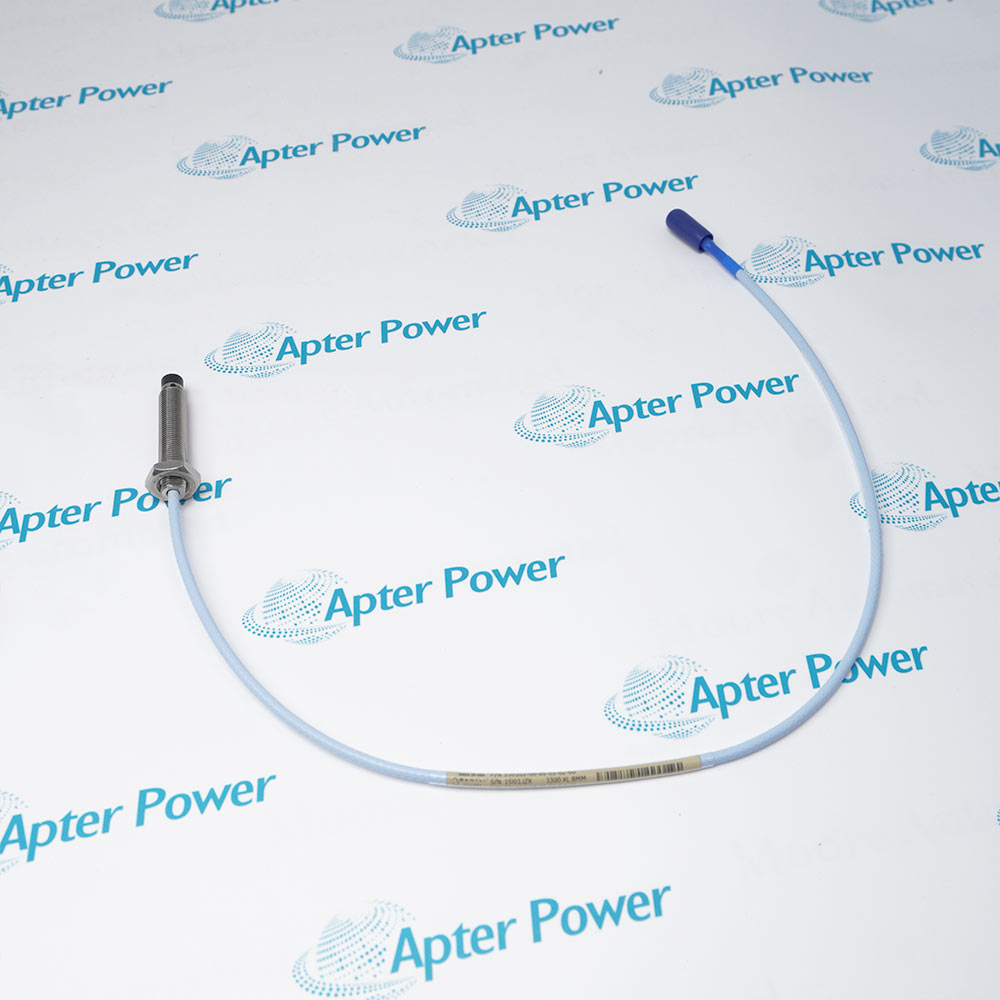

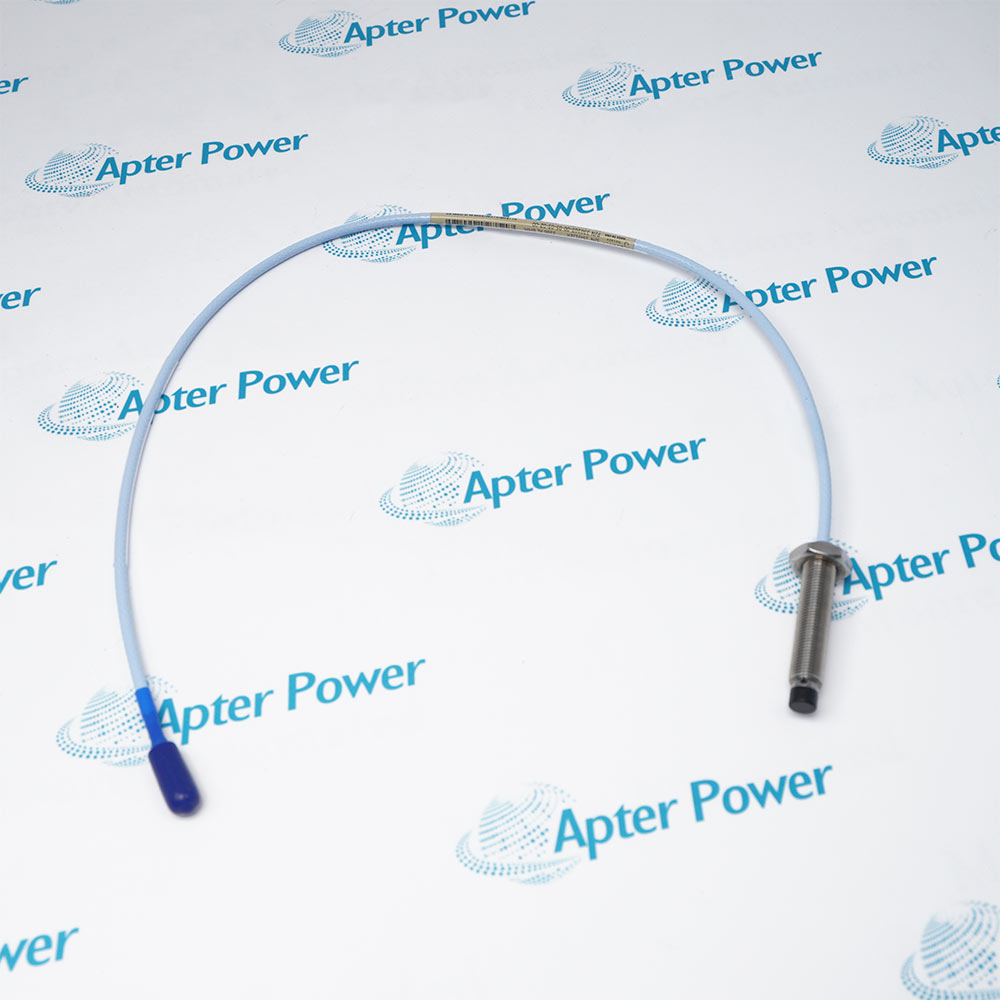

      3300 XL 8 mm Metric Proximity Probe
      In Stock
      Ships by Wednesday, September 23
      Fast Shipping Available

      Product Describe：

      Bently Nevada 330103-00-05-05-02-00 is a metric 3300 XL 8 mm eddy-current proximity probe with an M10 x 1 case. It senses shaft displacement for a matched Proximitor Sensor and machinery-monitoring channel.

      Ask our team:

      Get a quick price for： 330103-00-05-05-02-00
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 330103-00-05-05-02-00

      Technical specifications for 330103-00-05-05-02-00

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        330103-00-05-05-02-00
      • Estimated shipping dimensions:
        20.3x22.2x3.5cm
      • Weight:
        0.1 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Probe series:
        3300 XL 8 mm
      • Probe body thread:
        M10 x 1
      • Probe armor:
        Without armor
      • Unthreaded length:
        0 mm
      • Overall case length:
        50 mm
      • Total probe length:
        0.5 m
      • Connector:
        Miniature coaxial ClickLoc
      • Connector protector:
        Not included
      • Cable type:
        Standard 75 Ohm triaxial
      • Cable insulation:
        FEP
      • Agency approval option:
        Not required
      • Probe tip material:
        Polyphenylene sulfide (PPS)
      • Probe case material:
        AISI 303 or 304 stainless steel
      • Nominal probe DC resistance:
        7.45 +/- 0.50 Ohm
      • Probe case-to-lead tensile rating:
        330 N maximum
      • Lead-to-extension connector tensile rating:
        270 N maximum
      • Minimum cable bend radius:
        25.4 mm
      • Maximum forward-mount torque:
        33.9 N m
      • Recommended forward-mount torque:
        11.2 N m
      • Standard probe temperature:
        -52 to +177 degC
      • Matched-system linear range:
        2 mm
      • Matched-system incremental scale factor:
        7.87 V/mm nominal
      • Matched-system frequency response:
        0 to 10 kHz, +0/-3 dB
      • Minimum flat target diameter:
        15.2 mm
      • Minimum shaft diameter:
        50.8 mm
      • Recommended shaft diameter:
        76.2 mm
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Bently Nevada 330103-00-05-05-02-00 is a metric 3300 XL 8 mm eddy-current proximity probe with an M10 x 1 case. It senses shaft displacement for a matched Proximitor Sensor and machinery-monitoring channel.
      • Detects shaft-to-bearing relative position without mechanical contact
      • Forms the sensing element of a matched 3300 XL 8 mm transducer system
      • Carries the eddy-current probe signal through a standard FEP-insulated triaxial lead
      • Compact half-meter probe-lead installations near the monitored bearing

      330103-00-05-05-02-00 installs with 3300 XL 8 mm Proximitor Sensor, matched 3300 XL extension cable when required, AISI 4140 steel target, compatible Bently Nevada monitor channel in an engineered 3300 XL 8 mm Proximity Transducer System configuration.

      The commissioning workflow covers installed-hardware matching, controlled start-up and functional verification for this 3300 xl 8 mm metric proximity probe.

      Important Notice: Confirm the complete 330103-00-05-05-02-00 marking, installed-system configuration, field connections and controlled functional test before commissioning or replacement.

      Apter Power 330103-00-05-05-02-00 Manuals and Guides
      Apter Power 330103-00-05-05-02-00 Product Technical Reference PDFBently Nevada 330103-00-05-05-02-00 Official Manual PDF
      The first document is an Apter Power model-specific technical reference. The second supports model-specific installation, configuration and engineering verification.
      Radial shaft-vibration measurementDetects shaft-to-bearing relative position without mechanical contact
      Axial position and thrust monitoringForms the sensing element of a matched 3300 XL 8 mm transducer system
      Machine shaft centerline observationCarries the eddy-current probe signal through a standard FEP-insulated triaxial lead
      Compact half-meter probe-lead installations near the monitored bearingCompact half-meter probe-lead installations near the monitored bearing
      Read the applicable Bently Nevada installation instructions before work. Verify 330103-00-05-05-02-00 and the installed 3300 XL 8 mm Proximity Transducer System configuration.
      1Confirm 330103-00-05-05-02-00 and its 0.5 m lead length from the physical marking.
      2Verify the 50 mm case clears the shaft throughout the complete machine movement range.
      3Do not splice, shorten or sharply bend the integral triaxial probe cable.
      4Keep the ClickLoc mating faces free from oil and conductive debris before connection.
      5Check the nominal 0.5 m probe resistance as part of the as-found loop record.
      6Match the probe, extension cable and Proximitor Sensor to the engineered total system length.
      7Establish the required gap against the actual target material under controlled conditions.
      8Verify the monitor trend, buffered signal and protection response before release.

      Technical notes

      Technical notes

      Install the 50 mm case and 0.5 m standard lead only where the Proximitor Sensor location preserves the cable bend radius and service access. Confirm the matched loop length and probe resistance before functional testing.

      FAQS

      • What distinguishes the lead on 330103-00-05-05-02-00?
        Its CC code 05 identifies a 0.5 m total probe length with standard FEP-insulated triaxial cable.
      • What nominal resistance should be expected from 330103-00-05-05-02-00?
        The manufacturer lists 7.45 +/- 0.50 Ohm from center to outer conductor for a 0.5 m probe.
      • Where is the 50 mm case of 330103-00-05-05-02-00 useful?
        It suits compact metric mounting arrangements where the documented bracket provides the required reach and service clearance.
      • May the cable of 330103-00-05-05-02-00 be shortened?
        No. Preserve the supplied length and use only the extension-cable and Proximitor combination specified for the engineered total system length.
      • How should the ClickLoc connector on 330103-00-05-05-02-00 be tightened?
        Mate clean gold-plated ClickLoc connectors finger-tight until the locking action clicks; special tools are not required.
      • Which environmental limit applies to 330103-00-05-05-02-00?
        The standard probe operating and storage range is -52 to +177 degC, subject to the complete installed-system requirements.
      • How is cross-talk controlled when two 330103-00-05-05-02-00 probes are close together?
        Maintain the manufacturer spacing guidance and verify interaction at operating gap, especially for axial or radial probes installed near each other.
      • What final test is required for 330103-00-05-05-02-00?
        Confirm gap, polarity, scale, trend direction, buffered signal and protection-channel response before returning the machine to service.
