What is 330180-50-05?

It is a Proximitor Sensor (pre-amplifier) for the Bently Nevada 3300 XL transducer system, responsible for converting the probe's gap variations into standard voltage signals.

How to use products like 330180-50-05?

Mount it on a cabinet DIN rail, connect the high-frequency coaxial end to the extension cable and probe, and wire the terminal block to a -24Vdc power supply while outputting voltage signals to a safety monitoring system (such as the 3500 system).

What physical quantities can 330180-50-05 measure in rotating machinery?

It can precisely measure static values (such as thrust bearing axial position and rotor expansion) as well as dynamic values (such as shaft radial vibration runout, Keyphasor reference, and RPM speed).

What kind of signal interchangeability does 330180-50-05 have?

It supports complete interchangeability. Replacing this Proximitor eliminates the need to reassemble the entire measurement loop for individual matching or bench calibration.

What is the output impedance and output signal format of 330180-50-05?

Its output impedance is a standard 50 Ω; its output signal is a negative voltage directly proportional to the gap distance, with a standard scale factor of 7.87 V/mm (200 mV/mil).

330180-50-05

Name: 330180-50-05
Brand: Bently Nevada
SKU: 330180-50-05

Proximity Sensor

Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe：

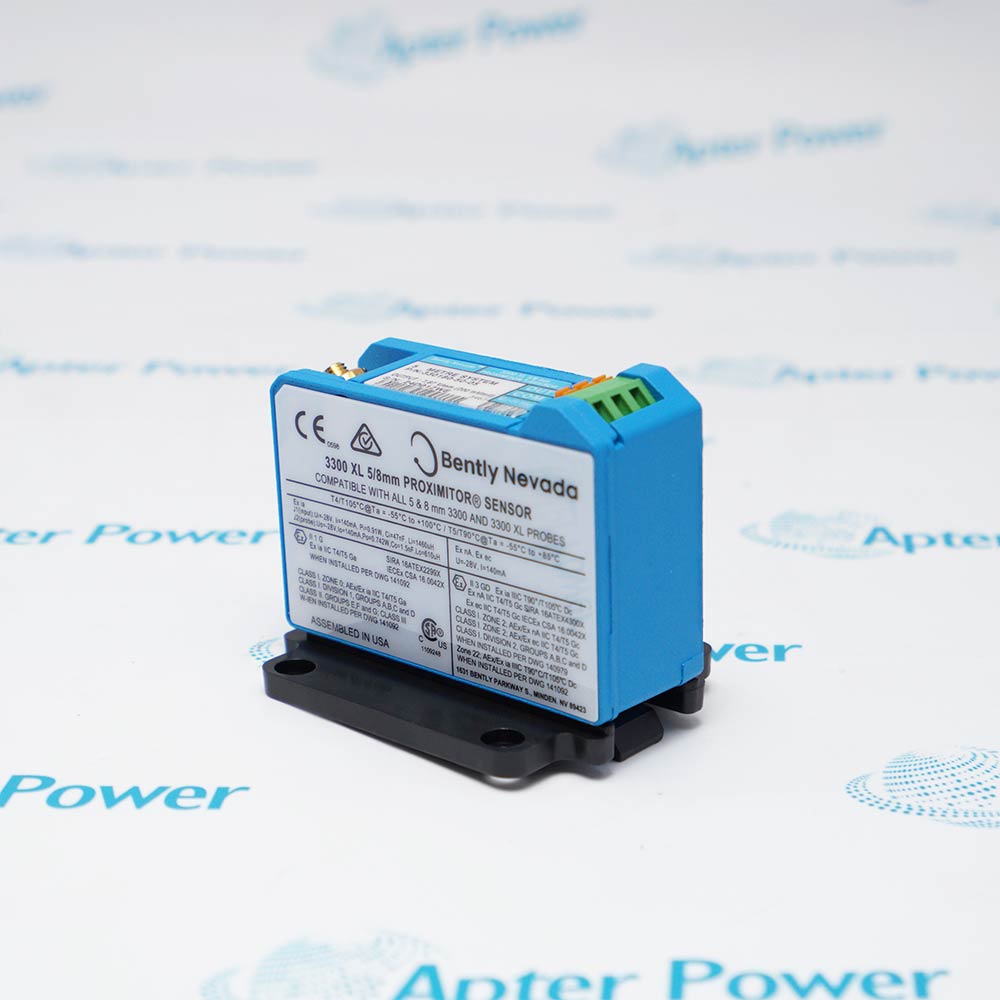

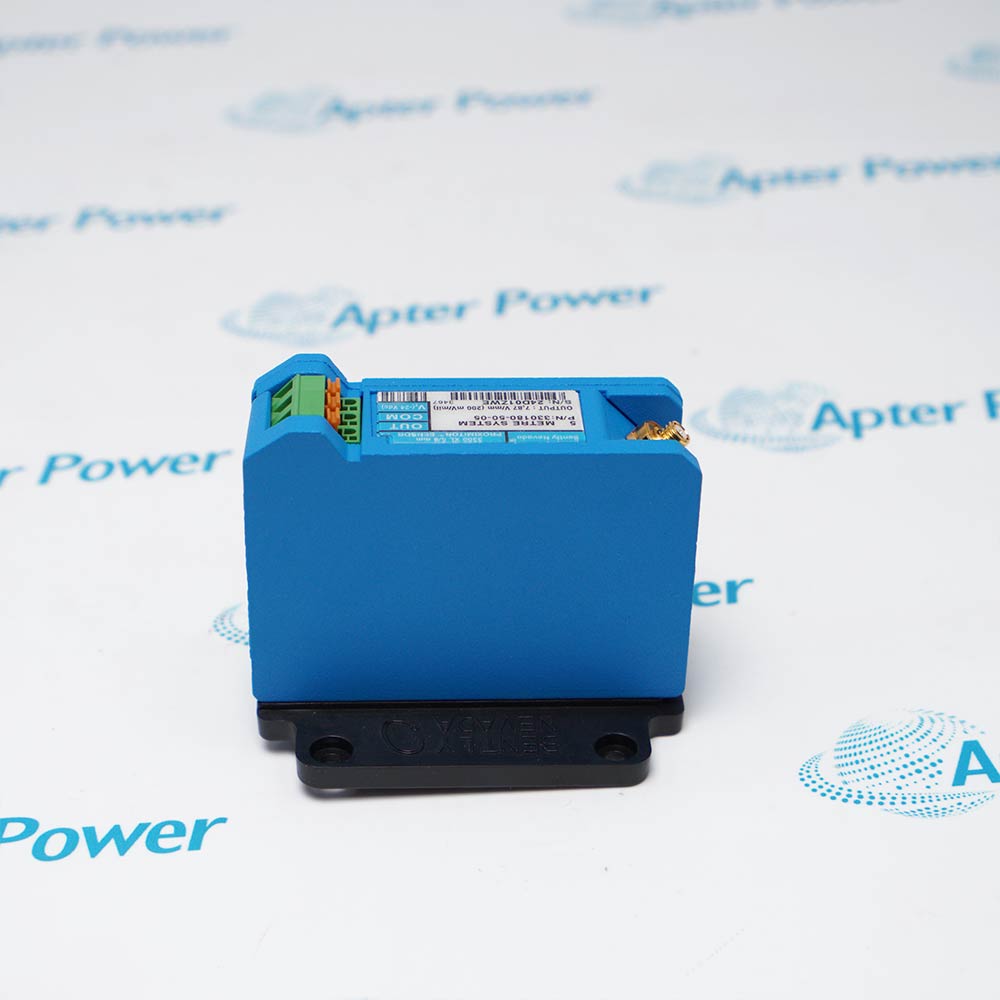

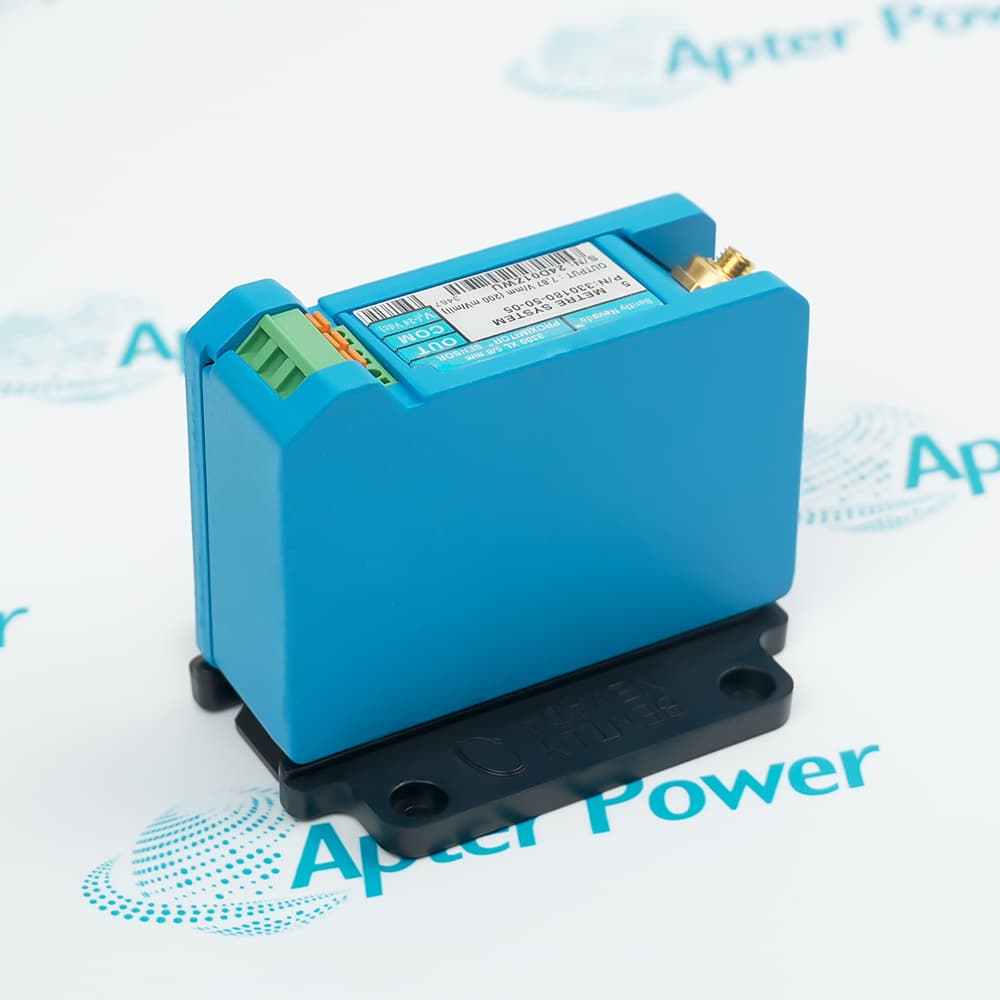

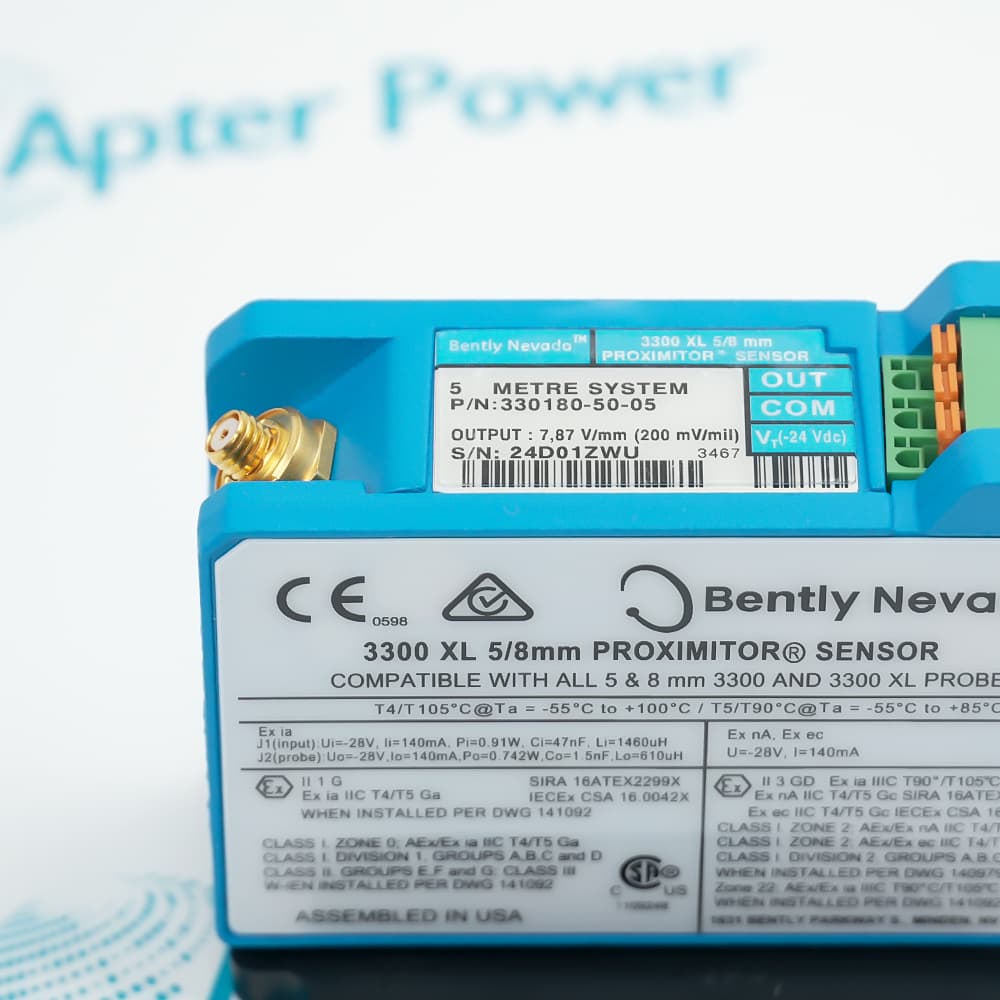

3300 XL 8mm Proximitor
sensor for 5m system
panel mount with global
hazardous area approvals

Ask our team:

Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com

Dispatch Planning
Confirm stock and lead time with our team.

Dedicated Manager
Personalized one-to-one VIP service

ISO 9001:2015 Certified
Trusted quality management

Warranty Policy

Review the applicable warranty coverage and claim process.
Return Notice

Check the return process and obtain approval before sending an item back.
Shipping Method

Review shipping arrangements, transit estimates and delivery responsibilities.
Parts Availability

Browse stock listings and confirm current availability with our team.
How to order

See how to submit an enquiry, review a quotation and confirm an order.

Get a quick price for 330180-50-05

E-mail *

Mobile *

Company

Content *

Quantity *

Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Get a Quote

For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

1

Requirement review

We review the part number, quantity and delivery requirements and ask for any missing details.
2

Quotation and availability

We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
3

Order confirmation and dispatch

Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 330180-50-05

Manufacturer:

Bently Nevada
Product Category:

Machinery Monitoring Systems
Spare Part Number:

330180-50-05
Estimated shipping dimensions:

7.8x3x6.2cm
Weight:

0.25 kg
Tariff Code:

8537101190
Counliy of origin:

USA
Mounting:

Panel mount
Sensing Range:

2 mm
Operating Temperature:

100 °C
Total Length and Mounting Option:

5.0 meters (16.4 feet) system length, panel mount
Agency Approval Option:

CSA, ATEX, IECEx Approvals
Scale Factor:

7.87 V/mm (200 mV/mil)
Linear Range:

2.0 mm (80 mils)
System Length:

5m
Output:

-17.5 Vdc to -26 Vdc

Ask for Quote

Information

Overview Manuals Common Applications Product Precautions

The 330180-50-05 is a Proximitor Sensor (pre-amplifier) manufactured by Bently Nevada for the 3300 XL 5mm/8mm proximity transducer system. As the core signal conditioning unit of the entire measurement loop, it provides a high-frequency excitation signal to the field probe and converts the micron-level gap variations into a DC/AC voltage output directly proportional to the distance. This specific model is engineered for a 5-meter total system length and is widely utilized in asset protection and condition monitoring for heavy industrial rotating machinery.

One 3300 XL 8 mm probe
One 3300 XL extension cable
One 3300 XL Proximitor Sensor

The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.

The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability.

All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors (such as this 330180-50-05 model), eliminating the need to match or bench calibrate individual components.

Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable with other non-XL 3300 series 5 mm and 8 mm transducer system components. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.

Bently Nevada 330180-50-05 Proximity Sensor Manuals, Datasheets, Drivers, Link

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.

Petroleum Refining Industry

Used for axial displacement and radial vibration monitoring of heavy rich gas compressors and main air blowers in catalytic cracking units, preventing mechanical collisions of impellers during high-speed operation.

Thermal Power Generation Industry

Installed on main bearings, feedwater pumps, and large induced draft fans of large steam turbine generator sets to measure dynamic shaft runout and thrust bearing wear in real time.

Nuclear Power Generation Industry

Implements continuous displacement monitoring for reactor coolant pumps and steam turbine rotors in the conventional island of nuclear power plants, ensuring compliance with extreme safety margins.

Hydroelectric Power Generation Industry

Used for radial swing (runout) measurement of vertical or horizontal shafts in hydro-turbine generator units, capturing mechanical wobbles caused by hydraulic unbalance or electromagnetic impacts.

Metallurgy & Iron and Steel Industry

Monitors the dynamic bearing runout of massive blast furnace blowers and Blast Furnace Gas Top Gas Recovery Turbines (TRT), coping with extreme high-load operating conditions.

Coal & Mineral Processing Industry

Employed for vibration protection of heavy main ventilation fans and massive ball mill gear drive systems in mining facilities, preventing unexpected shutdowns that cause underground hazards.

When using the 330180-50-05 Proximitor, you must strictly maintain a 5-meter total system length without cutting cables, ensure proper housing grounding during installation to prevent ground loops, use safety barriers with insulated connectors in hazardous areas, keep all cable connections clean and dry, and never measure the output terminals directly with a multimeter's resistance mode to avoid burning internal circuits.

Alternative Names

330180 50 05 33O18O-5O-O5 330I80-50-05 33OI8O-5O-O5

Technical notes

The Bently Nevada 330180-50-05 is a high-precision 3300 XL 8mm Proximitor Sensor designed for large rotating machinery, which is compatible with 5-meter systems and compliant with the API 670 standard. Featuring international intrinsic safety certifications, it reliably converts mechanical displacement into a 200 mV/mil voltage signal for axial thrust and radial vibration monitoring. For detailed wiring definitions and hazardous area certificate requirements, please consult the product technical documentation.

FAQ View All FAQ

What is 330180-50-05?

It is a Proximitor Sensor (pre-amplifier) for the Bently Nevada 3300 XL transducer system, responsible for converting the probe's gap variations into standard voltage signals.
How to use products like 330180-50-05?

Mount it on a cabinet DIN rail, connect the high-frequency coaxial end to the extension cable and probe, and wire the terminal block to a -24Vdc power supply while outputting voltage signals to a safety monitoring system (such as the 3500 system).
What physical quantities can 330180-50-05 measure in rotating machinery?

It can precisely measure static values (such as thrust bearing axial position and rotor expansion) as well as dynamic values (such as shaft radial vibration runout, Keyphasor reference, and RPM speed).

What kind of signal interchangeability does 330180-50-05 have?

It supports complete interchangeability. Replacing this Proximitor eliminates the need to reassemble the entire measurement loop for individual matching or bench calibration.
What is the output impedance and output signal format of 330180-50-05?

Its output impedance is a standard 50 Ω; its output signal is a negative voltage directly proportional to the gap distance, with a standard scale factor of 7.87 V/mm (200 mV/mil).
