      Bently Nevada 330180-X1-05 MOD:143416-07
      Bently Nevada 330180-X1-05 MOD:143416-07
      Bently Nevada 330180-X1-05 MOD:143416-07
      Bently Nevada 330180-X1-05 MOD:143416-07
      Bently Nevada 330180-X1-05 MOD:143416-07
      Bently Nevada 330180-X1-05 MOD:143416-07

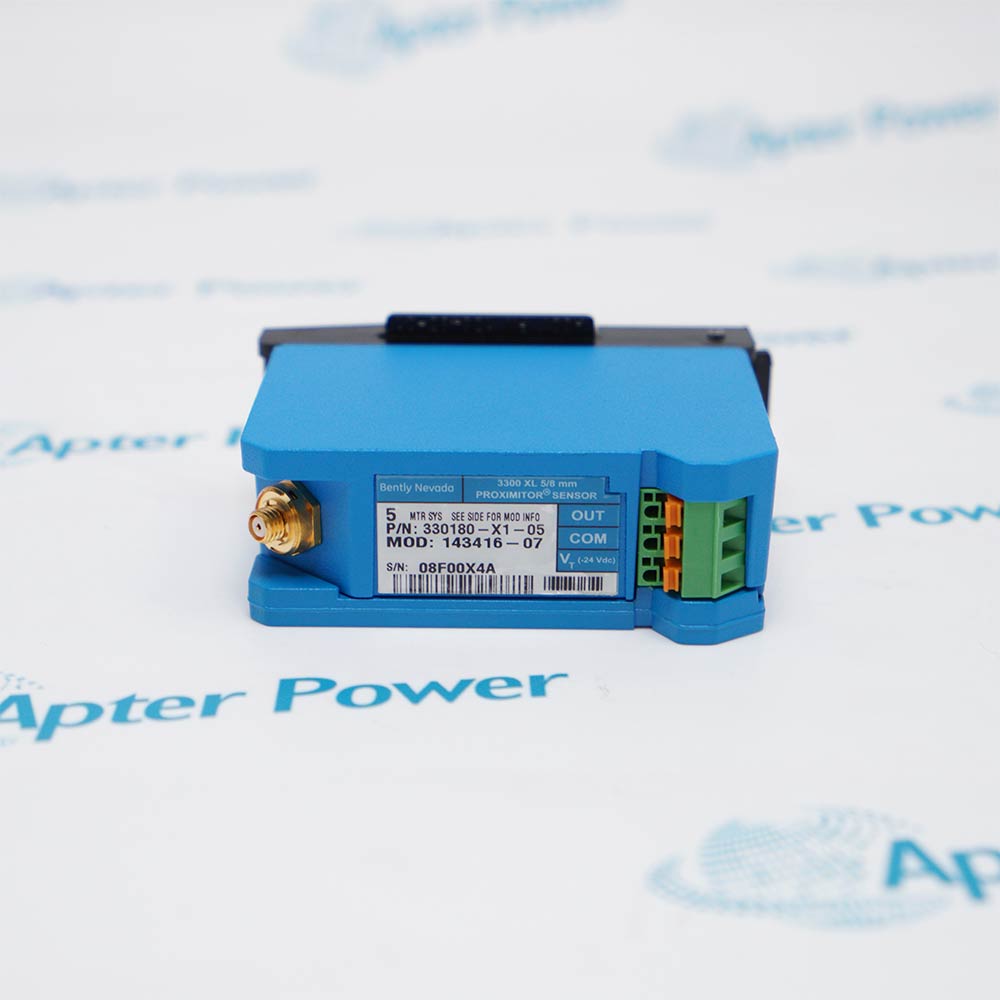

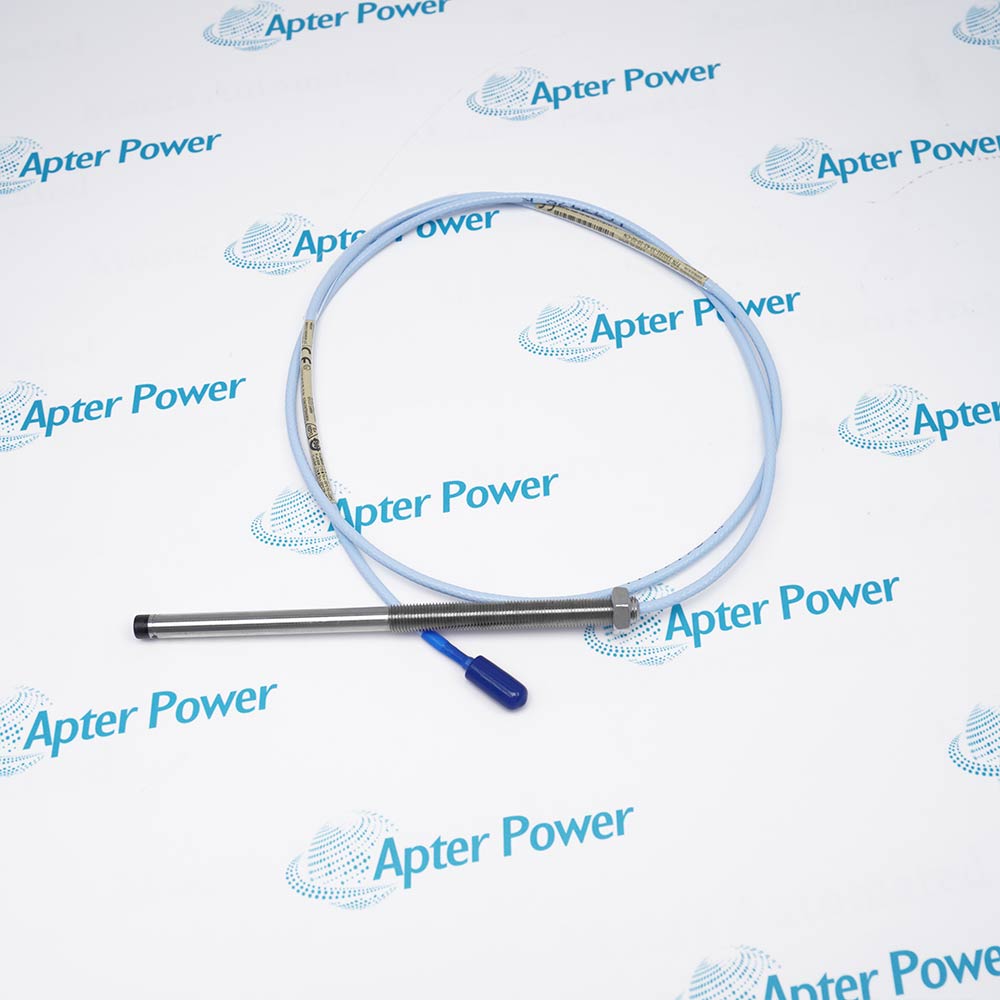

      Product image is representative; revision or series may vary. Contact us to request a specific version.

      330180-X1-05 MOD:143416-07

      Proximitor Sensor
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

      Bently Nevada 330180-X1-05 MOD:143416-07 is a proximitor sensor for the 3300 XL 8 mm proximity transducer system. It is a modified 330180 Proximitor Sensor carrying the exact MOD:143416-07 service identity.

      Ask our team:

      Get a quick price for： 330180-X1-05 MOD:143416-07
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 330180-X1-05 MOD:143416-07

      Technical specifications for 330180-X1-05 MOD:143416-07

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        330180-X1-05 MOD:143416-07
      • Estimated shipping dimensions:
        8.6x3.4x7cm
      • Weight:
        0.24 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Manufacturer:
        Bently Nevada
      • Product family:
        3300 XL 8 mm proximity transducer system
      • Base assembly:
        330180 Proximitor Sensor
      • Option identity:
        X1-05
      • Modification identity:
        143416-07
      • Power without barriers:
        -17.5 to -26 V DC
      • Power with barriers:
        -23 to -26 V DC
      • Maximum current:
        12 mA
      • Output resistance:
        50 ohm
      • Maximum field wire:
        305 m (1,000 ft)
      • Matched system:
        3300 XL 8 mm probe and extension cable
      • System linear range:
        2.0 mm (80 mils)
      • Scale factor:
        7.87 V/mm (200 mV/mil)
      • Frequency response:
        0 to 10 kHz
      • Catalog boundary:
        MOD and nonstandard suffix require exact installed-record confirmation
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      It is a modified 330180 Proximitor Sensor carrying the exact MOD:143416-07 service identity.
      • Retains MOD:143416-07 identity
      • Conditions a matched 3300 XL 8 mm probe signal
      • Provides the published 200 mV/mil system scale
      • Supports long monitor field wiring within the official limit

      330180-X1-05 MOD:143416-07 operates with a matched 3300 XL 8 mm probe, the corresponding extension cable, a -24 Vdc proximity-transducer supply, the configured monitor input.

      Engineered applications include Shaft vibration loop, Position measurement, Buffered diagnostics, Modified sensor renewal.

      Important Notice: Do not decode or substitute the X1-05 / MOD:143416-07 identity from a standard catalog entry. Verify the complete nameplate, matched probe/cable length, power, polarity and monitor configuration.

      Bently Nevada 330180-X1-05 MOD:143416-07 Manuals & Downloads
      Bently Nevada 330180-X1-05 MOD:143416-07 Technical Reference (PDF)Bently Nevada 330180-X1-05 MOD:143416-07 Installation & Commissioning Guide (PDF)

      The first document presents exact-model technical and engineering data. The second provides a separate installation, connection, commissioning and acceptance workflow.

      Shaft vibration loop
      Conditions a matched eddy-current probe signal for machinery monitoring.
      Position measurement
      Supports non-contacting position measurement in an engineered installation.
      Buffered diagnostics
      Provides the transducer signal used for gap and waveform checks.
      Modified sensor renewal
      Preserves the exact MOD:143416-07 service identity during replacement.
      Read the applicable Bently Nevada instructions before work. Verify 330180-X1-05 MOD:143416-07, the installed system and every configured interface before isolation, wiring or commissioning.
      1
      Verify the full 330180-X1-05 MOD:143416-07 nameplate and MOD marking.
      2
      Record probe, extension-cable and sensor serial identities.
      3
      Isolate the -24 Vdc supply and monitor input before wiring work.
      4
      Protect coaxial interfaces from moisture, oil and debris.
      5
      Preserve shield termination and field-wire routing.
      6
      Match the installed total system length; do not mix unmatched components.
      7
      Restore power with correct polarity and confirm a stable gap voltage.
      8
      Compare waveform, scale and monitor response with the acceptance record.

      Technical notes

      Technical notes

      Do not decode or substitute the X1-05 / MOD:143416-07 identity from a standard catalog entry. Verify the complete nameplate, matched probe/cable length, power, polarity and monitor configuration.

      FAQS

      • Why must MOD:143416-07 remain attached to Bently Nevada 330180-X1-05?
        The modification number is part of the service identity and cannot be replaced by a standard 330180 catalog assumption.
      • Which sensing components feed Bently Nevada 330180-X1-05 MOD:143416-07?
        Use a matched 3300 XL 8 mm probe and extension cable whose combined length agrees with the installed loop record.
      • How does a barrier change the supply requirement for Bently Nevada 330180-X1-05 MOD:143416-07?
        Without barriers the supply range is -17.5 to -26 Vdc; with barriers maintain -23 to -26 Vdc, with sensor current no higher than 12 mA.
      • What input loading is compatible with the 50-ohm output of Bently Nevada 330180-X1-05 MOD:143416-07?
        The monitor and test equipment must accept the sensor's 50 ohm output without loading or distorting the conditioned signal.
      • How far may the monitor be wired from Bently Nevada 330180-X1-05 MOD:143416-07?
        Field wiring may extend to 305 m (1,000 ft) when the required cable construction, shielding, and routing practices are maintained.
      • Which displacement slope should the X1-05 sensor deliver?
        With the proper 8 mm transducer chain, expect 7.87 V/mm (200 mV/mil) through the specified linear region.
      • How should the X1-05 and MOD markings be recorded before replacement?
        Capture both strings together with the probe, extension-cable, polarity, and total-length record so the modified assembly is not confused with a standard sensor.
      • What proves Bently Nevada 330180-X1-05 MOD:143416-07 is ready for service?
        A controlled check should show correct supply polarity, stable gap voltage, clean buffered waveform, proper sensitivity, and the expected monitor response.
