330101-00-50-10-02-00

3300 XL 8 mm proximity probe
In Stock

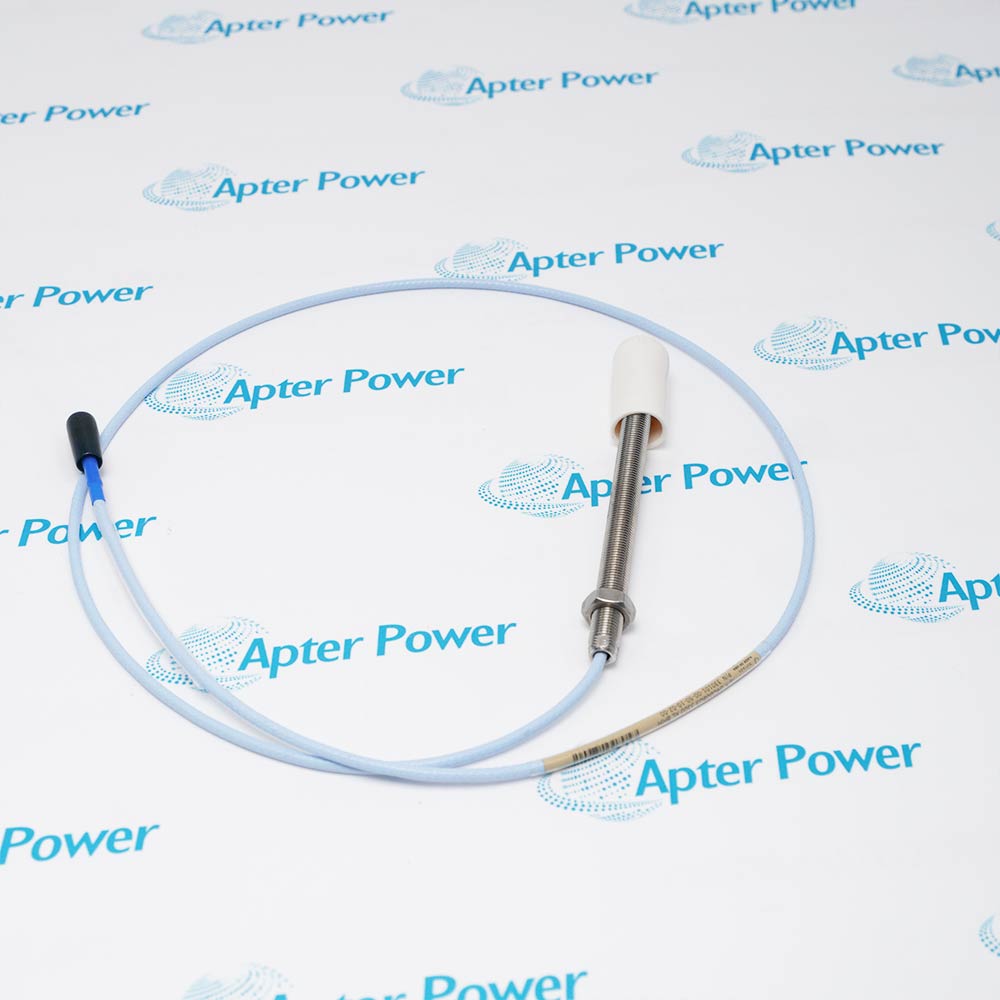

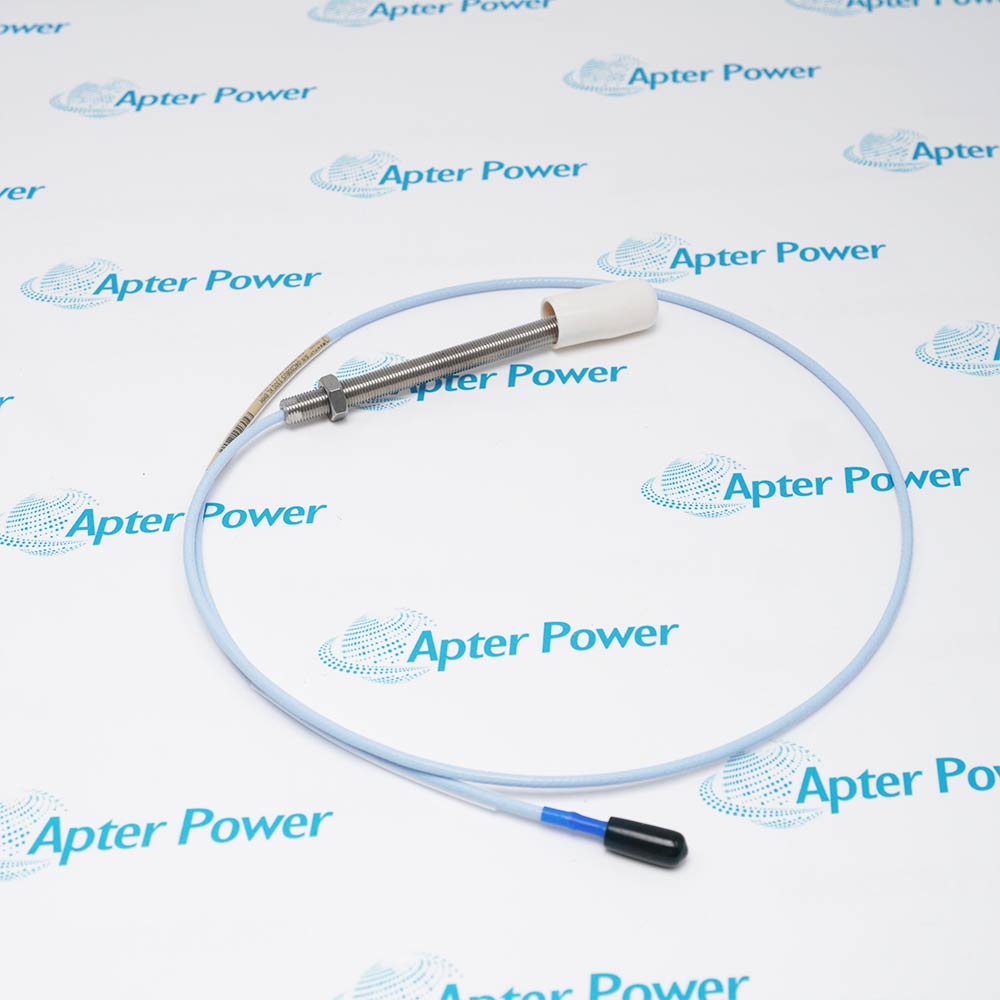

Bently Nevada 330101-00-50-10-02-00
Bently Nevada 330101-00-50-10-02-00
Bently Nevada 330101-00-50-10-02-00
Bently Nevada 330101-00-50-10-02-00
Bently Nevada 330101-00-50-10-02-00
Bently Nevada 330101-00-50-10-02-00
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

Bently Nevada 330101-00-50-10-02-00 is the 3/8-24 UNF-2A unarmored 3300 XL 8 mm probe used as the passive sensing element in a matched eddy-current measurement chain.
  • Manufacturer part number
    330101-00-50-10-02-00
  • Shipping
    Swift global dispatch
  • Condition
    New, original product
  • Shipping size (est.)
    1.5cm x 1.3cm x 111cm
  • Country of Origin
    USA
Get a quick price for 330101-00-50-10-02-00
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 0

    Define the assigned measurement

    Send the 330101-00-50-10-02-00 marking with port depth and whether the channel measures vibration, position, phase or speed.
  • 1

    Confirm the 8 mm system chain

    For 330101-00-50-10-02-00, match the probe with the installed 3300 XL 8 mm extension cable, Proximitor length and target material.
  • 2

    Approve the recessed-port spare

    Confirm quantity, companion electronics, approval scope and delivery details for 330101-00-50-10-02-00.
  • Match the complete marking

    Include 330101-00-50-10-02-00 and every revision or approval marking visible on the item. Keep the exact reference on your enquiry and quotation.
  • Check the offered item before ordering

    Request available label and interface photos. Have your maintenance team compare the offered 330101-00-50-10-02-00 reference with the installed equipment and applicable Bently Nevada documentation.

Technical specifications for 330101-00-50-10-02-00

  • Manufacturer:
    Bently Nevada
  • Product Category:
    Machinery Monitoring Systems
  • Spare Part Number:
    330101-00-50-10-02-00
  • Weight:
    0.1 kg
  • Tariff Code:
    8537101190
  • Probe family:
    3300 XL 8 mm
  • Mounting thread:
    3/8-24 UNF-2A
  • Cable armor:
    No armor
  • Unthreaded length:
    0.0 in
  • Overall case length:
    5.0 in
  • Total probe length:
    1.0 m
  • Connector:
    Miniature coaxial ClickLoc, standard cable
  • Approval selection:
    No agency approval
  • Nominal probe resistance:
    7.59 +/- 0.50 ohm
  • Matched-system range:
    2.0 mm under stated reference conditions
  • Matched-system scale:
    7.87 V/mm (200 mV/mil)
  • Proximitor supply:
    -17.5 to -26 V DC; 12 mA maximum without barriers
  • Proximitor output resistance:
    50 ohm
  • Reference target:
    AISI 4140 steel
  • Measurement roles:
    Static position, dynamic vibration, phase reference and speed

Information

Overview Downloads Applications / Compatibility Product Precautions
  • Bently Nevada 330101-00-50-10-02-00 is the 3/8-24 UNF-2A unarmored 3300 XL 8 mm probe used as the passive sensing element in a matched eddy-current measurement chain.
General-purpose eddy-current measurement: The standard 8 mm family supports shaft vibration, position, phase and speed duties.
Interchangeable system components: A correctly selected probe, extension cable and Proximitor can be replaced without individual bench matching.
Long imperial access: The extended threaded case suits recessed machine ports when the sleeve and target path are documented.
The 3/8-24 UNF-2A body, 0.0 in unthreaded reach and 5.0 in case establish the installed sensing position. Compare them with the port depth, lock position and expected target travel before removal.

The 1.0 m lead terminates in miniature coaxial clickloc, standard cable. Preserve the probe-plus-extension-cable electrical length, keep the coaxial joint clean and dry, and support the lead independently of the connector.

The stated range and scale belong to a matched probe, extension cable and Proximitor on the reference target. Final acceptance restores the approved gap or bias and proves the monitor response against the machine baseline.
Platform: 3300 XL 8 mm system. Verify the installed chain.
Technical downloads for Bently Nevada 330101-00-50-10-02-00: model-specific technical reference and installation review.
Use the exact order code and installed configuration when applying either document.
Installation controls for Bently Nevada 330101-00-50-10-02-00 are specific to its selected mechanical, cable and system configuration.
Rebuild the imperial datum

Record sleeve face, thread engagement, locknut position and as-found gap at the recessed port.

Confirm the measurement duty

Retain whether the channel is used for radial vibration, axial position, Keyphasor phase or speed.

Keep the 8 mm family together

Do not mix the probe with NSv or 11 mm electronics even if a connector appears to mate.

Check target metallurgy

Verify the calibrated target material or apply the approved correction for a different shaft alloy.

Control Proximitor loading

Preserve supply, output resistance and receiving-input conditions at the monitor interface.

Verify static and dynamic response

Restore gap voltage first, then prove the assigned vibration, position or phase function.

Alternative Names

Bently Nevada 330101-00-50-10-02-00 Bently Nevada 330101 00 50 10 02 00

Technical notes

Installation relationship: The 3/8-24 UNF-2A mounting, 0.0 in reach and 5.0 in case define probe position.

Electrical relationship: Use the 1.0 m probe lead only within the documented 3300 XL 8 mm total-length chain.

Technical reference: Bently Nevada 3300 XL 8 mm Proximity Transducer System Datasheet, 141194 Rev. AN.

FAQ View All FAQ

  • Which measurement roles can 330101-00-50-10-02-00 support?
    Within a matched 3300 XL 8 mm system it can serve static position, dynamic vibration, phase reference or speed measurement.
  • How should the long imperial port for 330101-00-50-10-02-00 be recorded?
    Measure sleeve depth, thread engagement, locknut location and as-found gap before removing the probe.
  • Can 330101-00-50-10-02-00 be mixed with NSv electronics?
    No. Keep it within the 3300 XL 8 mm probe, extension-cable and Proximitor family and selected electrical length.
  • Why does target material matter to 330101-00-50-10-02-00?
    Published system performance uses the stated reference steel; different conductivity or geometry can change scale and linearity.
  • What supply boundary applies to the electronics used with 330101-00-50-10-02-00?
    Verify the Proximitor supply and receiving-input loading against the documented system limits before interpreting output.
  • How is a position channel using 330101-00-50-10-02-00 commissioned?
    Set the approved mechanical gap, confirm stable bias through the expected travel and verify alarm or display scaling.
  • How is a vibration channel using 330101-00-50-10-02-00 commissioned?
    After the static gap check, compare dynamic amplitude and phase with the accepted machine baseline under controlled operation.
  • What should accompany a 330101-00-50-10-02-00 enquiry?
    Provide the full order code, measurement duty, target material, sleeve geometry, system length and companion-electronics identities.
