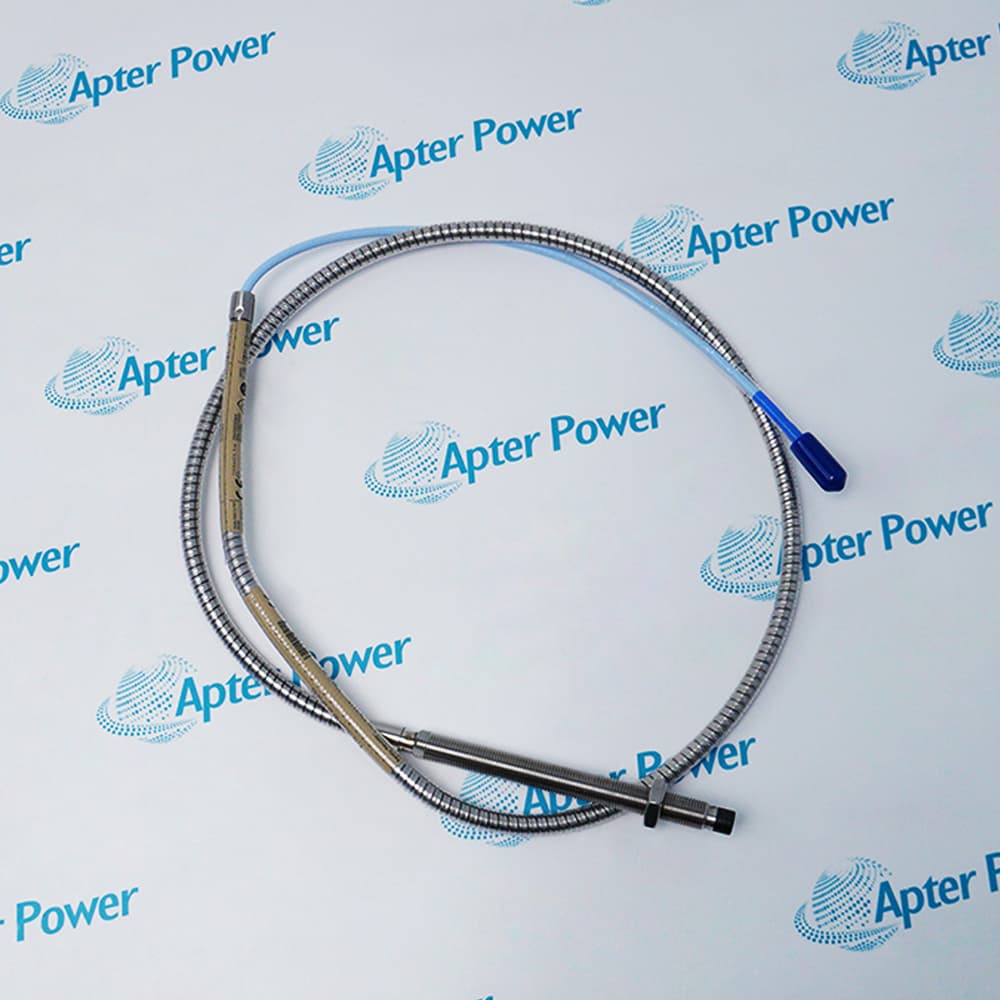

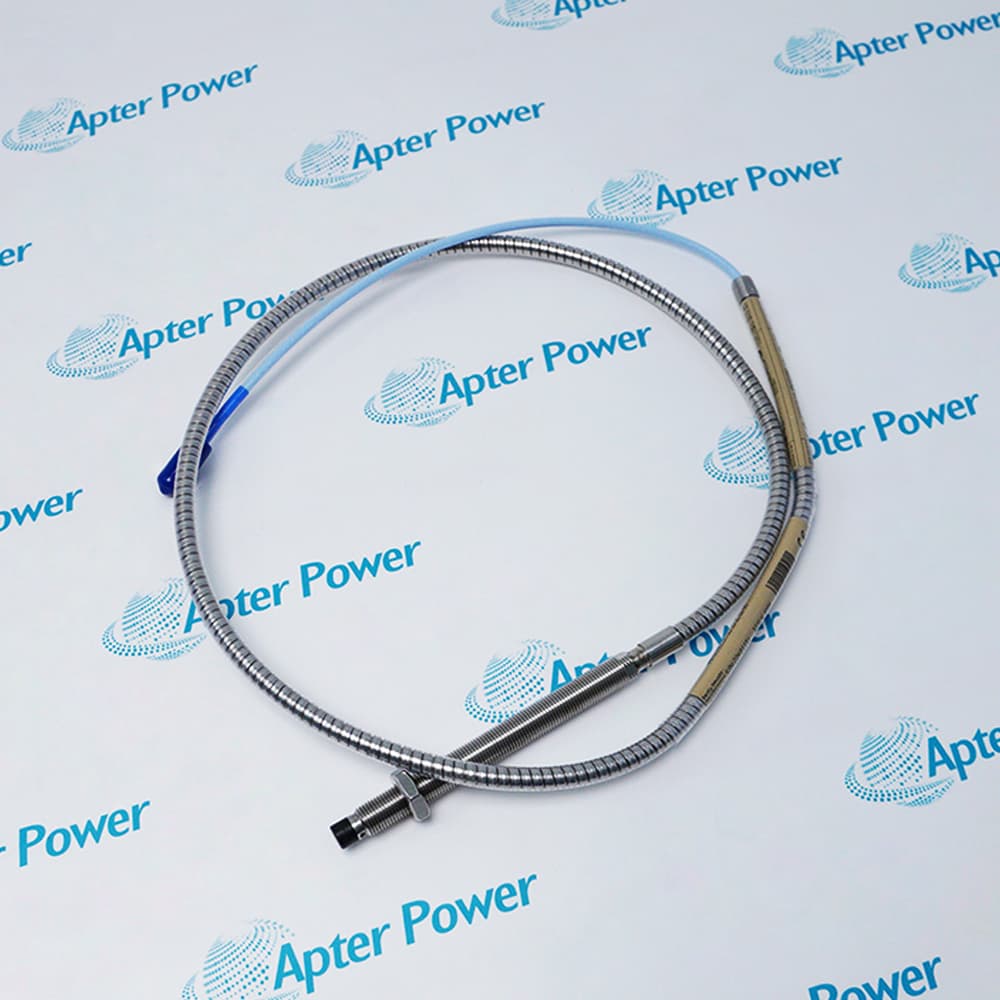

The 330104-00-14-10-01-05 is a 3300 XL 8 mm eddy current proximity probe manufactured by Bently Nevada, a Baker Hughes business. As an industry standard in industrial condition monitoring, this probe is dedicated to asset protection for fluid-film bearing machines, including steam turbines, compressors, generators, large water pumps, and fans.
One 3300 XL 8 mm probe
One 3300 XL extension cable
One 3300 XL Proximitor Sensor
The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability.
All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components. Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable with other non XL 3300 series 5 mm and 8 mm transducer system components. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 330104-00-14-10-01-05 Proximity Probe Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Thermal Power
Monitors the radial vibration and shaft eccentricity of large steam turbines and generators to prevent severe rubs between blades and casings.
Hydroelectric Power
Installed on water guide and thrust bearings of hydro-turbine generators to precisely measure axial thrust displacement and unit swing.
Nuclear Power
Monitors the mechanical health of steam turbine-generators and high-pressure feedwater pumps in the conventional island of nuclear power plants to ensure continuous high-reliability operation.
Steel & Metallurgical Industry
Applied to the bearing monitoring of blast furnace blowers and Top Pressure Recovery Turbine (TRT) power generation units, withstanding high-temperature and dusty environments.
Pulp & Paper Industry
Monitors the vibration of paper machine dryer cylinder drive bearings, large cutters, and pulp pumps to prevent paper breaks and production stops caused by mechanical bearing failures.
Rail Transportation
Used in large locomotive test rigs or stationary gas turbine power testing systems to accurately capture the dynamic running orbits (shaft orbits) of high-speed rotating shafts.
Users must strictly adhere to critical guidelines when utilizing the 330104-00-14-10-01-05 probe. Secure the probe using locknuts during installation. Apply the exact specified installation torque to prevent overtightening and potential tip damage. Meticulously adjust the gap voltage to ensure operation remains within the 2.0 mm linear range. This gap voltage is typically around -10 Vdc.
Maintain a cable bend radius greater than 25.4 mm during routing. Keep the ClickLoc coaxial connectors clean and dry and protected with their sleeves. Avoid any cutting or splicing of the original cable. The probe tip possesses excellent hot oil resistance. However it must never be utilized as a pressure seal for vessels.
Securely mounted via its M10x1 fully-threaded case (140mm length) and connected by a 1.0-meter cable with stainless steel flexible armor, the system delivers an output voltage directly proportional to the distance between the probe tip (8.0mm diameter, PPS high-temperature material) and the observed conductive shaft surface. Operating within a 2.0 mm (80 mils) linear range with a standard sensitivity of 7.87 V/mm (200 mV/mil), it maintains high reliability in fully sealed hot oil environments from -51°C to 177°C. The probe accurately measures both static values (axial position, eccentricity) and dynamic values (radial vibration), while additionally serving as a reliable tool for Keyphasor reference and speed measurements, compliant with global explosion-proof safety standards including CSA, ATEX, and IECEx.
It is an eddy current proximity sensor probe from the Bently Nevada 3300 XL 8mm series, used for non-contact mechanical displacement and vibration measurement.
How to properly install and use products like 330104-00-14-10-01-05?
Thread it into a mounting bracket on the machine's bearing housing using its M10x1 thread, face the tip toward the observed shaft surface, and adjust the initial gap voltage.
Does 330104-00-14-10-01-05 come with armor protection?
Yes, this base model comes with stainless steel flexible armor to protect the internal coaxial cable from mechanical wear and oil exposure.
What is the operating measurement principle of this probe?
It operates on the eddy current principle. A high-frequency coil inside the probe generates an alternating magnetic field, creating eddy currents when a metallic surface approaches, which changes the coil's impedance.
Can the 330104-00-14-10-01-05 probe connect directly to a data acquisition or display instrument?
No. The probe must first connect to a 3300 XL Proximitor Sensor via an extension cable, which converts the signal into a voltage output before sending it to monitors.
