1794-PS13

Power Supply

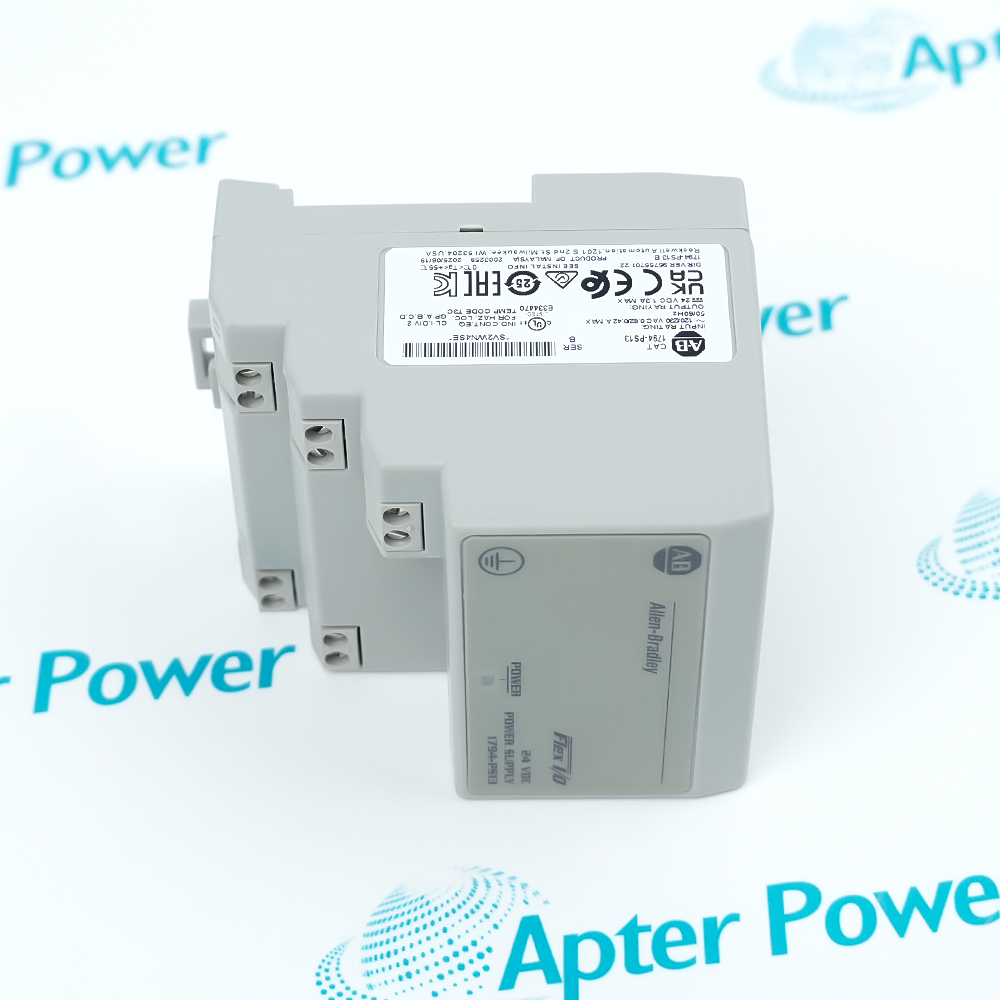

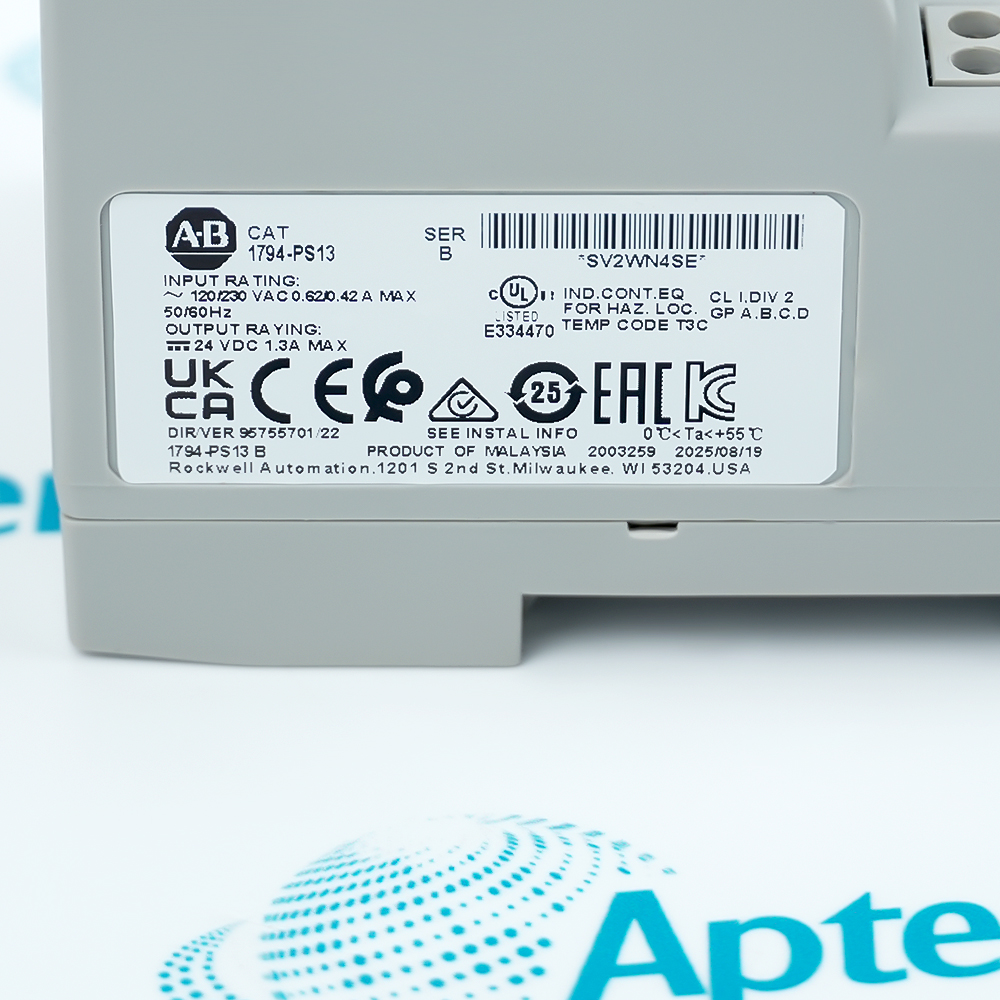

Allen-Bradley 1794-PS13
Allen-Bradley 1794-PS13
Allen-Bradley 1794-PS13
Allen-Bradley 1794-PS13
Allen-Bradley 1794-PS13
Allen-Bradley 1794-PS13
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

POWER SUPPLY

FLEX I/O

DIN RAIL MOUNTABLE

Get a quick price for 1794-PS13
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 1794-PS13

  • Manufacturer:
    Allen-Bradley
  • Product Category:
    PLC Systems
  • Spare Part Number:
    1794-PS13
  • Estimated shipping dimensions:
    10.2x7.6x7.6cm
  • Weight:
    0.5 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Thermal Dissipation:
    23.9 BTU/hr
  • Output Current:
    1.3 A
  • Input Voltage range:
    85-264VAC
  • Input Frequency range:
    47-63 Hz
  • Maximum input current:
    0.7 A
  • Output power:
    31.2 Watts
  • Nominal output:
    +24V DC
  • Power dissipation:
    7 W

Information

Overview Manuals Common Applications Product Precautions
The 1794-PS13 is an AC/DC power supply module designed to provide backplane logic power for the adapters and I/O modules of FLEX I/O systems. It features a compact DIN rail mounting design for a perfect fit with FLEX I/O modules.
    • System Integration
    • Built-in Diagnostics
    • Electrical Isolation
The Allen-Bradley FLEX I/O system offers a flexible, modular, and cost-effective solution for your industrial automation and control. The space saving design offers rack based I/O functionality of up to eight modules and provides digital, analogue, HART analogue, and specialty I/O with 4...32 points per module with flexible mounting and wiring options.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 Allen Bradley 1794-PS13 FLEX I/O Power Supply Modules Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Tire Building Machines
Installed within machine racks to provide backplane power for numerous proximity switches and miniature solenoid valve control modules in precision building processes.

Food Packaging & Bottling
Powers sorting and packaging modules within compact control boxes, driving the logic circuits of rotary encoders and counting sensors.

Power Distribution Automation
Provides backplane power to I/O modules that collect circuit breaker status and power quality parameters within power distribution room control panels.

Paper Mill Dryer & Paper
Provides reliable power to remote stations of paper-break detection systems in high-temperature, high-humidity environments, preventing false shutdowns caused by voltage fluctuations.

Mining Belt Conveyor
Provides a stable power source for belt-side pull-cord switches, sway detection, and rip monitoring I/O stations in harsh outdoor environments.

 When using the 1794-PS13, the priority is to respect its 1.3A rated output limit by pre-calculating the total power consumption of all connected modules and sensors to avoid overloading. For physical installation, place it to the left of the FLEX I/O adapter and ensure adequate ventilation space above and below the unit to prevent thermal protection trips. Electrically, strictly distinguish between AC input and DC output terminals and ensure proper grounding (GND) to suppress industrial noise. Furthermore, given its direct AC connection, energized wiring is not recommended, maintenance should be performed in a de-energized state to ensure personnel safety.

FAQ View All FAQ

  • What is 1794-PS13?
    The 1794-PS13 is a FLEX I/O DC power supply module manufactured by Allen-Bradley (a brand under Rockwell Automation). It is specifically designed to provide a stable, regulated 24V DC power supply to adapters within the FLEX I/O system.
  • What is the input voltage of 1794-PS13?
    Its nominal input voltage is 120V/220V AC, with an actual operating range typically between 85-264V AC.
  • How to use products like 1794-PS13?
    It is mounted on a standard DIN rail, usually placed to the left of or near the FLEX I/O adapter, providing power to the I/O station backplane and external devices through wiring.
  • What physical interfaces does 1794-PS13 have?
    It includes AC input terminals (L1, L2/N, GND) and 24V DC output terminals (+V, -V).
  • Can 1794-PS13 be used in parallel?
    No. The 1794-PS13 does not support parallel connection to increase current. If more current is needed, add another power module or choose a higher-power supply.
