2094-BC02-M02-S

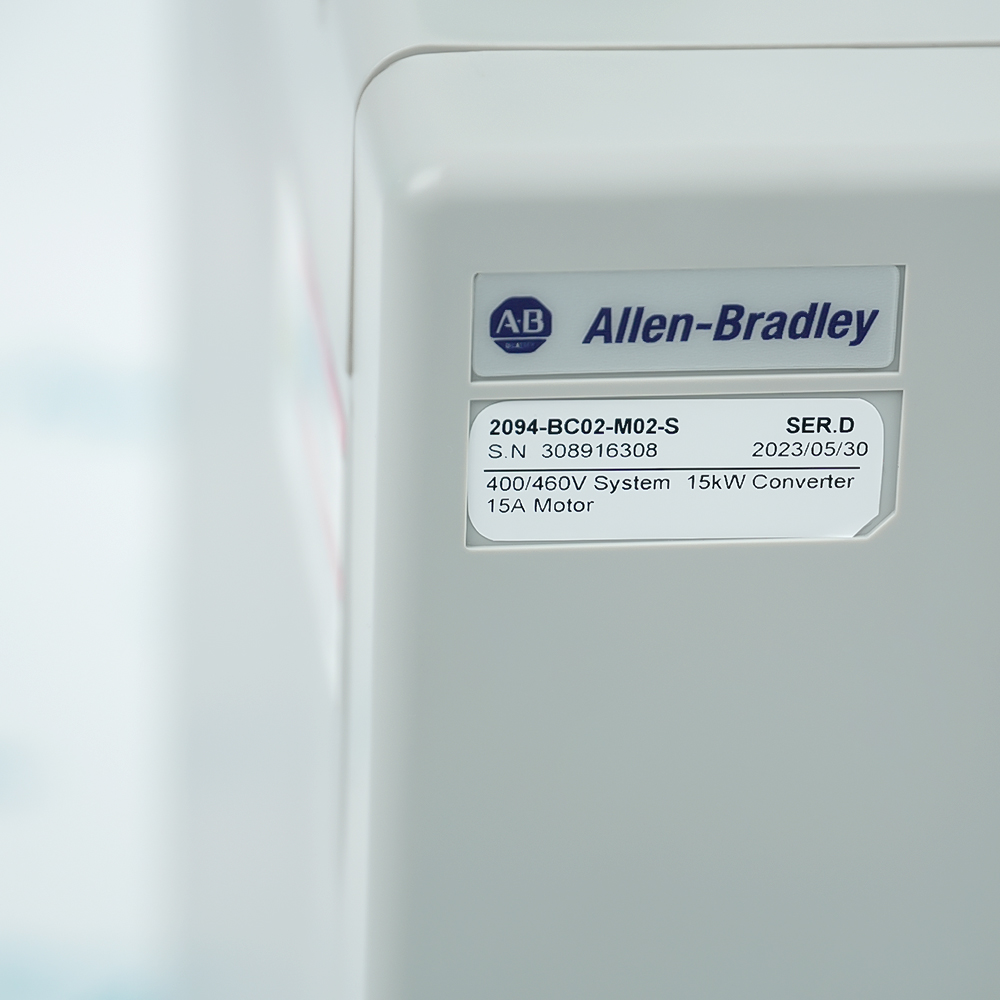

Integrated Axis Module
Allen-Bradley 2094-BC02-M02-S
Allen-Bradley 2094-BC02-M02-S
Allen-Bradley 2094-BC02-M02-S
Allen-Bradley 2094-BC02-M02-S
Allen-Bradley 2094-BC02-M02-S
Allen-Bradley 2094-BC02-M02-S
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

Integrated Axis Module
Kinetix6000, IAM, 400V-class
15 kW converter, 15 A inverter
Get a quick price for 2094-BC02-M02-S
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 2094-BC02-M02-S

  • Manufacturer:
    Allen-Bradley
  • Product Category:
    PLC Systems
  • Spare Part Number:
    Kinetix6000
  • Estimated shipping dimensions:
    12.7x29.2x25.4cm
  • Weight:
    5.6 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Number of phases input:
    3
  • Nominal input voltage:
    360 V
  • Nominal output current I2N:
    23 A
  • Operating temperature:
    0…50 °C
  • Storage temperature:
    -50…70 °C
  • Input Frequency, Nom:
    50 / 60 Hz
  • Input Frequency, Min:
    47 Hz
  • Input Frequency, Max:
    63 Hz
  • Bus Power, Peak:
    37.5 kW
  • Bus Power, Continuous:
    15 kW
  • Internal Shunt Power, Peak:
    5600 W
  • Output Current, Continuous (rms):
    22.6 A, rms, continuous
  • Output Current, Peak (rms):
    56.4 A, rms, peak

Information

Overview Manuals Common Applications Product Precautions
The 2094-BC02-M02-S is a 400V-class integrated axis module (IAM) belonging to the Kinetix 6000 series. In a multi-axis servo control architecture, it is the "core" of the entire drive system, responsible for converting grid energy into DC power and precisely controlling the servo motors connected to it.
    • Integrates seamlessly into the Logix platform for multi axis integrated motion
    • Greater flexibility in your machine design through compact size
    • Reduces the total number of connections through simplified wiring and modular design
The Allen-Bradley Kinetix 6500 Multi-axis EtherNet/IP Servo drives offer machine flexibility and functionality when combined with high performance integrated motion over an EtherNet/IP network. Options include safe speed monitoring and safe torque-off. Modular design allows for greater adaptability for future machine enhancements, ideal for single, flexible network machine support.Kinetix 6200 servo drives provide Integrated Motion capability through the sercos interface and compatibility with Kinetix 6000 drives, letting you migrate to the enhanced features exactly when and where you need them.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 Allen Bradley 2094-BC02-M02-S Integrated Axis Module Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Rubber Processing
Controlling the drum speed of tire building machines to ensure consistent tension during rubber layer lamination.

Plastic Extrusion
Controlling the speed of haul-off units to ensure uniform thickness of extruded pipes or profiles.

Pulp & Paper
Controlling the knife axis in paper cutters for precise length cutting on high-speed production lines.

Metalworking
Driving backgauge systems in small CNC press brakes to ensure precision in metal sheet bending.

Packaging Industry
Controlling pick-and-place manipulators in case packers for high-speed and precise product packaging.

Semiconductor Manufacturing
Controlling the smooth start and stop of wafer-handling robots to prevent vibration damage to expensive wafers.

 When using the 2094-BC02-M02-S, ensure it is correctly installed at the leftmost position of the Power Rail and verify that the rotary switches on top are set to the correct node address before powering up. Since it integrates the converter function, strictly check the total system power to prevent overloading and ensure SERCOS fiber optic ports are clean with proper bend radiuses to avoid communication errors. Additionally, the Safe Torque Off (STO) terminals must be wired correctly, as an open safety circuit will prevent the drive from enabling output.

FAQ View All FAQ

  • What is the 2094-BC02-M02-S?
    The 2094-BC02-M02-S is a Kinetix 6000 Integrated Axis Module (IAM), combining power supply and servo drive functions.
  • What is the input voltage of the 2094-BC02-M02-S?
    It belongs to the 400V class, supporting 324–528V AC three-phase input.
  • What functional sections does the 2094-BC02-M02-S contain?
    It consists of a Converter section and an Inverter section.
  • What is the continuous output power of the 2094-BC02-M02-S?
    Its continuous output power rating is approximately 1.2 kW.
  • How many axes can one 2094-BC02-M02-S drive?
    It drives one local axis and provides DC-bus power for the rest of the Axis Modules (AM) on the rail.
