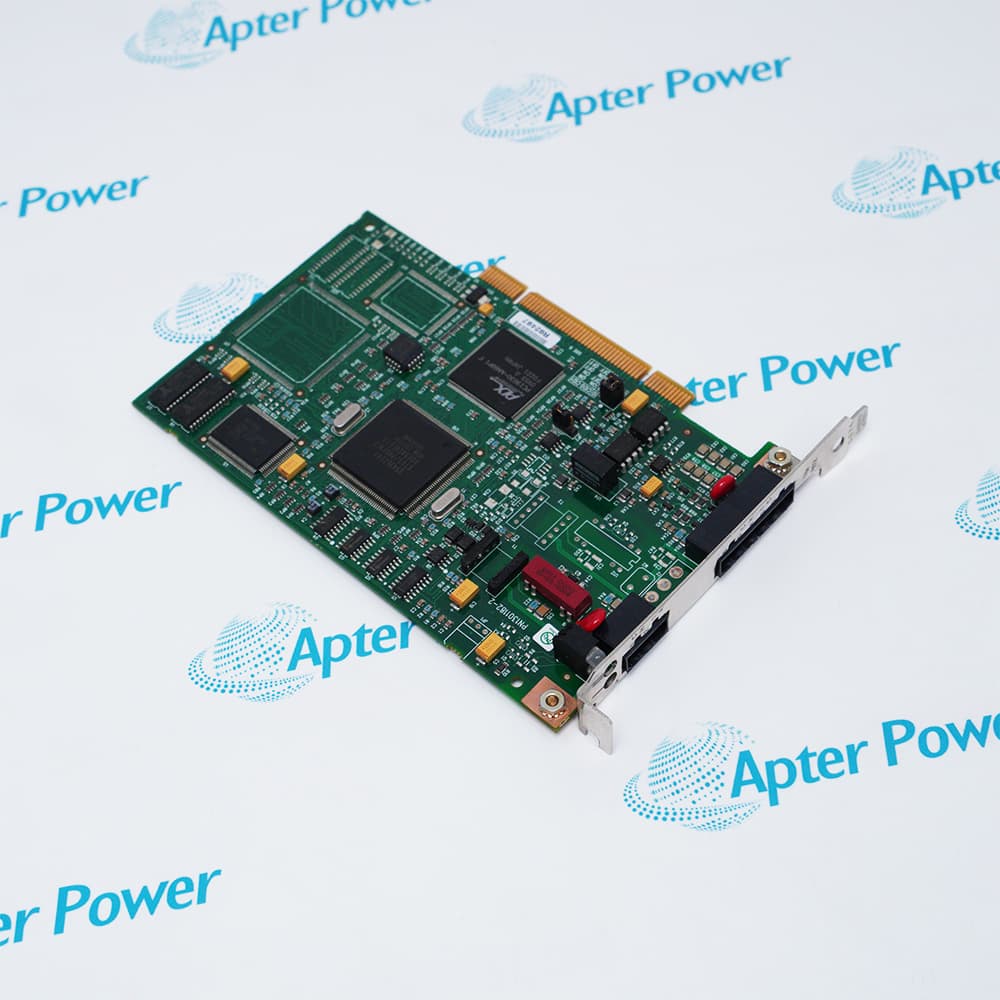

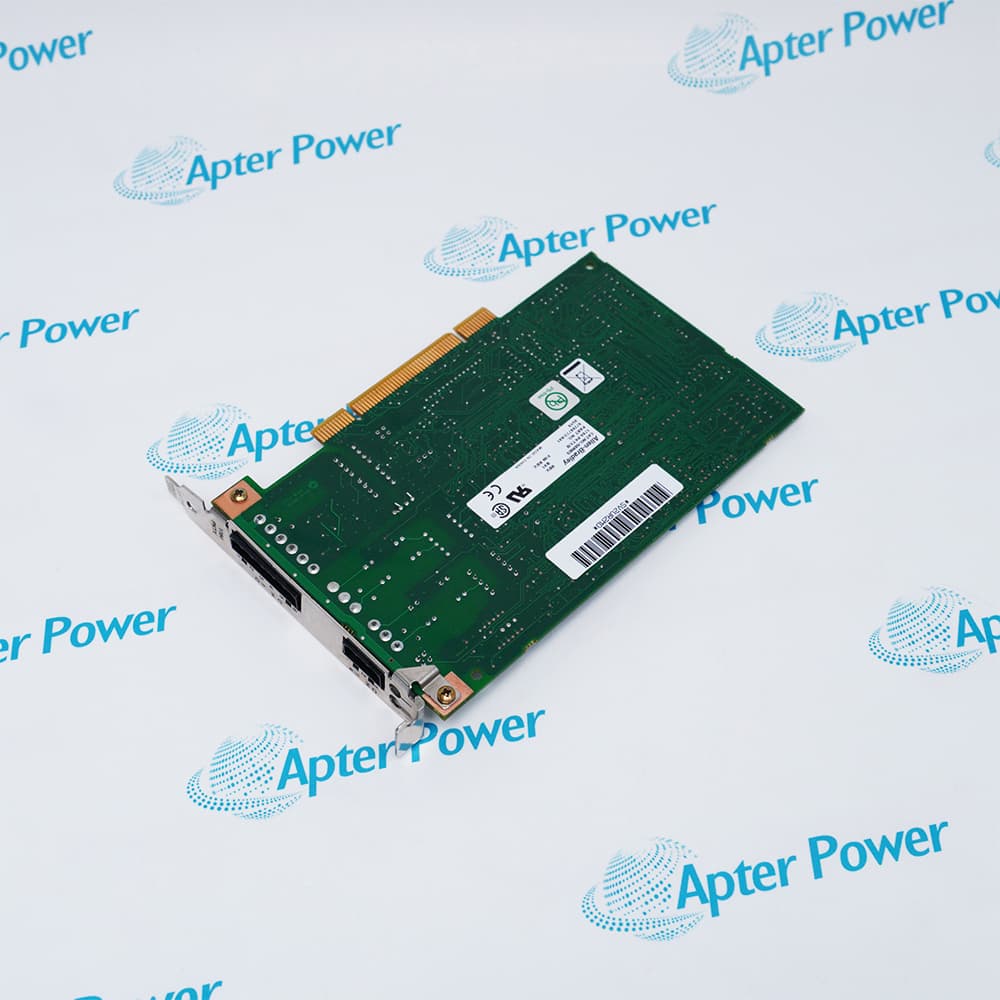

1784-PKTX/B
PCI Network Interface Card - Series B
In Stock
Product Describe：
PCI NETWORK INTERFACE CARD – SERIES B
DISCONTINUED BY MANUFACTURER
COMMUNICATION CARD
DATAHIGHWAY PLUS AND RIO NETWORK
PCI BUS
INDUSTRIAL PCI COMMUNICATION MODULE
SINGLE CHANNEL
The 1784-PKTX/B is a PCI network interface card – Series B, designed for industrial PC communication with PLC‑5 and SLC controllers. It supports Data Highway Plus (DH+), DH‑485, and Remote I/O networks, providing reliable connectivity between PCs and Allen‑Bradley automation systems.
Series B Revision
Multi-Network Support
PCI Bus Powered
The 1784‑PKTX/B delivers robust industrial communication with minimal setup, drawing power directly from the PCI bus without requiring an external supply. It features diagnostic LEDs for network status, high compatibility with legacy PLC systems, and Series B enhancements improve hardware reliability for long-term industrial operation.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Allen-Bradley 1784-PKTX/B PCI Network Interface Card - Series B Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
PLC Data Acquisition
Collects real-time data from PLC‑5 or SLC controllers on production lines. Enables precise monitoring of machine status, counters, and sensors for analysis and reporting.
Motor Control Systems
Interfaces PCs with motor control PLCs for startup, shutdown, and speed regulation. Facilitates monitoring of VFDs and motor performance over DH+ or DH‑485 networks.
Batch Processing Units
Connects batch processing controllers to central PCs to manage recipes and sequencing. Enables precise timing, material flow tracking, and synchronization between multiple process steps.
Packaging Machinery
Provides communication between packaging line PLCs and PC monitoring systems. Monitors conveyor speeds, fill levels, and error conditions in real-time.
Water Treatment Plants
Links remote PLCs controlling pumps, valves, and chemical dosing systems to central supervisory PCs. Enables continuous monitoring of flow, pressure, and chemical levels.
Material Handling Systems
Integrates networked controllers in warehouses and distribution centers with central PCs. Tracks conveyors, sorters, and automated storage/retrieval systems. Allows real-time performance monitoring and fault diagnosis.
The 1784‑PKTX/B network interface card is a PCI (Peripheral Component Interconnect) universal card that must be inserted into a PCI bus slot on a compatible PC. This card connects a personal computer to Allen‑Bradley networks such as Data Highway Plus (DH+), DH‑485, and Remote I/O, enabling easy programming, configuration, and data acquisition from PLC controllers. It incorporates Plug and Play capabilities defined by the PCI BIOS, so interrupt request levels (IRQ) and base memory addresses are automatically assigned at power‑up, eliminating manual jumper configuration in most Windows environments.
The 1784‑PKTX/B is a PCI network interface card used to connect a PC to Allen‑Bradley PLC‑5 and SLC systems over DH+, DH‑485, and Remote I/O networks. It enables monitoring, programming, and data exchange between the PC and industrial controllers.
What networks does 1784‑PKTX/B support?
It supports Data Highway Plus (DH+), Data Highway‑485 (DH‑485), and Remote I/O networks. Users can connect the PC to multiple Allen‑Bradley controllers over these industrial networks for diagnostics and communication.
What are the operating voltage and power requirements for 1784‑PKTX/B?
The card draws power directly from the PCI bus and does not require an external power supply. The standard PCI voltage is 5 V DC, with typical power consumption around 4 W.
Is 1784‑PKTX/B compatible with older Allen‑Bradley PLC systems?
Yes, it is compatible with legacy PLC‑5 and SLC systems, including both DH+ and DH‑485 networks. Series B revision mainly improves hardware reliability without changing core functionality.
What are the key differences between 1784‑PKTX and 1784‑PKTX/B?
The Series B (/B) version is a revision of the original PKTX card. It features minor hardware improvements for reliability and manufacturing updates, but network support and core functionality remain the same.
