2711P-T10C22D9P

PVP7 Performance 10"
In Stock
Ships by Saturday, November 21
Fast Shipping Available

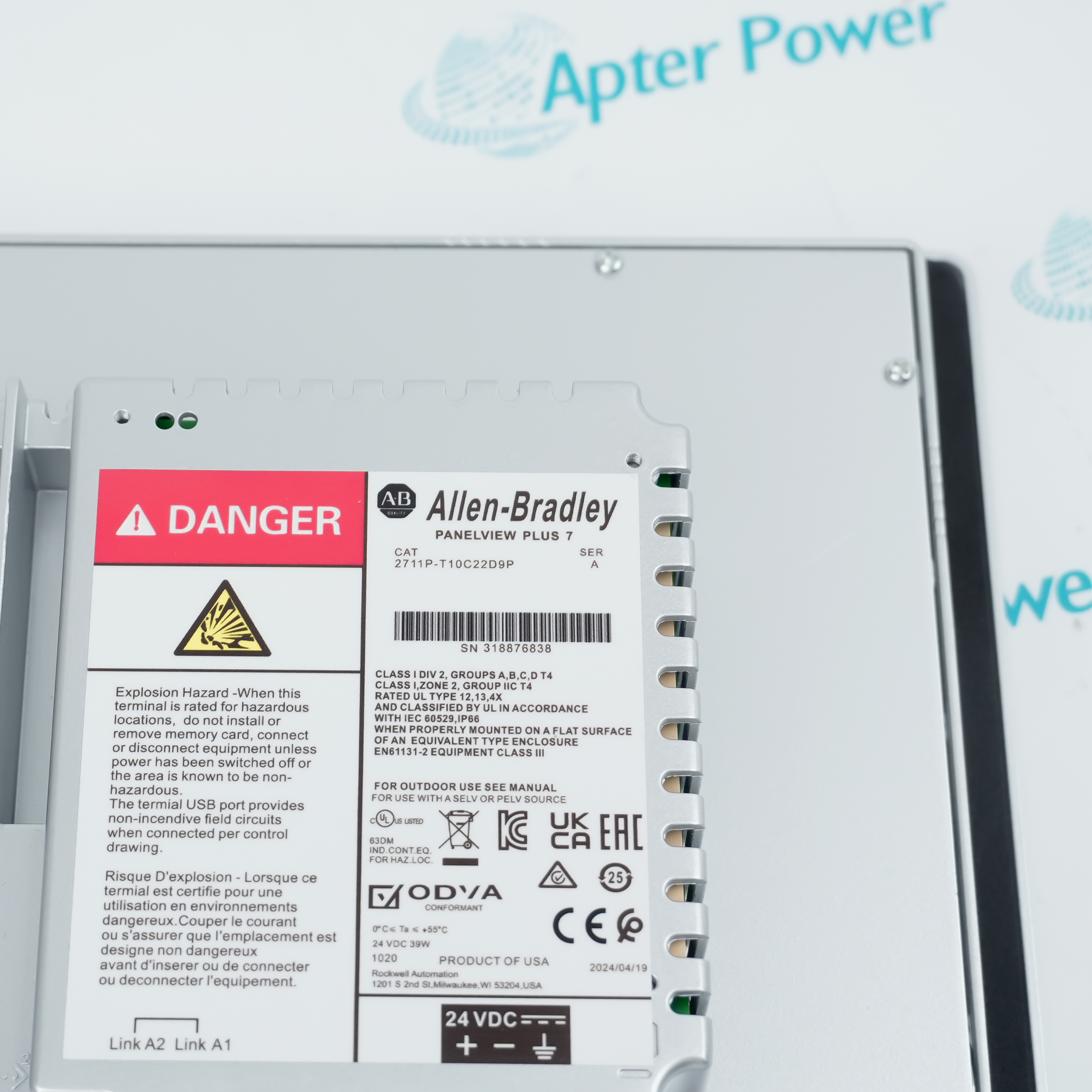

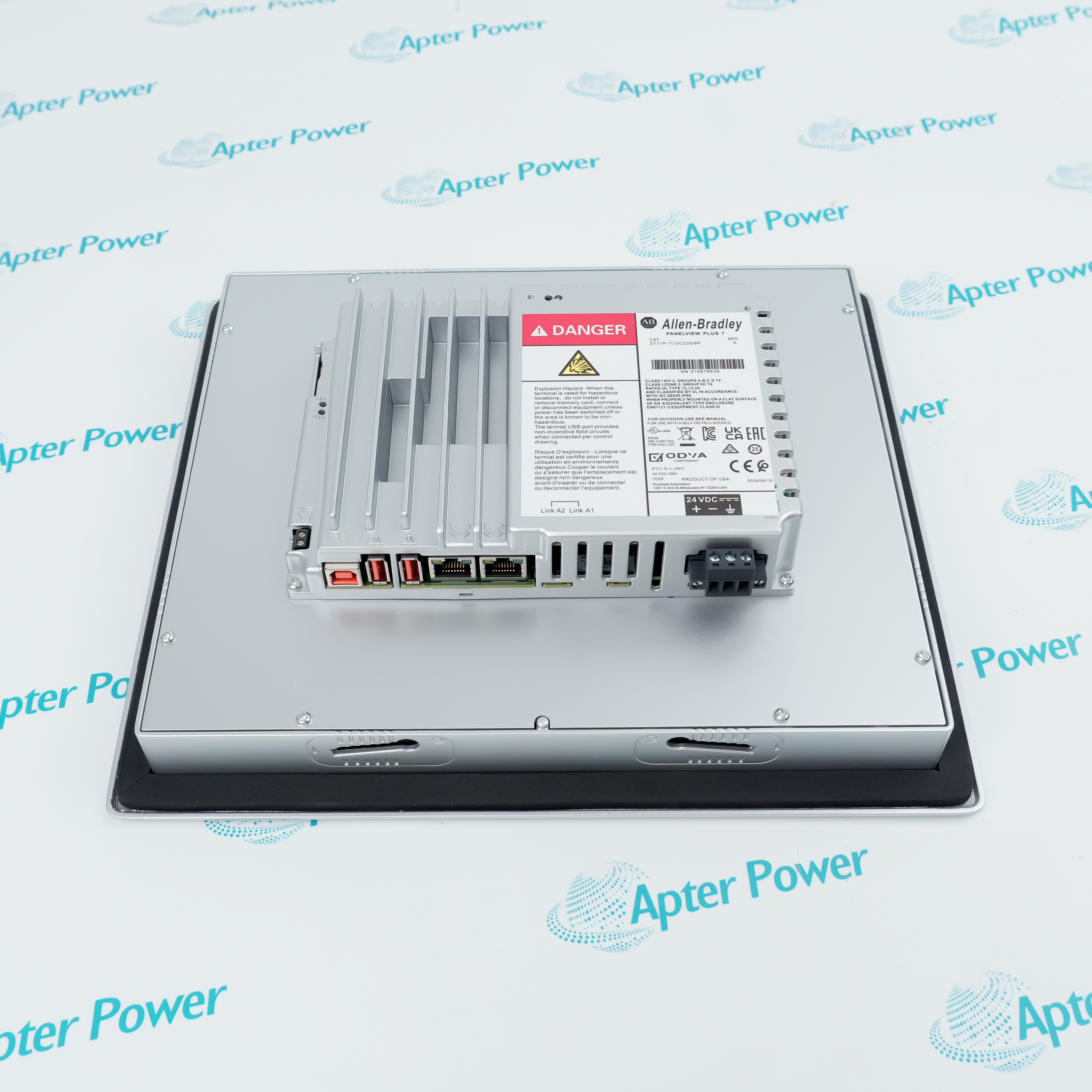

Allen-Bradley 2711P-T10C22D9P
Allen-Bradley 2711P-T10C22D9P
Allen-Bradley 2711P-T10C22D9P
Allen-Bradley 2711P-T10C22D9P
Allen-Bradley 2711P-T10C22D9P
Allen-Bradley 2711P-T10C22D9P
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

PanelView Plus 7 Performance Operator Interface Terminal
10.4" Touch Screen, Embedded Switch (DLR Supported)
512 MB RAM / 512 MB Storage
(80 MB Non-volatile User Memory)
Get a quick price for 2711P-T10C22D9P
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 2711P-T10C22D9P

  • Manufacturer:
    Allen-Bradley
  • Product Category:
    HMI Panels
  • Spare Part Number:
    2711P-T10C22D9P
  • Estimated shipping dimensions:
    30.5x24.1x7.6cm
  • Weight:
    2.3 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Memory:
    512 Mb
  • Actuation rating:
    1 million presses
  • Operating force:
    100 grams
  • Display Area:
    211 x 158 mm (8.31 x 6.22)
  • Resolution:
    800 x 600 SVGA, 18-Bit
  • Backlight:
    CCFL 50,000 hours life, minimum
  • Input Voltage range:
    18-30VDC
  • Operator input:
    Touch
  • Display type:
    TFT Color
  • Display size, diagonal:
    10.4-in
  • Brightness, typical:
    300 cd/m² (Nits) or more
  • Input voltage:
    24V DC nom (18…30V DC)

Information

Overview Manuals Common Applications Product Precautions
The 2711P-T10C22D9P is a PanelView Plus 7 Performance operator interface terminal featuring a 10.4-inch touch screen. It comes with an embedded switch supporting DLR (Device Level Ring) topology, and is equipped with 512 MB RAM, 512 MB storage, and 80 MB of non-volatile user memory.
    • Built-in dual Gigabit ports and switch support Device Level Ring topologies to prevent data interruption from single-point link failures
    • Ample system RAM and non-volatile storage allow it to run unlimited display screens, advanced data logging, and extensive recipe management
    • Runs the FactoryTalk View ME runtime environment for seamless coupling with Logix controllers to deliver rapid data parsing and interaction
The 2711P-T10C22D9P terminal features an integrated embedded switch and dual Gigabit Ethernet ports, fully supporting linear, star, and fault-tolerant Device Level Ring network topologies to guarantee media redundancy and continuous control communication. Built on a rugged hardware architecture, the device is equipped with 512 MB of system RAM, 512 MB of non-volatile onboard storage, and a dedicated 80 MB of non-volatile application user memory, allowing it to run an unlimited number of display screens while handling advanced data logging, complex multi-state alarming, and extensive localized recipe management.

The hardware utilizes an external 24V DC input for power, and when properly panel-mounted, the front bezel achieves IP66 and NEMA 4X, 12, 13 environmental ratings to withstand high-pressure washdowns, industrial dust, and heavy electromagnetic interference. Running on the FactoryTalk View Machine Edition software runtime environment, this terminal delivers high processing capability, remote desktop access, and secure multi-user security management for high-availability manufacturing and critical process control environments.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 Allen Bradley 2711P-T10C22D9P PVP7 Performance 10" Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Automotive Manufacturing
Installed on main line consoles to dynamically display VFD statuses across conveyor stations, multiple spindle tightening tool data, and workpiece shuttle logics.

Semiconductor Wafer Fabrication
Used in single-crystal growth furnaces and Bulk Chemical Distribution Systems (BCS) to monitor ultra-complex P&ID charts, precision electronic gas valve flows, and temperature fluctuation curves.

Food and Beverage Processing
Used for recipe management and washdown control in meat processing, dairy pasteurization, and beverage filling lines.

Oil and Gas
Deployed at wellhead control panels, separators, and pipeline pumping stations for localized safety data monitoring.

Chemical and Petrochemical
Used to monitor batch mixing, reactor temperature/pressure cycles, and hazardous gas alarm indicators.

Pulp and Paper
Used to control the operating parameters of continuous digesters, paper machine dryer sections, and large rewinders.
 When using the 2711P-T10C22D9P terminal, it is essential to ensure a stable 24V DC power supply and strictly follow panel-mounting specifications to maintain its IP66 and NEMA environmental ratings. For wiring, communication cables must be isolated from high-voltage power lines, and the dual network ports should be utilized to build a DLR network for media redundancy.

Additionally, operators should use the onboard USB ports to perform regular backups of FactoryTalk View ME projects and local recipe data, while avoiding the use of sharp or hard objects on the touchscreen to maximize the equipment's lifespan.

Revisions

Revision Part #

Also known as

2711P-T10C22D9PA Ser A
2711P-T10C22D9P/A, Series A, Rev A2711P-T10C22D9PX
2711P-T10C22D9PX Ser X
2711P-T10C22D9P/X, Series X, Rev X

Alternative Names

2711P-T1OC22D9P 2711PTI0C22D9P 27I1PT10C22D9P 27IIPTIOC22D9P 2711P-TI0C22D9P 271IP-T10C22D9P 27IIP-TI0C22D9P 2711PT10C22D9P 271IPT10C22D9P 27IIP-TIOC22D9P 2711PT1OC22D9P 27I1P-T10C22D9P 27IIPTI0C22D9P

Technical notes

Allen-Bradley PanelView Plus 7 Performance Operator Terminal, featuring a 10.4-inch SVGA TFT color touchscreen, equipped with dual Ethernet ports (DLR supported), 24V DC powered, Catalog No. 2711P-T10C22D9P.
