2711P-RDT7CM

Operator Interface Component
In Stock
Ships by Saturday, November 21
Fast Shipping Available
Allen-Bradley 2711P-RDT7CM
Allen-Bradley 2711P-RDT7CM
Allen-Bradley 2711P-RDT7CM
Allen-Bradley 2711P-RDT7CM
Allen-Bradley 2711P-RDT7CM
Allen-Bradley 2711P-RDT7CM
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

Operator Interface Component
6.5-inch color display module
700 touch color display, marine certified
Conformal coated for harsh environments
Get a quick price for 2711P-RDT7CM
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 2711P-RDT7CM

  • Manufacturer:
    Allen-Bradley
  • Product Category:
    HMI Panels
  • Spare Part Number:
    2711P-RDT7CM
  • Estimated shipping dimensions:
    19.5x28x10cm
  • Weight:
    0.6 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Luminance:
    300 cd/m² (Nits)
  • Resolution:
    640 x 480
  • Display Colors:
    18-bit color graphics
  • Touch Input:
    8-wire analog resistive
  • Touch Interface Lifespan:
    1 Million actuations
  • Input Type:
    Touch
  • Display:
    7.0-in. color

Information

Overview Manuals Common Applications Product Precautions
The 2711P-RDT7CM is a hardware component within the PanelView Plus 7 series, functioning as a 7-inch display module for the human-machine interface system. This component links directly into the control system to display industrial field data, establishing a window into real-time machine status for operators and technicians. It is used in industrial applications that require continuous monitoring of dynamic information.
    • Integrates with third-party software such as Microsoft® Internet  Explorer® and Microsoft Office Viewers
    • Provides remote recipe and data management through .CSV  files
    • Supports DataStore Plus logging and trending, which eliminates  the 300,000 data point limit
This module pairs with FactoryTalk View Machine Edition software for screen configuration and parameter setups, fitting into the Integrated Architecture solution. Relying on its onboard Ethernet connectivity, the module provides data transmission to keep field control commands and live production data synchronized for networked data management and multi-device coordination.

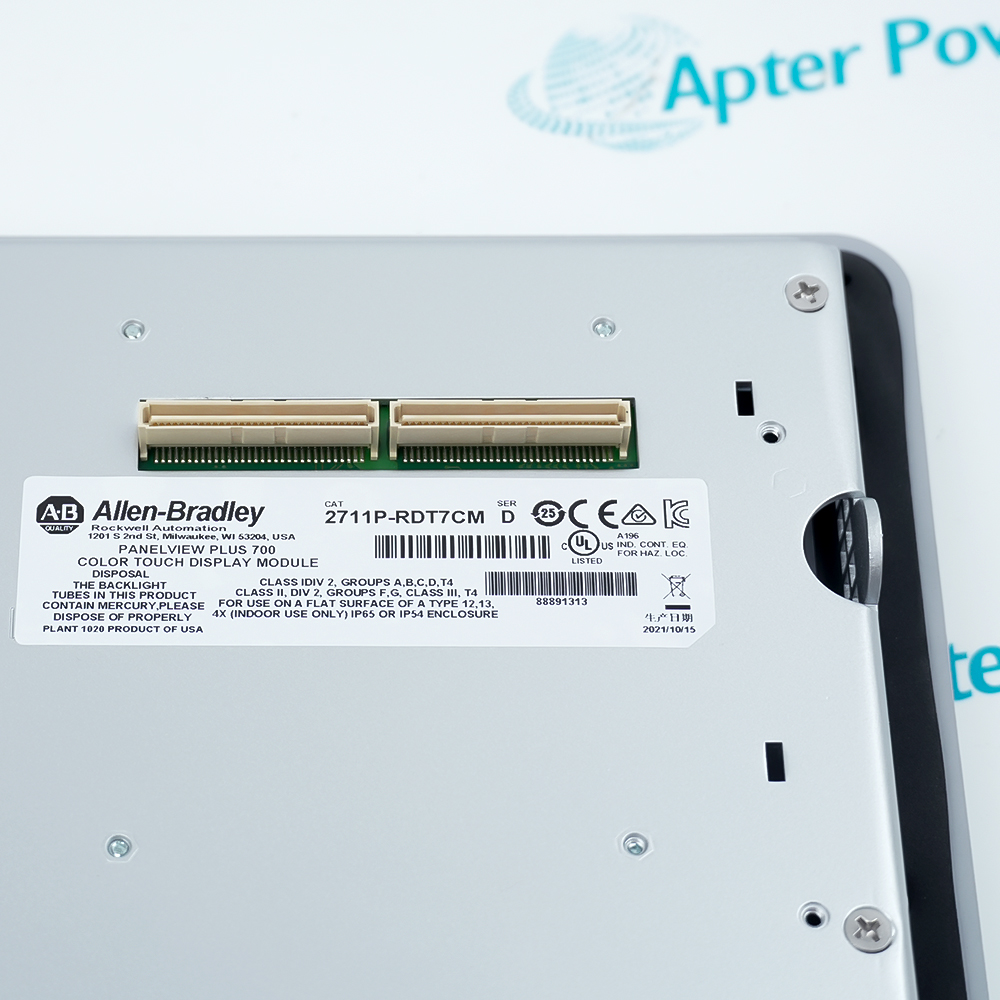

The unit includes a factory-applied conformal coating on the internal printed circuit boards. This layer covers the electrical traces to isolate them from moisture, airborne salt, and dust particles common in processing plants. On the back, the module connects to specific PanelView Plus 7 logic blocks through a multi-pin board-to-board connector interface. This connection routes the DC voltage, grounding paths, and digital video signals required to render graphic animations, fault alarms, and process values generated by the linked Programmable Logic Controllers (PLCs).

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 Allen Bradley 2711P-RDT7CM Operator Interface Component Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Marine Engineering & Ocean Shipping
Engine room operator panel to track main engine speed, oil pressure, and cooling water temperature in high-humidity and salt-spray conditions.

Cargo Handling & Crane Systems
Crane cabin display to show hook positioning, travel limits, and container weight in outdoor coastal conditions.

Hydropower Generation & Sluice Control
Dam galley or water gate control panel to operate spillway gate positions and monitor reservoir levels in damp tunnels.

Pulp & Paper Industry
Bleaching and press section terminal built to handle moisture, steam, and airborne chemical vapors.

Wind Power Generation
Offshore tower base or nacelle local terminal used by technicians for manual yaw and pitch calibration under high vibration.

Rubber & Tire Manufacturing
Compounding and curing press operator terminal exposed to high temperatures, carbon black dust, and sulfur oils.
 The 2711P-RDT7CM requires coupling with a compatible PanelView Plus 700 logic module. Tighten mounting clips to specification and ensure the sealing gasket remains flat to maintain front NEMA 4X and IP65 ratings.

Revisions

Revision Part #

Also known as

2711P-RDT7CM Ser A
2711P-RDT7CM/A, Series A, Rev A
2711P-RDT7CM Ser B
2711P-RDT7CM/B, Series B, Rev B
2711P-RDT7CM Ser C
2711P-RDT7CM/C, Series C, Rev C
2711P-RDT7CM Ser X
2711P-RDT7CM/X, Series X, Rev X

Alternative Names

2711PRDT7CM 271IP-RDT7CM 271IPRDT7CM 27I1P-RDT7CM 27I1PRDT7CM 27IIP-RDT7CM 27IIPRDT7CM

Technical notes

The model suffix "CM" specifies a Marine Certified Color Touch configuration. The physical structure complies with marine high-frequency vibration and mechanical shock specifications, and the front panel achieves NEMA Type 4X, 12, 13, and IP65 environmental ratings when correctly installed.

FAQ View All FAQ

  • What are the screen size and resolution of the 2711P-RDT7CM?
    The 2711P-RDT7CM features a 6.5-inch high-resolution color touchscreen with a resolution of 800×480 pixels.
  • What are the processor and memory configurations of the 2711P-RDT7CM?
    The 2711P-RDT7CM uses a high-performance ARM Cortex-A8 processor, equipped with 256MB of RAM and 1GB of Flash storage.
  • What communication interfaces does the 2711P-RDT7CM have?
    The 2711P-RDT7CM supports multiple communication interfaces, including Ethernet (10/100 Mbps) and RS-232/485 serial ports.
