The 2711P-RDT12H is an Allen-Bradley industrial-grade human-machine interface (HMI) color high-brightness touch display module manufactured by Rockwell Automation. It is typically used as a display component in the PanelView Plus 6 series operator terminals for visual operation and equipment monitoring in industrial automation control systems.
NEMA Type 4X, 12, 13, and IP65
Utilizes an 8-wire analog resistive touchscreen
Features high luminance output of up to 1000 cd/m² (nits)
Serving as a rugged hardware interface, the 2711P-RDT12H easily clips onto the front of rear-mounted PanelView Plus logic modules (such as the 2711P-RP1 or 2711P-RP8D) and standard communication adapters (EtherNet/IP, ControlNet, or DH+), giving facilities ultimate flexibility when configuring or scaling their distributed control network. When panel-mounted into a control cabinet, its robust front bezel carries a marine-grade NEMA Type 4X, 12, 13, and IP65 enclosure rating, rendering it highly immune to abrasive debris, corrosive airborne particles, and long-term ultraviolet (UV) degradation. As an officially discontinued yet highly critical legacy part, this display module remains the absolute premier choice in the global industrial MRO market for keeping offshore drilling rigs, water treatment facilities, and crane cabin monitoring systems operating with maximum efficiency and minimal asset downtime.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Allen Bradley 2711P-RDT12H High-Bright Touch Display Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Oil & Gas
Serves as the primary mud pump and drawworks control interface on the open-air drill floor under harsh sunlight.
Maritime & Ocean Vessels
Operates as the main bridge or open-deck HMI terminal for machinery monitoring and ballast tank control.
Wastewater Treatment Facilities
Controls outdoor aeration tanks, clarifiers, and chemical dosing systems exposed to high humidity and water spray.
Chemical Fertilizer
Monitors localized bulk blending, bagging, and outdoor chemical storage tank status.
Geothermal Power Plants
Tracks outdoor brine reinjection pumps and steam separation processes under high temperature and ambient glare.
Hydroelectric Dam
Interfaces with local PLCs to manually or automatically operate massive spillway crest gates and intake valves.
When using the 2711P-RDT12H module, ensure that the rear logic module and ribbon cable are securely connected, and never assemble or disassemble components while powered to prevent interface burnout. Because its high-bright backlight system generates significant heat and features a specialized sealed construction, outdoor installations must include sunshades and proper enclosure ventilation, and the backlight tubes cannot be individually replaced by the user if they fail, requiring a complete assembly service. Additionally, never use sharp tools or harsh solvents to clean the touchscreen. Instead, gently wipe the surface with a soft cloth dampened with isopropyl alcohol to protect the outer resistive film.

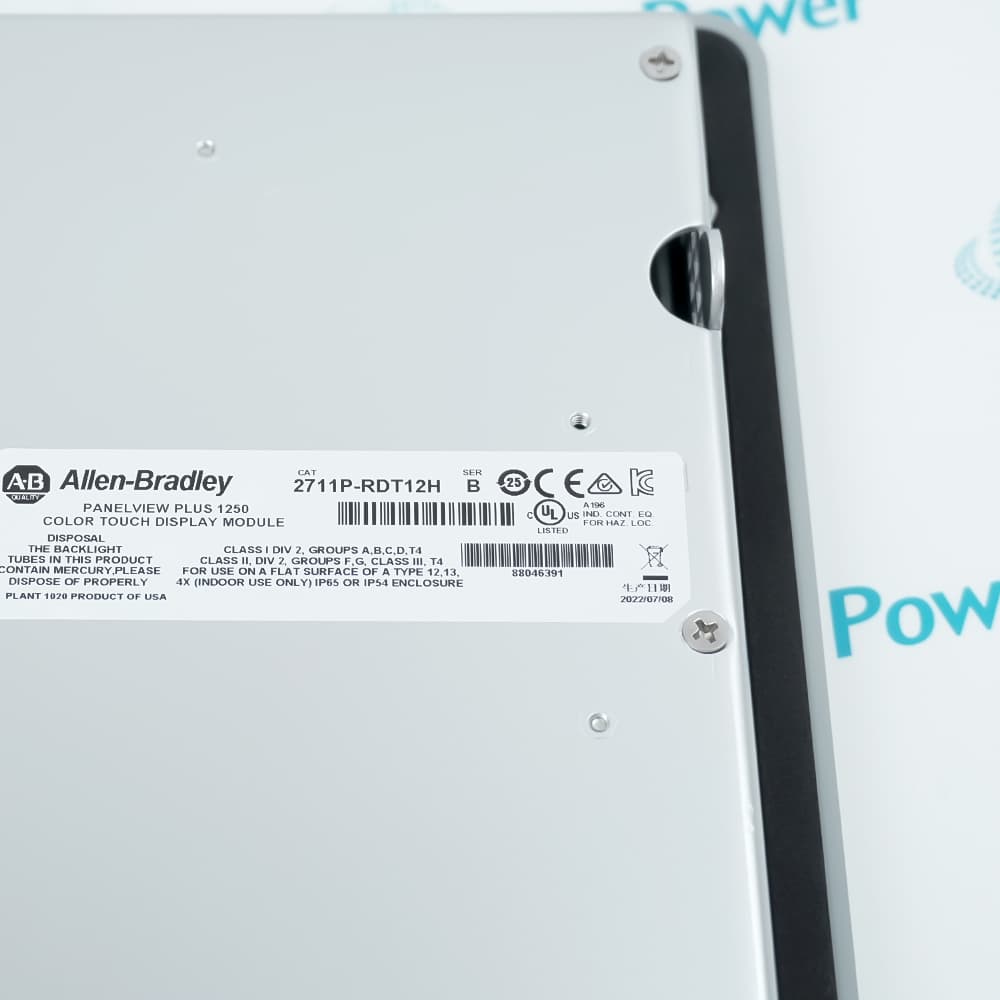

The 2711P-RDT12H is a 12.1-inch High-Bright Touch Display Module belonging to the Allen-Bradley PanelView Plus 1250 human-machine interface (HMI) series. It serves as the front-end user interaction interface for industrial automated control systems.
Can the 2711P-RDT12H display module operate completely on its own?
No, the 2711P-RDT12H is a standalone touchscreen display component and has no CPU or memory. It must be paired with a rear-mounted PanelView Plus Logic Module (such as 2711P-RP1 or 2711P-RP8D) and a communication module to function as a complete HMI.
Is the backlight of the 2711P-RDT12H display module user-replaceable?
Unlike standard PanelView Plus modules, the high-bright backlight tubes on the 2711P-RDT12H are not user-replaceable due to the specialized sealed construction required for sunlight-readability.
Where are 2711P-RDT12H display modules typically installed?
They are typically installed in outdoor control panels, oil/gas drilling rigs, water treatment facilities, marine vessels, or crane cabs where ambient sunlight makes standard screens unreadable.
How do you mount the 2711P-RDT12H display module to an enclosure wall?
Slide the module into a pre-cut panel cutout and secure it from behind using the official Rockwell mounting levers or clips supplied with the unit to achieve a compressed, watertight seal.
