1756-IB32

Input Module
In Stock
Ships by Saturday, November 21
Fast Shipping Available

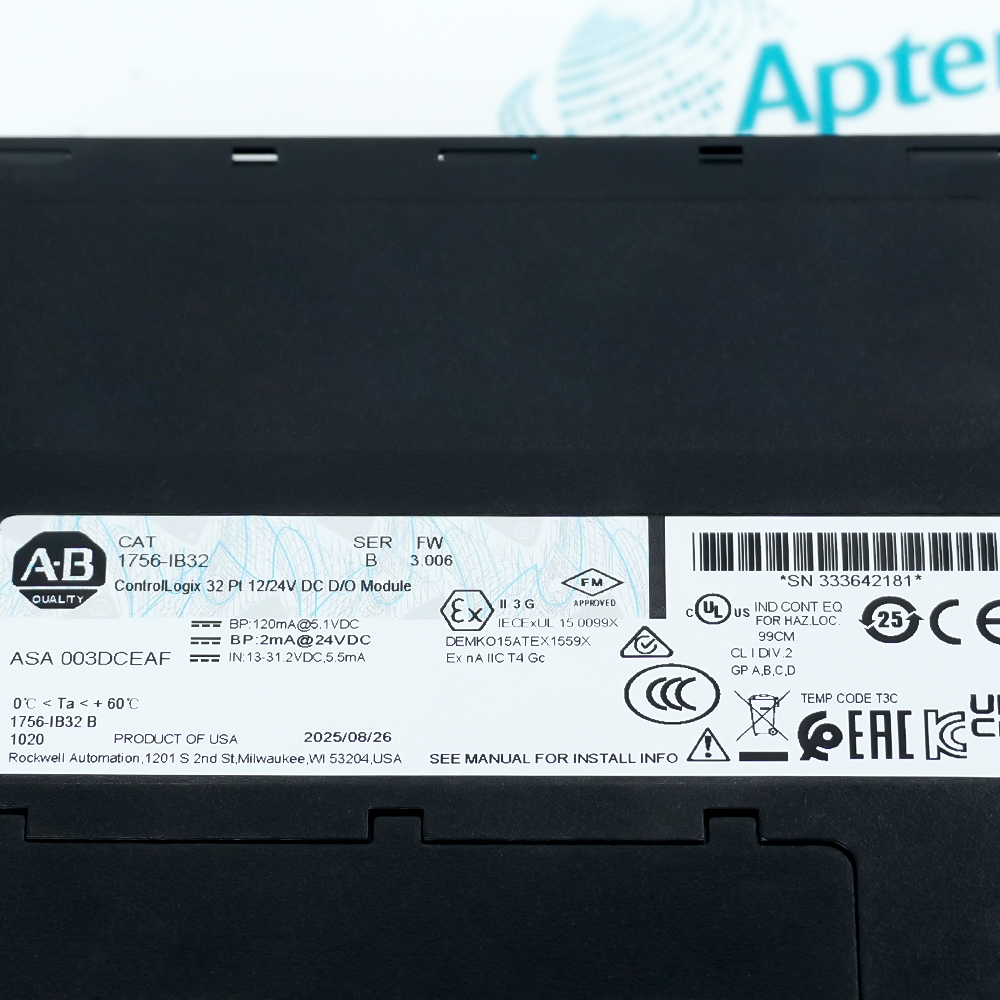

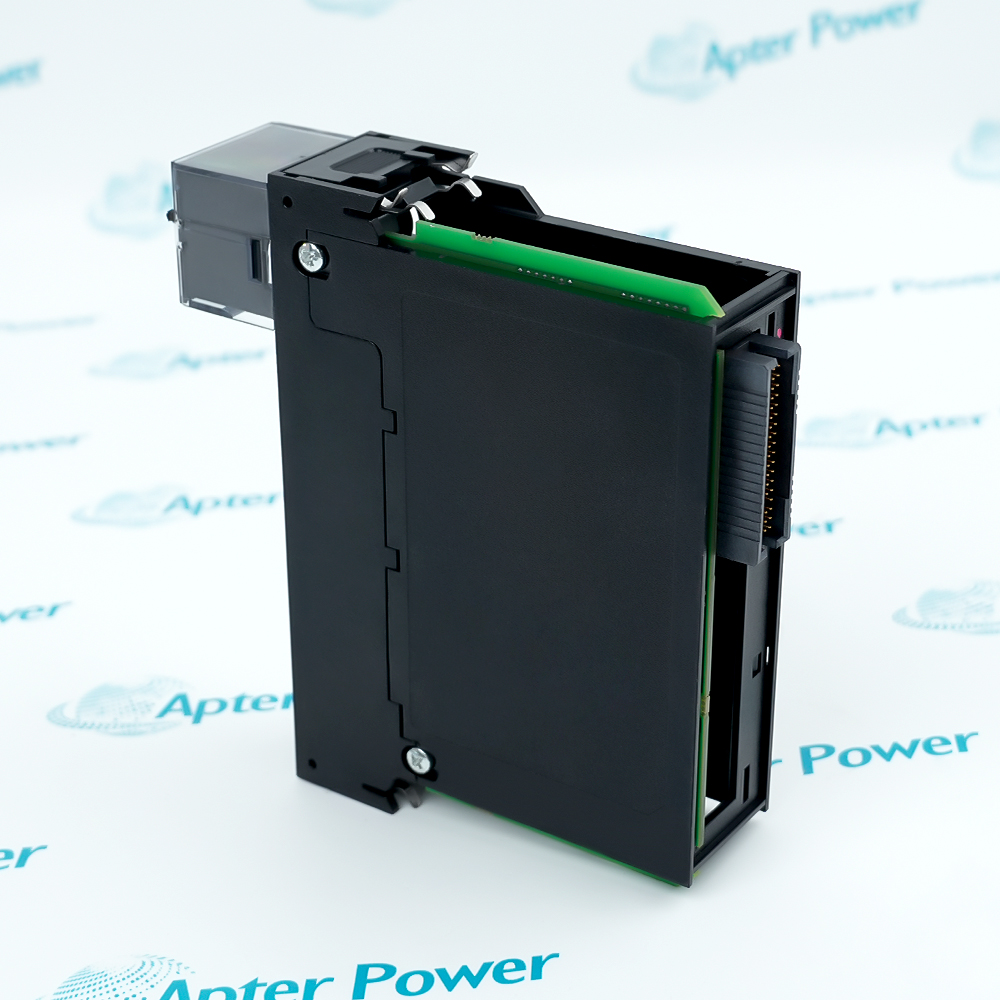

Allen-Bradley 1756-IB32
Allen-Bradley 1756-IB32
Allen-Bradley 1756-IB32
Allen-Bradley 1756-IB32
Allen-Bradley 1756-IB32
Allen-Bradley 1756-IB32
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

ControlLogix 32 Point
24V DC Sinking Digital
Input Module
Time stamp of inputs ±200 µs
Get a quick price for 1756-IB32
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 1756-IB32

  • Manufacturer:
    Allen-Bradley
  • Product Category:
    PLC Systems
  • Spare Part Number:
    1756IB32
  • Estimated shipping dimensions:
    23.3x18.2x5.3cm
  • Weight:
    0.3 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Inputs:
    32 (16 points/group)
  • Voltage category:
    12/24V DC sink
  • Operating voltage range:
    10…31.2V DC
  • Input voltage, nom:
    24V DC
  • Current draw @ 5.1V:
    120 mA
  • Current draw @ 24V:
    2 mA
  • Total backplane power:
    0.66 W
  • Power dissipation, max:
    6.2 W @ 60 °C (140 °F)
  • Thermal dissipation:
    21.1 BTU/hr @ 60 °C (140 °F)
  • Off-state voltage, max:
    5V
  • Off-state current, max:
    2.27 mA
  • On-state current, min:
    4.8 mA @ 10V DC
  • On-state current, max:
    5.5 mA @ 31.2V DC

Information

Overview Manuals Common Applications Product Precautions
The 1756-IB32 is a ControlLogix series discrete input component featuring 32 input channels. This hardware uses a 2-group x 16-channel architecture, supporting a wide operating voltage range of 10 to 31.2V DC.
    • High Density with Isolated Grouping
    • High-Precision Time Stamping
    • Wide Voltage Operation & Low Heat
The 1756-IB32 operates across a flexible DC voltage framework, with an active operating voltage range of 10 to 31.2V DC. To ensure accurate state transitions and clear electrical switching, each input point requires a minimum On-state current of 2 mA at 10V DC. This configuration interfaces with dry contacts, limit switches, pushbuttons, and 3-wire DC proximity or photoelectric sensors. The front plate features a 36-pin connection footprint that integrates with Removable Terminal Blocks (RTB).

A distinguishing technical asset of the 1756-IB32 is its ability to deliver an input event time stamp accuracy of ±200 microseconds (µs). This sub-millisecond precision allows the module to register the exact moment an input state transitions, satisfying rigorous Sequence of Events (SOE) recording requirements and helping technicians pinpoint the root cause of high-speed trip conditions.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 Allen Bradley 1756-IB32 Input Module Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Automotive Manufacturing
Used in stamping, welding, and assembly lines to receive signals from proximity sensors and photoelectric switches to verify precise car body positioning.

Pharmaceuticals & Biotechnology
Collects discrete signals like safety door interlocks and reactor sealing status in cleanroom compounding and packaging equipment to ensure compliance.

Oil & Gas
Used for long-distance valve status monitoring in pipelines and pumping stations, capturing stroke switch feedback for fully open or fully closed positions.

Power & Energy
Utilized in auxiliary control systems (e.g., coal handling and ash removal) within power plants to receive run/stop auxiliary contact feedback.

Metallurgy & Steel
Monitors high-temperature proximity switches around steel-rolling mills and cooling beds to trace the movement of steel billets.

Pulp & Paper / Printing
Used in large paper cutters and winders to receive paper-break photoelectric signals (web break protection) and safety guard limit switch inputs.
 This module features a high-density sinking input configuration, requiring field sensors to have sourcing (Sourcing/PNP) outputs, and wiring must account for the 32 channels being split into two independent 16-channel common return (COM) groups.

Never force an unaligned 36-pin Removable Terminal Block (RTB) into the slot while the chassis is powered to prevent bending backplane pins. Monitor the front-panel LEDs during daily operations for channel anomalies caused by overvoltage or short circuits, and ensure the conformal-coated K-version (1756-IB32K) is deployed if operating in dusty or high-humidity environments to guarantee system longevity.

Revisions

Revision Part #

Also known as

1756-IB32 Ser A
1756-IB32/A, Series A, Rev A
1756-IB32 Ser B
1756-IB32/B, Series B, Rev B

Alternative Names

1756-1B32 1756-I832 17561B32 1756I832 1756IB32 I756-1832 I756-IB32 I7561832 I756IB32

Technical notes

Functioning as a 24V DC nominal processing unit, the 1756-IB32 is a ControlLogix discrete input hardware component that accepts operating voltages from 10 to 31.2V DC. This specific module provides thirty-two (32) sinking input channels partitioned into two (2) separate wiring groups. It deploys directly inside a standard 1756 local or remote backplane chassis to interface with field sensing devices.

FAQ View All FAQ

  • What is the 1756-IB32?
    The 1756-IB32 is a 32-point high-density DC digital input module for the Rockwell ControlLogix system, used to collect discrete signals from the field.
  • How are the channels grouped and isolated within the 1756-IB32?
    The 32 input points are divided into 2 independent groups, with each group containing 16 input channels. Electrical isolation is provided between the groups.
  • How do you use a product like the 1756-IB32 in an industrial field?
    Insert it into a chassis such as the 1756-A10, and connect field pushbuttons, limit switches, proximity sensors, or relay contacts via the front interface to convert switch states into controller backplane data.
  • Does the 1756-IB32 module support hot-swapping under power?
    Yes. It fully supports Removal and Insertion Under Power, allowing field maintenance personnel to perform online hot-swapping without shutting down the chassis power supply.
  • What kind of terminal block is required for using the 1756-IB32?
    It requires a specialized 36-pin Removable Terminal Block, such as the 1756-TBCH screw terminal block or the 1756-TBS6H spring clamp terminal block.
