1756-PB75

CONTROLLOGIX POWER SUPPLY

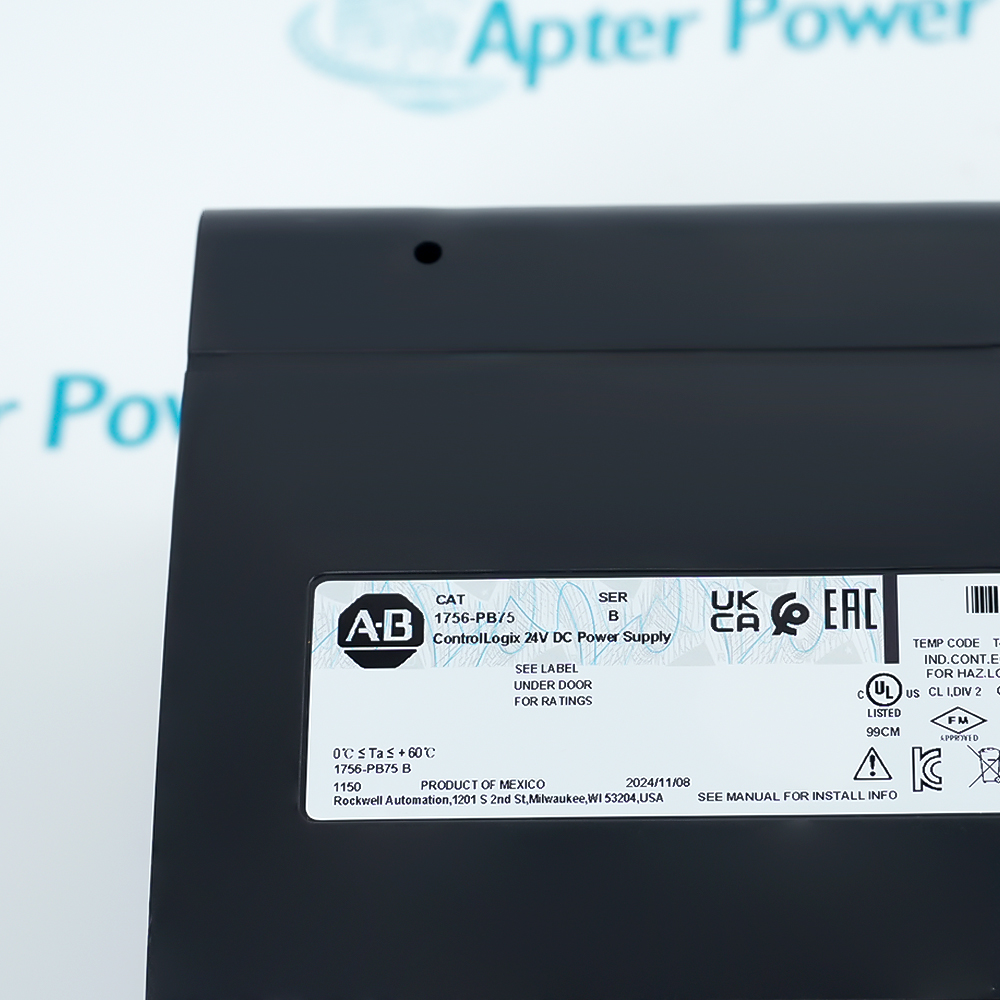

Allen-Bradley 1756-PB75

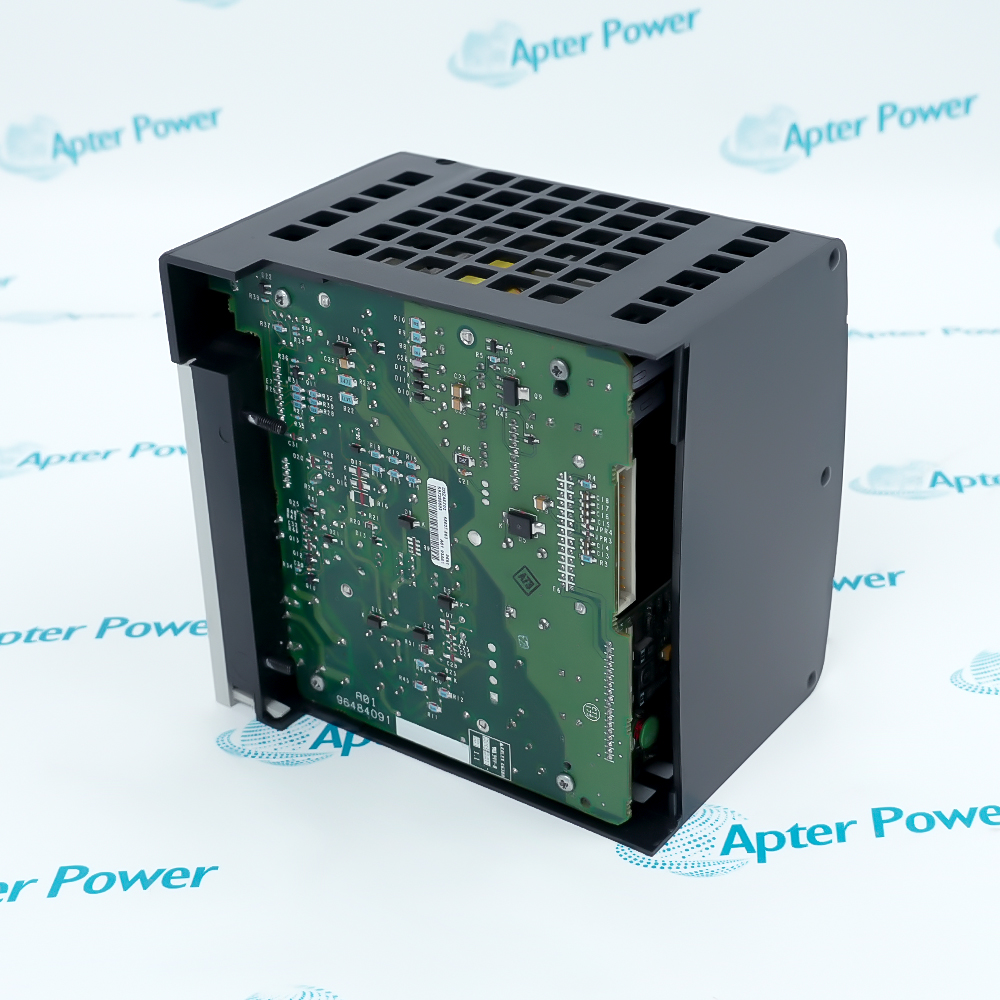

Allen-Bradley 1756-PB75
Allen-Bradley 1756-PB75
Allen-Bradley 1756-PB75
Allen-Bradley 1756-PB75
Allen-Bradley 1756-PB75
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

CONTROLLOGIX  POWER SUPPLY
ControlLogix 24V DC
Standard Power Supply
Left side of chassis (Dedicated slot)
1 Green LED (Input Power/Output Status)
Get a quick price for 1756-PB75
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 1756-PB75

  • Manufacturer:
    Allen-Bradley
  • Product Category:
    PLC Systems
  • Spare Part Number:
    1756PB75
  • Estimated shipping dimensions:
    11x14.5x14cm
  • Weight:
    0.98 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Input voltage range:
    18…32V DC
  • Input voltage, nom:
    24V DC
  • Input power, max:
    95 W
  • Output power, max:
    75 W @ 0…60 °C (32…140 °F)
  • Power dissipation:
    68.2 BTU/hr
  • Current capacity at 5.1V:
    13 A
  • North American temperature code:
    T4
  • Operating Temperature:
    0…60 °C
  • Storage Temperature:
    -40…85 °C

Information

Overview Manuals Common Applications Product Precautions
The 1756-PB75 is a standard DC power supply module used in ControlLogix systems manufactured by Allen-Bradley. This module is specifically designed for mounting in 1756 series racks (chassis) to provide the necessary system backplane power for processors, input/output (I/O) modules, and communication modules.
    • Wide DC Input
    • High Power Output
    • Multi-Rail Power Delivery
The Allen-Bradley 1756 ControlLogix controllers provide a robust and scalable control solution for industrial automation systems. Logix programmable automation controllers use a standard control engine with a standard development environment to provide high performance in an easy-to use environment. The system provides discrete drives, motion, process, safety control, communication, and state-of-the-art I/O in a small, cost-effective package. The modular arrangement allows for efficient design, build, and modification. Available with On-Machine models suitable for process, motion, discrete, and high-availability applications.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 Allen Bradley 1756-PB75 CONTROLLOGIX POWER SUPPLY Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Oil & Gas
Used in Emergency Shutdown Systems (ESD) on offshore platforms, typically powered by battery banks.

Water & Wastewater
Controlling remote pumping stations, ensuring communication after power failure via DC batteries.

Pharmaceuticals
Monitoring environmental parameters in cleanrooms to ensure uninterrupted logic control.

Steel & Metallurgy
Controlling continuous casters or rolling lines in high-temperature environments.

Chemical Industry
Managing temperature and pressure interlocking logic for chemical reactors.

Pulp & Paper
Driving Distributed Control System (DCS) nodes for large paper machines.

 When using the 1756-PB75, the primary focus should be the Power Budget. Ensure the total current demand of all modules in the chassis across all voltage rails (especially the 5.1V/13A rail) does not exceed the supply's limits. Additionally, ensure the grounding terminal at the bottom is securely connected to suppress EMI and refer to the derating curves based on ambient temperature. Given its significant inrush current (up to 30A-50A), appropriate circuit breakers must be configured upstream, and hot-swapping or wiring while energized is strictly prohibited.

Revisions

Revision Part #

Also known as

1756-PB75 Ser A
1756-PB75/A, Series A, Rev A
1756-PB75 Ser B
1756-PB75/B, Series B, Rev B

FAQ View All FAQ

  • What is 1756-PB75?
    The 1756-PB75 is a standard DC power supply module for the Allen-Bradley ControlLogix system. It converts external DC power into the necessary power for the chassis backplane.
  • What is the input voltage range for 1756-PB75?
    Its nominal input voltage is 24V DC, with an actual operating voltage range typically between 18V and 32V DC.
  • Does 1756-PB75 support redundancy?
    No. The 1756-PB75 is a standard power supply. For redundancy, you should choose the 1756-PB75R model along with a redundancy power phase adapter.
  • How to use 1756-PB75?
    Insert it into the left side of the chassis, connect the 24V DC power lines to the terminals at the bottom, and ensure proper grounding. Once powered on, it automatically supplies power to all modules in the chassis.
  • What is the power capacity of 1756-PB75?
    It has a maximum total output power of 75 Watts, which is what the
