Technical specifications for 1756-PA72

  • Manufacturer:
    Allen-Bradley
  • Product Category:
    PLC Systems
  • Spare Part Number:
    1756-PA72
  • Estimated shipping dimensions:
    11x14.4x14cm
  • Weight:
    1.16 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Input:
    120/240 VAC, 50/60 Hz
  • Input rating:
    100 VA, 100 W
  • Maximum output:
    75 W
  • 24 VDC capacity:
    2.8 A
  • 5.1 VDC capacity:
    10 A
  • 3.3 VDC capacity:
    4 A
  • 1.2 VDC capacity:
    1.5 A
  • Inrush current:
    20 A maximum
  • Operating temperature:
    0 to 60 degrees C
  • Module location:
    Left side of 1756 chassis

Information

Overview Manuals Common Applications Product Precautions

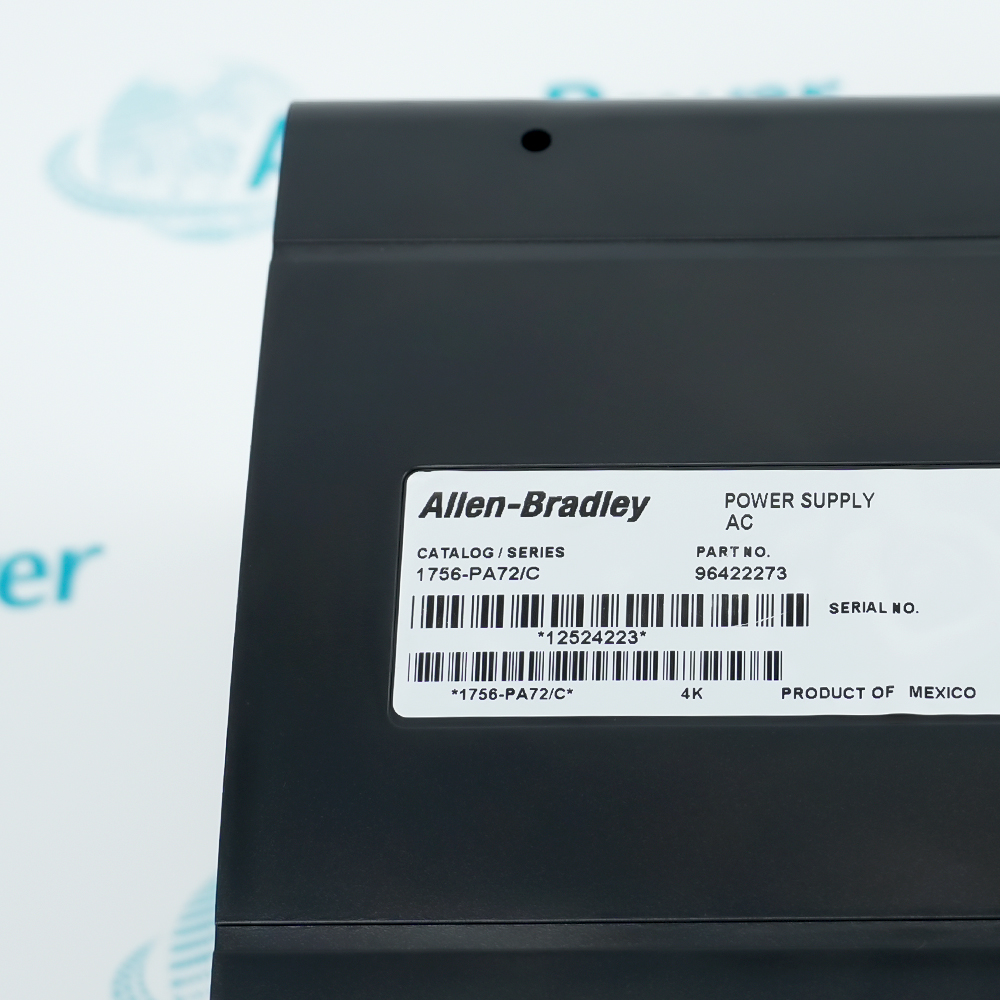

Allen-Bradley 1756-PA72 supplies chassis power for a ControlLogix automation installation.
  • ControlLogix chassis support
  • AC-powered system infrastructure
  • Centralized chassis supply
  • Modular controller-platform integration

Install 1756-PA72 in the specified ControlLogix chassis with approved incoming supply wiring and system power design.

Important Notice: Confirm whether input protection, mounting accessories, redundancy parts, output wiring and system power components required for 1756-PA72 are included in the quotation or stock description.

Apter Power 1756-PA72 Manuals and Guides

Important Notice: These are two separate Apter Power documents independently prepared from manufacturer-published information. Confirm the physical nameplate, current manufacturer documents and installed-system requirements before configuration or installation. They do not replace manufacturer manuals.

1756-PA72 installed-base maintenance
Supports like-for-like service of the documented ControlLogix standard AC chassis power supply.
1756-PA72 compatibility review
Checks host hardware, revision, companion components, wiring and configuration before replacement.
1756-PA72 installation planning
Defines isolation, ESD, mounting, connection and parameter checks before field work.
1756-PA72 commissioning
Supports controlled diagnostic, channel, communication or process-response checks after installation.
Read the applicable Rockwell Automation instructions before work. Verify 1756-PA72 and the installed-system configuration.
1
Verify model 1756-PA72 and the complete order code on the physical label before use.
2
Confirm the 1756 chassis, AC source, protective earth, branch protection, backplane load budget and power-down state before replacing 1756-PA72.
3
Match every 1756-PA72 connector, terminal, cable and companion assembly before moving field wiring.
4
Back up the applicable controller, monitor, HMI or I/O configuration before replacing 1756-PA72.
5
Isolate energy and follow the approved site safety procedure before handling 1756-PA72.
6
Follow ESD controls and protect 1756-PA72 connectors and printed-circuit assemblies during handling.
7
Do not transfer ratings or suffix meanings from a similar model to 1756-PA72.
8
After installing 1756-PA72, complete the relevant power, channel, link, diagnostic, alarm and fail-state checks.

Technical notes

Confirm the 1756 chassis, AC source, protective earth, branch protection, backplane load budget and power-down state before replacing 1756-PA72.

FAQ View All FAQ

  • What is 1756-PA72?
    1756-PA72 is a ControlLogix standard AC chassis power supply.
  • Which system uses 1756-PA72?
    Use 1756-PA72 only in the manufacturer system and hardware arrangement stated in the technical parameters and installation notice on this page.
  • How do engineers confirm 1756-PA72 compatibility?
    Match the complete 1756-PA72 label, hardware revision, host platform, companion hardware, connector and project configuration before replacement.
  • What should be checked before installing 1756-PA72?
    Isolate energy, verify wiring and connector orientation, protect the hardware from ESD and compare every field connection with the approved drawing for 1756-PA72.
  • What commissioning test is required for 1756-PA72?
    Restore power in a controlled sequence and verify status, diagnostics, channel or output response, alarms and the intended process function of 1756-PA72.
  • How should a technician troubleshoot 1756-PA72?
    Record indicators, diagnostics, field measurements, configuration, companion hardware and the operating event before deciding whether 1756-PA72 is faulty.
  • Can 1756-PA72 replace a similar model directly?
    Only after the complete catalog number, series or suffix, electrical rating, connectors, firmware and system compatibility have been compared.
  • What information should an RFQ for 1756-PA72 include?
    Include 1756-PA72, quantity, complete nameplate photographs, hardware revision, installed system, companion hardware and required accessories.
  • What 24 vdc capacity applies to 1756-PA72?
    The product-specific value for 1756-PA72 is 2.8 A. Match it to the installed unit and application before work.
