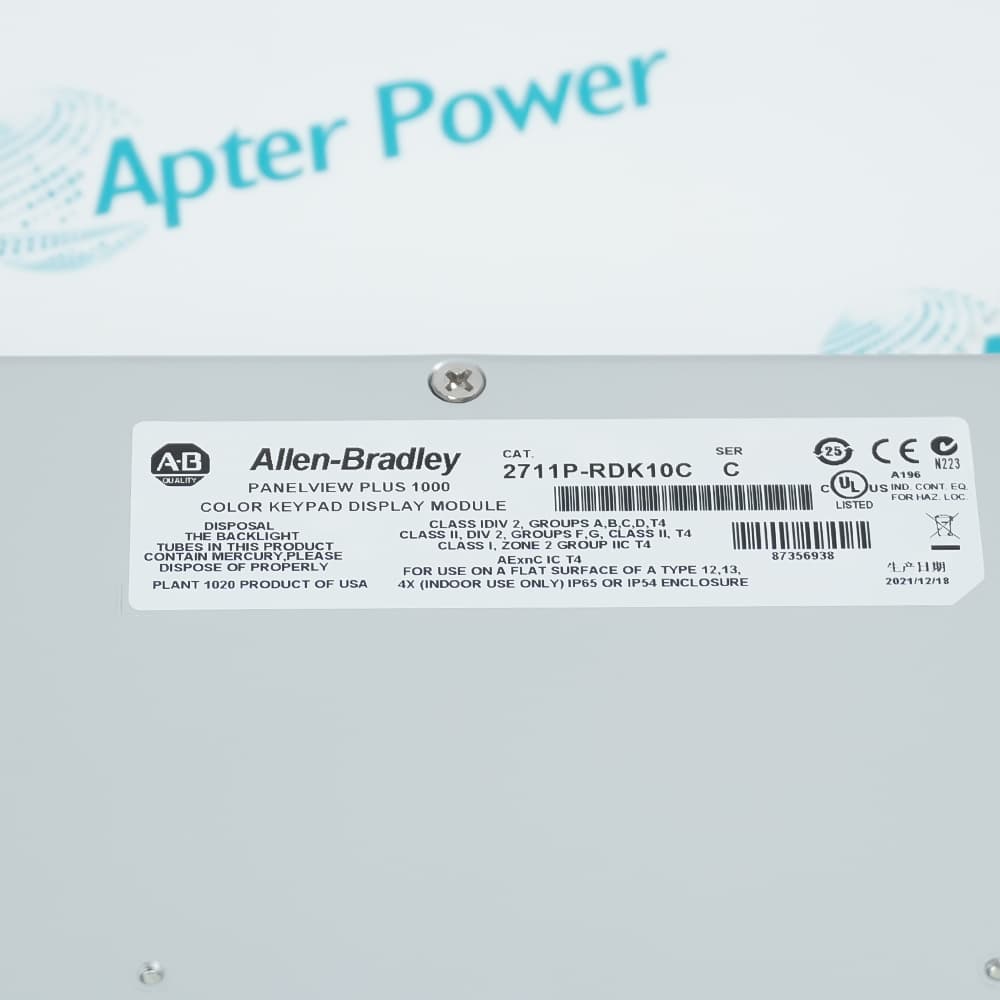

2711P-RDK10C

1000 keypad color display
Allen-Bradley 2711P-RDK10C
Allen-Bradley 2711P-RDK10C
Allen-Bradley 2711P-RDK10C
Allen-Bradley 2711P-RDK10C
Allen-Bradley 2711P-RDK10C
Allen-Bradley 2711P-RDK10C
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

1000 keypad color display
PanelView Plus Display Module
10.4 inch TFT Display
Color, No Options
Get a quick price for 2711P-RDK10C
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 2711P-RDK10C

  • Manufacturer:
    Allen-Bradley
  • Product Category:
    PLC Systems
  • Spare Part Number:
    2711PRDK10C
  • Estimated shipping dimensions:
    40x25x4.5cm
  • Weight:
    2.06 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Display Size:
    10.4 inches
  • Display Brightness:
    300 cd/m2
  • Display Backlight:
    CCFL (Cold-cathode Fluorescent Lamps)
  • Display Backlight Life:
    50000 hours
  • IP Rating, Front:
    IP65
  • Operating Temperature, Max:
    55 °C max
  • Operating Temperature, Min:
    0 °C min
  • Relative Humidity, Min:
    5 %RH
  • Relative Humidity, Max:
    95 %RH
  • Humidity Type:
    Non-condensing

Information

Overview Manuals Common Applications Product Precautions
The 2711P-RDK10C is an industrial-grade HMI display module manufactured by Rockwell Automation. It is a spare and replacement display specifically designed for the PanelView Plus 1000 and PanelView Plus 6 1000 series keypad terminals.
    • Built-in USB ports and SD card slot
    • RS-232 and Ethernet networks available through built in communication ports
    • Supports real-time monitoring of your terminals through a web browser
This module features an advanced Color Active-Matrix TFT display with a 640 x 480 VGA resolution, ensuring exceptional visual clarity and wide viewing angles even in dim lighting or complex industrial settings. As a seamlessly replaceable modular component, it significantly extends the lifespan of existing HMI systems while delivering smooth machine monitoring and rich data visualization. Enclosed in a rugged, industrial-grade housing that meets NEMA 4X and IP65 protection standards, it is an ideal hardware solution for boosting factory productivity and ensuring reliable asset operation. Furthermore, it is equipped with a full-function industrial keypad supporting up to 1 million actuations—complete with F1–F16 function keys, numeric, and navigation inputs—and utilizes a high-brightness 300 cd/m² Cold Cathode Fluorescent Lamp (CCFL) backlight system that guarantees a minimum backlight lifespan of 50,000 hours.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 Allen Bradley 2711P-RDK10C 1000 keypad color display Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Automotive Manufacturing
Operators use the rugged keypad to select vehicle models, monitor robotic welding status, and track real-time cycle times on the shop floor.

Pharmaceutical & Biotech
Provides precise data visualization for critical environment parameters (like humidity and pressure) and batch recipe control to ensure compliance with strict regulatory standards.

Oil & Gas
The heavy-duty keypad allows field technicians wearing thick safety gloves to safely monitor flow rates, tank levels, and pressure valves in extreme outdoor temperatures.

Chemical Processing
Displays critical chemical reaction telemetry—such as exothermic temperature spikes and pressure differentials—enabling quick operator intervention via tactile function keys.

Pulp & Paper
The sealed design prevents airborne paper dust and high humidity from damaging the internal electronics while monitoring massive roller speeds and moisture sensors.
 To ensure the optimal performance and extended service life of the 2711P-RDK10C display module, always disconnect the main power supply before installing or detaching the unit. During installation, verify that the sealing gasket is properly seated to maintain its NEMA 4X/IP65 waterproof and dustproof rating. For daily operations, never use sharp objects like screwdrivers or pens to press the keypad; use only bare fingers or gloved hands. Additionally, it is highly recommended to enable the screen saver or backlight-timeout feature in your software settings to prolong the backlight lifespan. When cleaning, use a soft cloth with mild detergents, and strictly avoid harsh solvents such as acetone or benzene.

Revisions

Revision Part #

Also known as

2711P-RDK10C Ser A
2711P-RDK10C/A, Series A, Rev A
2711P-RDK10C Ser B
2711P-RDK10C/B, Series B, Rev B
2711P-RDK10C Ser C
2711P-RDK10C/C, Series C, Rev C
2711P-RDK10C Ser X
2711P-RDK10C/X, Series X, Rev X

FAQ View All FAQ

  • What kind of product is 2711P-RDK10C?
    2711P-RDK10C is a 10.4-inch color keypad display module for the Allen-Bradley PanelView Plus 1000 series Human Machine Interface (HMI).
  • Can 2711P-RDK10C be used alone as a standalone HMI?
    No. 2711P-RDK10C is only a display module, it must be assembled with a Logic Module on the back to form a complete, operational HMI terminal.
  • How to correctly install and use 2711P-RDK10C in industrial fields?
    First, mount the logic module onto the back of the 2711P-RDK10C and tighten the screws. Then, insert the entire assembly into the control panel cutout and secure it using the provided mounting clips.
  • What are the screen display specifications of 2711P-RDK10C?
    It features a 10.4-inch color Active Matrix TFT LCD screen with a resolution of 640 x 480 pixels (VGA).
  • Is 2711P-RDK10C a touchscreen or a keypad-operated device?
    2711P-RDK10C is a pure keypad-operated module (without touch functionality), users interact with it via the function, numeric, and navigation keys on the front panel.
