With more than 30.000 high-quality spare parts, they can be sold immediately. Our large inventory allows us to quickly meet customer needs, thereby reducing downtime and protecting production schedules. Our timely delivery time provides you with security and save money.

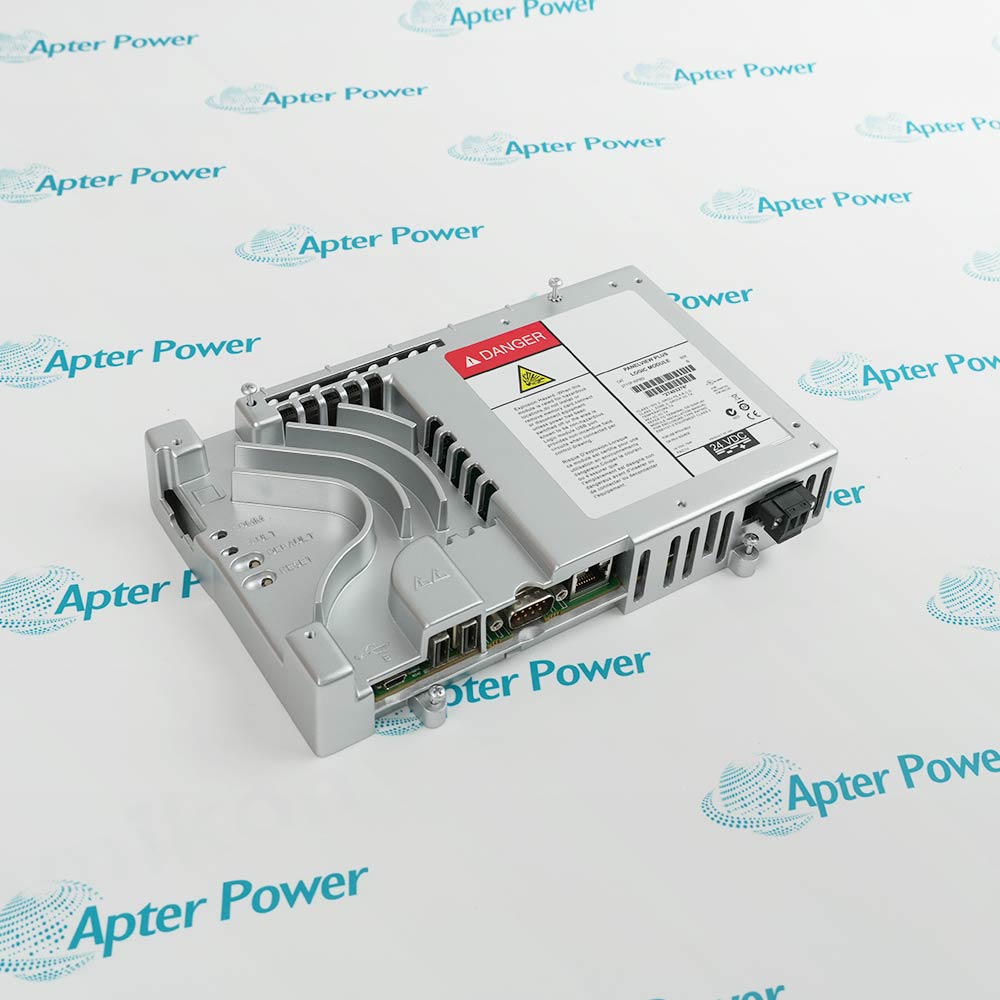

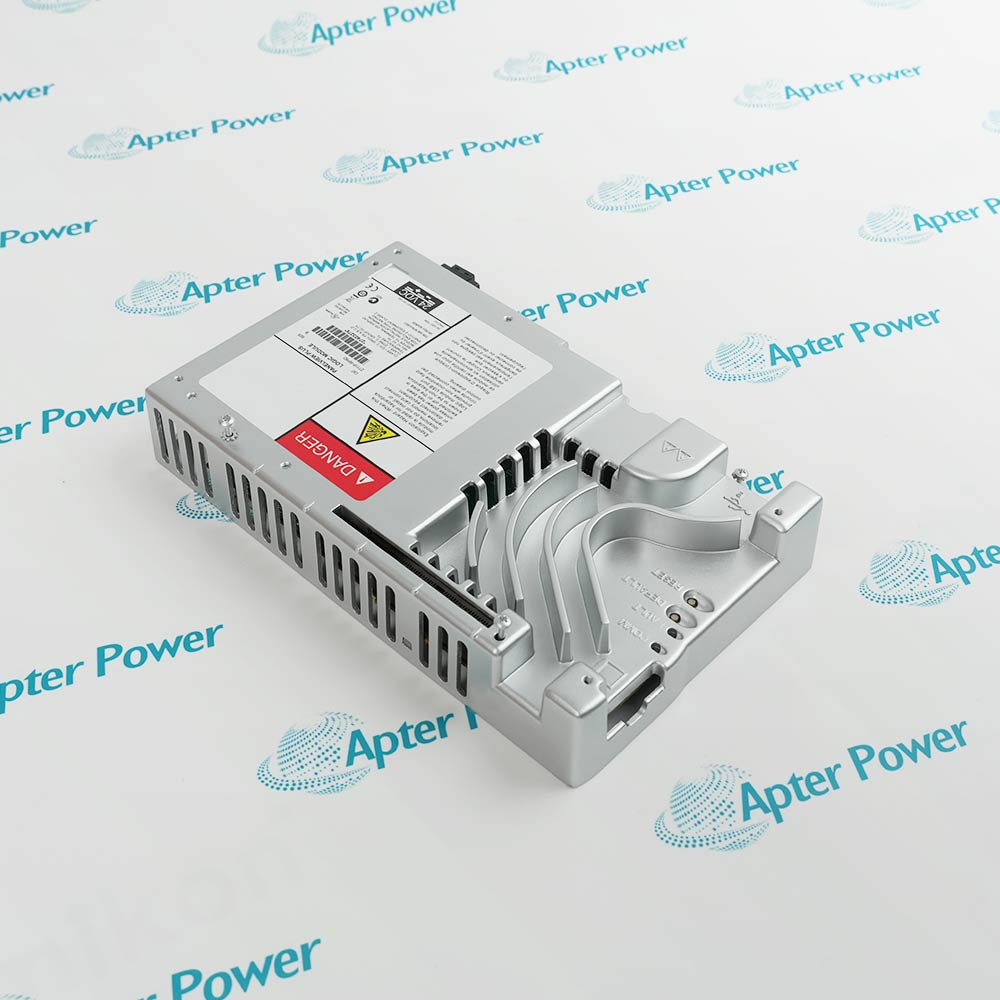

The 2711P-RP8D is a PanelView Plus 6 terminal logic module with 512 MB RAM and 512 MB flash storage (79 MB for user files), featuring onboard RJ-45 Ethernet and 9-pin RS-232 serial ports.
Uses vector-based graphics from Symbol Factory
Provides remote recipe and data management through .CSV files
Supports DataStore Plus logging and trending, which eliminates the 300,000 data point limit
This device supports configuration via FactoryTalk View Studio software and integrates ActiveX controls, a PDF viewer, and third-party software to enable remote VNC/FTP connectivity and .CSV file configurations. Additionally, the logic module supports backup and restore functions along with DataStore Plus historical data logging, maintaining operational capability across a temperature range of 0 to 55 °C and under specified industrial mechanical shock and vibration conditions.
During field deployment and daily maintenance, the logic module relies on the built-in Symbol Factory vector graphics to deliver intuitive, clear, and dynamic displays for operators. Utilizing the DataStore Plus logging mechanism, which eliminates the 300,000 data point limit, the system continuously saves live production trends and alarm histories, allowing for seamless remote recipe deployment and data management over the network.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Allen Bradley 2711P-RP8D PanelView Plus 6 Logic Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Automotive Manufacturing & Assembly
Operator station interface in stamping and welding shops. Displays fixture status, robot cycle times, and hardwired safety interlock alarms.
Oil & Gas Extraction
Controller connection via Ethernet. Monitors wellhead pressure, valve positions, and Emergency Shutdown (ESD) system status on offshore platforms or land-based wellheads.
Petroleum Refining & Petrochemicals
Panel mounting outside hazardous areas. Displays fractionation tower and condenser levels, flows, and temperatures with local audiovisual alarm indicators.
Water & Wastewater Treatment
Provides pump start/stop control interfaces, high/low level interlock parameter modifications, and unrestricted historical logging using DataStore Plus in reverse osmosis and sedimentation processes.
Pharmaceuticals & Biotechnology
Operates batch recipe applications next to bioreactors and cleanrooms to display agitation speeds, pH values, and dissolved oxygen curves under regulatory compliance frameworks.
Mining & Mineral Processing
Operator interface inside dusty, high-vibration mining sites. Monitors conveyor belt tension, speeds, and crusher bearing temperatures.
The 2711P-RP8D requires a stable 18-32 V DC input power supply with strict adherence to correct polarity wiring to prevent blowing the onboard fuse. Since the logic module lacks a conformal coating, it must be installed inside a dust-free and moisture-free industrial enclosure within 0 to 55 °C non-condensing limits while keeping rear ventilation pathways clear.
Because this hardware is discontinued, perform a backup of the corresponding .MER runtime files via FactoryTalk View Studio before field replacement, and verify firmware compatibility with the existing display module and PLC communication protocols.
The Allen-Bradley 2711P-RP8D is a DC-powered logic module equipped with 512 MB of both RAM and nonvolatile flash memory. For industrial connectivity, this unit integrates standard Ethernet and RS-232 ports alongside a dedicated slot for network interface communication modules.
What are the screen size and resolution of the 2711P-RP8D?
The 2711P-RP8D is equipped with an 8-inch high-brightness TFT LCD screen with a resolution of 800×600 pixels (SVGA), providing clear display even in bright sunlight.
What are the processor and memory configurations of the 2711P-RP8D?
The 2711P-RP8D uses a high-performance ARM Cortex-A8 processor, equipped with 256MB of RAM and 1GB of Flash storage, expandable up to 32GB via SD card.
What communication interfaces does the 2711P-RP8D have?
The 2711P-RP8D supports 1×Ethernet (10/100 Mbps) and 1×RS-232/485 serial port, enabling communication with Rockwell Automation PLCs and other devices for real-time data exchange and control.
Do you offer global delivery services?
Yes. We ship globally, and we are able to quickly deliver parts globally to any corner of the world. Unless otherwise specified, we will ship your order via (DHL). We can also ship through FedEx, UPS, and TNT. We can also use your account.
How many parts do you have in stock?
We have an extensive stock base consisting of ten thousands of new and discontinued automation parts including those from leading manufacturers such as:Control Systems (DCS, PLC, CNC) ,Panel Controllers,HMI and Display Panels,Drives,Encoders and Resolvers,Power Supplies.
