1756-L7SP

Logix L7SP SIL 3 PLe Safety Partner
In Stock
Ships by Saturday, November 21
Fast Shipping Available

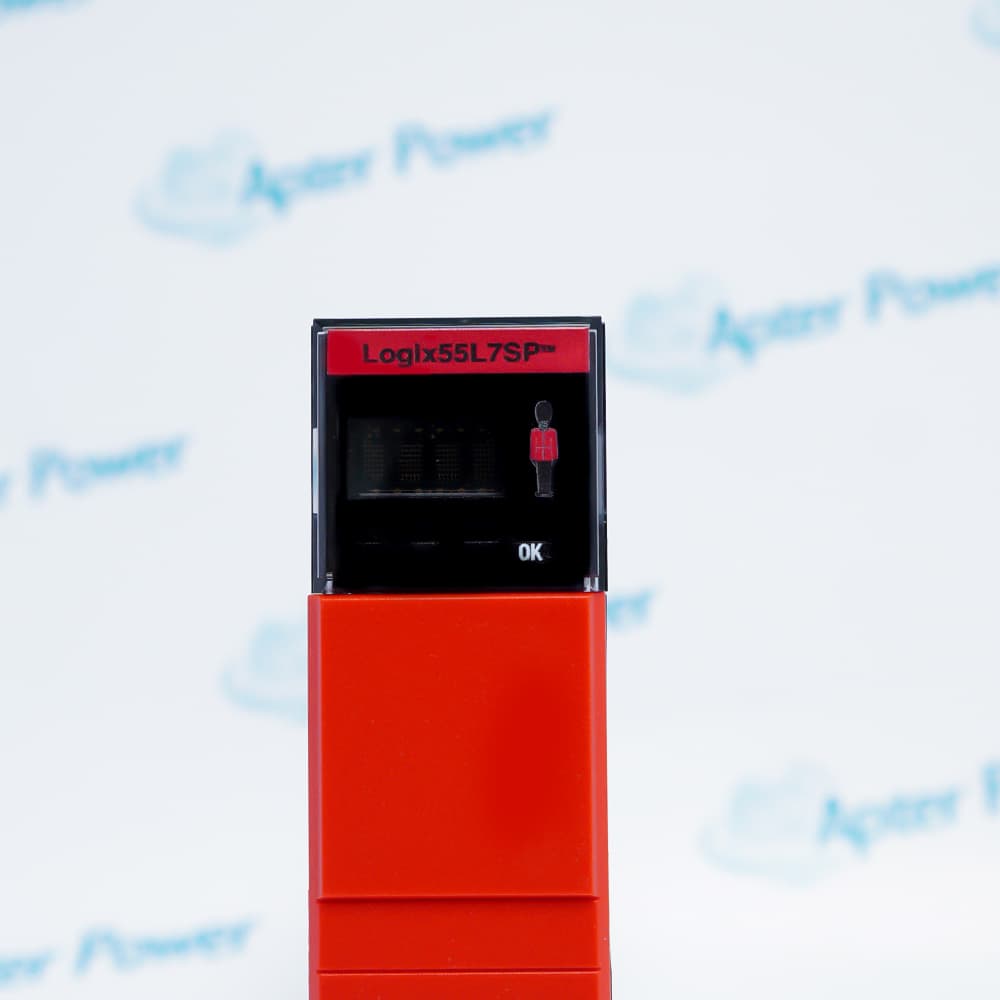

Allen-Bradley 1756-L7SP

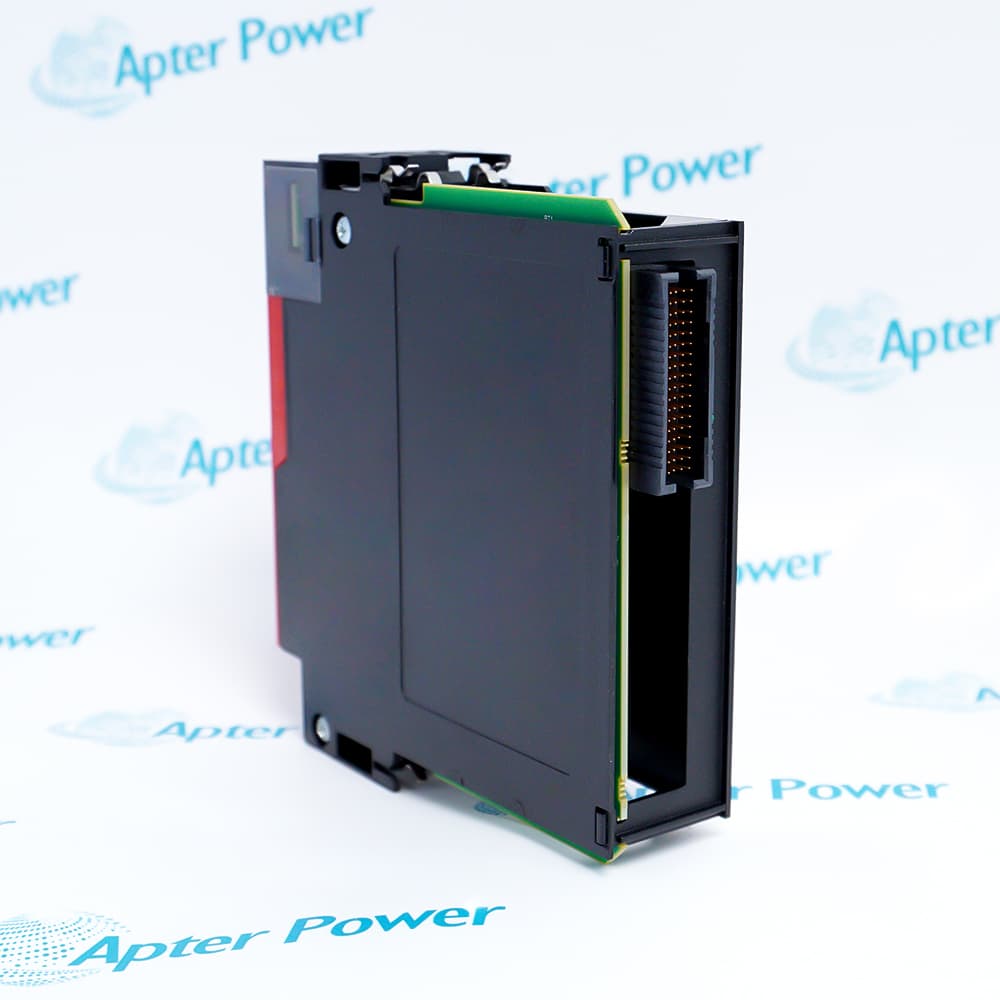

Allen-Bradley 1756-L7SP
Allen-Bradley 1756-L7SP
Allen-Bradley 1756-L7SP
Allen-Bradley 1756-L7SP
Allen-Bradley 1756-L7SP
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

Logix L7SP SIL 3 PLe Safety Partner
double slot width controller
with Current draw of 5 mA
@ 1.2 VDC and 800 mA @ 5.1 VDC
Get a quick price for 1756-L7SP
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 1756-L7SP

  • Manufacturer:
    Allen-Bradley
  • Product Category:
    PLC Systems
  • Spare Part Number:
    1756L7SP
  • Estimated shipping dimensions:
    23.5x18.3x5.3cm
  • Weight:
    0.35 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Isolation Voltage:
    30V (continuous)
  • Power Dissipation:
    2.5 W
  • Module Width:
    Two (2) Slot
  • Backplane Current, 5.1VDC:
    5 mA
  • Backplane Current, 24VDC:
    800 mA
  • Thermal Dissipation:
    8.5 BTU/hr
  • Current Draw (1.2 Volts DC):
    5 milliamps
  • Current Draw (5.1 Volts):
    801 milliamps

Information

Overview Manuals Common Applications Product Precautions
The 1756-L7SP is a double-slot width GuardLogix safety partner controller designed to be installed in the slot immediately adjacent to the primary controller. Paired with a 1756-L71S, 1756-L72S, or 1756-L73S primary processor, it establishes a 1oo2 safety architecture that achieves functional safety ratings up to SIL 3 and PL e. In addition to a keyswitch and dedicated communication ports, its user memory capacity directly mirrors that of the paired primary controller.
    • Provides safety and integrated motion in the same chassis
    • Simplifies machine architecture and reduce system footprint with the Armor GuardLogix controller
    • Can operate in environments with -20 to 70°C (-4 to 158°F) when used with FLEX™ I/O-XT modules
The 1756-L7SP partner controller directly supports the industry-standard CIP Safety protocol through its built-in communication interfaces. This enables the unit to perform highly reliable digital interlock communication across standard EtherNet/IP network topologies, connecting seamlessly with safety stations, safety light curtains, and emergency stop buttons distributed throughout the workshop.

While keeping field wiring to a bare minimum, this mechanism ensures that all safety-related data packets include strict error detection and time-stamp verification during transmission, preventing unexpected machine movements caused by data loss or tampering. Through close coordination with its paired primary processor, this module achieves comprehensive hardware-level self-diagnostics. When a fault such as an external short circuit or a broken sensor wire occurs on the production line, the status indicators on the front panel instantly and precisely lock onto the specific fault source, pushing the diagnostic codes directly to the local HMI touchscreen..

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 Allen Bradley 1756-L7SP Logix L7SP SIL 3 PLe Safety Partner Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Automotive Manufacturing & Body Stamping
Used in large-scale high-speed automotive stamping lines and robotic welding workstations. It controls safety light curtains, safety door interlocks, and emergency stop loops to ensure the machinery stops completely within milliseconds if personnel breach boundaries, preventing severe crush injuries.

Oil & Gas Refining & ESD Systems
Serves as the core control unit of the Emergency Shutdown (ESD) system in refineries. When pressure or temperature sensors detect out-of-control limits or pipeline leaks, the safety partner controller works with the primary controller to force-close all flammable material feed valves.

Semiconductor Wafer Fabs & Cleanrooms
Controls the safety interlocks of highly toxic and flammable chemical gas cabinets in wafer fabrication. Upon detecting a trace gas leak, it immediately isolates the gas supply and activates exhaust systems to protect personnel inside the semiconductor cleanroom.

Chemical Industry & Exothermic Reactors
Deployed in fine chemical reactor safety protection systems involving high pressure and intense exothermic reactions.

Thermal Power Plants & Boiler BMS
Used in the Burner Management System (BMS) of power plant boilers. It strictly executes safety logic such as furnace purging, ignition, and fuel safety shutoff upon ignition failure, preventing unburned fuel from accumulating in the furnace and causing catastrophic explosions.
 As a safety partner controller, the 1756-L7SP must be installed in the slot immediately adjacent to the right of its paired primary controller (1756-L71S/72S/73S), and both units must run identical firmware versions. Because it does not contain independent user safety memory, its memory configuration automatically mirrors that of the primary unit. During operation, do not toggle the front physical keyswitch without properly clearing safety interlocks, as this can trigger an unexpected system safety trip.

Revisions

Revision Part #

Also known as

1756-L7SP Ser A
1756-L7SP/A, Series A, Rev A
1756-L7SP Ser B
1756-L7SP/B, Series B, Rev B

Alternative Names

1756L7SP I756-L7SP I756L7SP

Technical notes

The Allen-Bradley 1756-L7SP is a GuardLogix safety controller featuring a 2.5W power dissipation and a 30V continuous isolation voltage rating, with no dedicated I/O memory requirement.

FAQ View All FAQ

  • How many slots does the 1756-L7SP occupy?
    The 1756-L7SP is a dual-slot width controller, therefore, occupies Two (2) chassis slots.
  • What is the supported behavioral design by the 1756-L7SP?
    The 1756-L7SP, when installed correctly, supports One (1) out of Two (2) multi-processor safety system.
  • What are compatible power supplies for use with the 1756-L7SP?
    Compatible power supplies are 1756-PA50, 1756-PA72, 1756-PA72K, 1756-PA75, 1756-PA75K, 1756-PB50, 1756-PB72, 1756-PB72K, 1756-PB75, 1756-PB75K.
  • Do you offer global delivery services?
    Yes. We ship globally, and we are able to quickly deliver parts globally to any corner of the world. Unless otherwise specified, we will ship your order via (DHL). We can also ship through FedEx, UPS, and TNT. We can also use your account.
  • How many parts do you have in stock?
    We have an extensive stock base consisting of ten thousands of new and discontinued automation parts including those from leading manufacturers such as:Control Systems (DCS, PLC, CNC) ,Panel Controllers,HMI and Display Panels,Drives,Encoders and Resolvers,Power Supplies.
