1756-OA8D

DIGITAL OUTPUT MODULE
In Stock

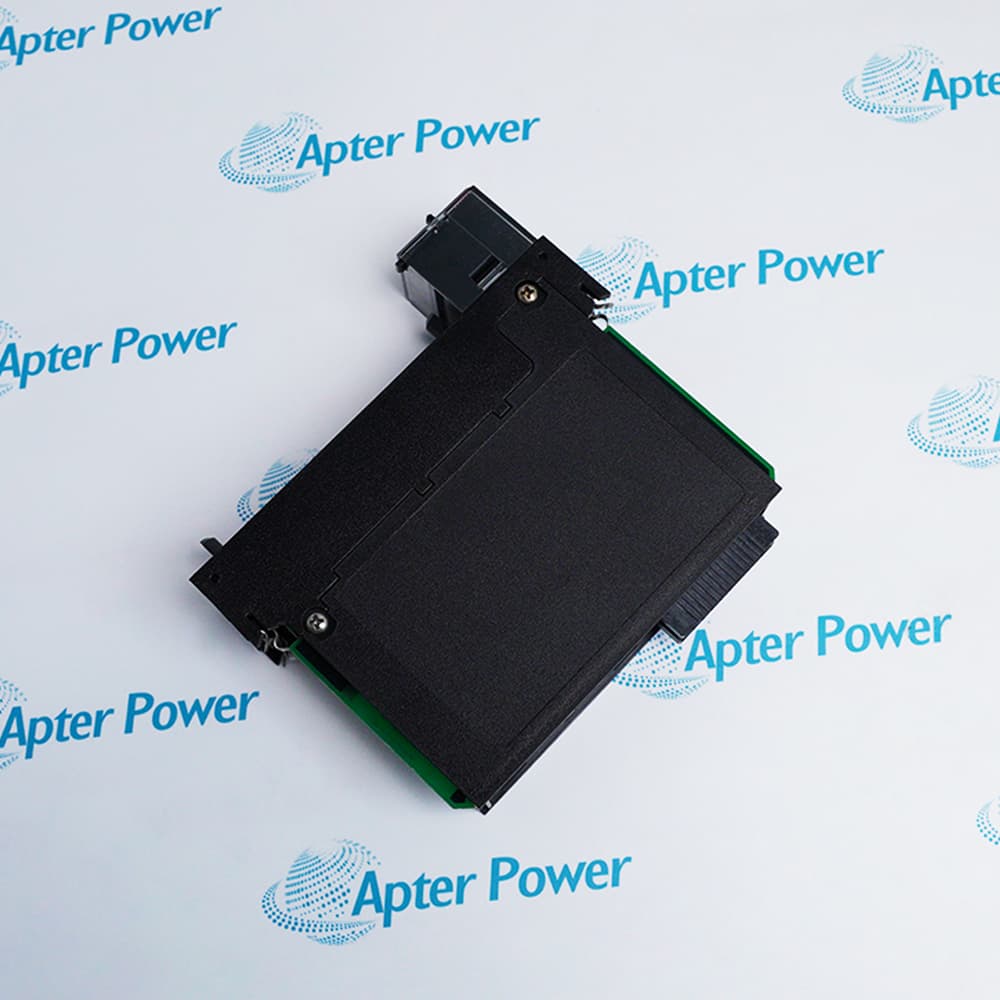

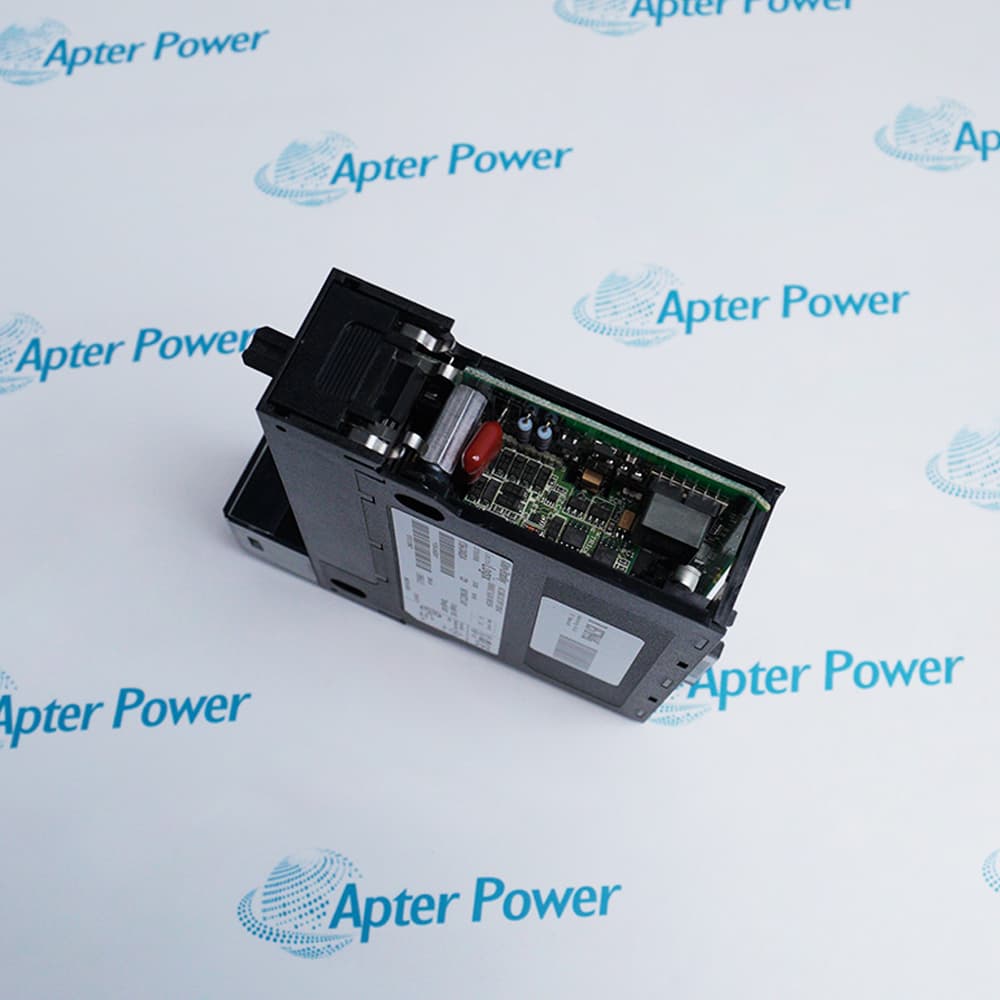

Allen-Bradley 1756-OA8D
Allen-Bradley 1756-OA8D
Allen-Bradley 1756-OA8D
Allen-Bradley 1756-OA8D
Allen-Bradley 1756-OA8D
Allen-Bradley 1756-OA8D
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

OUTPUT MODULE
DIGITAL
74-132 VAC
8 POINT AT 0.5 A OUTPUT
20 PIN
FIELD-SIDE DIAGNOSTIC
ELECTRONICALLY FUSED
Get a quick price for 1756-OA8D
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 1756-OA8D

  • Manufacturer:
    Allen-Bradley
  • Product Category:
    PLC Systems
  • Spare Part Number:
    1756OA8D,1756-OA8D/A
  • Estimated shipping dimensions:
    21.5x17.5x5cm
  • Weight:
    0.44 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Outputs:
    8 Diagnostic
  • Voltage:
    120 Volts AC
  • Operating Voltage Range:
    74-132 Volts AC
  • Power Dissipation (Max):
    5.3 Watts at 60 degrees Celsius
  • Backplane Current at 5 Volts:
    175 milliamps
  • Backplane Current at 24 Volts:
    250 milliamps
  • Removeable Terminal Block(s):
    1756-TBNH, 1756-TBSH
  • Isolation Voltage:
    50 Volts Continuous

Information

Overview Manuals Common Applications Technical Specifications
The 1756-OA8D is a ControlLogix AC digital output module providing 8 diagnostic-point outputs. It operates with a nominal input voltage of 120V/240V AC and is compatible with 20-pin Removable Terminal Block (RTB) housings, specifically the 1756-TBNH and 1756-TBSH.
    • Per-Point Diagnostics
    • Electronic Fusing
    • Broad Voltage Range
This module features per-point diagnostics and electronic fusing that is software-configurable to protect the system. It provides comprehensive fault detection, including "no load," "output short," and "blown fuse" status, ensuring increased system availability and simplified troubleshooting in 74…265V AC applications.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Allen-Bradley 1756-OA8D DIGITAL OUTPUT MODULE Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 Power Generation
Provides diagnostic feedback for AC solenoids and motor starters. Electronic fusing protects against shorts to maintain continuous power plant operation.

 Water Treatment
Manages AC actuators and pumps with per-point monitoring. Detects "blown fuse" or "no load" status without manual field inspection.

 Oil and Gas
Controls processing equipment within 74…265V AC range. Enables remote troubleshooting of output points in hazardous industrial environments.

 Automotive Manufacturing
Drives AC signaling devices and motor control centers on assembly lines. Software-configurable fusing ensures rapid response to minimize production downtime.

  Metals and Mining
Reliable AC switching for conveyor systems and material handling. Provides real-time data on the integrity of heavy-duty load connections.

 Chemical Processing
Monitors AC heaters and agitators in batch processing. Per-point diagnostics identify specific circuit failures to ensure process safety and quality.

The 1756-OA8D module must be installed in a ControlLogix chassis using a compatible 20-pin Removable Terminal Block (RTB), such as the 1756-TBNH or 1756-TBSH, ensuring all wiring adheres to the specified conductor wire size and torque requirements to prevent terminal overheating.

During operation, the module's electronic fusing must be correctly configured via software for each point to provide overcurrent protection, though it is intended to protect the module and should not replace external load-side fuses where required by local electrical codes. It is essential to maintain the field power within the 74…265V AC range and monitor the off-state leakage current, which is rated at a maximum of 4 mA per point, to avoid unintended activation of high-impedance loads.

When troubleshooting, users should reference the module's diagnostic registration which reports "no load" and "output short" conditions directly to the controller tags, allowing for proactive maintenance without necessitating manual circuit testing. Proper thermal management must be observed, as the module dissipates up to 14.66 BTU/hr, and users must ensure that the total chassis power consumption remains within the power supply's backplane current ratings of 250 mA at 5.1V DC and 125 mA at 24V DC.

Revisions

Revision Part #

Also known as

1756-OA8D Ser A
1756-OA8D/A, Rev A

FAQ View All FAQ

  • What is the operating voltage range for the 1756-OA8D diagnostic AC output module?
    The module has an operating voltage range of 74…265V AC, with a nominal input voltage of 120V AC or 240V AC at 50/60 Hz.
  • What is the maximum output current rating per point and per module for the 1756-OA8D?
    The maximum output current is 2 A per point at 30 °C (86 °F), with a maximum total surge current of 4 A per module for 10 ms, repeatable every 2 s.
  • Does the 1756-OA8D module support individual point-level diagnostics and electronic fusing?
    Yes, the module features electronic fusing that is software-configurable per point, and it provides diagnostic features such as "no load" and "output short" detection.
  • What is the maximum power dissipation and thermal dissipation for the 1756-OA8D module?
    The maximum power dissipation is 4.3 W at 60 °C (140 °F), and the maximum thermal dissipation is 14.66 BTU/hr.
  • What are the off-state leakage current and on-state voltage drop specifications for the 1756-OA8D?
    The maximum off-state leakage current per point is 4 mA, and the maximum on-state voltage drop is 2V AC at 2 A.
