SST-PB3-CLX

PROFIBUS Scanner
In Stock

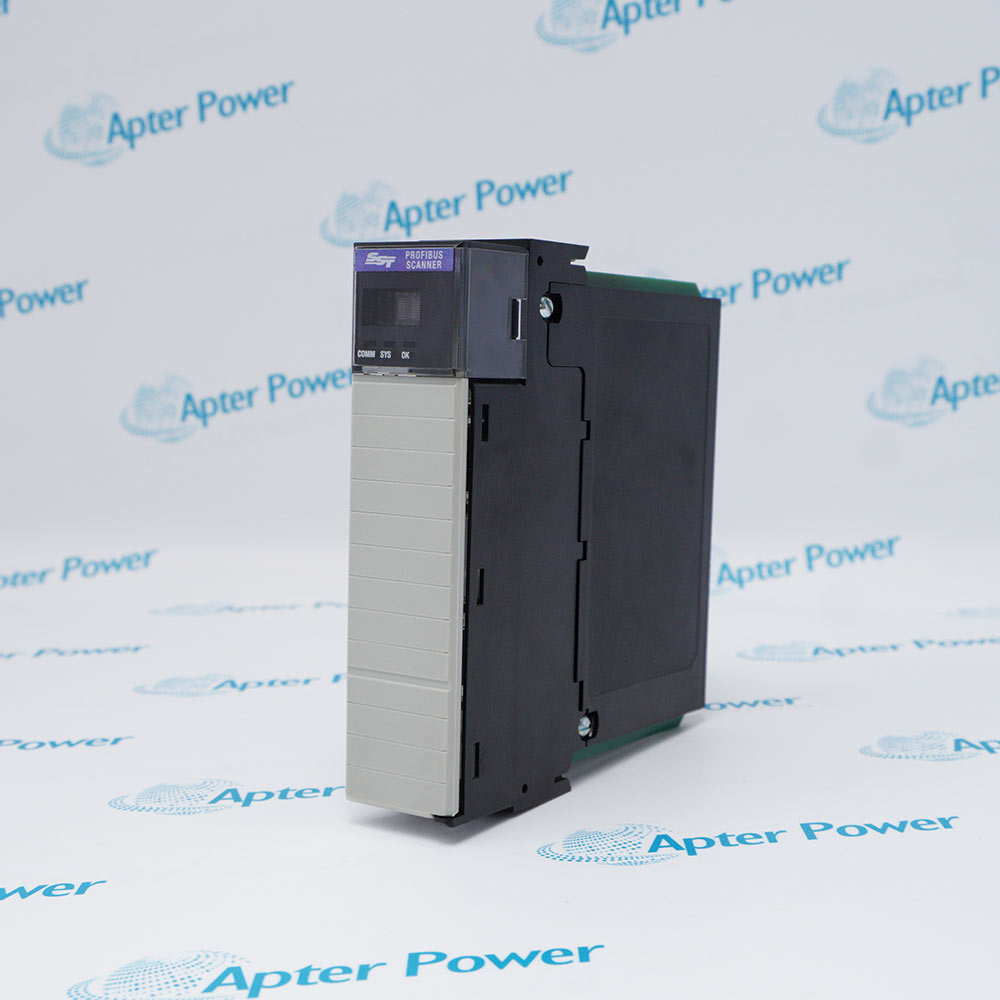

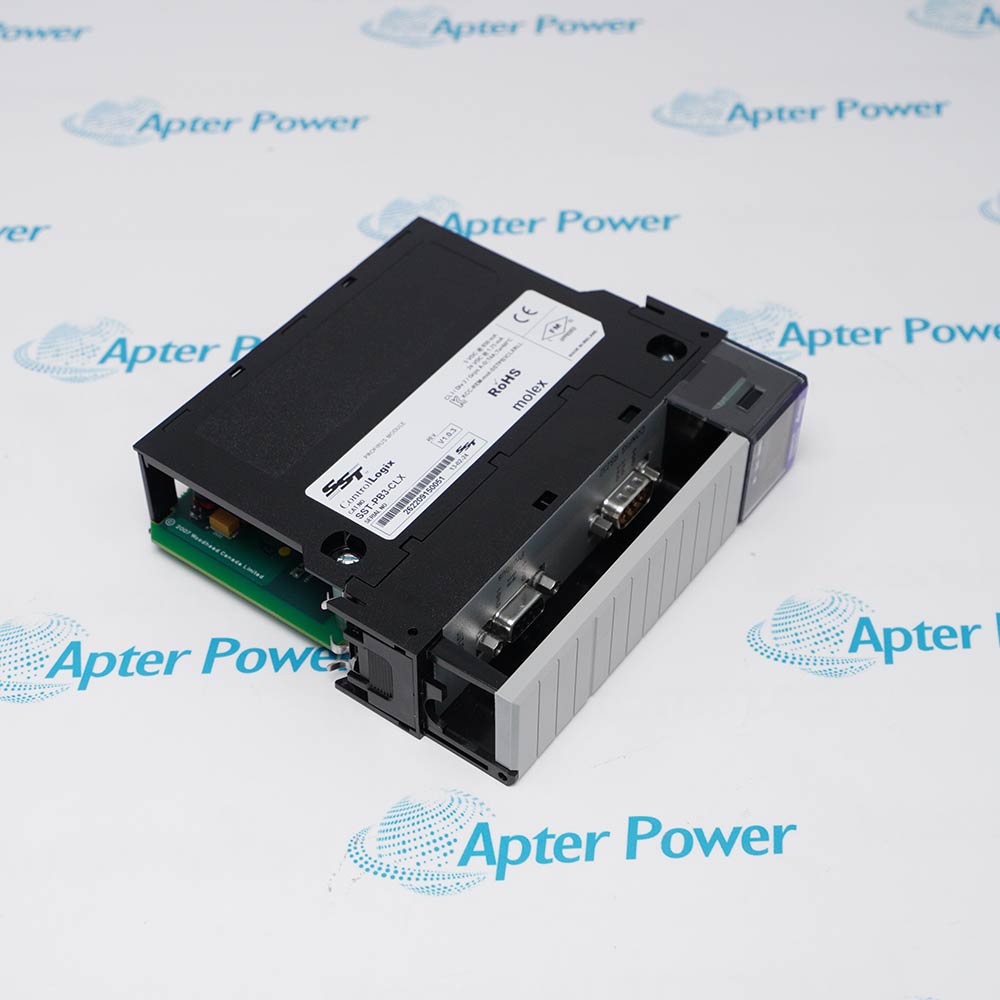

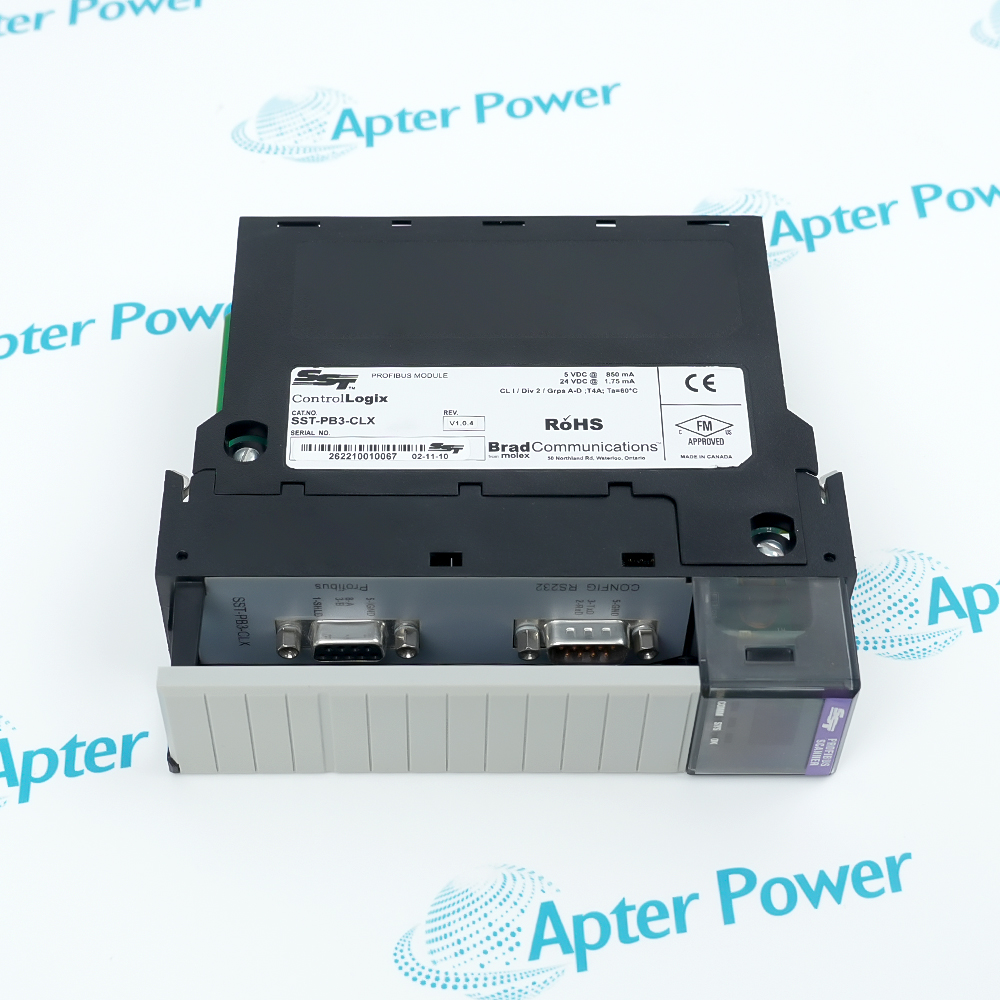

Molex Woodhead SST-PB3-CLX
Molex Woodhead SST-PB3-CLX
Molex Woodhead SST-PB3-CLX

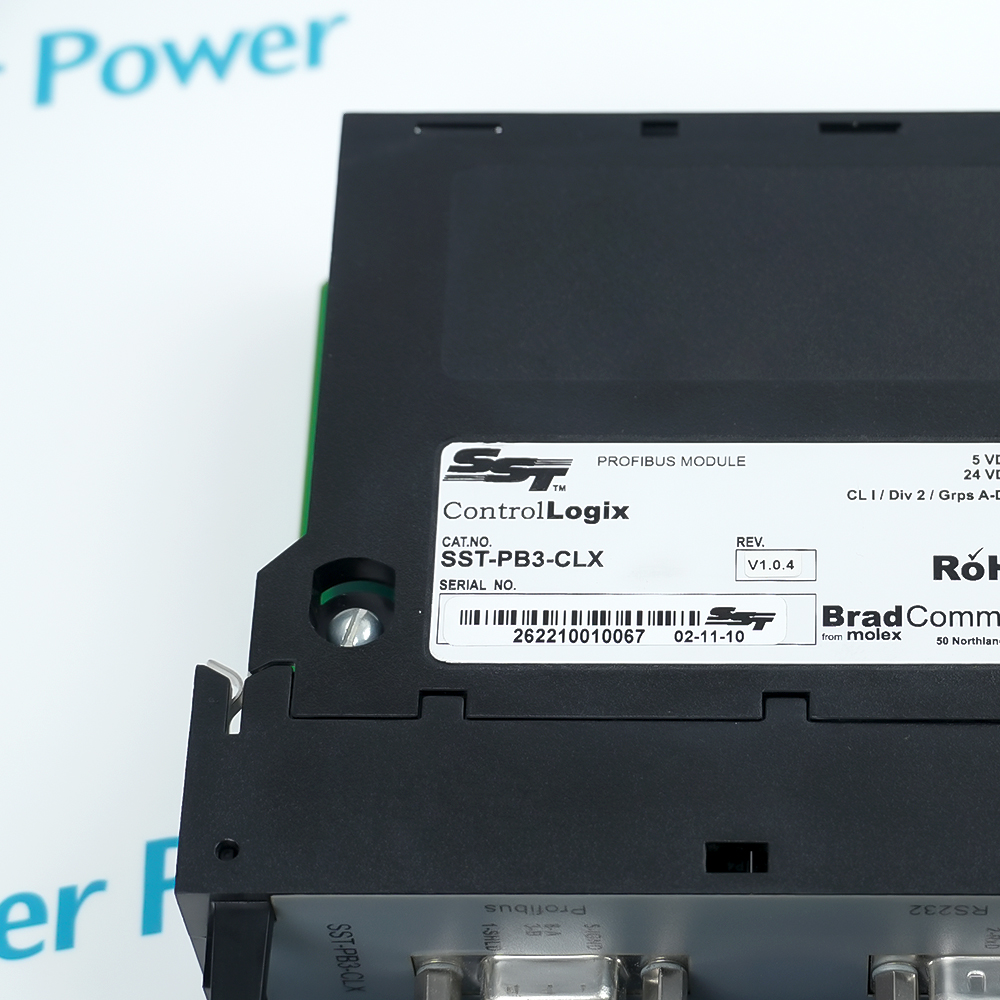

Molex Woodhead SST-PB3-CLX
Molex Woodhead SST-PB3-CLX
Molex Woodhead SST-PB3-CLX
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

PROFIBUS Scanner
Profibus scanner module
that can function as a master
device and a slave device
at the same time
Get a quick price for SST-PB3-CLX
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for SST-PB3-CLX

  • Manufacturer:
    Molex Woodhead
  • Product Category:
    PLC Systems
  • Spare Part Number:
    SST-PB3-CLX
  • Estimated shipping dimensions:
    3.5x14x14.5cm
  • Weight:
    0.24 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Product Line:
    SST Cards
  • Minimum Baud Rate:
    9600 Baud
  • Maximum Baud Rate:
    12 Mbaud
  • Chassis:
    Local and Remote CLX Chassis
  • Supply Voltage:
    5 VDC
  • Auxiliary Power Requirement:
    24 VDC
  • Storage Temperature:
    –40 °C to +85 °C
  • Communication Speed:
    9.6 kbps to 12 Mbps

Information

Overview Manuals Common Applications Product Precautions
The SST-PB3-CLX is a high-performance PROFIBUS DP master/slave communication module from Molex, designed specifically for Rockwell Automation ControlLogix systems.
    • Can scan up to 125 slaves
    • Supports Rockwell’s RSLogix 5000 Add-on-Profile (AOP)
    • Supports up to 15 listen-only connections plus 1 output connection
The SST-PB3-CLX-RLL is the PROFIBUS scanner for the 1756 (ControlLogix) backplane and Honeywell PlantScape system. It enables communication between a CLX processor and DP remote I/O devices on a PROFIBUS network, acting as a PROFIBUS DP remote I/O scanner.Use the SST PROFIBUS Configuration Tool to configure the scanner. You can have up to 4 pages of 248 words of input data and 4 pages of 246 words of output data. The Tool also allows you to configure I/O on the DP network, enabling you to download the configuration to the scanner via the serial port or an RSLinx driver. The scanner stores this configuration in its flash memory, so you don't need to download it every time you start the CLX. The input and output data for the slaves is mapped into the ControlLogix 5550 Controller’s I/O Data arrays, starting at byte offset 4. The mapping depends on the addresses you assign in your Master configuration.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 Molex Woodhead SST-PB3-CLX PROFIBUS Scanner Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Thermal Power Generation
Bridges legacy Rockwell Allen-Bradley PLCs with PROFIBUS-based coal handling and water treatment subsystems.

Oil & Gas
Aggregates data from remote tank farms, custody transfer metering skids, and hazardous area field instruments.

Chemical Batch
Facilitates dense data throughput for complex continuous and multi-recipe mixing vessels.

Semiconductor
Interfaces sub-fab ultra-pure water (UPW) systems and specialized gas cabinet controls with the facility SCADA.

Steel Metallurgy
Drives high-vibration blast furnace charging networks and continuous casting cooling loops.

Pulp & Paper
Manages the extensive multi-drive sectional networks of massive continuous paper-making machines.

 When deploying the SST-PB3-CLX module in a ControlLogix chassis, engineers must ensure the PROFIBUS network configuration is properly downloaded and verified via the SST PROFIBUS Configuration Tool and stored in the onboard flash memory to prevent data loss upon system reboots . It is critical to precisely manage the 4-page data array mapping in the PLC registers, keeping in mind that the slaves' I/O data arrays start strictly at byte offset 4 inside the ControlLogix controller. Technicians should double-check the maximum rack density, as no more than 8 scanners should reside in a single chassis to avoid backplane power overload. Lastly, prior to executing any Removal and Insertion Under Power operations, the PROFIBUS master scan must be safely inhibited to avoid fieldbus telemetry disturbance and unpredictable slave states.

FAQ View All FAQ

  • What is SST-PB3-CLX?
    SST-PB3-CLX is a PROFIBUS Scanner
  • What is the Molex Woodhead SST-PB3-CLX used for?
    It is a PROFIBUS scanner module designed to enable communication between a control system and PROFIBUS DP field devices as a master or slave.
  • Which PROFIBUS standards does the SST-PB3-CLX support?
    It supports PROFIBUS DP-V0 and DP-V1 for cyclic and acyclic data communication.
  • What are the data mapping capabilities of the SST-PB3-CLX per slave?
    It supports and scans up to 122 words of input data and 122 words of output data per slave, mapping them into the ControlLogix controller’s I/O data arrays.p to 12 Mbps.
  • Where does the SST-PB3-CLX store its network configuration?
    The module stores the downloaded configuration in its onboard non-volatile flash memory, eliminating the need to re-download the network setup every time the CLX chassis restarts.
