1756-TBCH

REMOVABLE TERMINAL BLOCK
In Stock

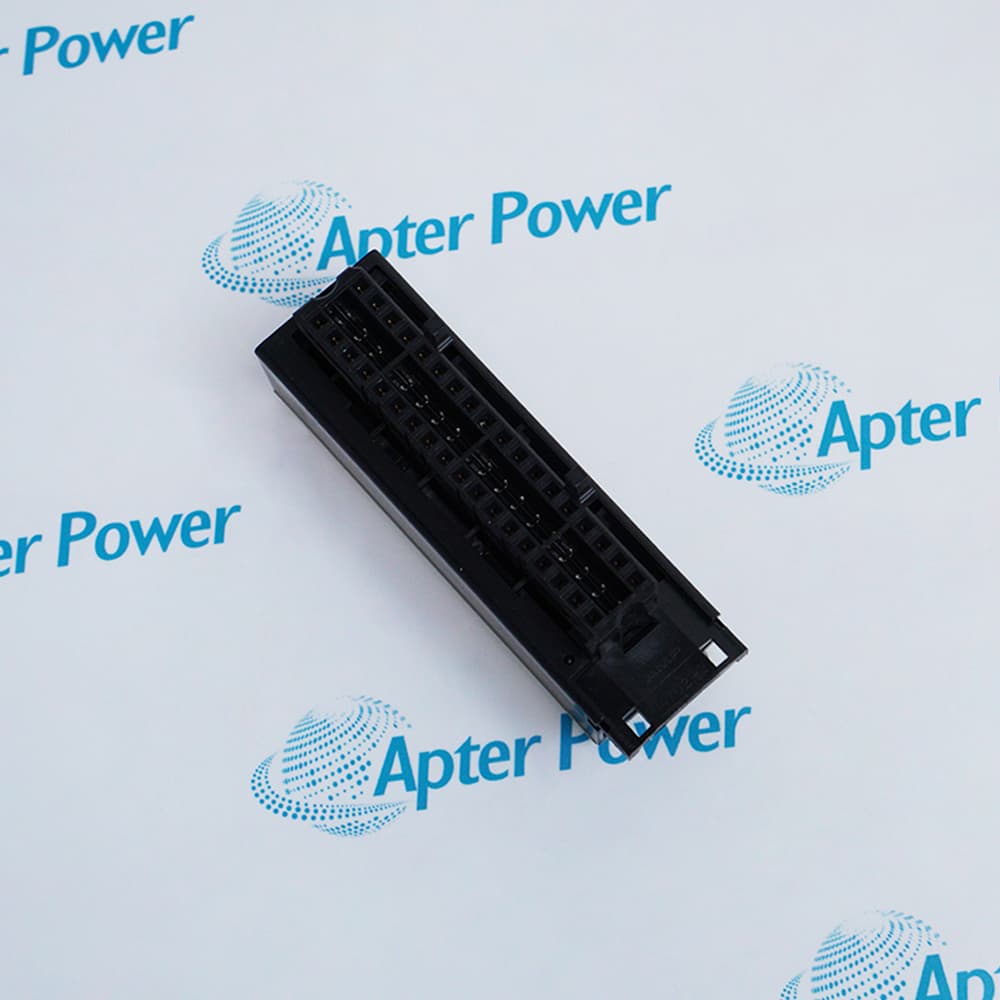

Allen-Bradley 1756-TBCH

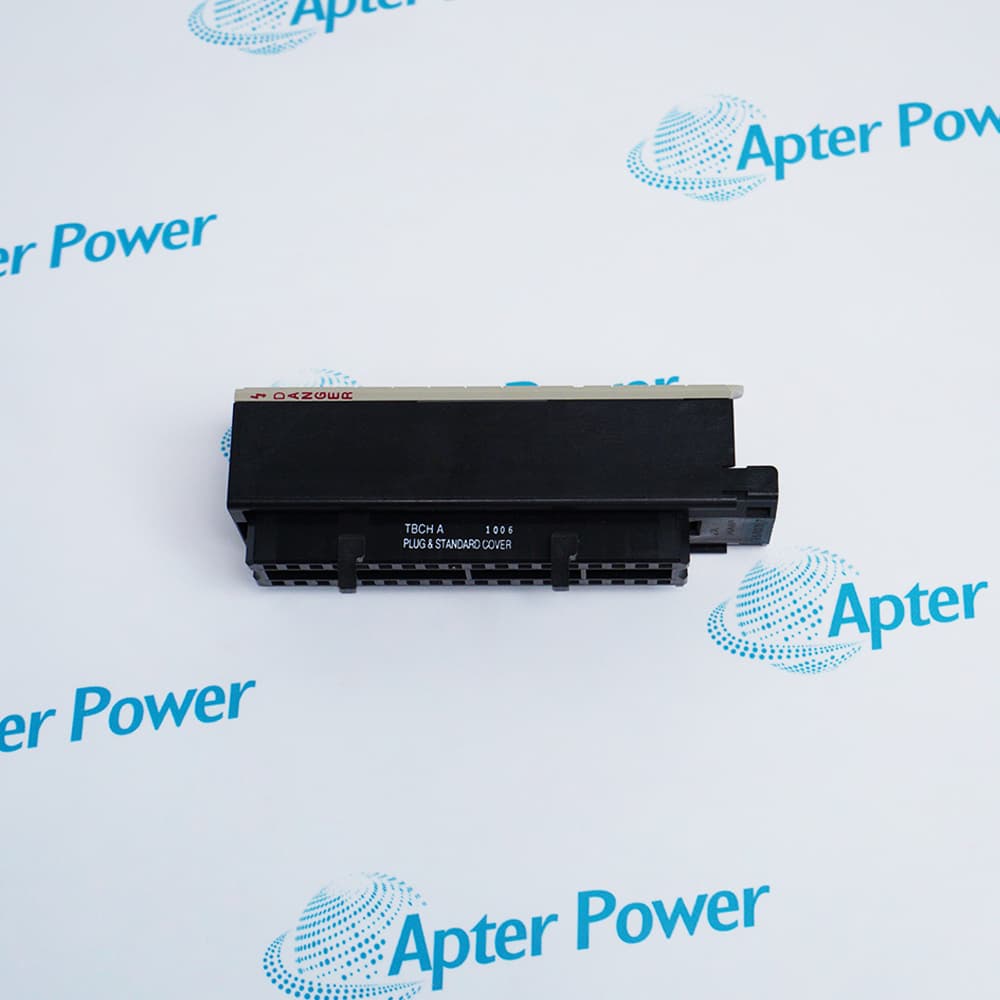

Allen-Bradley 1756-TBCH
Allen-Bradley 1756-TBCH
Allen-Bradley 1756-TBCH
Allen-Bradley 1756-TBCH
Allen-Bradley 1756-TBCH
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

REMOVABLE TERMINAL BLOCK
CONTROLLOGIX
CAGE CLAMP
36 PIN
LOW PROFILE HOUSING
22-14 AWG SINGLE WIRE
22-16 AWG DOUBLE WIRE
Get a quick price for 1756-TBCH
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 1756-TBCH

  • Manufacturer:
    Allen-Bradley
  • Product Category:
    PLC Systems
  • Spare Part Number:
    1756TBCH 1756-TBCH/A
  • Estimated shipping dimensions:
    3.5x5x11.8cm
  • Weight:
    0.15 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Pins:
    36-Pin Connection
  • Screw Torque:
    0.5 Nm (4.4 lb/in)
  • Single Wire Connection:
    0.33 to 2.1 mm. sq. (22…14 AWG)
  • Double wire connection:
    0.33 to 1.3 mm. sq. (22…16 AWG)
  • Max. Wire Insulation:
    90 °C (194 °F) or greater, 1.2 mm (3/64 in.)
  • Backplane Current (5Volts):
    1,200 milliamps
  • Backplane Current (24 Volts):
    2.5 milliamps

Information

Overview Manuals Common Applications Terminal Block
The 1756-TBCH is a 36-pin cage clamp Removable Terminal Block (RTB) specifically designed to provide a common connection point for ControlLogix I/O modules. This specific model features a cage clamp design that allows for secure and efficient termination of field wiring.
    • Cage Clamp Termination
    • Pre-wiring Capability
    • Secure Mechanical Keying
Designed to simplify system maintenance, the 1756-TBCH allows for the replacement of I/O modules without the need to disturb field wiring. The terminal block features integrated alignment grooves and locking tabs to ensure it is properly seated and secured onto the module.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Allen-Bradley 1756-TBCH REMOVABLE TERMINAL BLOCK Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 Oil and Gas
Applied in offshore platforms and refinery control systems for high-density I/O terminations. The cage clamp design provides a secure connection that withstands the constant vibrations and harsh conditions typical of extraction environments.

 Automotive Assembly
Utilized in high-speed production lines where rapid module replacement is critical to minimizing downtime. It allows maintenance teams to swap I/O components without disturbing complex field wiring harnesses.

 Water Treatment
Integrated into municipal filtration and pumping control panels to manage large-scale flow and pressure sensor inputs. The pre-wiring capability enables efficient system integration and simplifies periodic testing of field devices.

 Power Generation
Deployed in turbine control and power distribution monitoring to ensure reliable signal integrity for 36-pin I/O modules. The mechanical keying tabs prevent incorrect wiring connections in high-density control cabinets.

 Food and Beverage
Engineered for use in automated packaging and bottling lines where equipment is subject to thermal cycling. The wire insulation rating support ensures stable operation during continuous manufacturing processes.

 Pharmaceutical Manufacturing
Applied in batch processing systems to maintain precise control over environmental and chemical variables. The Removable Terminal Block (RTB) ensures that validated wiring configurations remain intact during routine hardware upgrades.

The 1756-TBCH is a removable terminal block intended for use with ControlLogix I/O modules, providing an interface between field wiring and the module circuitry. It is designed to support installation and removal without disturbing existing wiring, allowing separation of the wiring assembly from the module. The terminal block includes designated connection points and is keyed to prevent incorrect installation, ensuring compatibility with the corresponding module.
