1756-L72

ControlLogix 4 MB Controller
In Stock
Fast Shipping Available

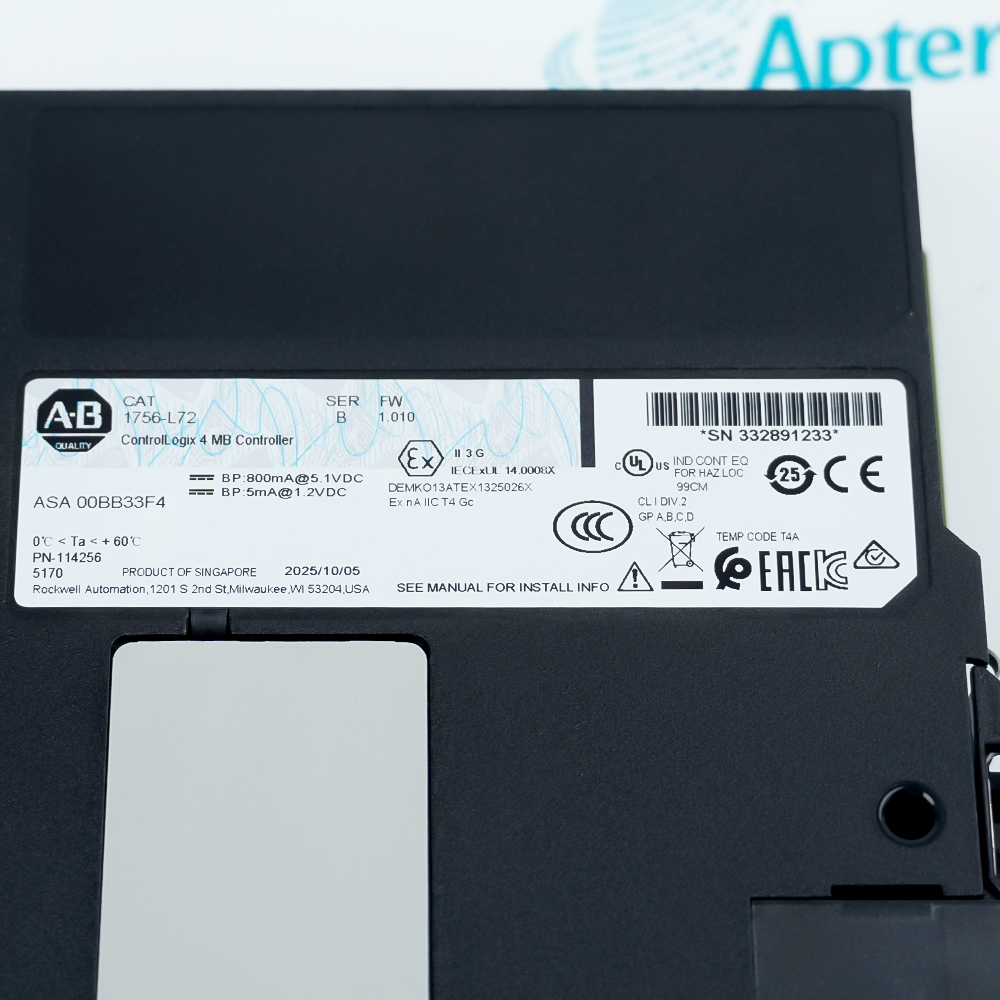

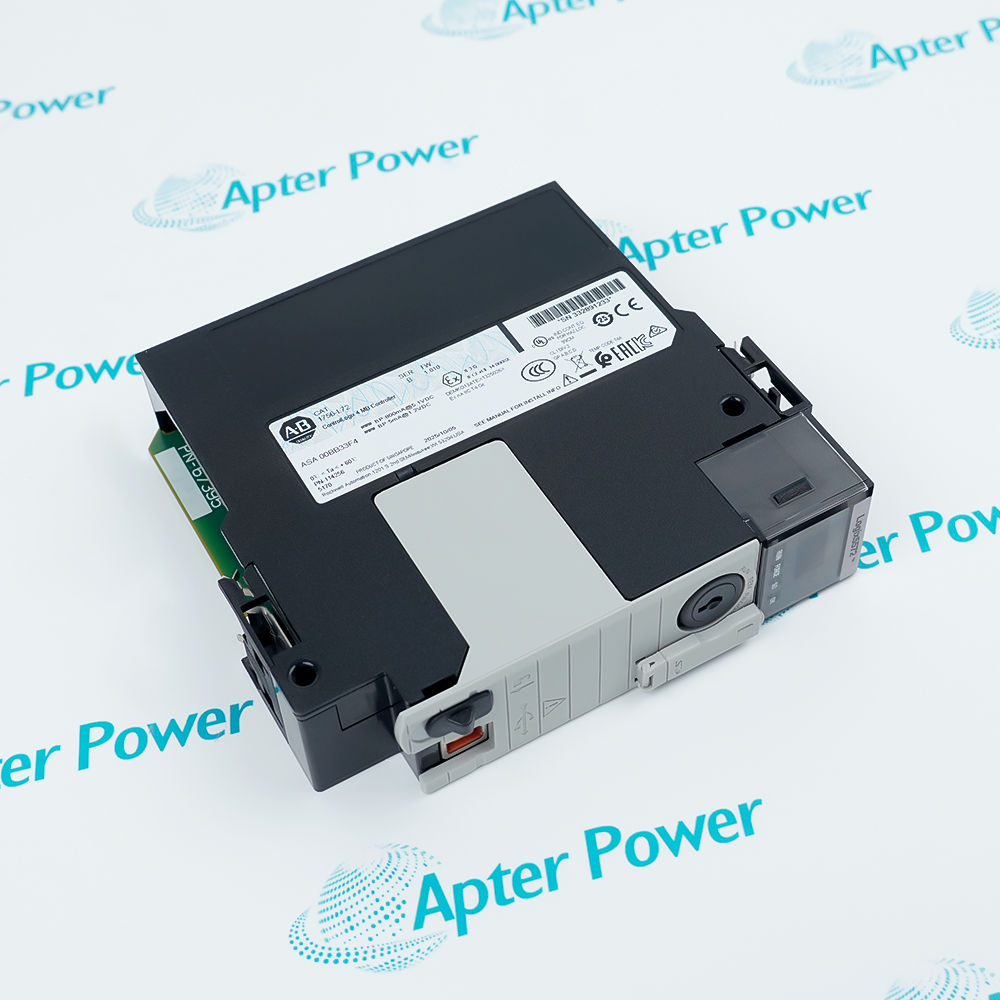

Allen-Bradley 1756-L72
Allen-Bradley 1756-L72
Allen-Bradley 1756-L72
Allen-Bradley 1756-L72
Allen-Bradley 1756-L72
Allen-Bradley 1756-L72
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

ControlLogix 5570 Controller, 4 MB User Memory
PROGRAMMABLE CONTROLLER MODULE
CONTROLLOGIX
USB PORT 2.0
Get a quick price for 1756-L72
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 1756-L72

  • Manufacturer:
    Allen-Bradley
  • Product Category:
    PLC Systems
  • Spare Part Number:
    1756-L72
  • Estimated shipping dimensions:
    14.3x13x3.4cm
  • Weight:
    0.25 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Memory:
    4 MB of user memory
  • I/O MEMORY:
    0.98 MB
  • Current draw @ 5.1V DC:
    800 mA
  • BACKPLANE:
    800 MA AT 5.1 VDC/5 MA AT 1.2 VDC
  • Current draw @ 1.2V DC:
    5 mA
  • Maximum Controller Connections:
    500 Connections
  • USB Ports:
    1 Port
  • Programs per Task:
    100 Programs per Task
  • Controller Redundancy:
    Fully Supported
  • Nonvolatile memory storage:
    1 GB Secure Digital (SD) card (1784-SD1), ships pre-installed in the controller
  • Digital I/O max:
    128,000
  • Analog I/O max:
    4000
  • Total I/O max:
    128,000
  • Thermal dissipation:
    8.5 BTU/hr
  • Relative humidity:
    5…95% noncondensing

Information

Overview Manuals Common Applications Product Precautions
The 1756-L72 is a standard controller used for industrial automation. This module supports up to 32 tasks and executes a maximum of 100 programs per task to coordinate multi-stage industrial processes.
    • Supports up to 32 independent parallel tasks
    • Provides up to 500 concurrent controller connections
    • Fully supports full system hot standby redundancy
The Allen-Bradley 1756-L72 serves as a core processing unit in the ControlLogix lineup, delivering extreme reliability for multi-tier industrial applications. Its executive firmware allocates memory for 32 simultaneous tasks, while permitting an allocation of 100 individual programs per task layer to structure intricate operational logic.

Information flow is sustained by its 500 available multi-protocol network connections, interfacing seamlessly with EtherNet/IP, ControlNet, DeviceNet, Data Highway Plus, Remote I/O, and SynchLink infrastructures. Rapid local maintenance and parameter adjustments are facilitated via a built-in USB port. Crucially, the platform incorporates hardware-level redundancy mechanisms, mitigating the risk of unplanned downtime in zero-tolerance manufacturing environments.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 Allen Bradley 1756-L72 ControlLogix 4 MB Controller Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Automotive Manufacturing
Coordinated control of stamping lines in body shops, welding robotic workstations, paint shop conveyors, and final assembly lines.

Oil & Gas
Remote monitoring and control (SCADA) of pump and valve stations along long-distance pipelines, and Emergency Shutdown (ESD) safety control on offshore drilling platforms.

Water & Wastewater Treatment
Controlling chemical dosing and sedimentation systems, filter backwashing logic in water plants, as well as aeration tanks and sludge dewatering systems in wastewater treatment plants.

Power & Energy
Applied in water treatment system controls (balance of plant) for thermal power plants, and yaw/pitch control for wind power generation equipment.

Pharmaceuticals
Strict FDA-compliant batch control, high-precision weigh batching, sterile cleanroom HVAC control, and serialization tracking on packaging lines.

Steel & Metallurgy
Used for blast furnace material charging, continuous high-precision speed coordination control of rolling mills, and monitoring of blast furnace blowers.

 When installing and maintaining the 1756-L72 controller, the module must be inserted or removed only under completely de-energized conditions to prevent damaging backplane electronic components. Do not disassemble the built-in Energy Storage Module (ESM), and avoid powering down the system if the indicators signal an ESM fault or an incomplete charge state to prevent the loss of unbacked-up data.

During software configuration, the Studio 5000 firmware version must strictly match the physical controller's firmware, and the logic programming must remain within the 4 MB memory allocation and version-specific program/task thresholds. For network communications, adequate CPU bandwidth must be reserved to handle EtherNet/IP motion axes and I/O scanning, preventing controller watchdog timeout shutdowns caused by communication overload.

Revisions

Revision Part #

Also known as

1756-L72 Ser A
1756-L72/A, Series A, Rev A
1756-L72 Ser B
1756-L72/B, Series B, Rev B

Alternative Names

1756 L72 I756-L72 1756L72 I756L72

Technical notes

The 1756-L72 controller is configured with 4 MB of user-available memory, a 1 GB 1784-SD1 memory card, and one USB 2.0 interface, utilizing an energy storage module (ESM) to retain data during power loss. Within the logical architecture, the device supports a maximum of 32 independent tasks (including no more than one continuous task), with the program limit per task expanded based on software versions from an initial 32 to 100 (version 15.01.00 and later) and 1000 (version 24.00.00 and later). Furthermore, the hardware manages up to 128,000 digital I/O points and 4,000 analog I/O points, while controlling a maximum of 100 motion axes via the EtherNet/IP network bus.

FAQ View All FAQ

  • What kind of device is 1756-L72?
    1756-L72 is a ControlLogix 5570 series programmable automation controller (PLC/PAC) central processing unit module manufactured by Rockwell Automation.
  • What is the primary function of 1756-L72?
    It is installed in a ControlLogix chassis to execute user-written industrial control logic programs and to coordinate and control input/output (I/O) modules and network communications.
  • What is the memory capacity of 1756-L72?
    This module features 4 MB of built-in user available memory (for data and logic programming).
  • Does the 1756-L72 require a dedicated battery during operation?
    No. The 1756-L72 utilizes an Energy Storage Module (ESM, such as 1756-ESMCAP), using capacitor technology instead of traditional lithium batteries to maintain memory data.
