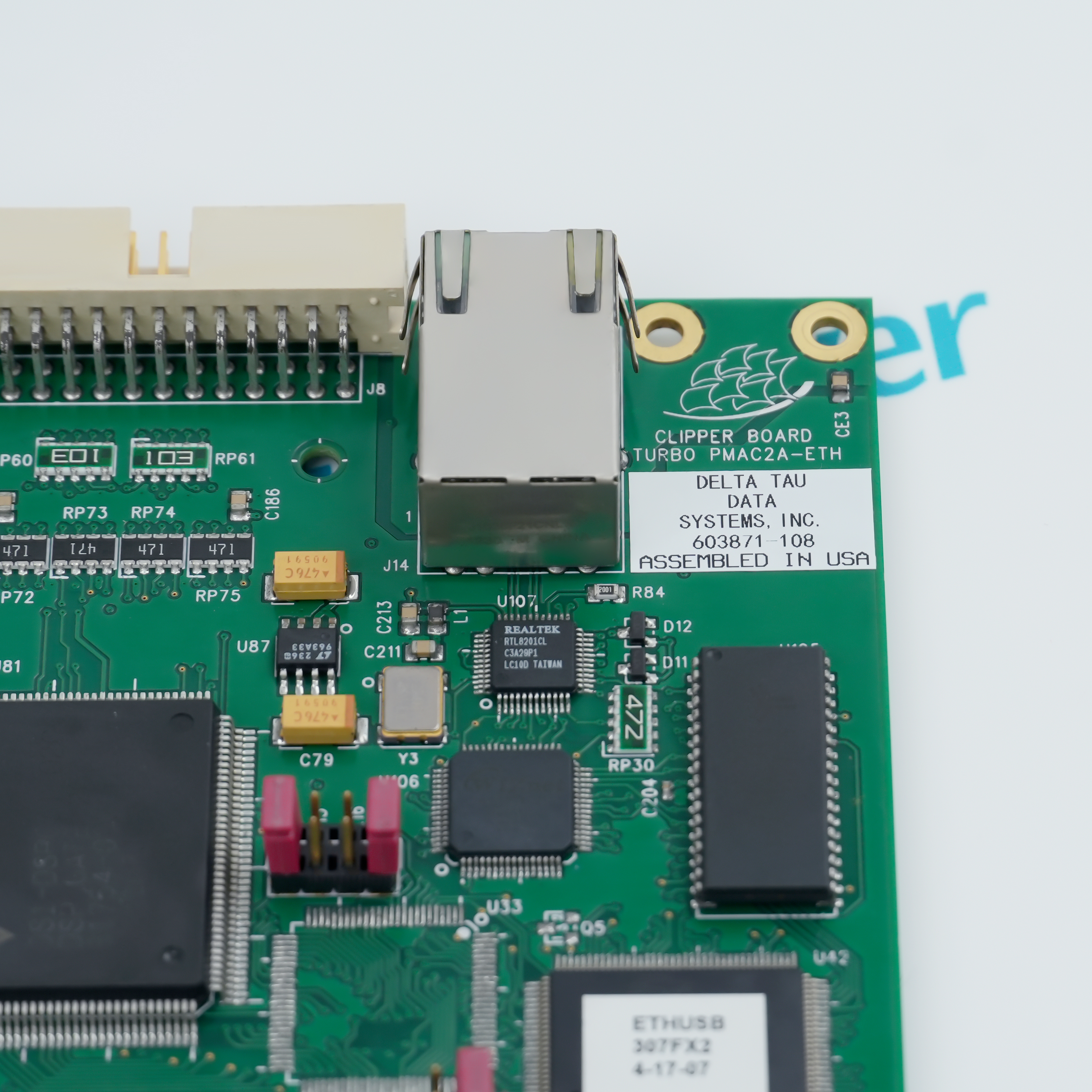

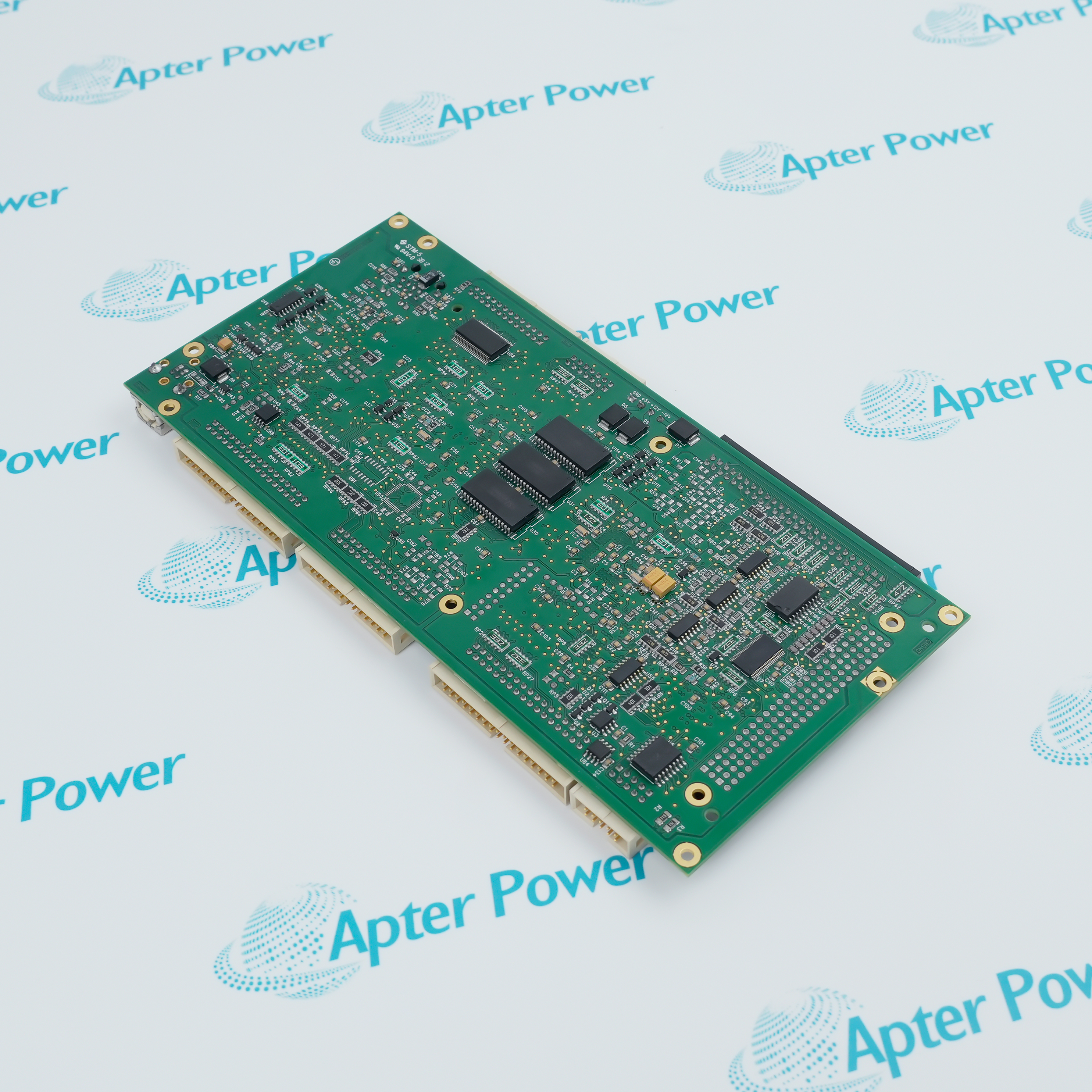

The DELTA 603871-108 is a high-performance embedded motion control board based on DSP56303 (80 MHz) processor. As a "lightweight" member of the Turbo PMAC2 family, it integrates powerful multi axis computing capabilities into a compact hardware structure, equipped with 128K x 24 SRAM user memory and 1M x 8 Flash storage space.
Multi axis linkage
High speed processor
Trajectory calculation
This board standard supports 4-axis synchronous control (expandable to 8-axis or more) and is compatible with servo motor and stepper motor systems. Its core algorithm supports advanced linear interpolation, circular interpolation, as well as complex PVT (position velocity time) and spline motion modes, ensuring micrometer level positioning accuracy at high speeds.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
DELTA 603871-108 Turbo PMAC2-Eth Clipper Board Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Excellent processing performance: Equipped with an 80 MHz CPU, it provides high-speed processing capability for complex motion trajectory calculations, ensuring synchronization and high accuracy of multi axis linkage.
Storage configuration: Built in 256K x 24 SPRAM and 1M x 8 Flash storage, supporting large-scale program storage and fast data exchange.
High speed communication interface: Integrated Ethernet interface, supporting 10/100 Mbps communication, compatible with modern industrial network architecture, easy for remote monitoring and system integration.
Flexible multi axis control: As an advanced model of the Clipper series, this board is designed specifically for high-performance OEM applications and supports hybrid control of stepper motors and servo motors.
Original factory quality and compatibility: Made by Delta Tau (Omron) original factory, part number 603871-108, it is the best replacement choice to maintain stable operation of existing automated production lines.
Can the 603871-108 run standalone? Yes, the Turbo Clipper can operate as a standalone unit or with real-time data streaming over Ethernet.
What are the 603871-108 power requirements?
It typically requires a 5V supply, with +/-12V only needed if using analog inputs or outputs.
How do I handle a
A red D3 LED indicates a watchdog failure. This can be caused by incorrect jumper settings (such as missing E-jumpers) or hardware issues like reversed ribbon cables.
Where can I find manuals and drivers?
Where can I find manuals and drivers? Documentation is available through Artisan Technology Group and DirectIndustry.
