1771-OBD

Digital Output Module
In Stock

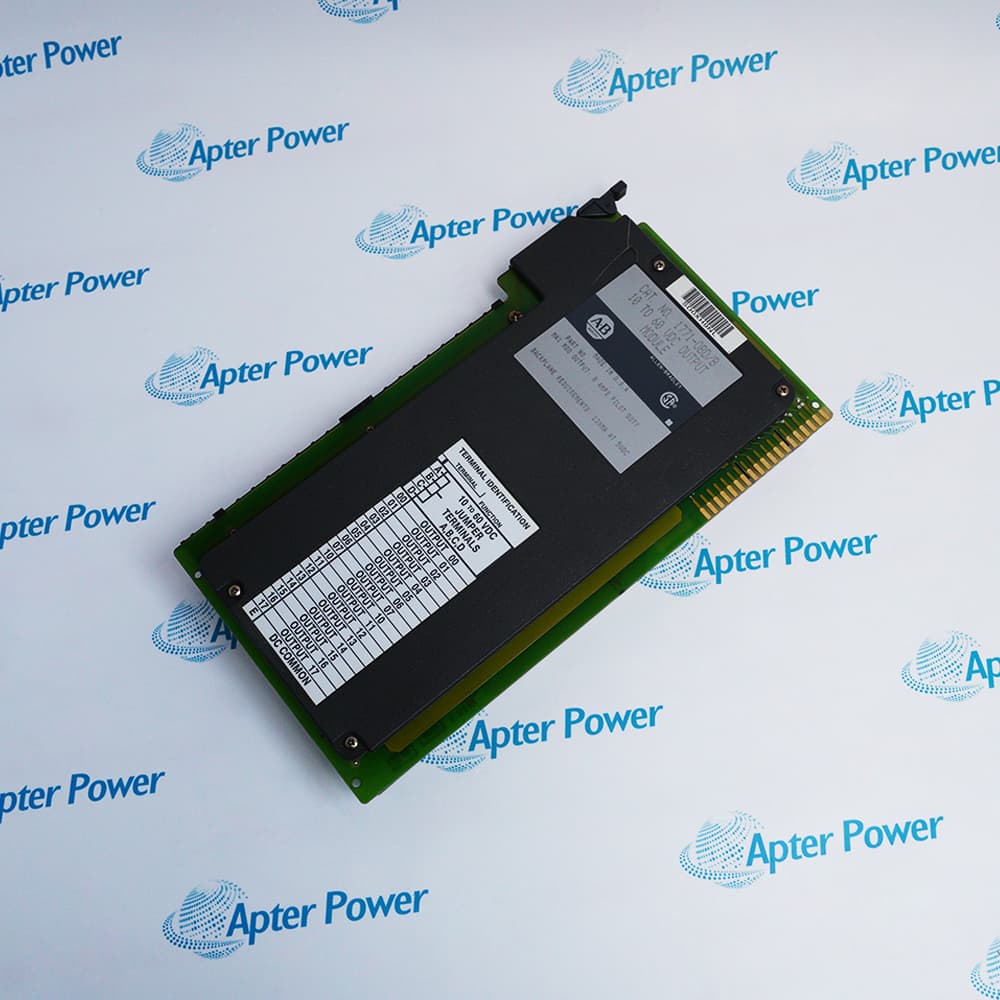

Allen-Bradley 1771-OBD
Allen-Bradley 1771-OBD
Allen-Bradley 1771-OBD
Allen-Bradley 1771-OBD
Allen-Bradley 1771-OBD
Allen-Bradley 1771-OBD
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

DISCONTINUED BY MANUFACTURER
DIGITAL OUTPUT MODULE
PLC 5
16 POINTS
10-60 VDC OUTPUT VOLTAGE RANGE
Get a quick price for 1771-OBD
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 1771-OBD

  • Manufacturer:
    Allen-Bradley
  • Product Category:
    PLC Systems
  • Spare Part Number:
    1771-OBD
  • Estimated shipping dimensions:
    3x14.5x25.3cm
  • Weight:
    0.42 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Nominal output voltage:
    48 VDC
  • Operating Voltage Range:
    10-60VDC
  • Number Of Channels:
    16
  • Pilot Duty Output:
    0.2 AMP/OUTPUT PILOT DUTY
  • Voltage:
    10-60 VDC OUTPUT VOLTAGE RANGE
  • Current Rating:
    2 AMP/OUTPUT RESISTIVE
  • Backplane Current:
    400 MA @ 5 VDC BACKPLANE
  • Current/Module:
    8 AMP/MODULE

Information

Overview Manuals Common Applications ESD Precautions
The 1771-OBD is a PLC-5 Universal I/O digital output module that provides 16 sourcing outputs in a single-slot configuration. This module is used with the 1771-WH wiring arm to connect field-side wiring and is compatible with any 1771 I/O chassis in a local or remote PLC-5 system.
    • 10...60V DC Operating Range
    • 2A Per Point Output
    • Sourcing Output Configuration
The 1771-OBD operates over a voltage range of 10...60V DC and provides a maximum output current of 2A per point, not to exceed 8A per module. It features 16 red status indicators on the front panel that light up when the corresponding output is turned ON, and it is rated for a surge current of 4A per output for 10 ms.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Allen-Bradley 1771-OBD Digital Output Module Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 Automotive Assembly
Used in engine block production and vehicle assembly lines to control high-current solenoid valves and motor starters. The 2A per point capacity provides robust switching for heavy-duty pneumatic and hydraulic actuators.

 Petrochemical Processing
Applied in refinery control systems for managing discrete valves and alarm signaling across long-distance remote I/O links. The wide 10...60V DC operating range accommodates various field power supply configurations in hazardous areas.

 Material Handling
Deployed in automated warehousing and conveyor systems to drive high-speed sorting gates and braking systems. Its ability to handle 4A surge currents ensures reliable operation when energizing large inductive magnetic loads.

 Food & Beverage
Integrated into high-volume bottling and packaging machinery to manage discrete control of filling heads and capping stations. The sourcing output configuration provides a standardized interface for common industrial sensors and relay logic.

 Steel Manufacturing
Utilized in hot-strip mills and foundry control systems to operate heavy-duty contactors and status indicators. The module maintains functional integrity under high-temperature and high-vibration conditions typical of metal processing environments.

 Water & Wastewater
Implemented in municipal treatment plants for controlling chemical dosing pumps and motorized sluice gates. It facilitates centralized management of distributed equipment via PLC-5 universal I/O chassis in remote pump stations.

Under some conditions, electrostatic discharge can degrade performance or damage the module. Observe the following precautions to guard against electrostatic damage: wear an approved wrist strap grounding device, or touch a grounded object to discharge yourself before handling the module. Do not touch the backplane connector or connector pins. If you configure or replace internal components, do not touch other circuit components inside the module; if available, use a static-free work station. When not in use, keep the module in its original static-shielded packaging.

FAQ View All FAQ

  • What is the voltage range and output capacity of the Allen-Bradley 1771-OBD module?
    The 1771-OBD has an operating voltage range of 10 to 60V DC and provides 16 sourcing outputs, with each output capable of delivering 2A, not to exceed 8A total per module.
  • Does the Allen-Bradley 1771-OBD require a specific wiring arm for installation?
    Yes, the 1771-OBD module requires the 1771-WH wiring arm to connect field-side wiring, which must be ordered separately as it is not shipped with the module.
  • What is the backplane current draw for the Allen-Bradley 1771-OBD module?
    The 1771-OBD module draws a maximum backplane current of 400mA at 5V DC from the PLC-5 I/O chassis.
  • How does the Allen-Bradley 1771-OBD handle surge currents for inductive loads?
    The 1771-OBD is rated for a maximum surge current of 4A per output for 10 ms, repeatable every 2 seconds, to accommodate inrush from devices like solenoids.
  • Can the Allen-Bradley 1771-OBD be used in a remote I/O configuration?
    Yes, the 1771-OBD is a Universal I/O module and can be installed in any 1771 I/O chassis that is part of a local or remote PLC-5 system.
