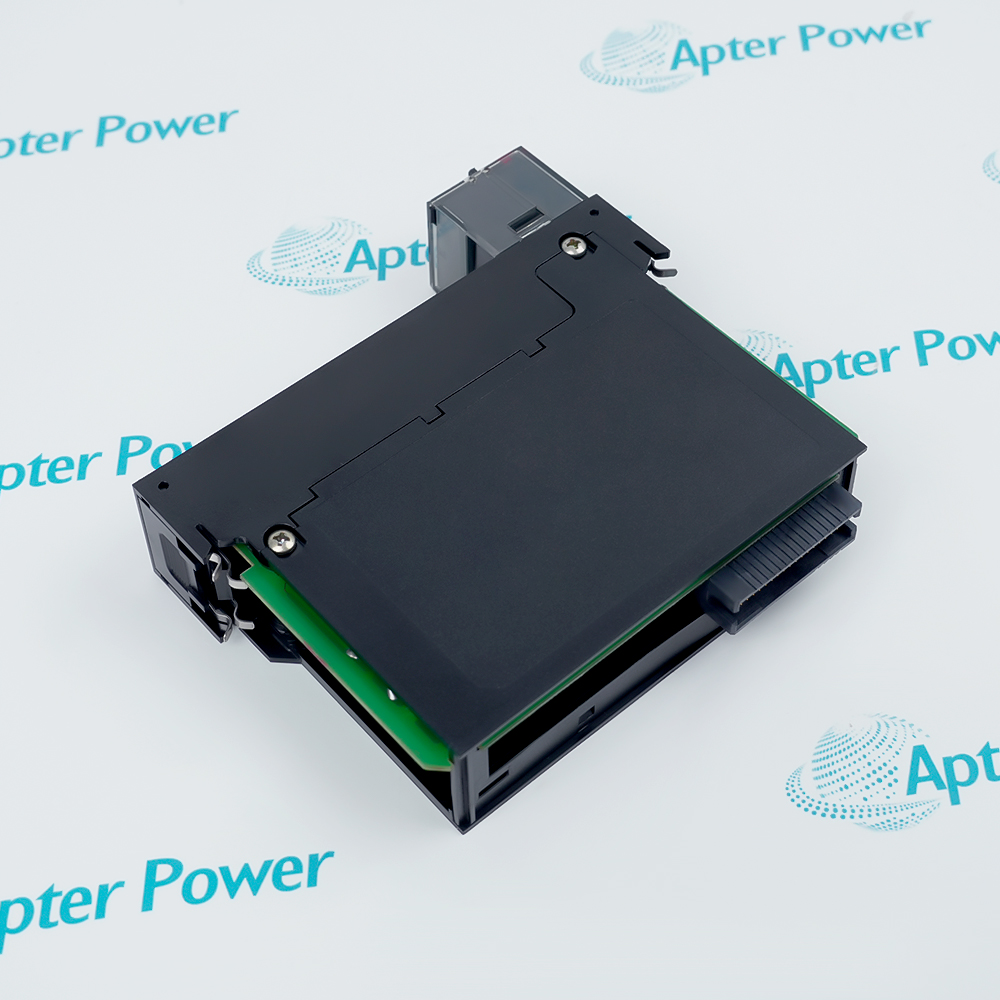

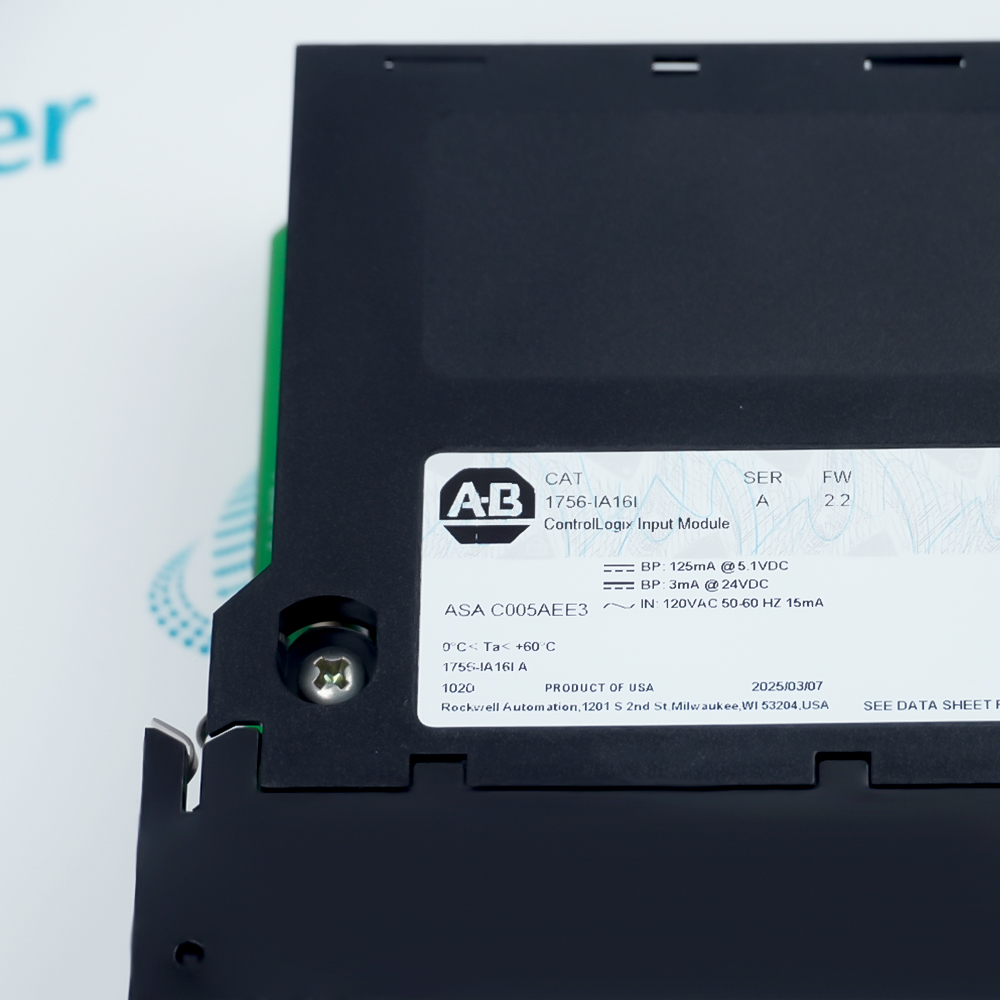

The 1756-IA16I is a ControlLogix discrete AC input module that functions within a voltage window of 79 to 132V AC at 47 to 63 Hz. It incorporates sixteen individually isolated channels to prevent signal interference between fields. For hardware integration, the unit mounts directly into any local or remote 1756 chassis slot.
Delivering efficient low power consumption and precise filtering mechanisms
The 1756-IA16I must be inserted directly and secured within a local or remote extension chassis slot in terms of physical installation and architecture configuration. A local chassis refers specifically to the physical hardware assembly where the main processor is installed, while a remote chassis refers to a distributed chassis that maintains real-time data interaction with the local main bus through a network adapter.
To completely eliminate signal interference under multi-loop, cross-powering, high-voltage environments, this module utilizes a point-to-point fully isolated structure, where its sixteen internal input channels are independent of each other and each channel possesses an exclusive, fully separated physical common terminal. This hardware feature allows the module to be applied directly to complex field conditions where independent AC commons already exist. The continuous input rated voltage standard for each independent isolated channel is up to 125 Volts AC, while the nominal input voltage and broad voltage category of the overall module are both 120 Volts AC, with a rated operating frequency range covering 50 to 60 Hertz.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Allen Bradley 1756-IA16I ControlLogix Input Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Petrochemicals & Refineries
Collects 120V AC contactor statuses and thermal relay fault interlock signals from central explosion-proof Motor Control Centers (MCC), receiving pump and valve run feedbacks across different power distribution systems.
Iron & Steel / Heavy Metallurgy
Connects heavy-duty limit switches, overhead crane safety interlocks, and 120V AC permissive signals originating from external third-party equipment control cabinets in coking plants, blast furnaces, and steel rolling lines.
Thermal Power Plant Boiler Management
Connects various AC travel switches, damper position limits, and local/remote transfer switch statuses of high-voltage fans within Boiler Management Systems (BMS).
Water Treatment & Desalination
Used for monitoring the power loop statuses of large intake gates, backwash pumps, and chemical dosing pumps, isolating ground potential differences caused by long-distance power transmission.
Pulp & Paper Processing
Captures interlocking logic from AC control circuits in large motor group controls of pulp preparation and paper machine press sections, preventing cross-channel electrical crosstalk in humid, highly corrosive environments.
Marine Propulsion & Merchant Vessel Automation
Installed in marine main switchboards or engine room consoles to collect 120V AC digital statuses from generator air circuit breakers and ballast pump starters, enduring the complex electrical grid of marine IT systems.
When using the 1756-IA16I because all channels are individually isolated field wiring must provide a dedicated neutral and common line for each channel without mixing commons from different external systems. The module generates significant heat with a 4.9W power dissipation at 60°C requiring cabinet designs with adequate ventilation. Crucially completely isolate power before removing or installing the 36-pin terminal block and never hot-plug active 120V AC signal wires to prevent arcing damage to the terminals or internal optocouplers.
The Allen-Bradley 1756-IA16I is a 16-channel AC input module used for ControlLogix systems, featuring point-to-point isolation to prevent electrical crosstalk. This module supports hot-swapping, removable terminal blocks, and software filtering, making it suitable for collecting 79 to 132V AC signals while enabling highly efficient maintenance.
What kind of device is the 1756-IA16I used in industrial automation control cabinets?
This is a digital AC input module dedicated for Rockwell Automation control systems, primarily responsible for collecting and receiving high voltage AC discrete physical signals from the field.
How should field electrical engineers use a module like the 1756-IA16I during routine assembly?
Users need to insert it directly and vertically into an empty slot of the chassis, and interface with cables from field limit switches or relay auxiliary contacts through the dedicated front removable terminal block.
Within which specific physical chassis is the 1756-IA16I allowed to be installed during hardware configuration planning?
This module can be directly installed inside the local chassis containing the central main controller, and it also perfectly supports installation in remote extension chassis slots connected via networks.
What voltage specifications of field signals can introducing the 1756-IA16I into loop control primarily handle?
It is specifically used to handle field loop inputs within a rated voltage broad category of 79 to 132 Volts AC, with an allowable AC frequency range spanning from 47 to 63 Hertz.
What advantages does the channel isolation technology of the 1756-IA16I possess under multi loop complex high voltage interference?
This module is equipped with sixteen fully independent point to point isolated channels, with each channel possessing its own common terminal to completely eliminate signal crosstalk between different loops at the physical underlying layer.
