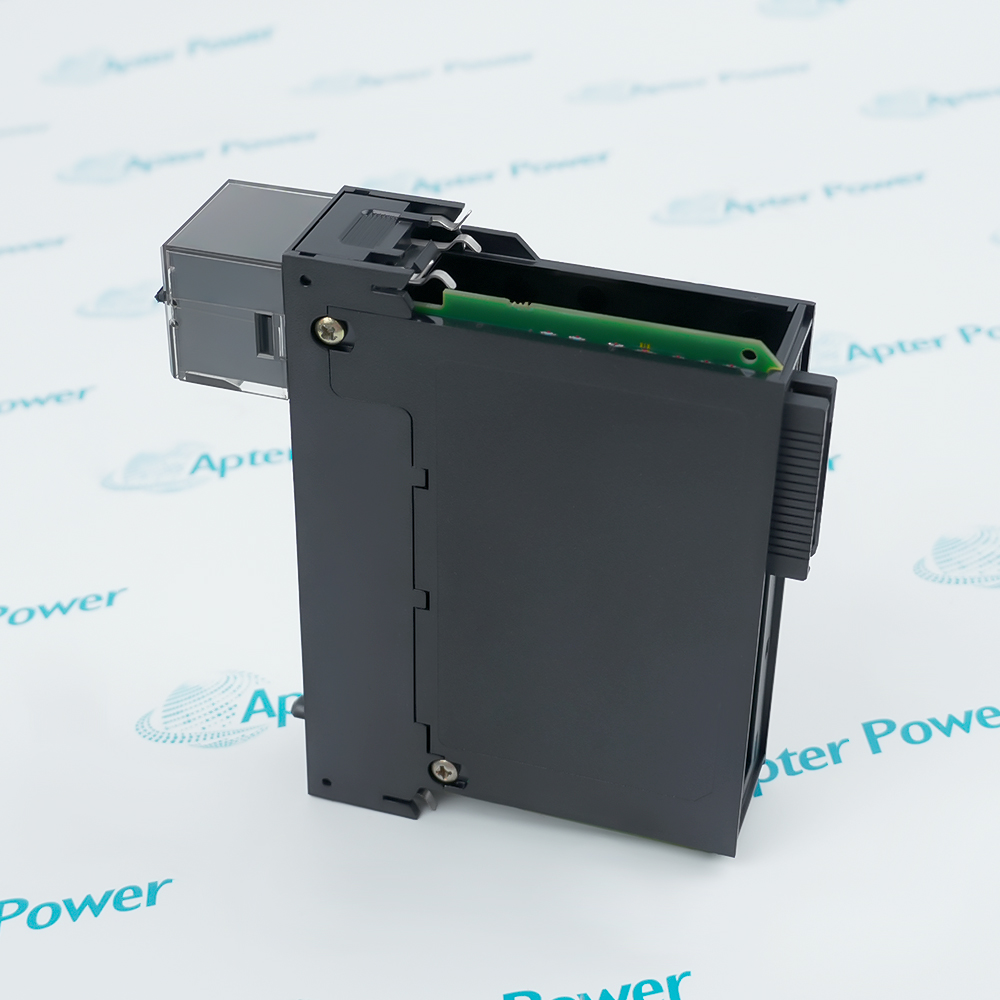

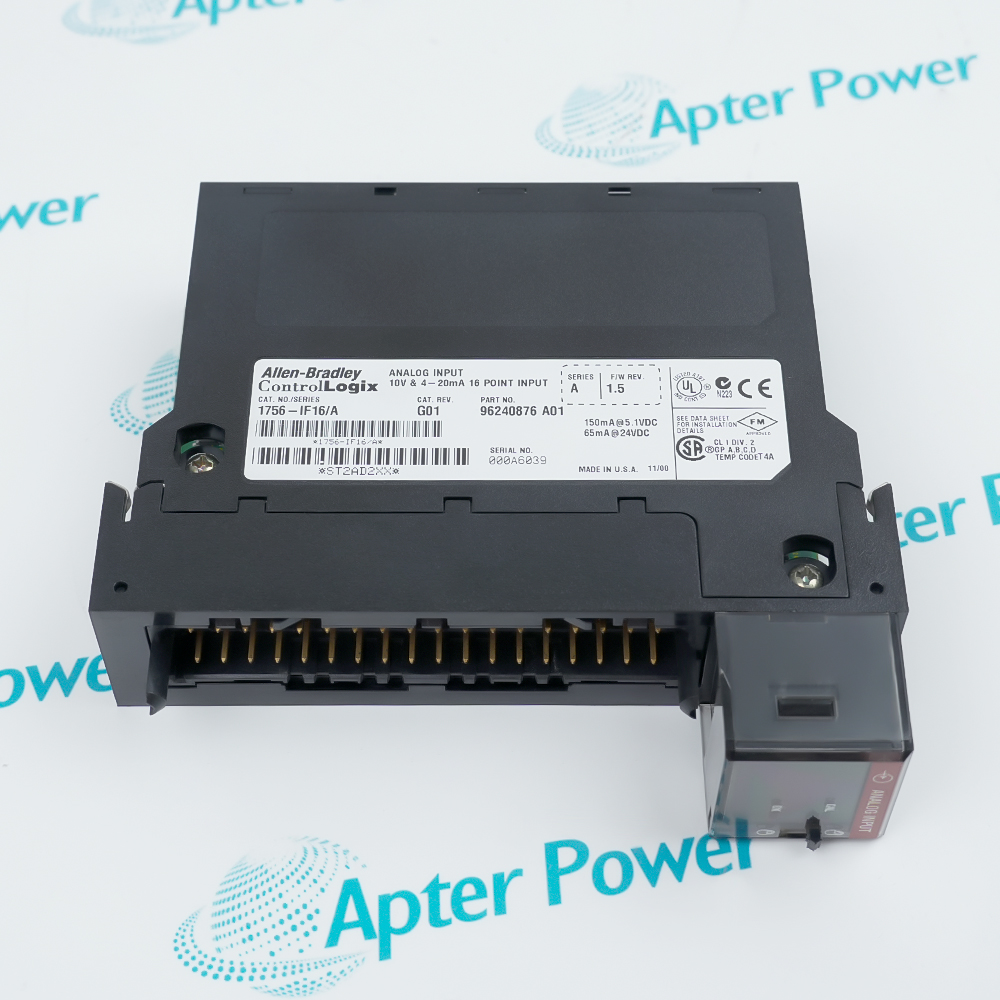

The 1756-IF16 is a ControlLogix series analog input module. This module provides multi-functional signal interfaces, configurable as 16 single-ended, 8 differential, or 4 high-speed differential input combinations.
On-board data alarming
Real-time channel sampling
Electronic module keying, software configurable
The 1756-IF16 has a low power consumption and thermal dissipation of approximately 2.3 Watts, lowering the risk of heat buildup inside control cabinets and ensuring long-term stable operation across a standard industrial temperature range of 0 to 60 degrees Celsius. The module natively fits standard backplane chassis such as the 1756-A10 and fully supports Removal and Insertion Under Power, allowing maintenance personnel to perform online hot-swapping without shutting down system power, which significantly reduces unplanned downtime losses in continuous production processes.
Utilizing its built-in high-precision analog-to-digital converter, the 1756-IF16 module performs high-speed acquisition and digitization of signals such as 4-20mA current loops, 0-10V, or plus-or-minus 10V voltage signals. In severe electromagnetic interference environments, this module uses configurable digital filters and a high common-mode rejection ratio to filter out high-frequency noise caused by field heavy-duty variable frequency drives, motors, and cable radiation, ensuring the authenticity and stability of critical process parameters including temperature, pressure, flow, and liquid level.
This robust interference rejection and high-speed response capability enable widespread deployment in metallurgical steel rolling lines, paper chemical blending, and large compressor unit monitoring and control systems. Through real-time backplane data interlocking with the ControlLogix main controller inside the 1756-A10 chassis, the module provides millisecond-level accurate inputs to control algorithms, enabling precise closed-loop regulation of complex industrial processes.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Allen Bradley 1756-IF16 Analogue Input Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Water & Wastewater Treatment
Monitoring water quality parameters, flow rates, and reservoir levels using high-density single-ended configurations.
Oil & Gas Refining
Capturing critical pressure and temperature signals with differential inputs to suppress electromagnetic noise.
Thermal Power Generation
Real-time monitoring of boiler steam temperatures and bearing vibrations using high-speed inputs.
Chemical & Petrochemical Industry
Interfacing with 16 single-ended temperature transmitters to track multi-zone thermal distribution inside a polymerization reactor.
Metallurgy & Steel Mills
Tracking blast furnace wall temperatures using 8 differential thermocouple transmitters to filter out severe industrial EMI.
Pharmaceuticals & Biotechnology
Logging 4-20 mA signals from cleanroom relative humidity, ambient temperature, and differential pressure sensors.
When using the Allen-Bradley 1756-IF16 module, select the appropriate configuration from 16 single-ended, 8 differential, or 4 high-speed differential inputs based on field noise levels, and use it with a 1756-TBCH or 1756-TBS6H terminal block.
Maintain the ambient temperature between 0 and 60 degrees Celsius, keep its power dissipation around 2.3 Watts, and fully utilize its Removal and Insertion Under Power function for seamless hot-swapping to eliminate downtime during replacements.
The Allen-Bradley 1756-IF16 is a versatile ControlLogix analog input module offering flexible density options, including 16 single-ended, 8 differential, or 4 high-speed differential channels. Operating efficiently on the system backplane, it draws a nominal 150 mA at 5.1V DC and 65 mA at 24V DC. To guarantee precise signal state detection and prevent false readings from leakage currents, the module features a maximum off-state input current rating of 1.5 mA.
The 1756-IF16 has a power dissipation of around 2.3 Watts.
How many inputs does the 1756-IF16 have?
The number of module channels depends on the wiring method used. It supports 16 single-ended, 8 differential, or 4 high-speed differential inputs.
What are the supported wiring methods by the 1756-IF16?
The 1756-IF16 supports single-ended, differential, and high-speed differential wiring.
Where can I send the 1756-IF16 to be repaired?
DO Supply, Inc. offers a variety of repair services for the 1756-IF16.
What are the compatible Removable Terminal Blocks (RTB) for use with the 1756-IF16?
The 1756-IF16 is compatible with 1756-TBCH and 1756-TBS6H terminal blocks.
