1786-RPFRL

Long-distance Fiber Ring Repeater Module
In Stock

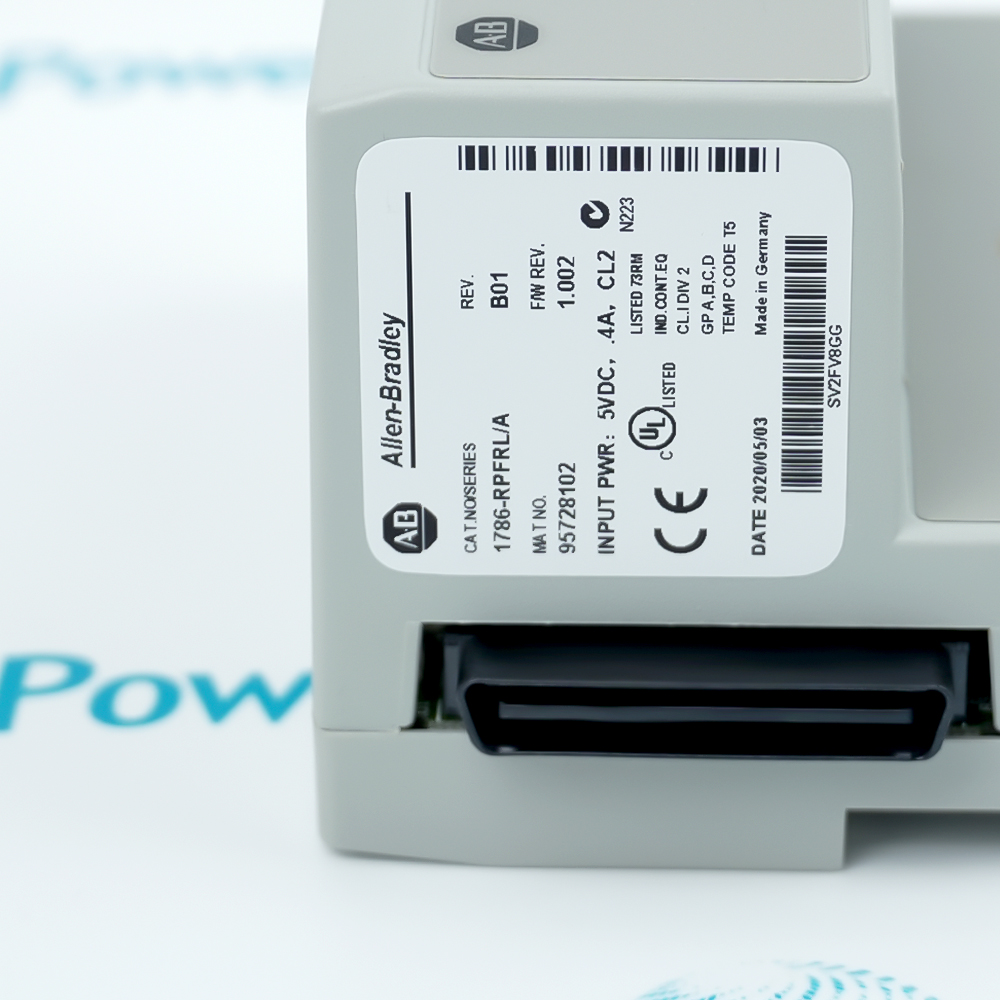

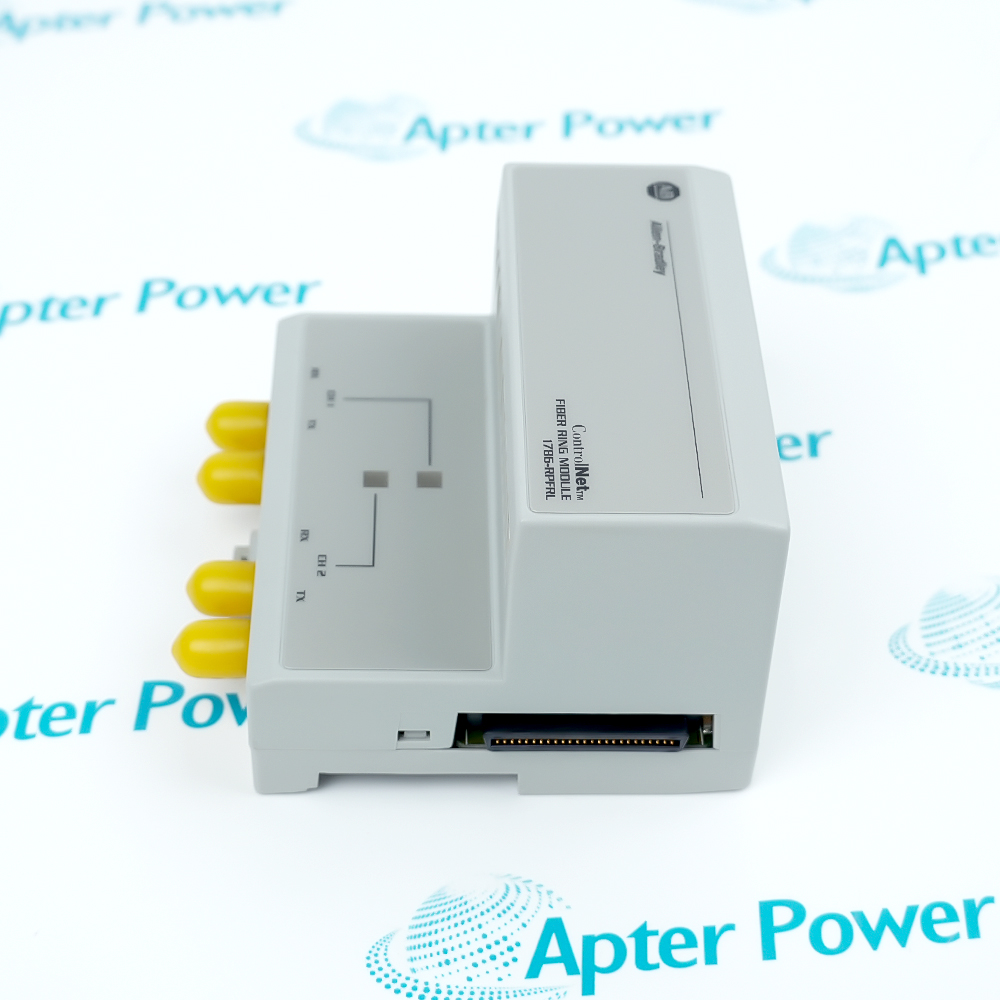

Allen-Bradley 1786-RPFRL
Allen-Bradley 1786-RPFRL
Allen-Bradley 1786-RPFRL
Allen-Bradley 1786-RPFRL
Allen-Bradley 1786-RPFRL
Allen-Bradley 1786-RPFRL
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

Long-distance Fiber Ring
Repeater Module
RING REPEATER
CONTROLNET FIBER
DUAL FIBER OPTIC CHANNEL
Get a quick price for 1786-RPFRL
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 1786-RPFRL

  • Manufacturer:
    Allen-Bradley
  • Product Category:
    PLC Systems
  • Spare Part Number:
    1786-RPFRL
  • Estimated shipping dimensions:
    10.5x11.5x7cm
  • Weight:
    0.18 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Repeater Type:
    Fiber Ring Repeater Module
  • Fiber Type:
    62.5/125 micron multi-mode fiber
  • Fiber Operating Wavelength:
    1300 nm
  • Attenuation Levels:
    15 dB
  • Input Power:
    5V DC
  • Typical Repeater Distance:
    0-10km
  • Backplane Current Draw:
    570 mA

Information

Overview Manuals Common Applications Product Precautions
The 1786-RPFRL is a ControlNet long-distance optical loop repeater module manufactured by Rockwell Automation. It is not a standalone device, but must be inserted into the 1786-RPFM repeater adapter bracket to convert ControlNet electrical signals into optical signals.
    • Media Conversion & Repeating
    • Ring Redundancy & Topology
    • Long-Haul Transmission
The 1786-RPFRL is a high-performance single-mode fiber optic repeater module specifically designed for ControlNet networks (Function). It features a modular plug-in design that operates within a 1786-RPFM adapter base and supports highly reliable ring redundancy topologies (Structure). By extending communication distances to over 20 km and providing superior EMI immunity, this module ensures stable ultra-long-range data transmission while significantly reducing the risk of downtime caused by communication failures, offering exceptional system assurance value.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 Allen-Bradley 1786-RPFRL Long-distance Fiber Ring Repeater Module Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Oil & Gas
Implementing secure networking between the central control room and remote tank farms in large refineries.

Power & Utilities
Providing EMI-immune data links between substations for remote monitoring and control.

Steel & Metallurgy
Ensuring long-distance transmission of control signals in hot rolling lines with high temperatures and strong magnetic fields.

Railway & Transit
Used in subway tunnel signaling systems for redundant network communication between stations.

Chemical Industry
Using fiber optics in hazardous areas to eliminate the risk of electric arcs from electrical signals.

Pulp & Paper
Connecting distributed I/O across workshops in large paper mills to resolve potential difference issues.

 When using the 1786-RPFRL, ensure it is securely locked into the 1786-RPFM base and used exclusively with single-mode fiber, mixing it with multi-mode modules is strictly prohibited. As fiber optic communication is highly sensitive to contamination, cleaning the fiber connectors before installation is essential. Additionally, you must accurately calculate the optical power budget to ensure link attenuation remains within specifications and correctly configure the switches on the base when setting up a ring topology to enable its redundancy features.

FAQ View All FAQ

  • What is the 1786-RPFRL?
    The 1786-RPFRL is a ControlNet repeater module, specifically a long-range fiber ring module.
  • What is the primary function of the 1786-RPFRL?
    It is used to convert ControlNet signals from coax cable to fiber optics for long-distance transmission and electromagnetic interference immunity.
  • What transmission distance does 1786-RPFRL support?
    As a
  • What base is required for the 1786-RPFRL?
    It must be installed into a 1786-RPFM repeater adapter base to function.
  • What is the interface type of the 1786-RPFRL?
    It is typically equipped with ST connectors (Straight Tip) for fiber optic connections.
