1771-RTP4

Remote Termination Panel
In Stock
Ships by Saturday, November 21
Fast Shipping Available

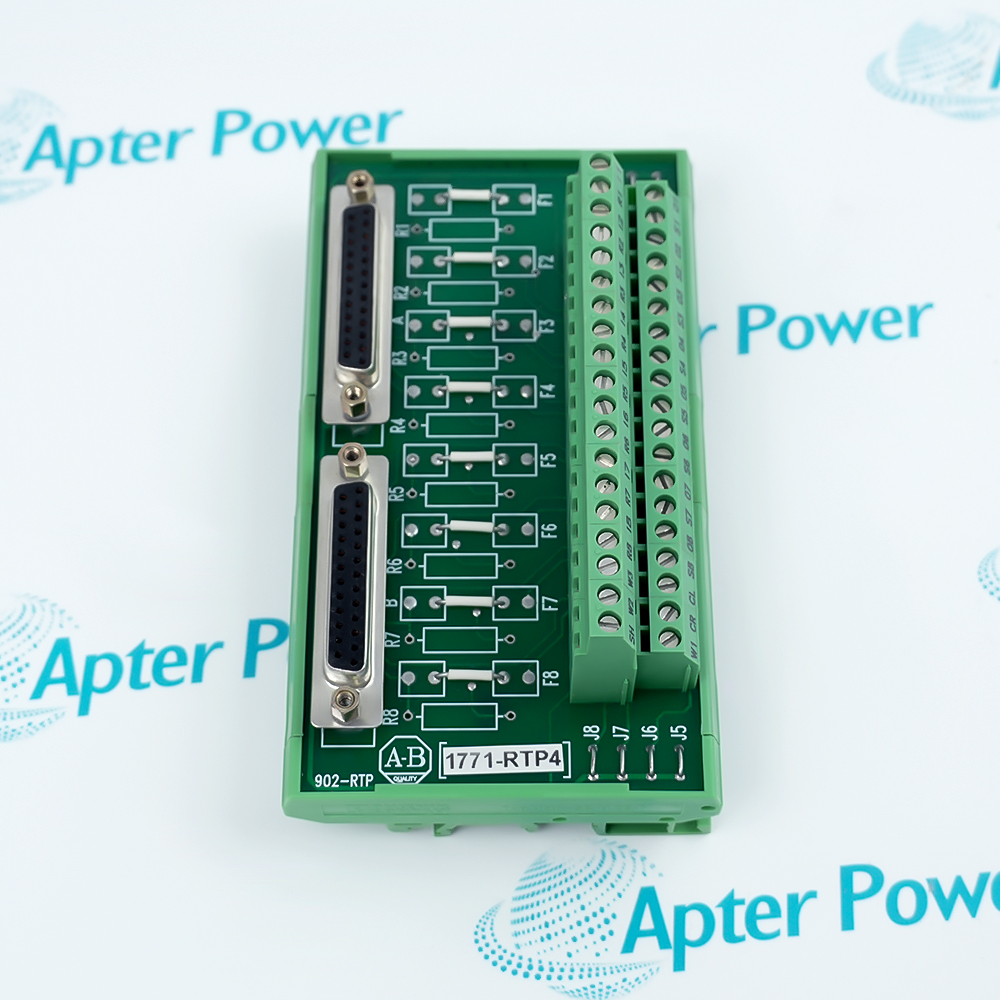

Allen-Bradley 1771-RTP4 terminal interface board, green PCB with two D-sub connectors and screw terminal strip

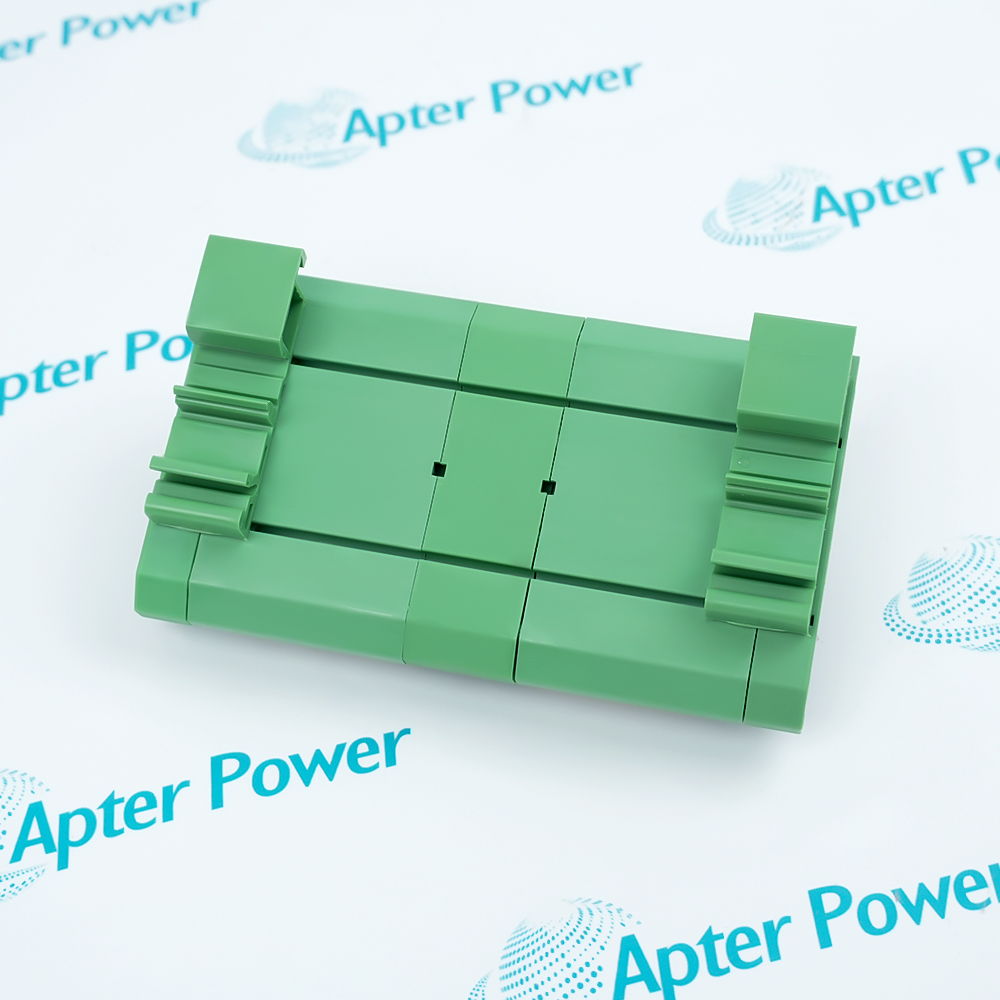

Allen-Bradley 1771-RTP4 terminal interface, underside of green plastic housing with DIN-rail clips and no connectors
Allen-Bradley 1771-RTP4 terminal board, green PCB with two D-sub connectors and screw terminal rows
Allen-Bradley 1771-RTP4 terminal interface board, green PCB with two D-sub connectors and screw terminal strip
Allen-Bradley 1771-RTP4 terminal interface, underside of green plastic housing with DIN-rail clips and no connectors
Allen-Bradley 1771-RTP4 terminal board, green PCB with two D-sub connectors and screw terminal rows
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

A general use block with
straight-thru wiring that can
be used for all applications
except thermocouples
Get a quick price for 1771-RTP4
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 1771-RTP4

  • Manufacturer:
    Allen-Bradley
  • Product Category:
    PLC Systems
  • Spare Part Number:
    TYP UMK-SE11,25-1902-RTP
  • Estimated shipping dimensions:
    7.6x7.6x15.2cm
  • Weight:
    0.2 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Connectors:
    2 x 25-pin female connectors
  • Number of Terminals:
    38 screw terminals
  • Frequency:
    47 - 63 Hz
  • Fuse Requirement:
    3 Amperes, 250 Volts, Normal-Blow
  • Usage for Voltage Inputs:
    Yes, with resistor
  • Paralleled:
    N/A
  • Cabling:
    1771-PSCC Remote 5.5 ft

Information

Overview Manuals Common Applications Product Precautions
The 1771-RTP4 is a general-purpose remote termination panel developed for the PLC-5 platform. Utilizing a straight-through wiring architecture, this hardware interface connects directly to standard current input field devices. It also interfaces with voltage input hardware when combined with an external resistor, though it lacks compatibility with thermocouple sensors. For system configuration, a single 1771-RTP4 termination panel accommodates connections for up to 8 I/O channels simultaneously.
    • Ultra-low resistance copper traces eliminate physical voltage drops during 4-20mA analog loop transitions
    • Onboard precision resistors for 4 channels convert direct voltage inputs into readable PLC analog ranges
    • Single panel connects up to 8 independent I/O modules simultaneously via 1771-NC6/NC15 cables
The Allen-Bradley 1771-RTP4 functions as a field-mountable wiring solution that interfaces directly with the 1771-N series high-resolution isolated analog modules via prefabricated cables like the 1771-NC6 or 1771-NC15. By moving the terminal connections from the rack-mounted I/O chassis to a separate DIN rail location within the control enclosure, this remote termination panel simplifies point-to-point field wiring, verification, and long-term maintenance. The hardware features a 38-screw terminal design to maintain passive straight-thru signal loop continuity across industrial automation sectors, including power generation, water treatment, and petrochemical processing.

This component acts as a direct replacement part for maintaining legacy PLC-5 infrastructures, preventing unexpected system downtime during hardware swap-outs. This remote termination panel mounts on standard DIN rails inside electrical enclosures to transition complex field cable bundles into organized control wiring. Connection to the primary I/O chassis is established using standard 25-pin multi-conductor cables, which minimizes individual point-to-point terminations at the PLC rack. The terminal layout provides clear markings for each conductor, accelerating loop testing and diagnostic troubleshooting on the factory floor. Built to withstand continuous industrial operation, the physical housing resists mechanical vibrations and ambient thermal fluctuations common in manufacturing environments, ensuring consistent signal path connections for analog instrumentation loops over extended lifecycles.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 Allen Bradley 1771-RTP4 Remote Termination Panel Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Petroleum Refining & Petrochemicals
Concentrated connection of 4-20mA signal lines from hundreds of pressure transmitters and level gauges inside control cabinets.

Thermal Power Plant Boiler Control
Used to route multiple PT100 temperature sensor signals into PLC analog input modules via prefabricated cables.

Municipal Wastewater Treatment
Aggregating heavy wiring from flowmeters and sludge density meters located across outdoor pump stations, aeration tanks, and sedimentation tanks.

Pulp & Paper Processing
Connecting numerous flowmeters and consistency transmitters in the sizing and drying sections, reducing maintenance downtime via remote wiring.

Chemical Fiber Spinning Manufacturing
Receiving high-pressure melt pump pressure transmitter data and providing direct test points on the terminal board for troubleshooting.

Rubber Vulcanization & Molding Manufacturing
Routing multiple oil pressure and clamping force transmitter signals from vulcanizers into the control box neatly via straight-through internal wiring.
 When using the 1771-RTP4, it is critical to note that thermocouple sensors are not supported due to the lack of built-in cold-junction compensation, and external resistors are mandatory when interfacing with voltage input devices. During physical installation and maintenance, ensure that both 25-pin prefabricated cables (such as the 1771-NC6) are securely connected and locked. Additionally, all field wiring and module replacements must be performed under powered-down conditions to prevent signal loop short circuits or inrush currents from damaging the analog I/O modules.

Revisions

Revision Part #

Also known as

1771-RTP4 Ser A
1771-RTP4/A, Series A, Rev A

Alternative Names

1771-RTPA 1771RTP4 1771RTPA 177I-RTP4 177IRTP4 I771-RTP4 I771RTP4 I77I-RTP4 I77I-RTPA I77IRTP4 I77IRTPA

Technical notes

The 1771-RTP4 is a passive, straight-through Remote Termination Panel for Allen-Bradley PLC-5 systems. It bridges field cabling to internal electronics via 1771-NC6/NC15 cables, supporting up to 8 analog or digital I/O modules concurrently while eliminating voltage drops and cable strain on backplane components.

FAQ View All FAQ

  • What is the core role of the 1771-RTP4 in PLC hardware wiring?
    It acts as a routing transition hub for high-density field wiring. It redirects heavy, rigid field cables—which would otherwise terminate directly on the PLC module's wiring arm—to a dedicated panel, thereby protecting the PLC chassis and simplifying maintenance.
  • How to properly install and commission the 1771-RTP4 inside a control cabinet?
    With the enclosure power isolated, securely snap the 1771-RTP4 onto a standard DIN rail at the bottom of the control cabinet, and then bridge it to the corresponding I/O module in the PLC chassis using a 1771-NC6 or 1771-NC15 dedicated multi-conductor shielded cable.
  • How many I/O modules can the 1771-RTP4 support concurrently?
    According to official technical specifications, a single 1771-RTP4 panel provides sufficient allocation capacity to concurrently interface up to 8 independent I/O modules.
  • Can the 1771-RTP4 be used to handle thermocouple signals?
    No. Official specifications explicitly state that this general-purpose termination panel supports all analog and digital processing loops with the specific exception of thermocouple applications.
  • Why can the 1771-RTP4 not be used directly for thermocouple wiring?
    Because thermocouple acquisition requires specific Cold Junction Compensation (CJC) thermistors and specialized extension wire materials, whereas the 1771-RTP4 is a basic straight-through copper-terminal board lacking the physical environment for temperature compensation.
