Technical specifications for 1771-A4B

  • Manufacturer:
    Allen-Bradley
  • Product Category:
    PLC Systems
  • Spare Part Number:
    1771-A4B
  • Estimated shipping dimensions:
    61x31.5x19.2cm
  • Weight:
    6.85 kg
  • Tariff Code:
    8537101101
  • Counliy of origin:
    United States
  • Product Type:
    Remote I/O Scanner Module
  • Product Line:
    SLC 500
  • Max. RIO Cable Length:
    3050 meters
  • Max. Number of Connections in Normal Mode:
    16 device connections
  • Max. Number of Connections in Complementary Mode:
    32 device connections
  • Backplane Current at 5V:
    600 mA
  • Operating Temperature:
    0 to 40 degrees Celsius
  • Storage Temperature:
    0 to 50 degrees Celsius
  • Max. Operating Altitude:
    1000 meters above sea level

Information

Overview Manuals Common Applications Product Precautions

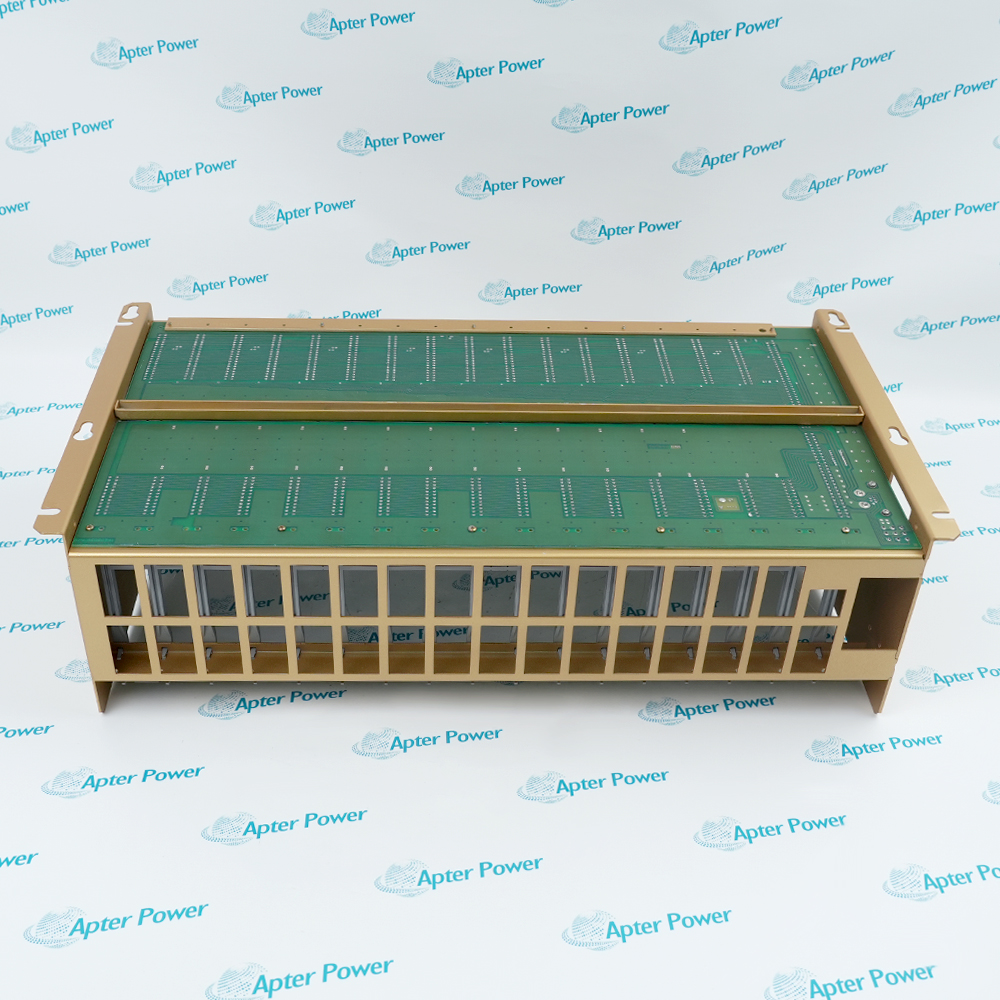

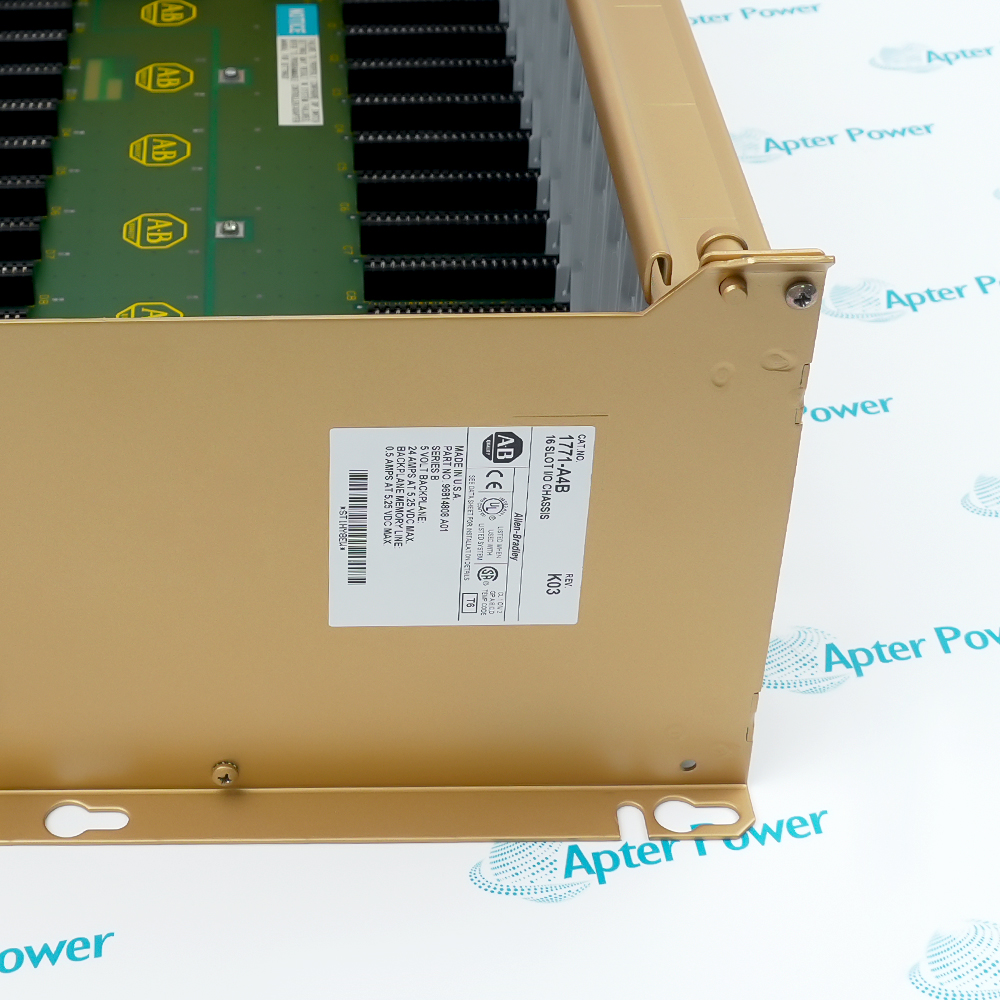

The 1771-A4B is a 16-slot universal I/O chassis for the 1771 I/O platform, used to install 1771 I/O modules, processors, communication cards, and various digital and analog cards. Designed for panel mounting, its integrated backplane distributes internal power and transfers data between installed modules.
    • Utilizes standard back-panel wall mounting
    • Features 16 standard slots available for 1771 series I/O modules
    • Available in standalone chassis versions both with integrated power supplies or without power systems
The chassis is compatible with PLC-5, PLC-3, and other controller systems utilizing the 1771 architecture, and matches 1771 series power supplies. It is equipped with card guides, module locking mechanisms, configurable backplane DIP switches, and grounding terminals to facilitate module replacement or adjustment of I/O card configurations.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 Allen Bradley 1771-A4B Universal I/O Chassis Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Automotive Manufacturing
Housing high-density digital I/O for large stamping shops and welding robot assembly lines.

Oil and Gas Refining
Accommodating analog input/output modules for crude oil pipeline custody transfer stations.

Water and Wastewater Treatment
Serving as the core control chassis for centralized treatment processes and multi-pump interlocking in the control room.

Thermal and Hydroelectric Power Plants
Used in boiler makeup water, ash removal auxiliary systems, or turbine monitoring, housing high-reliability control modules against heavy EMI environments.

Rubber and Tire Curing/Molding
Acts as a master or remote subsystem chassis, installing dense I/O cards to uniformly collect pressure, mold-clamping stroke, and steam valve controls for curing presses.

Power and Energy
Integrates high-speed counter modules and analog output cards to uniformly regulate synchronized multi-axis drives and tension in paper machine sections.
 When using 1771-A4B, notice the backplane current consumption and correct physical slot configurations. The key involves ensuring total module current stays within the 16A backplane limit and properly inserting keying bands to prevent module damage from misplacement. Also, correctly set the rear chassis DIP switches for addressing modes and ensure solid backplane grounding during long-distance communication.
