2094-BM01-S

460V Axis Module
In Stock
Ships by Saturday, November 21
Fast Shipping Available

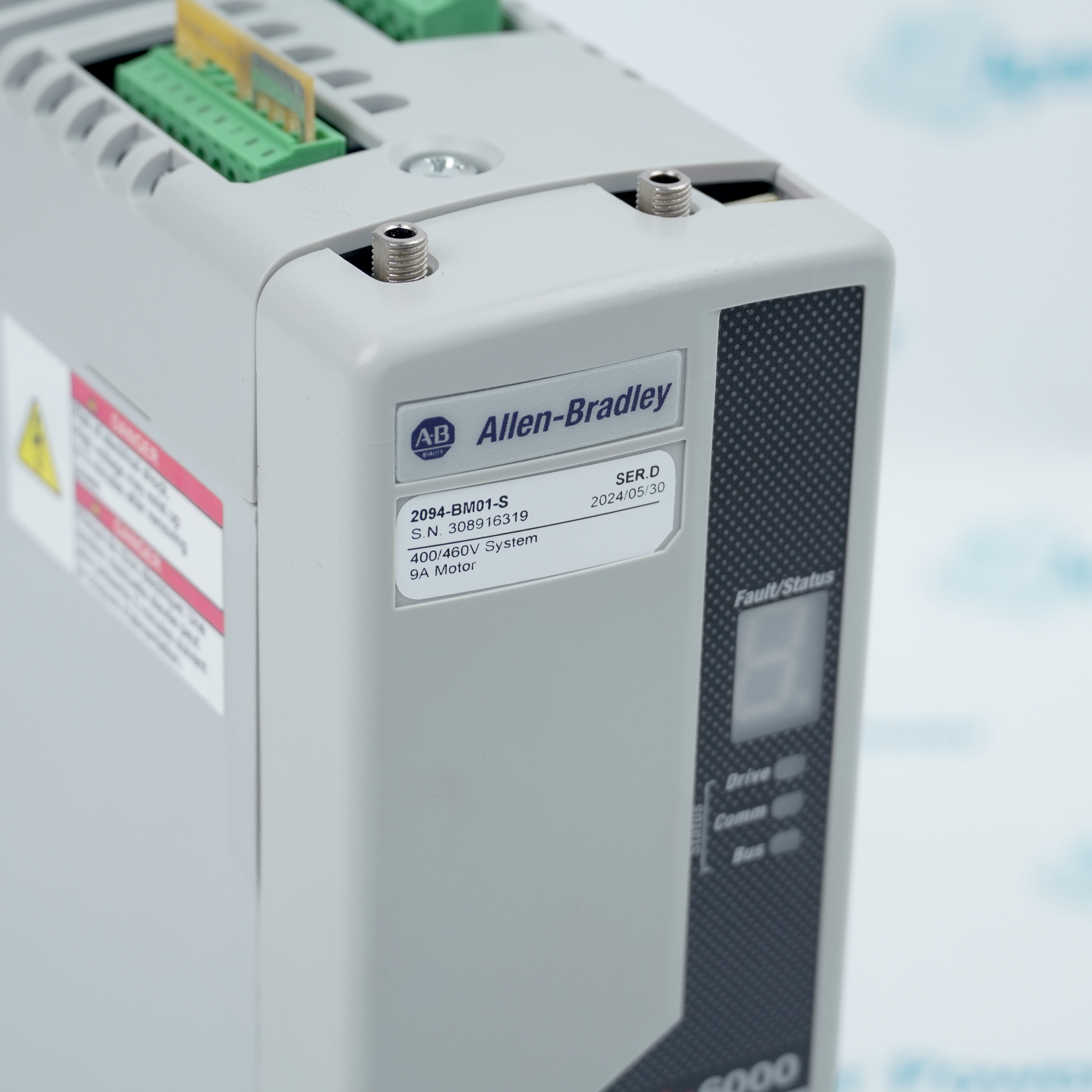

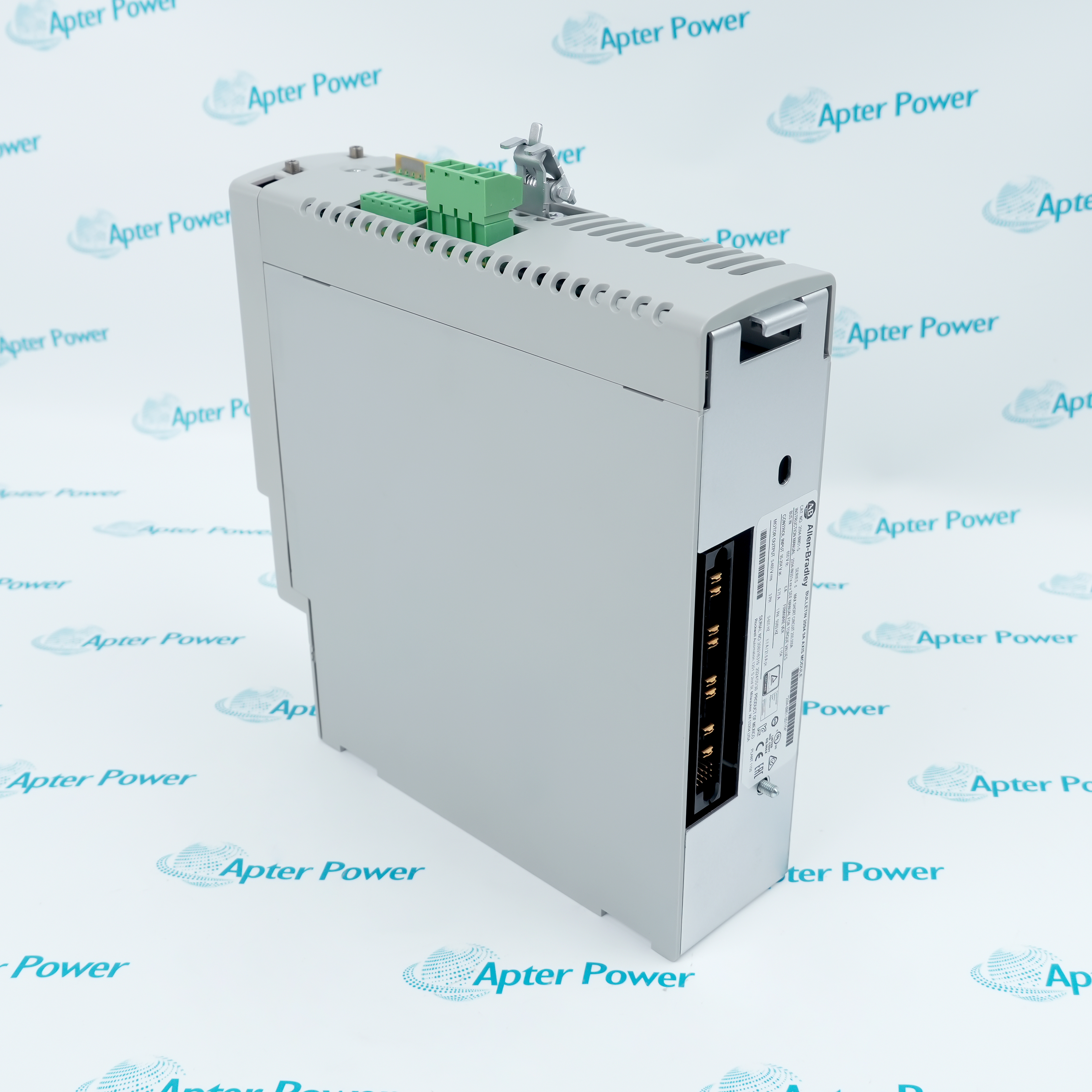

Allen-Bradley 2094-BM01-S
Allen-Bradley 2094-BM01-S
Allen-Bradley 2094-BM01-S
Allen-Bradley 2094-BM01-S
Allen-Bradley 2094-BM01-S
Allen-Bradley 2094-BM01-S
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

Kinetix 6000 Safe Torque
Off Axis Module, 400 / 480 VAC
3.9 KW / 9 AMP INVERTER
WITH SAFE  TORQUE-OFF FEATURE
Get a quick price for 2094-BM01-S
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 2094-BM01-S

  • Manufacturer:
    Allen-Bradley
  • Product Category:
    Servo Drives
  • Spare Part Number:
    2094-BM01-S
  • Estimated shipping dimensions:
    7x25.5x28.5cm
  • Weight:
    3.04 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Safety Category:
    Cat 3 safety
  • Common AC Bus Capable:
    No Y / N
  • Common DC Bus Capable:
    Yes Y / N
  • Input Frequency, Nom:
    50 / 60 Hz
  • Input Frequency, Min:
    47 Hz
  • Input Frequency, Max:
    63 Hz
  • Internal Shunt Power, Continuous:
    50 W
  • Internal Shunt Power, Peak:
    5600 W
  • Internal Shunt Resistance:
    115 Ohms
  • Bus Power, Continuous:
    3.9 kW
  • Velocity Loop Bandwidth:
    500 Hz
  • Current Loop Bandwidth:
    1300 Hz
  • PWM Output Frequency:
    8 kHz
  • Output Current, Continuous (rms):
    6.1 A, rms, continuous
  • Output Current, Continuous (0-peak):
    8.6 A, contin, 0-pk
  • Output Current, Peak (rms):
    9.2A, rms, peak
  • Output Current, Peak (0-peak):
    12.9A

Information

Overview Manuals Common Applications Product Precautions
The 2094-BM01-S is a Kinetix 6000 multi-axis servo drive system axis module. It functions within a shared-bus configuration, drawing a nominal input bus voltage of 650V DC from the IAM (Integrated Axis Module). Utilizing its internal shunt resistor network, the module is rated for a continuous power output of 3.9 kW, with a transient peak power capacity of 5.6 kW.
    • Integrates seamlessly into the Logix platform for multi axis integrated motion
    • Greater flexibility in your machine design through compact size
    • Reduces the total number of connections through simplified wiring and modular design
The module is equipped with a dedicated dual-channel safety header at the bottom. When external interlocking switches, emergency stop buttons, or safety contacts of a safety PLC open, this safety circuitry directly interrupts the power supply to the inverter IGBT gate drive pulses at the hardware level. Without disconnecting the primary high-voltage DC bus of the main circuit, it achieves hardwired de-energization of the motor electromagnetic torque output, effectively preventing any unintended startup of field machinery.

The product as a whole features an open-style physical structure, and the enclosure itself provides no autonomous protection against dust or liquid splashes. In practical industrial production line configurations, it must be vertically mounted strictly within a compliant industrial-grade sealed control cabinet meeting IP54 or NEMA 12 standards or higher, and the regulated ambient operating temperature inside the cabinet must be tightly maintained within the nominal range of 0 to +60 °C.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 Allen Bradley 2094-BM01-S 460V Axis Module Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Automotive Manufacturing Industry
Used in automated servo turntables and fixtures within body shops and final assembly lines to achieve precise angular indexing during car component assembly.

Food & Beverage Processing Industry
Used in filling production lines and high-speed labeling machines to control the height of rotary filling heads, flow compensation positioning, and fixed-length label feeding tension.

Pharmaceutical & Medical Device Industry
Used in fully automated capsule filling machines and blister packaging machines to execute multi-axis electronic cam coordination, ensuring absolute positional accuracy for medical sealing.

Printing Machinery Industry
Used in tension control and color registration systems of multi-color flexographic and rotogravure printing presses to drive winding, unwinding, and color printing rollers.

Rubber & Plastics Processing Industry
Used in mold movement, injection, and ejection mechanisms of all-electric injection and blow molding machines to replace traditional hydraulics for enhanced position and pressure accuracy.

Electronics & Semiconductor Manufacturing Industry
Used in multi-axis robotic arms for automated PCB pick-and-place machines and wafer handling robots, enabling high-speed component fetching and placement with micron-level accuracy.
 When using this axis module, you must wait at least 5 minutes after disconnecting the power to allow internal high-voltage capacitors to discharge completely before any insertion, removal, or maintenance. During installation, the connection bolts on the rail backplane must be tightened securely to prevent interface burnout caused by poor contact.

When configuring RSLogix 5000 or Studio 5000 software, you must ensure the module's firmware version strictly matches the controller's hardware profile. Additionally, the hardwired STO Safe Torque Off circuit specific to the "-S" suffix must be connected properly, or the drive will remain in a safety lockout state and cannot be enabled.

Revisions

Revision Part #

Also known as

2094-BM01-S Ser A
2094-BM01-S/A, Series A, Rev A
2094-BM01-S Ser B
2094-BM01-S/B, Series B, Rev B
2094-BM01-S Ser C
2094-BM01-S/C, Series C, Rev C

Alternative Names

2094-8M01-S 2094-BM0I-S 2094-BMO1-S 20948M01S 2094BM01S 2094BM0IS 2094BMO1S 209A-BM01-S 209ABM01S 2O94-BM01-S 2O94-BMO1-S 2O94BM01S 2O94BMO1S 2O9A-8MOI-S 2O9A8MOIS

Technical notes

The 2094-BM01-S is an open-style (IP00), safe axis module operating vertically on a shared 650V DC bus within the Kinetix 6000 platform. It delivers 3.9 kW power and 6.1 A (rms) continuous current, using an internal 115 Ω resistor for 5.6 kW peak braking. Driven by the SERCOS III fiber-optic protocol, it integrates a dual-channel hardware STO loop certified to PL e / SIL 3 standards, requiring installation inside a sealed IP54 cabinet regulated between 0 and +60 °C.
