Technical specifications for 1747-L553

  • Manufacturer:
    Allen-Bradley
  • Product Category:
    PLC Systems
  • Spare Part Number:
    1747-L553
  • Estimated shipping dimensions:
    25x16.5x6cm
  • Weight:
    0.45 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Memory:
    Up to 64 KB, Battery Backed-RAM
  • Program Scan Time:
    0.9 ms/K
  • User Memory:
    64,000 Words
  • I/O Chassis:
    3
  • Chassis Module Slots:
    30
  • I/O Scan Time:
    0.225 milliseconds
  • Communication:
    Ethernet, RS-232

Information

Overview Manuals Common Applications Processing & Communication

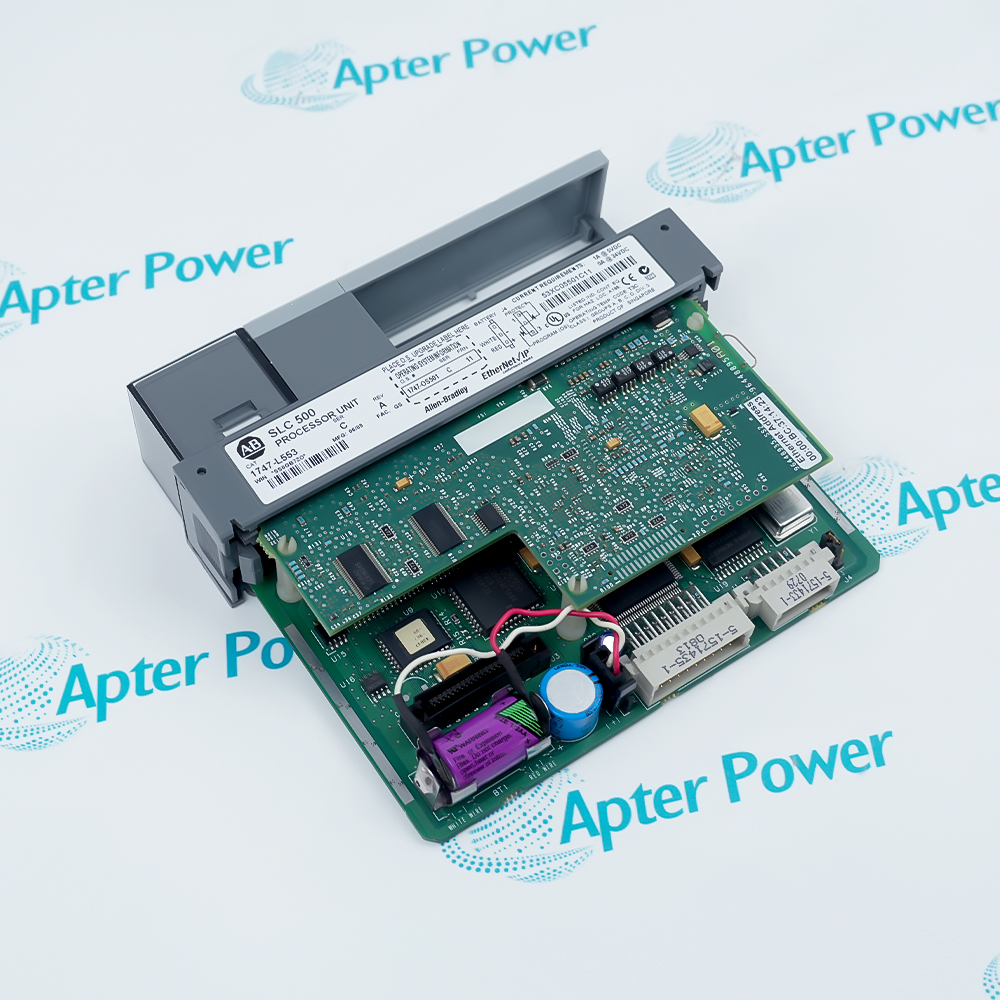

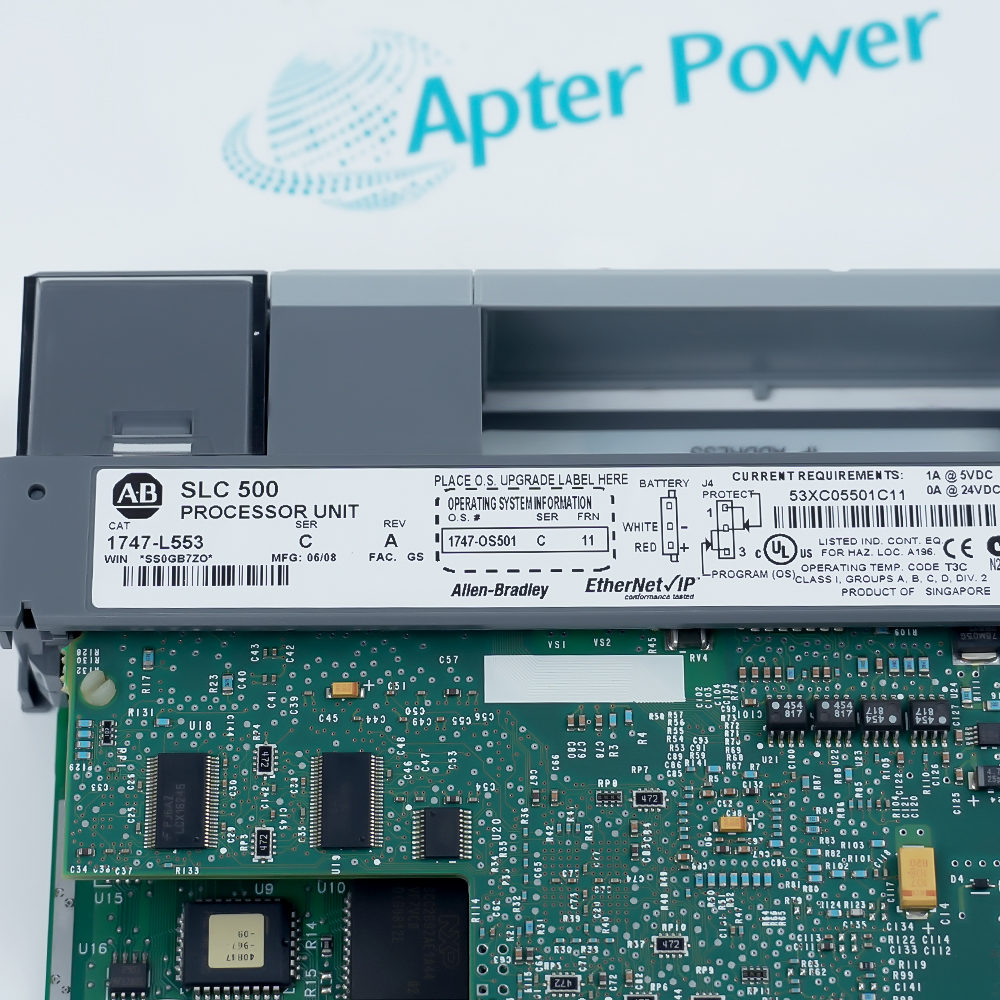

The 1747-L553 is an Allen-Bradley SLC 500 series processor featuring 64K words of user memory, which includes 60K words for programs and data, alongside 4K words for data only.
    • Wide range of replacement power supplies, chassis, communications modules, I/O cards and accessories available
    • EtherNet I/P Adapter (1747-AENTR) available to convert an existing system to distributed I/O
    • Flexible options for Analogue and Digital I/O cards to modify and expand system capabilities
The 1747-L553 is a chassis-mounted SLC 5/05 controller that integrates a 10/100 Mbps Ethernet port and an RS-232 port. It manages HMI links and inter-PLC data exchange using EtherNet/IP and DF1 networking protocols.

The hardware architecture supports local expansion up to 3 chassis and 30 I/O module slots, with an addressing capability of up to 4096 discrete inputs and 4096 discrete outputs. Internally, it is equipped with 64K words of battery-backed RAM and supports non-volatile program storage via the 1747-M13 flash memory card. It delivers a baseline program scan time of 0.9 ms/K and an I/O throughput scan cycle of 0.225 ms, while operating continuously across a 0 to 60 degrees Celsius range and withstanding 30G operating shock in industrial environments.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 Allen Bradley 1747-L553 SLC 5/05 64K Controller Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Automotive Manufacturing
Serves as the main CPU to coordinate the synchronized operation of welding robots, conveyors, and body assembly fixtures across the line via Ethernet.

Water and Wastewater Treatment
Centrally dispatches remote pump stations, aeration fans, and filtration valves to achieve closed-loop control of the water treatment process.

Power Generation and Substations
Monitors auxiliary systems (such as boiler makeup water and ash removal) or manages interlocking logic for breakers in substations.

Metals and Metallurgy
Controls blast furnace feeding systems, rolling mill edge positioning, and cooling bed walking logic in high-temperature and heavy EMI environments.

Pulp and Paper Industry
Manages synchronized drive control, paper winding tension control, and headbox pressure balancing in paper machines.

Pharmaceuticals and Biologicals
Controls autoclaves and cleanroom HVAC systems, strictly recording audit trail data and uploading it to the supervisory SCADA system.
 The 1747-L553 combines program execution, I/O control, and network communication within a single processor module. Its integrated Ethernet and RS-232 interfaces enable data exchange with programming software, HMIs, supervisory systems, and industrial networks while coordinating the operation of local SLC 500 I/O modules through the chassis backplane

Revisions

Revision Part #

Also known as

1747-L553 Ser A
1747-L553/A, Series A, Rev A
1747-L553 Ser B
1747-L553/B, Series B, Rev B
1747-L553 Ser C
1747-L553/C, Series C, Rev C
1747-L553 Ser D
1747-L553/D, Series D, Rev D

Alternative Names

1746-L553 1747L553 17A7-L553 17A7L553 I747-L553 I747L553 I7A7-L553 I7A7L553

Technical notes

The processor handles up to 4096 local discrete I/O points and extends remote I/O capabilities to a maximum of 4096 inputs and 4096 outputs.

FAQ View All FAQ

  • What is 1747-L553?
    1747-L553 is a Central Processor Unit module.
  • What is the 1747-L553's ambient temperature range?
    The 1747-L553's ambient temperature range is 0 to 60 degrees Celsius.
  • How much operating shock can the 1747-L553 withstand?
    The 1747-L553 can withstand 30G of maximum operating shock.
  • How many I/O does the 1747-L553 have?
    The 1747-L553 has 4096 inputs, 4096 outputs, and 480 local analog I/O.
  • How much memory does the 1747-L553 have?
    The 1747-L553 has 64K words of user memory.
  • Can the 1747-L553 operate as a standalone device?
    Yes, the 1747-L553 can operate as a standalone device.
