1747-L511

SLC 5/01 Controller
In Stock
Ships by Saturday, November 21
Fast Shipping Available
Allen-Bradley 1747-L511 SLC 500 processor unit, angled view of exposed board with ribbon cable and battery leads

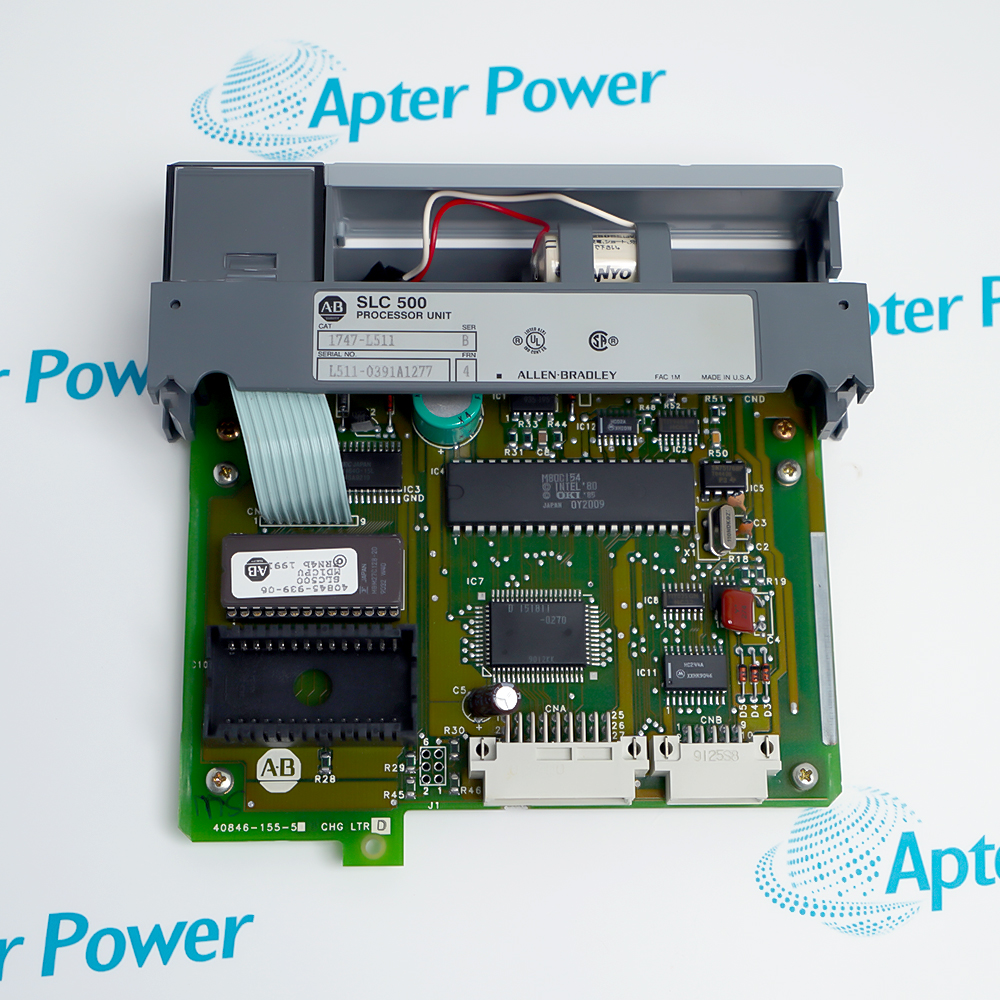

Allen-Bradley 1747-L511 processor unit, top view of board with CNA and CNB connectors and the front label

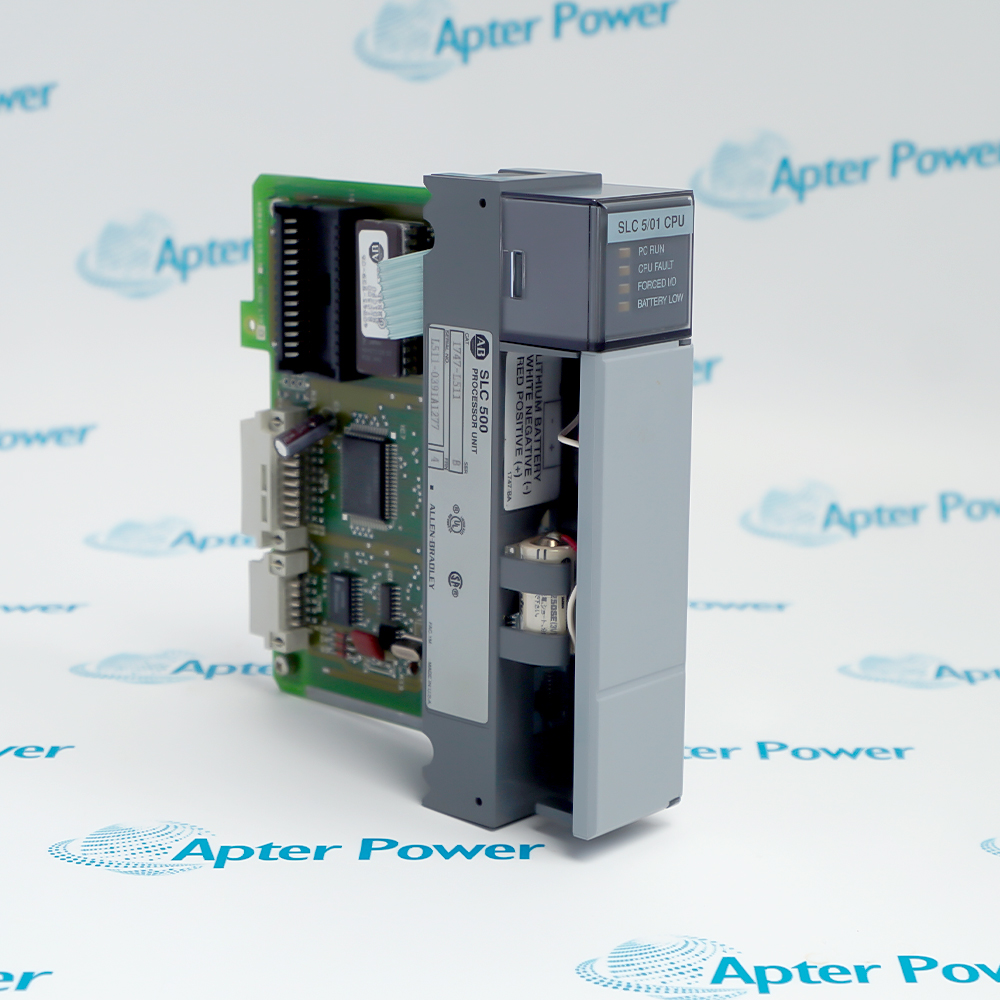

Allen-Bradley 1747-L511 SLC 5/01 CPU, side view of front LED panel and lithium battery holder on the grey housing
Allen-Bradley 1747-L511 SLC 500 processor unit, angled view of exposed board with ribbon cable and battery leads
Allen-Bradley 1747-L511 processor unit, top view of board with CNA and CNB connectors and the front label
Allen-Bradley 1747-L511 SLC 5/01 CPU, side view of front LED panel and lithium battery holder on the grey housing
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

Allen-Bradley 1747-L511 is an SLC 5/01 controller with 1 KB of user memory. It executes an SLC 500 user program and communicates with programming and network devices over DH-485.

Get a quick price for 1747-L511
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 1747-L511

  • Manufacturer:
    Allen-Bradley
  • Product Category:
    PLC Systems
  • Spare Part Number:
    1747-L511
  • Estimated shipping dimensions:
    3.5x13x14.5cm
  • Weight:
    0.25 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Processor:
    SLC 5/01 controller
  • User memory:
    1 KB
  • Communication:
    DH-485
  • Communication port:
    DH-485 port
  • Compatible power supplies:
    1746-P1 through 1746-P7
  • Equipment class:
    Central processing unit
  • Lifecycle status:
    Discontinued January 31, 2017
  • Installation publication:
    1747-IN011
  • System platform:
    1746 SLC system

Information

Overview Manuals Common Applications Product Precautions
Allen-Bradley 1747-L511 is SLC 5/01 controller with 1 KB memory. It executes an SLC 500 user program and communicates with programming and network devices over DH-485.
  • Executes the SLC 5/01 control program
  • Provides one kilobyte of user memory
  • Communicates through DH-485
  • Uses the 1746 SLC chassis and power-supply family

1747-L511 operates with 1746 SLC chassis and backplane, 1746-P1 through 1746-P7 power supply, DH-485 network hardware, approved SLC 500 I/O configuration.

Engineered applications include Legacy machine sequence control, Small SLC 500 automation cell, DH-485 controller network, SLC 5/01 processor replacement.

Important Notice: Back up the program, record the chassis slot, power supply, DH-485 node settings and I/O configuration, and prove the complete machine sequence after controlled restart.
