Technical specifications for 1746-P4

  • Manufacturer:
    Allen-Bradley
  • Product Category:
    PLC Systems
  • Spare Part Number:
    1746P4
  • Estimated shipping dimensions:
    19.5x20.5x17.2cm
  • Weight:
    1.35 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Input Voltage:
    120 to 220 Volts AC
  • Input Power:
    92 Watts
  • Typical line power requirement:
    180VA
  • Inrush Current:
    45 Amps
  • Backplane Current (5 Volts):
    10 Amps
  • Internal Current Capacity:
    10.0 A at 5V dc 2.88 A at 24V dc
  • Output Voltage Range:
    18 to 30 Volts DC
  • CPU Hold up time:
    20 ms (full load) 3000 ms (no load)

Information

Overview Manuals Common Applications Power Distribution

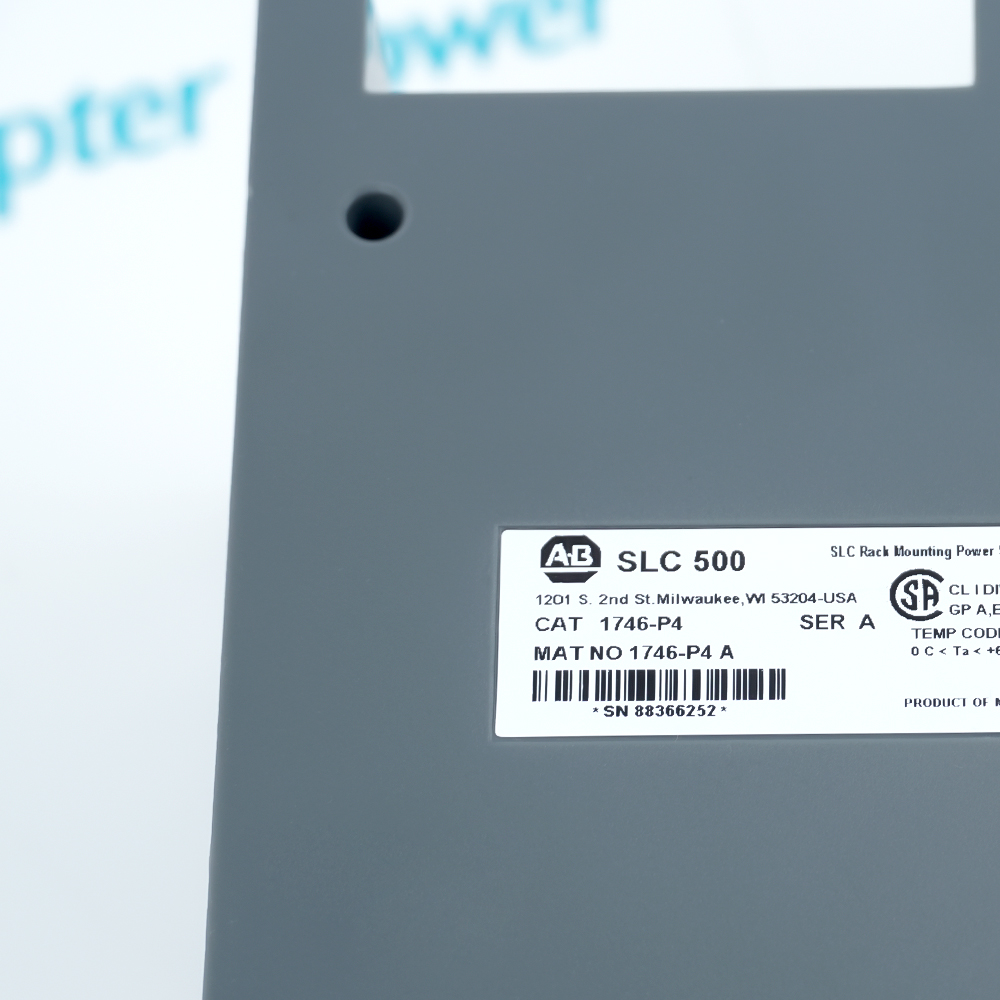

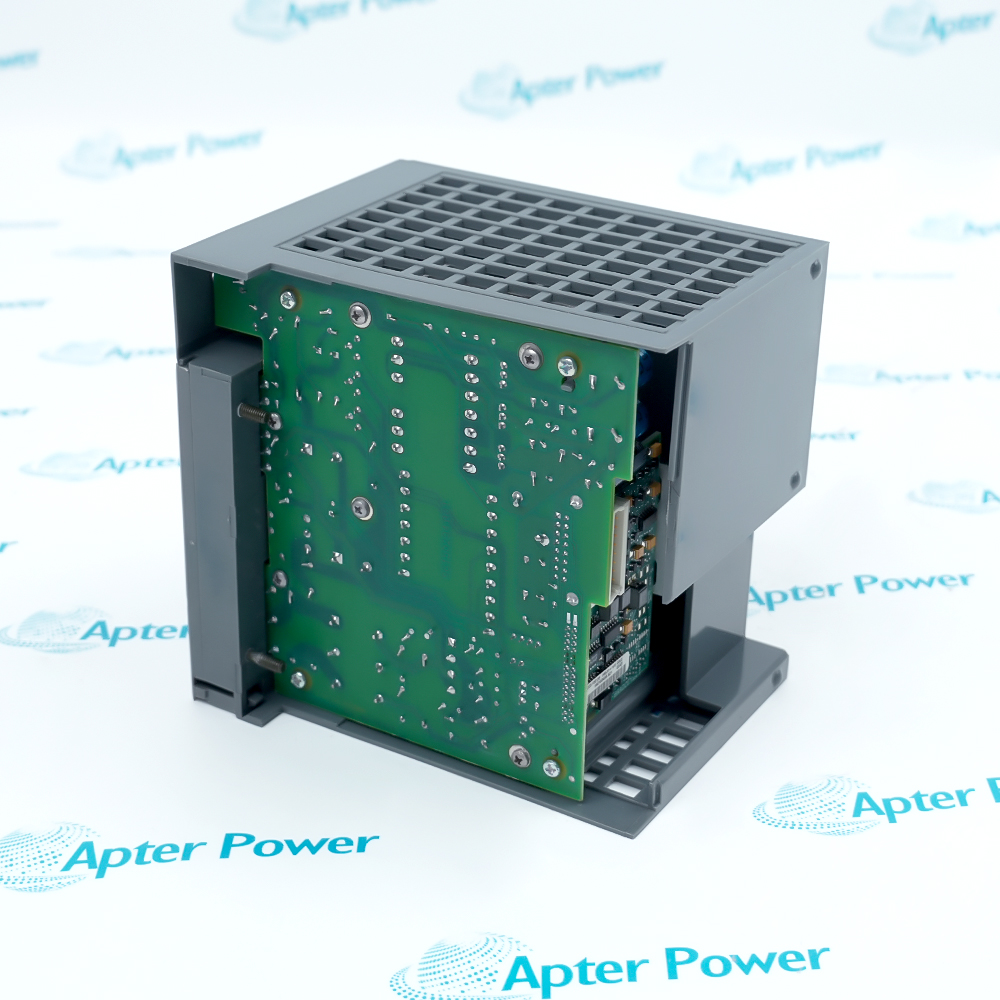

The 1746-P4 is a rack-mount AC power supply for the SLC 500 programmable controller platform. It converts 85–132 VAC or 170–265 VAC, 47–63 Hz input power into regulated DC voltages required by the SLC 500 backplane, supplying operating power for the processor, communication modules, and I/O modules installed within the chassis. The power supply provides 10.0 A at 5 VDC and 2.88 A at 24 VDC to the backplane, making it suitable for SLC 500 applications with higher power requirements. It also includes an isolated 24 VDC user power output for powering external sensors and field devices.
    • Wide range of replacement power supplies, chassis, communications modules, I/O cards and accessories available
    • EtherNet I/P Adapter (1747-AENTR) available to convert an existing system to distributed I/O
    • Flexible options for Analogue and Digital I/O cards to modify and expand system capabilities
The 1746-P4 installs directly in the leftmost position of a 1746 SLC chassis, where it distributes regulated power through the backplane to all installed modules. The unit incorporates selectable input voltage operation, integrated overload protection, chassis grounding provisions, and LED power indication to support commissioning and maintenance. A dedicated user power output connects external DC devices while maintaining electrical isolation from the controller backplane. The power supply installs inside industrial control panels and complies with the wiring and grounding requirements specified for the SLC 500 platform.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 Allen Bradley 1746-P4 SLC Rack Mounting Power Supply Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Automotive Manufacturing
Used to control body welding robots and assembly line conveyors to ensure precise transfer of parts between stations.

Water and Wastewater Treatment
Serves as the power supply for main control systems to manage pump station operations, chemical dosing pumps, and bar screens.

Pharmaceutical Industry
Controls ingredient proportioning and reactor agitation to guarantee the precision of environmental temperature, humidity, and recipes.

Oil and Gas
Used for pressure regulation in long-distance pipeline pump stations and remote control of valves in hazardous environments.

Metals and Mining
Manages blast furnace material loading systems and roughing mill side guides under harsh electrical grid conditions.

Pulp and Paper Industry
Controls multi-section paper machine drives and regulates web tension to prevent paper breakage.
 The 1746-P4 supplies regulated backplane power for SLC 500 processors and I/O modules while providing an isolated 24 VDC user power output for field devices. Its rack-mounted design allows power distribution through the chassis backplane, supporting modular PLC configurations used in industrial automation systems.

Revisions

Revision Part #

Also known as

1746-P4 Ser A
1746-P4/A, Series A, Rev A

Alternative Names

1746-PA 1746P4 1746PA 1747-P4 17A6-P4 17A6-PA 17A6P4 17A6PA I746-P4 I746P4 I7A6-PA I7A6PA

Technical notes

The 1746-P4 is capable of supplying 10 A at 5V DC and 2.88 A at 24V DC to the backplane. It is powered by single-phase 85 to 132V AC or 170 to 265V AC at 47 to 63 Hz, and is attachable to 1746-A4, -A7, -A10, and -A13 modular chassis.

FAQ View All FAQ

  • What is the 1746-P4's line voltage?
    The 1746-P4's line voltage is 85 to 132 Volts AC or 170 to 265 Volts AC.
  • What is the 1746-P4's maximum inrush current?
    The 1746-P4's maximum inrush current is 45 Amps.
  • Does the 1746-P4 come with an enclosure?
    No, the 1746-P4 comes as open-type equipment.
  • What is the 1746-P4's operating temperature range?
    The 1746-P4's operating temperature range is 0 to 60 degrees Celsius.
