1746-NR4

ANALOG INPUT MODULE
In Stock

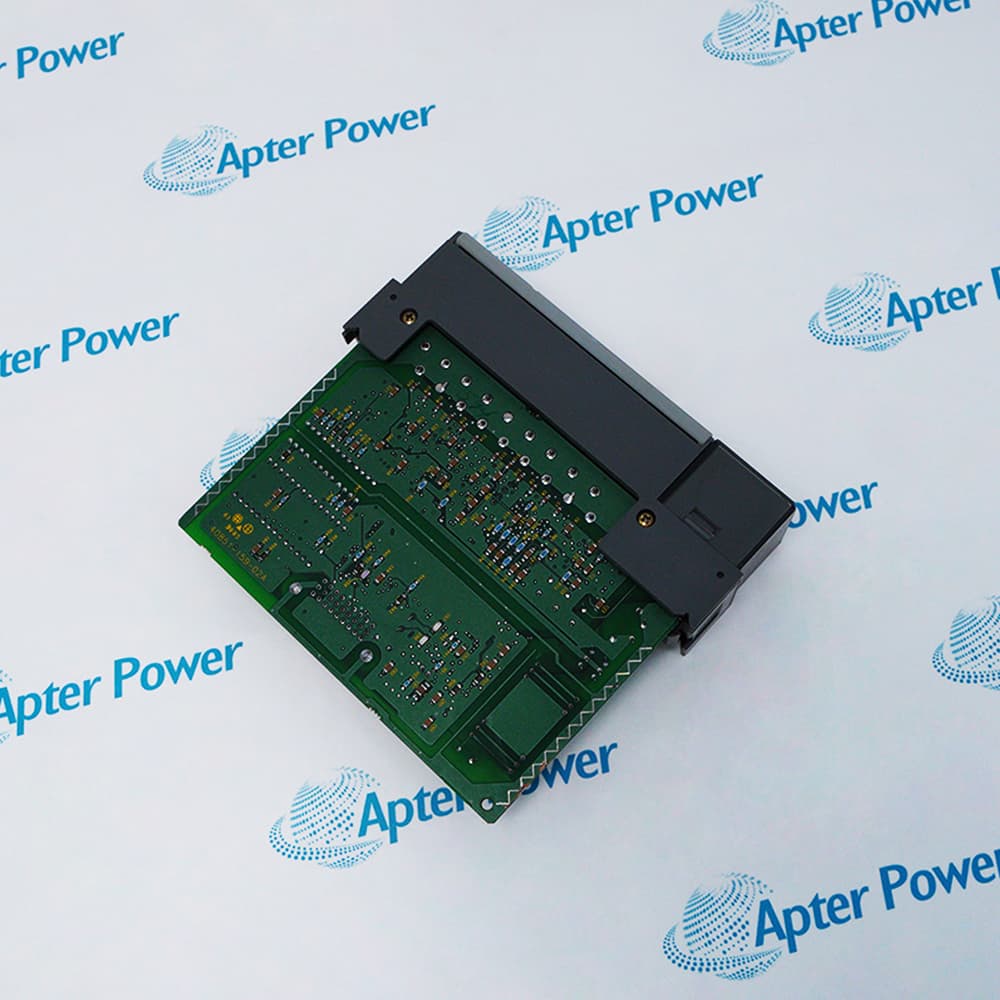

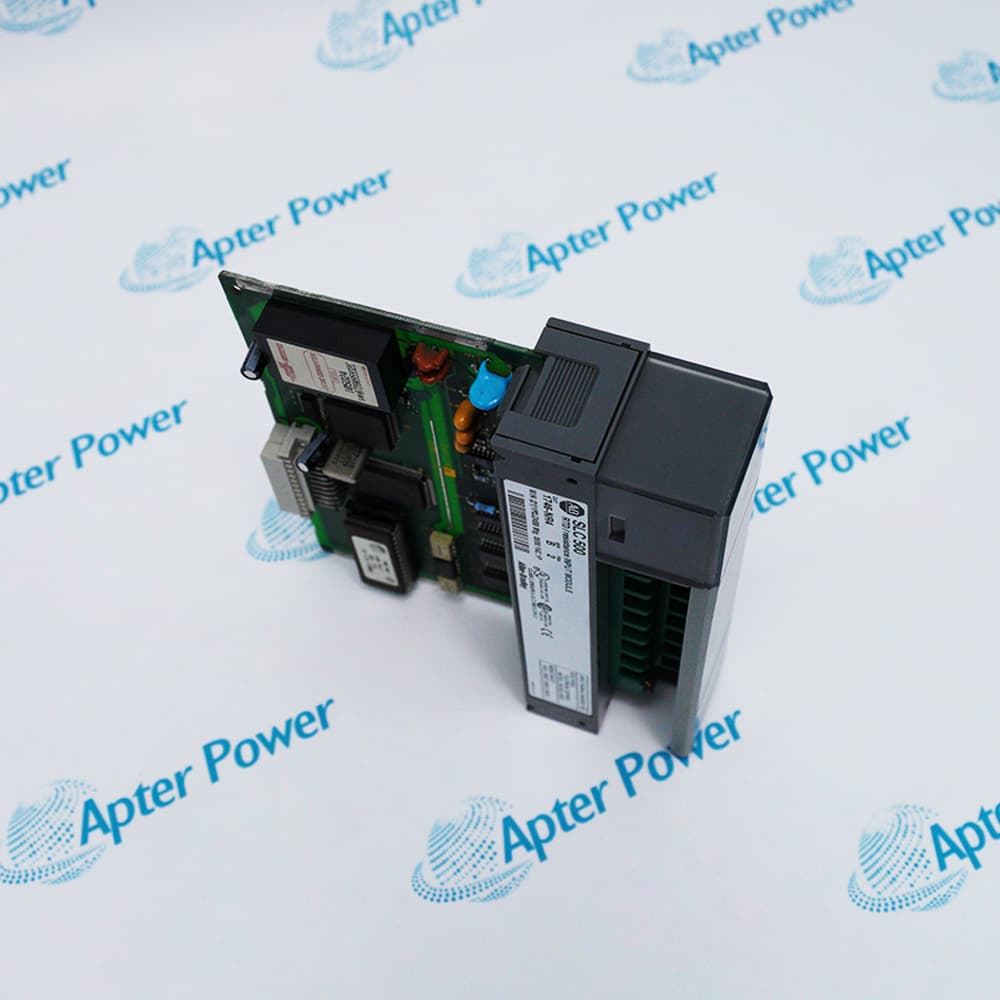

Allen-Bradley 1746-NR4
Allen-Bradley 1746-NR4
Allen-Bradley 1746-NR4
Allen-Bradley 1746-NR4
Allen-Bradley 1746-NR4
Allen-Bradley 1746-NR4
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

DISCONTINUED BY MANUFACTURER
ANALOG INPUT MODULE
SLC 500
4 POINT
RTD/RESISTANCE INPUT
50 MA
2.62-65.5 HZ
Get a quick price for 1746-NR4
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 1746-NR4

  • Manufacturer:
    Allen-Bradley
  • Product Category:
    PLC Systems
  • Spare Part Number:
    1746-NR4
  • Estimated shipping dimensions:
    3.5x13x14.2cm
  • Weight:
    0.26 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Update Time:
    17 milliseconds-1.2 seconds
  • Compatible Resistance input range:
    0 - 150 Ohms, 0 to 500 Ohms, 0 to 1000 Ohms and 0 to 300 Ohms
  • Backplane Current:
    50 mA
  • Backplane Power Consumption:
    1.5 W max
  • I/O Chassis location:
    Any slot except Slot 0
  • Step Response:
    60 milliseconds in, 2.5 milliseconds out
  • Resolution:
    .01 Deg. Celcius
  • Operating Isolation:
    500 Volts/1 minute

Information

Overview Manuals Common Applications Environmental Specifications
The 1746-NR4 is a RTD module receives and stores digitally converted analog data from RTDs or other resistance inputs such as potentiometers into its image table for retrieval by all fixed and modular SLC 500 processors.
    • High-Density 4-Channel Design
    • Universal Sensor Compatibility
    • Lead-Wire Resistance Compensation
An RTD consists of a temperature-sensing element connected by 2, 3 or 4 wires that provide input to the RTD module. The module supports connections from any combination of up to four RTDs of various types (for example: platinum, nickel, copper, or nickel-iron) or other resistance inputs.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Allen-Bradley 1746-NR4 ANALOG INPUT MODULE Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 Petrochemical Processing
Used for precise temperature monitoring in distillation columns and storage tanks. The module supports high-accuracy RTD sensors to ensure process safety and product consistency in volatile environments.

 Food and Beverage
Applied in pasteurization and commercial baking temperature control systems. It provides reliable monitoring for thermal processing to meet strict regulatory and quality standards for food safety.

 Pharmaceutical Manufacturing
Implemented in cleanroom environmental controls and reactor vessel monitoring. The module’s high-resolution resistance measurement is critical for maintaining stable chemical reaction temperatures and sterile conditions.

 Power Generation
Utilized for monitoring bearing and winding temperatures in large motors and generators. It helps prevent equipment overheating and unplanned downtime in utility-scale power plants.

 HVAC Systems
Designed for building automation systems in large commercial complexes. It manages precise air handling and water temperature regulation to optimize energy efficiency and indoor climate control.

 Water Treatment
Used to monitor water temperature in purification and cooling tower applications. The module facilitates accurate feedback for chemical dosing and thermal management in municipal and industrial water systems.

The module is designed for operation within a temperature range of 0°C to 60°C (32°F to 140°F). Adequate spacing and ventilation must be maintained within the SLC 500 enclosure to prevent heat buildup. Exposure to corrosive gases or excessive moisture (above 95% non-condensing) must be avoided to protect the internal circuitry and terminal block connections from degradation. Each of the four channels is individually fused or protected against overvoltage conditions within the specified limits; however, exceeding the 24V DC backplane power rating can lead to module failure.

Revisions

Revision Part #

Also known as

1746-NR4 Ser A
1746-NR4-A, Rev A
1746-NR4 Ser B
1746-NR4-B, Rev B

FAQ View All FAQ

  • What are the compatible input types for the Allen-Bradley 1746-NR4 module?
    The 1746-NR4 supports four channels of RTD (Platinum, Nickel, Copper, or Nickel-Iron) or direct resistance inputs (0 to 150.000, 0 to 500.00, or 0 to 3000.0 ohms).
  • What is the backplane current consumption for the 1746-NR4 at 5V and 24V DC?
    The module consumes a maximum of 50 mA at 5V DC and 50 mA at 24V DC from the SLC backplane power supply.
  • How should the RTD cable shields be grounded for the 1746-NR4 module?
    RTD cable shields must be grounded at only one end, preferably at the chassis ground of the SLC 500 rack, to prevent ground loops.
  • What is the digital resolution of the 1746-NR4 when configured for different RTD types?
    The module provides a resolution of 16-bit signed integer, with temperature units selectable in 0.1°C, 0.1°F, 1°C, or 1°F increments.
  • What are the environmental operating specifications for the 1746-NR4?
    The module is designed to operate in temperatures from 0°C to 60°C (32°F to 140°F) and a relative humidity of 5% to 95% non-condensing.
