1746-IB16

SLC 16 Point DC Input Module
In Stock
Ships by Saturday, November 21
Fast Shipping Available

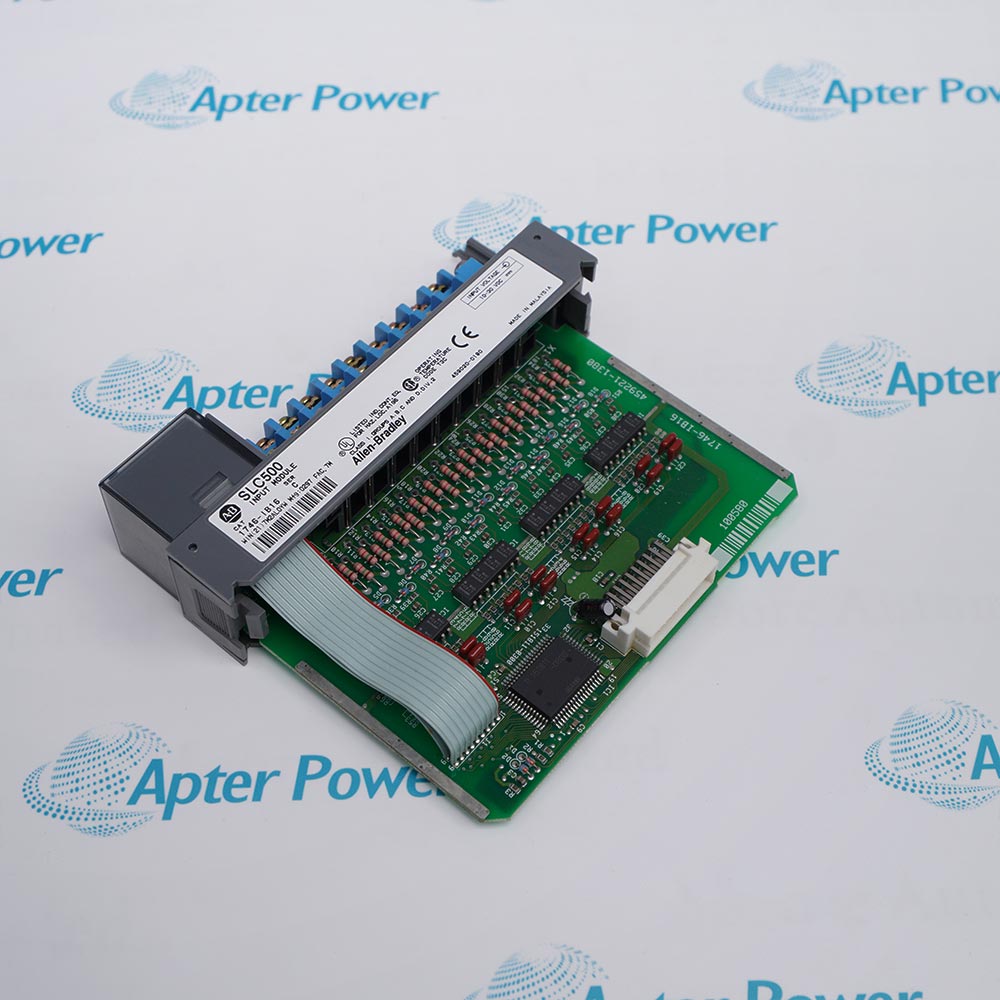

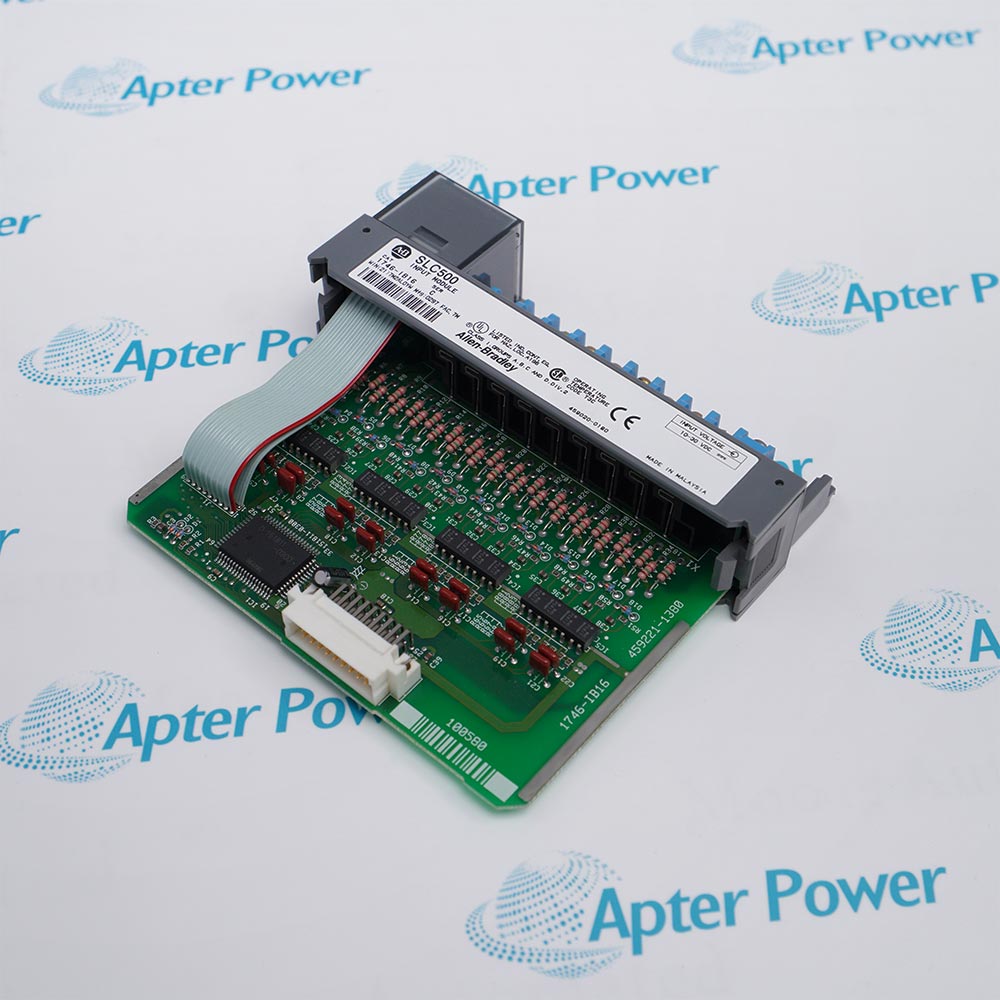

Allen-Bradley 1746-IB16
Allen-Bradley 1746-IB16
Allen-Bradley 1746-IB16
Allen-Bradley 1746-IB16
Allen-Bradley 1746-IB16
Allen-Bradley 1746-IB16
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

SLC Digital DC
Input Modules 16 channel
For Programmable
Controller (sinking)
Get a quick price for 1746-IB16
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 1746-IB16

  • Manufacturer:
    Allen-Bradley
  • Product Category:
    PLC Systems
  • Spare Part Number:
    1746IB16
  • Estimated shipping dimensions:
    24.5x16.5x5.5cm
  • Weight:
    0.4 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Backplane Current:
    50 MA @ 5 V / 0 MA @ 24 V
  • Input Voltage range:
    10-30VDC
  • Input Current, nominal:
    8mA @24VDC
  • Backplane Current:
    0.050 A
  • OFF State voltage, max:
    5.0V DC
  • OFF state current, max:
    1 mA
  • Voltage Range:
    10-30 Volts DC Sink
  • Signal delay:
    8 milliseconds

Information

Overview Manuals Common Applications Product Precautions
The 1746-IB16 is a 16-point DC digital input module for the SLC 500 programmable controller platform. It accepts 10 to 30 VDC sinking input signals from field devices and converts them into digital input data for processing by the SLC 500 controller. The module provides sixteen independent input channels with one point per common, enabling acquisition of switch, sensor, and discrete control signals in industrial automation systems.
    • Wide range of replacement power supplies, chassis, communications modules, I/O cards and accessories available
    • EtherNet I/P Adapter (1747-AENTR) available to convert an existing system to distributed I/O
    • Flexible options for Analogue and Digital I/O cards to modify and expand system capabilities
The 1746-IB16 installs in a 1746 SLC chassis and communicates directly with the processor through the system backplane. The module incorporates optical isolation between the field wiring and the controller to reduce the effects of electrical noise while protecting the control system from field-side disturbances. LED status indicators are provided for each input channel, allowing operating conditions to be identified during commissioning, troubleshooting, and routine maintenance.

The removable terminal block allows field wiring and module replacement without changing existing wiring connections. As part of the Allen-Bradley SLC 500 I/O family, the 1746-IB16 interfaces DC input devices such as proximity sensors, limit switches, push buttons, photoelectric sensors, and auxiliary contacts with programmable control systems. It is applied in factory automation, packaging machinery, material handling equipment, water treatment facilities, manufacturing production lines, and process control systems, where digital signal acquisition is required for machine control and monitoring.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 Allen Bradley 1746-IB16 SLC 16 Point DC Input Module Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Automotive Manufacturing Industry
Collects discrete logic signals from cylinder stroke limit switches, robotic gripper proximity sensors, and safety light curtains on body welding and final assembly lines.

Packaging Machinery Industry
Collects film-in-place, label-out detection, and packaging box sorting fork stroke signals in fully automatic sealing and labeling machines.

Rubber and Plastics Machinery Industry
Collects the logical status of safety door interlock limit switches, mold-clamping-in-place proximity switches, and robotic arm safety home position sensors in injection molding and vulcanizing machines.

Metal Processing and Machine Tool Industry
Collects signals from workpiece hydraulic clamping in-place, tool magazine ready-to-change limits, and coolant low-level switches in large gantry milling machines and CNC punching presses.

Pharmaceutical Machinery Industry
Reads mold reset strokes, pill missing photoelectric detections, and rejection mechanism action confirmation switches in capsule filling and blister packaging machines.

Electronics and Semiconductor Packaging Auxiliary Equipment
Captures magazine-in-place microswitches, track blocking cylinder limits, and field emergency stop button statuses in PCB conveyors, loaders/unloaders, and wafer material cart sorting devices.
 As a 24VDC sinking input module, the 1746-IB16 must be paired with PNP-type sensors (NPN is strictly prohibited). Since the SLC 500 system does not support hot-swapping, all installation or replacement must be performed under complete power-off conditions.

Revisions

Revision Part #

Also known as

1746-IB16 Ser A
1746-IB16/A, Series A, Rev A
1746-IB16 Ser B
1746-IB16/B, Series B, Rev B
1746-IB16 Ser C
1746-IB16/C, Series C, Rev C

Alternative Names

1746-1B16 1746-I816 1746-IBI6 17461B16 1746I816 1746IB16 1746IBI6 1747-IB16 17A6-IB16 17A6IB16 I746-IB16 I746-IBI6 I746IB16 I746IBI6 I7A6-18I6 I7A618I6

Technical notes

All 16 input channels of the 1746-IB16 are physically isolated from the low-voltage digital circuitry (5VDC) of the SLC 500 chassis backplane bus via high-performance optocouplers.

FAQ View All FAQ

  • Does the 1746-IB16 support source wiring configuration?
    Yes. As a sinking module, it requires sourcing field devices (like PNP sensors) that supply +24VDC to the inputs.
  • How many input groups does the 1746-IB16 have?
    It has one input group with 16 channels sharing a single common terminal.
  • Can I use the 1746-IB16 as a distributed I/O module?
    Yes. It works as local I/O or as distributed remote I/O when paired with a network adapter like the 1747-AENTR.
