1747-L542

SLC 5/04 Modular Controller
In Stock
Ships by Saturday, November 21
Fast Shipping Available

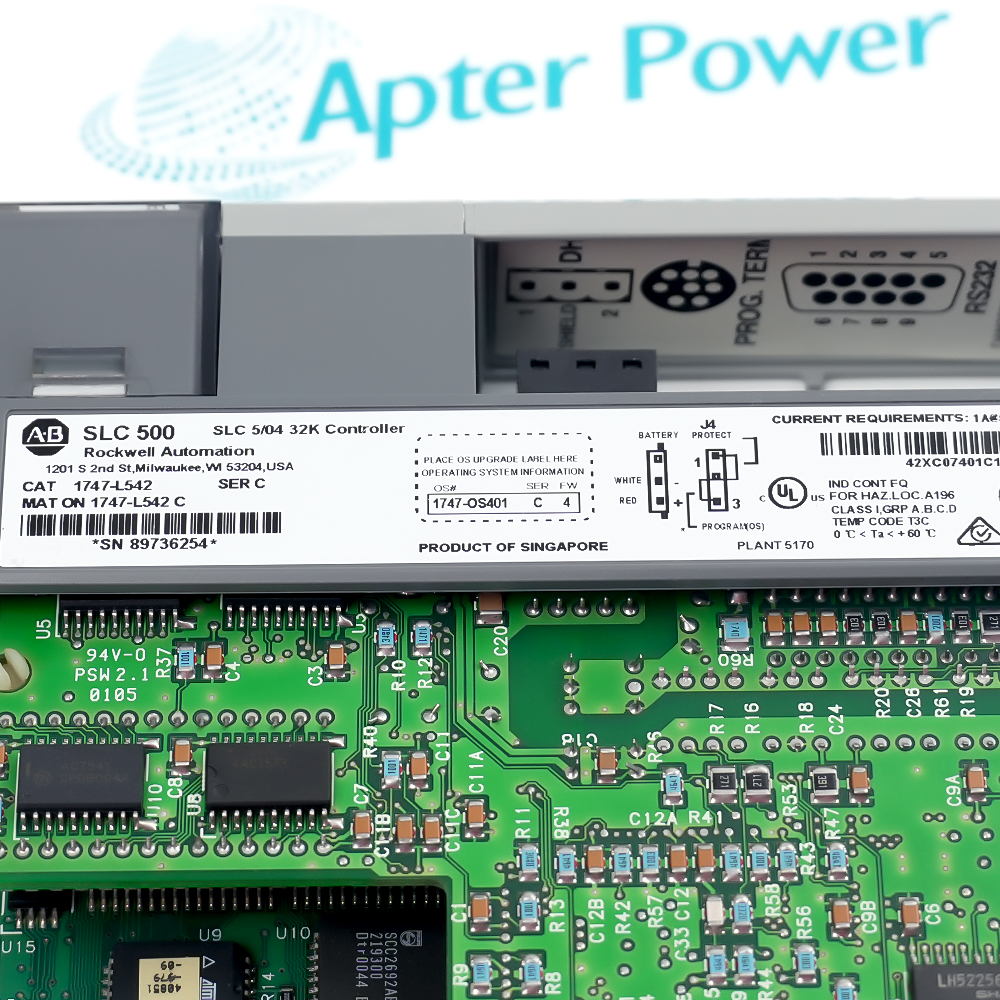

Allen-Bradley 1747-L542
Allen-Bradley 1747-L542
Allen-Bradley 1747-L542
Allen-Bradley 1747-L542
Allen-Bradley 1747-L542
Allen-Bradley 1747-L542
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

SLC 5/04
Modular Controller
32K words user memory capacity
Channel 0 RS-232 serial interface
Get a quick price for 1747-L542
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 1747-L542

  • Manufacturer:
    Allen-Bradley
  • Product Category:
    PLC Systems
  • Spare Part Number:
    1747L542
  • Estimated shipping dimensions:
    25x16.5x6cm
  • Weight:
    0.45 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    Sweden
  • Memory, Controller:
    32 kB memory
  • Memory Card Option:
    Compact Flash
  • Communications Protocols:
    DeviceNet Remote IO
  • Communications Ports (On Board):
    RS232 DH-485
  • Maximum Analogue I/O:
    480
  • Maximum Digital I/O:
    8192
  • Operating Temperature, Max:
    60 °C max
  • Operating Temperature, Min:
    0 °C min
  • Storage Temperature, Max:
    85 °C max
  • Storage Temperature, Min:
    -40 °C min
  • Relative Humidity, Max:
    95 %RH

Information

Overview Manuals Common Applications Product Precautions
The 1747-L542 is an industrial central processing unit hardware module manufactured by Allen-Bradley under the Rockwell Automation brand with the official product classification of SLC 5/04 Modular Controller. Within the product lineup this hardware belongs to the classic SLC 500 Series programmable logic controller system used to execute ladder logic programming in mid-sized industrial automation control networks.
    • EtherNet I/P Adapter (1747-AENTR) available to convert an  existing system to distributed I/O
    • Flexible options for Analogue and Digital I/O cards to modify and  expand system capabilities
    • Wide range of replacement power supplies, chassis,  communications modules, I/O cards and accessories available
The 1747-L542 module contains a user program memory with a capacity of 32K words and a 1747-BA lithium battery assembly to sustain non-volatile RAM data retention under powered off conditions. In terms of interfaces and control architecture the panel and interior of this hardware module include a proprietary Data Highway Plus network communication port and a standard RS-232 serial communication port supporting DF1 and ASCII protocols. It also contains a physical keyswitch to control three operating modes and a built-in real-time clock calendar chip along with a set of LED status indicators to demonstrate CPU status and network communication activities.

This SLC 5/04 processor may still be available for purchase and support from Apter Power Company beyond End-Of-Life (EOL) by the original manufacturer.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 Allen Bradley 1747-L542 SLC 5/04 Modular Controller Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Automotive Assembly Manufacturing
Used in distributed control systems for body stamping shops or final assembly conveyors, coordinating welding robot logic via DH+ networks.

Water Treatment & Pumping Stations
Controls filter backwashing, chemical dosing systems, and interlocking start-stops of large water pumps, enabling centralized monitoring of pressure and flow.

Food & Beverage Packaging
Applied in stand-alone cabinets for high-speed filling lines, labeling machines, and palletizers to execute sensor counting, limit triggering, and sequential valve control.

Iron & Steel Post-Processing
Used in transport systems for cold rolling, shearing lines, and continuous annealing furnaces to control roller speed matching and precise sheet positioning.

Cement & Aggregate Conveying
Manages interlocking protection systems for large belt conveyors and bucket elevators in cement clinker lines, preventing material accumulation and alarming belt misalignment.

Pulp & Paper Processing
Controls pulp refiners, mixing chests, and slitter-cutter peripherals, handling bulk discrete I/O and consolidating chassis status to the central control room.
 Cut power before handling 1747-L542. Replace 1747-BA battery under power or within 30 minutes post-shutdown to avoid RAM data loss. Prevent abnormal voltage on DH+ port.

Revisions

Revision Part #

Also known as

1747-L542 Ser A
1747-L542/A, Series A, Rev A
1747-L542 Ser B
1747-L542/B, Series B, Rev B
1747-L542 Ser C
1747-L542/C, Series C, Rev C
1747-L542 Ser D
1747-L542/D, Series D, Rev D

Alternative Names

1746-L542 1747-L5A2 1747L542 1747L5A2 17A7-L542 17A7-L5A2 17A7L542 17A7L5A2 I747-L542 I747L542 I7A7-L5A2 I7A7L5A2

Technical notes

1747-L542 features a built-in 3-pin Data Highway Plus (DH+) port. This port supports network communication at 57.6 Kbps, 115.2 Kbps, or 230.4 Kbps, and connects other SLC 5/04 or PLC-5 controllers and HMI operator interfaces.

FAQ View All FAQ

  • What is 1747-L542?
    It is an SLC 5/04 modular controller processor unit manufactured by Allen-Bradley.
  • What industrial scenarios is 1747-L542 primarily used for?
    Used to execute ladder logic programming and machine control in mid-sized industrial automation networks.
  • How much user program memory does 1747-L542 have?
    This hardware is configured with 32K words of non-volatile user program memory.
  • Does 1747-L542 support standard serial communication?
    Yes. It contains an RS-232 serial interface supporting DF1 and ASCII protocols.
  • What component does 1747-L542 include to prevent data loss during power-off?
    It includes a 1747-BA lithium battery assembly to sustain RAM data retention.
