Technical specifications for 1747-SN

  • Manufacturer:
    Allen-Bradley
  • Product Category:
    PLC Systems
  • Spare Part Number:
    1747SN 1747-SN/A, 1747-SN/B
  • Estimated shipping dimensions:
    25x16.5x6cm
  • Weight:
    0.35 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Backplane Current (5 Volts):
    600 milliamps
  • Backplane Current (24 Volts):
    90 milliamps
  • No. of Ports:
    One (1)
  • Communication cable:
    Belden 9463
  • Maximum RIO cable length:
    3048 meters (10000 ft.)
  • Storage Temperature:
    -40°C to +85°C (-40°F to +185°F)

Information

Overview Manuals Common Applications Product Precautions

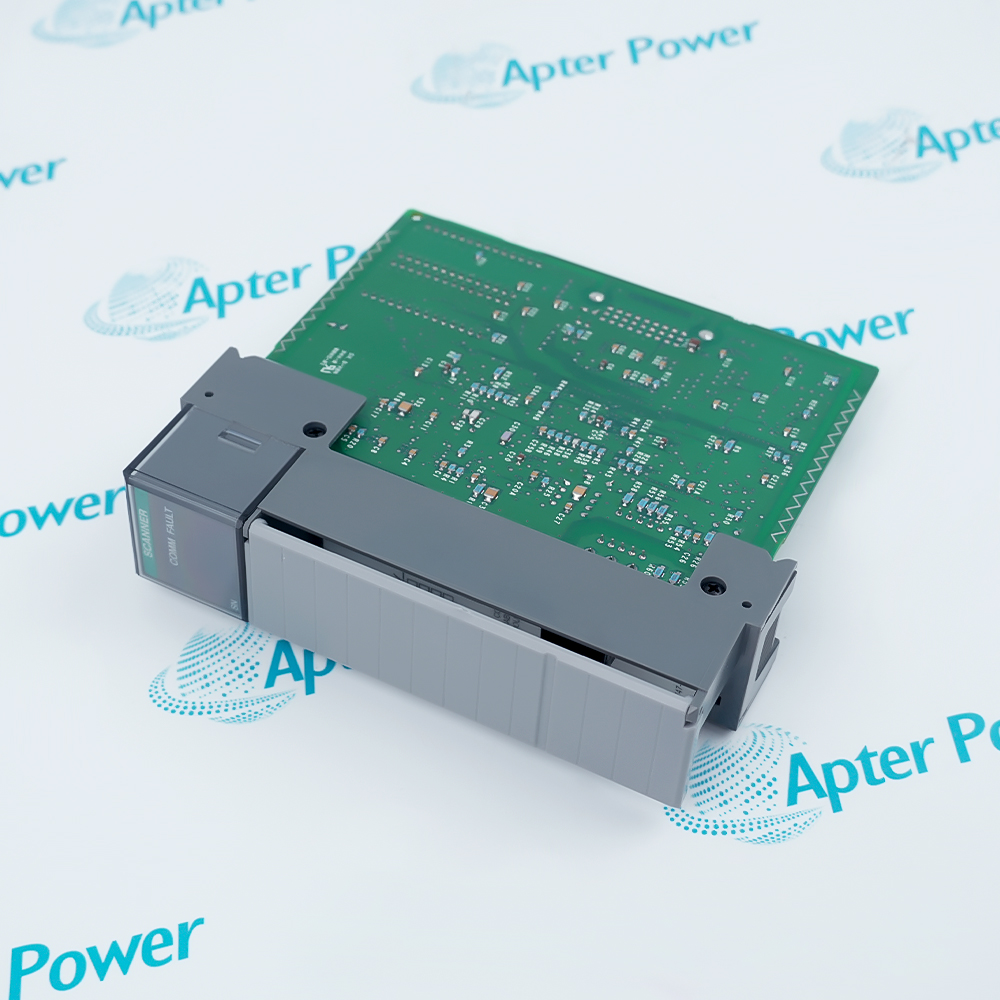

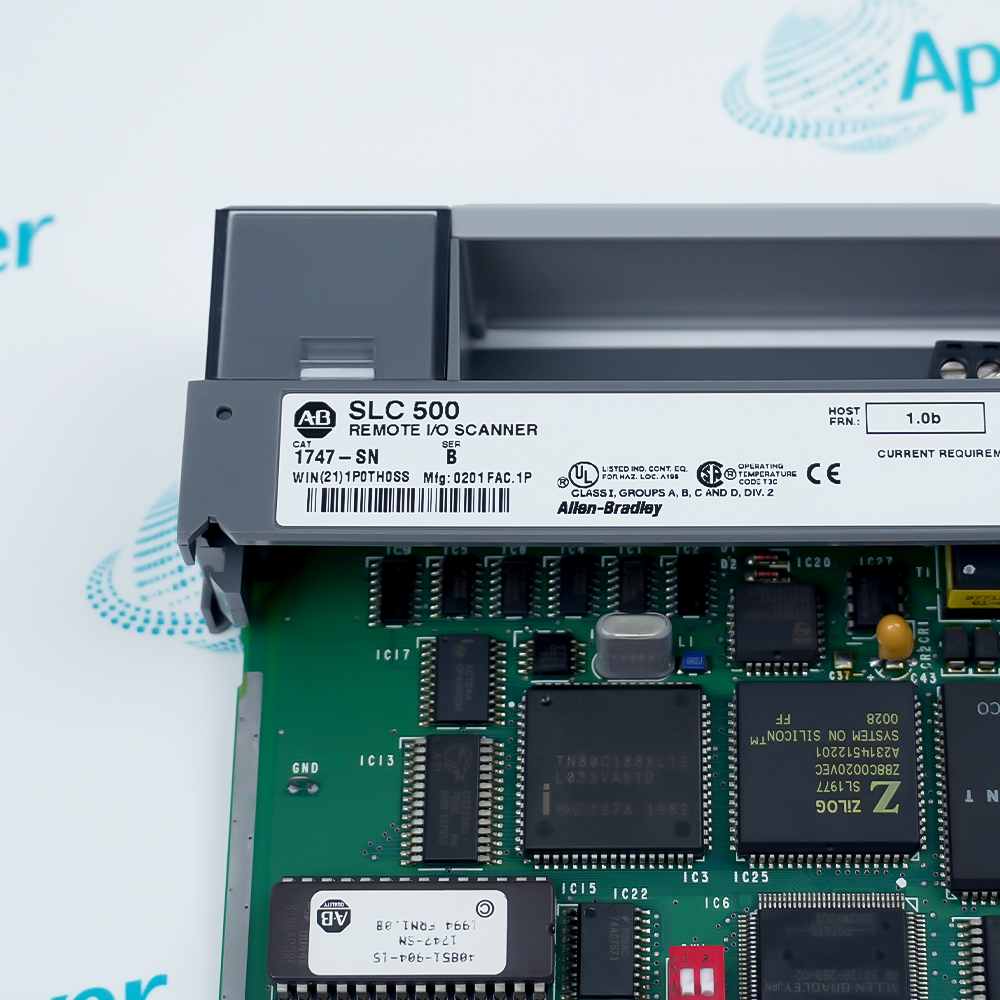

The 1747-SN is a Remote I/O Scanner module for the Allen-Bradley SLC 500 platform, enabling communication between an SLC processor and remotely located RIO-compatible devices.
    • Single-master network controller
    • Daisy-chain topology utilizing
    • Twisted-pair cable communication
The Remote I/O (RIO) Scanner, 1747-SN, enables communication between an SLC processor and remotely located 1746 I/O chassis and other RIO-compatible Allen-Bradley operator interface and control devices. The 1747-SN scanner communicates with remote devices using the A-B Remote I/O link. The RIO link consists of a single master (scanner) and multiple slaves (adapters). Communication between devices occurs over twisted-pair cable with the devices daisy-chained together. Maximum distance for remote communication is 3,048m (10,000 ft.). The scanner is compatible with any standard RIO adapter device.

The SLC processor transfers a maximum of 4 logical racks (32 input and 32 output image words) of discrete remote I/O data into the SLC input and output image files. You can adjust the size of the scanner image files during configuration of your SLC system so that the scanner only transfers the discrete I/O data required by your application program. The 1747-SN Series B or later RIO Scanner can be configured to transfer up to 64 words of data to a remote device via block transfer.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 Allen Bradley 1747-SN SLC 500 Remote I/O Scanner Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Automotive Manufacturing
Connecting distributed I/O stations across long-distance final assembly lines.

Water and Wastewater Treatment
Remotely monitoring pump stations, valves, and flow meters miles away.

Food and Beverage Processing
Controlling filling lines and large blending tank farms scattered across different workshops.

Oil and Gas
Transmitting pressure and temperature data from remote wellheads back to the central control room.

Pharmaceutical Industry
Remotely controlling complex compounding and packaging interlocking equipment outside cleanrooms.

Power and Energy
Collecting remote data from boiler auxiliary systems and cooling towers in thermal power plants.
 When using 1747-SN you follow the remote I/O network physical rules and software configurations. The key involves installing terminating resistors at both ends and using dedicated blue hose cables within the baud rate length limits. Also you need to correctly set the main rack G-File and remote adapter dip switches to avoid address conflicts.

Revisions

Revision Part #

Also known as

1747-SN Ser A
1747-SN/A, Series A, Rev A
1747-SN Ser B
1747-SN/B, Series B, Rev B

Alternative Names

1746-SN 1747SN 17A7-SN 17A7SN I747-SN I747SN I7A7-SN I7A7SN

Technical notes

It supports a maximum network distance of 3,048 meters (10,000 feet), connecting to 1746 I/O chassis, operator interfaces, and other control equipment.

FAQ View All FAQ

  • What is the maximum length supported by the RIO protocol?
    The 1747-SN may be implemented up to a physical distance of 3050 meters or 10,000 feet at 57.6K baud.
  • How many communication ports does the 1747-SN have?
    The 1747-SN has one dedicated 3-pin Remote I/O (RIO) communication port.
  • What is the appropriate communication cable used by the 1747-SN?
    The 1747-SN uses the Belden 9463 (Blue Hose) shielded cable in a daisy-chain topology with terminating resistors.
