1746-NI8

SLC50x 8AI CURRENT/VOLTAGE MODULE
In Stock
Ships by Saturday, November 21
Fast Shipping Available

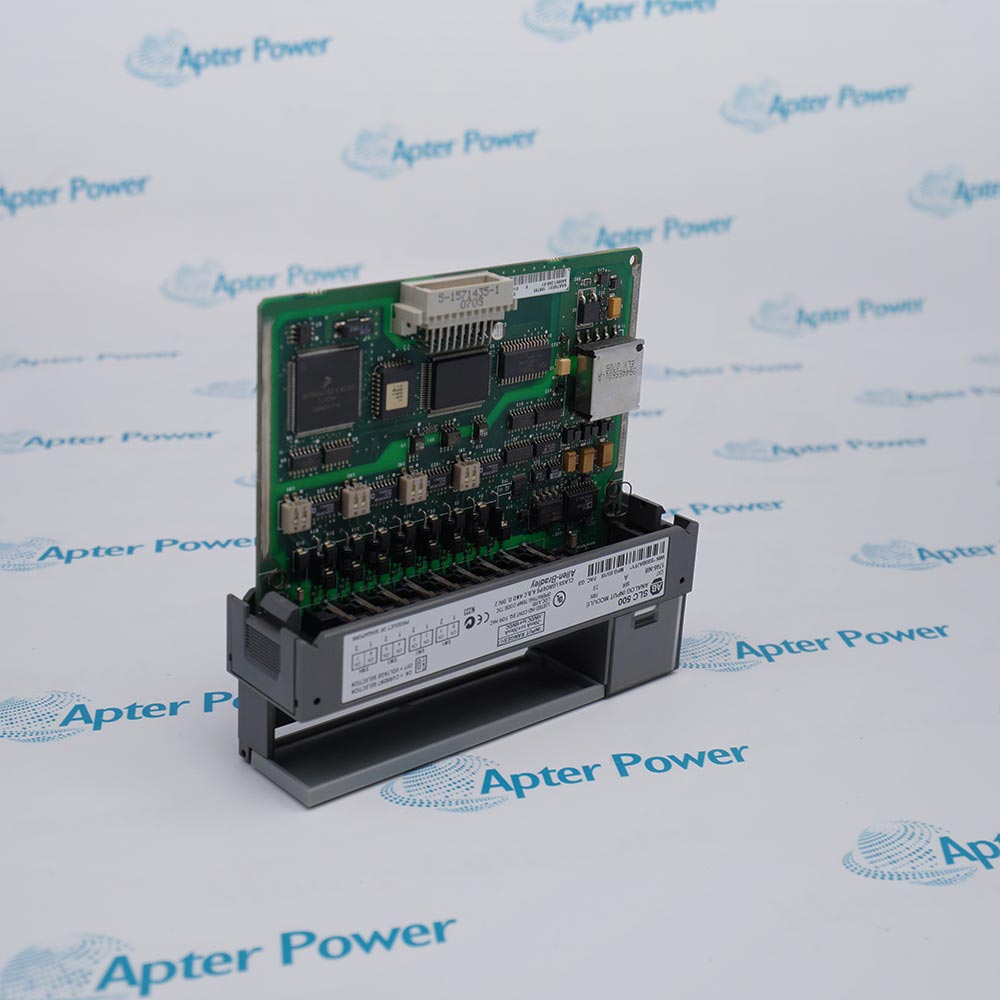

Allen-Bradley 1746-NI8 analog input module, angled top view with circuit board lying flat

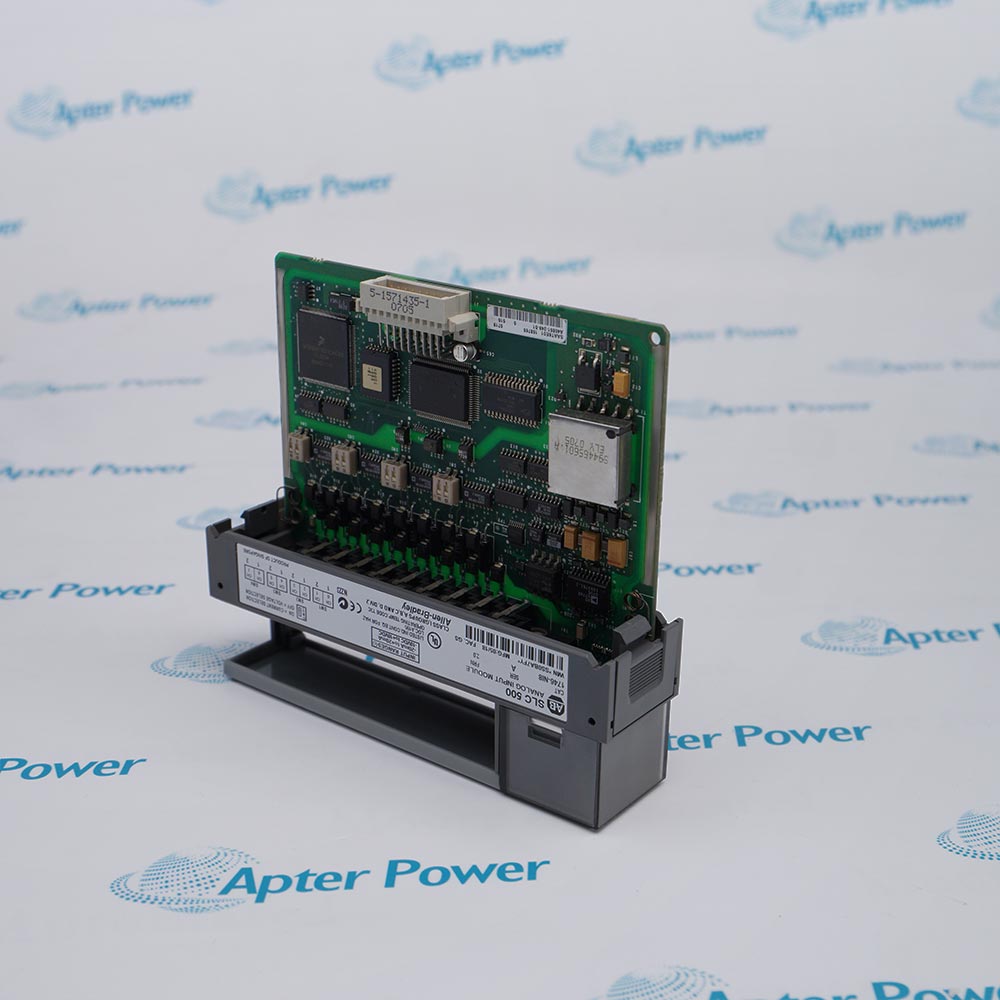

Allen-Bradley 1746-NI8 analog input module, upright angled view with front label at lower left

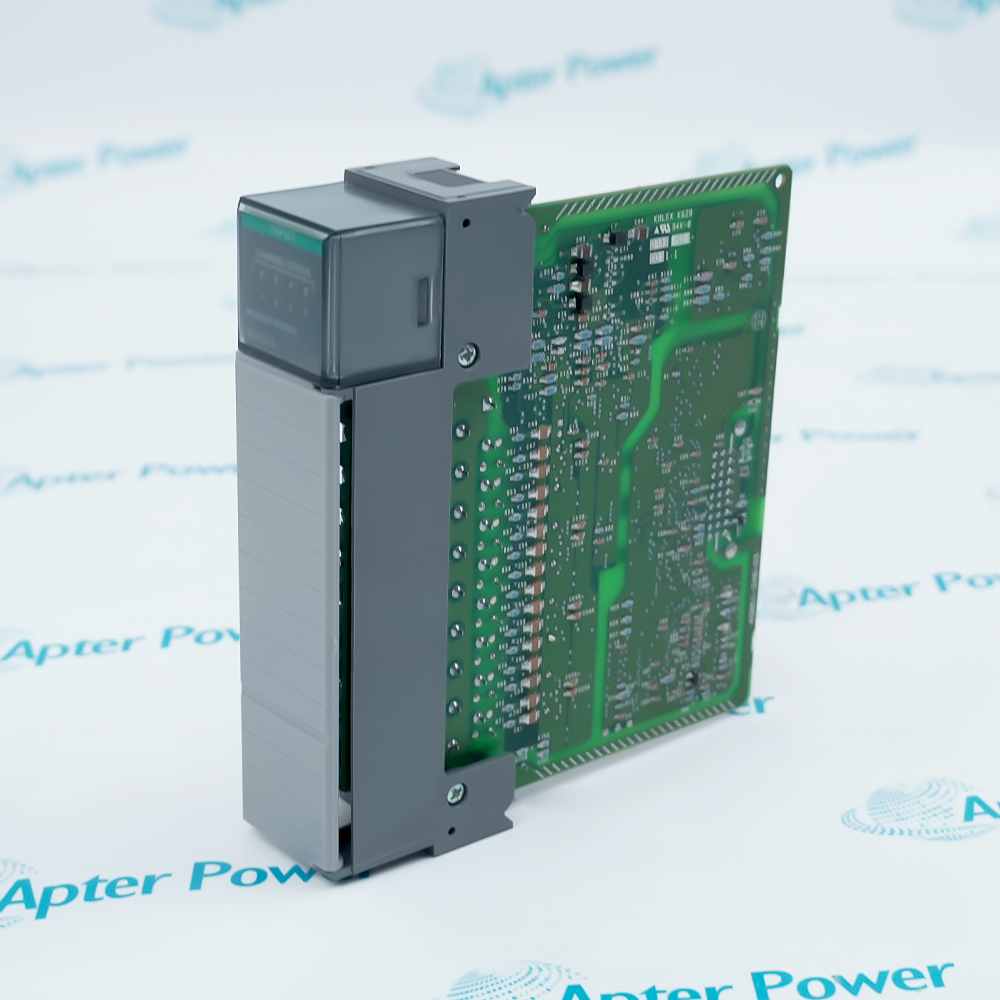

Allen-Bradley 1746-NI8 analog input module, upright angled view with side bezel at right
Allen-Bradley 1746-NI8 analog input module, angled top view with circuit board lying flat
Allen-Bradley 1746-NI8 analog input module, upright angled view with front label at lower left
Allen-Bradley 1746-NI8 analog input module, upright angled view with side bezel at right
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

SLC50x 8AI CURRENT
VOLTAGE MODULE
SLC (8) Analog Input
For Programmable Controller
Get a quick price for 1746-NI8
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 1746-NI8

  • Manufacturer:
    Allen-Bradley
  • Product Category:
    PLC Systems
  • Spare Part Number:
    1746NI8 1746-NI8/A
  • Estimated shipping dimensions:
    24.5x16.5x5.5cm
  • Weight:
    0.4 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Resolution:
    16 bits
  • Bandwidth:
    1-75 Hertz
  • Backplane Current (24 Volts DC):
    100 milliamps
  • Input signal Category:
    -20 to +20 mA (or) -10 to +10V dc
  • Input Filter Frequencies:
    1 Hz, 2 Hz, 5 Hz, 10 Hz, 20 Hz, 50 Hz, 75 Hz
  • Update Time:
    6 milliseconds

Information

Overview Manuals Common Applications Product Precautions
The 1746-NI8 is an 8-channel analog input module for the SLC 500 series programmable logic controller (PLC) platform. It directly acquires continuous voltage or current signals from field transmitters and sensors, converting them into digital values for PLC processing.
    • Wide range of replacement power supplies, chassis, communications modules, I/O cards and accessories available
    • EtherNet I/P Adapter (1747-AENTR) available to convert an existing system to distributed I/O
    • Flexible options for Analogue and Digital I/O cards to modify and expand system capabilities
The 1746-NI8 module receives its power through the SLC 500 chassis backplane from the fixed or modular +5V dc/+24V dc chassis power supply. The +5V dc backplane supply powers the SLC circuitry, and the +24V dc backplane supply powers the module analog circuitry. The 1746-NI8 analog input module has multiclass interface capabilities. Class 1 is the standard configuration. The module can be configured through the user program for Class 3 which enables user-defined data scaling and monitoring of channel status words. The 1746-NI8 analog input module is tested to meet Council Directive 89/336/EEC Electromagnetic Compatibility (EMC).

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 Allen Bradley 1746-NI8 SLC50x 8AI CURRENT/VOLTAGE MODULE Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Oil and Gas
Connects to multiple pressure transmitters and gas detectors to monitor pipeline pressure and combustible gas leaks.

Chemical Processing
Collects internal temperature, pressure, and material level data from batch reactors within explosion-proof zones.

Metals and Metallurgy
Connects to blast furnace thermocouples and load cells to monitor smelting temperature and raw material weight.

Pulp and Paper Industry
Aquires data from pulp tank consistency transmitters, dryer cylinder pressure sensors, and finished paper thickness gauges.

Pharmaceutical Industry
Monitors cleanroom micro-differential pressure transmitters, autoclave temperatures, and purified water system TOC levels.

Mining and Mineral Processing
Connects to crusher bearing temperature sensors, thickener mud level gauges, and slurry flowmeters.

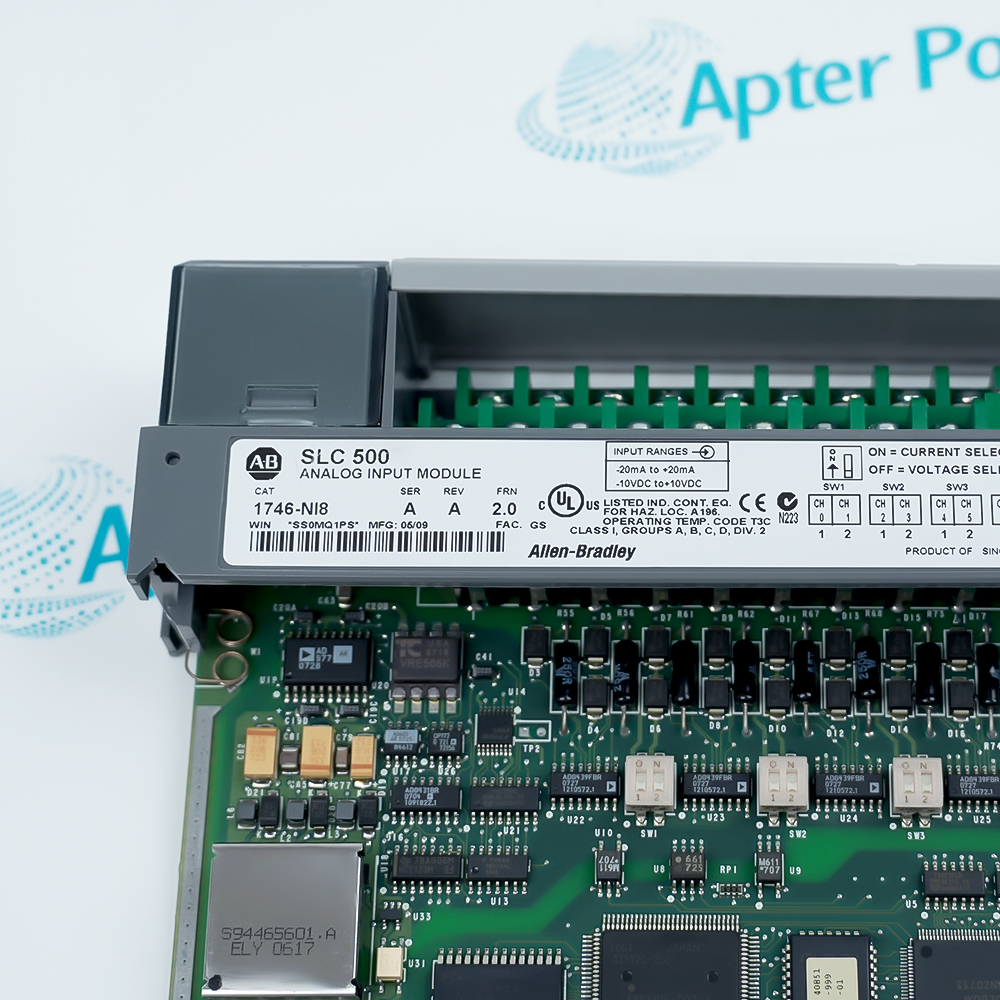

 First, configure DIP switches correctly—you must set the internal hardware switches for voltage or current before insertion, as incorrect settings cause data errors or resistor damage.

Second, prevent single-ended common-ground loops—all 8 channels share an internal analog common, so tie unused channels to COM and use signal isolators for multi-location devices to avoid potential differences.

Third, no hot-swapping—turn off chassis power completely before removing or installing the module.

Revisions

Revision Part #

Also known as

1746-NI8 Ser A
1746-NI8/A, Series A, Rev A

Alternative Names

1746-N18 1746-NIB 1746N18 1746NI8 1746NIB 1747-NI8 17A6-NI8 17A6NI8 I746-NI8 I746NI8 I7A6-N1B I7A6N1B

Technical notes

The 1746-NI8 analog input module utilizes a high-precision analog-to-digital converter, providing a resolution up to 16-bit. In 4-20mA or 1-5V mode, the input digital value maps to a range of 3,277 to 16,384 (standard scaling) or 0 to 16,384 (variable scaling), allowing it to capture subtle signal changes.

FAQ View All FAQ

  • How many inputs does the 1746-NI8 module have?
    The 1746-NI8 has a total of eight analog input channels.
  • Does the 1746-NI8 have any LED indicators?
    Yes, the 1746-NI8 features a single green module status LED indicator on its front panel.
  • What cable does the 1746-NI8 require for wiring?
    The 1746-NI8 recommends using a Belden 8761 shielded twisted-pair cable for each analog input loop.
  • Does the 1746-NI8 contain a terminal block?
    Yes, the 1746-NI8 contains an 18-position, removable terminal block for field connections.
