1762-L40BWA

Controller Module
In Stock
Ships by Saturday, November 21
Fast Shipping Available

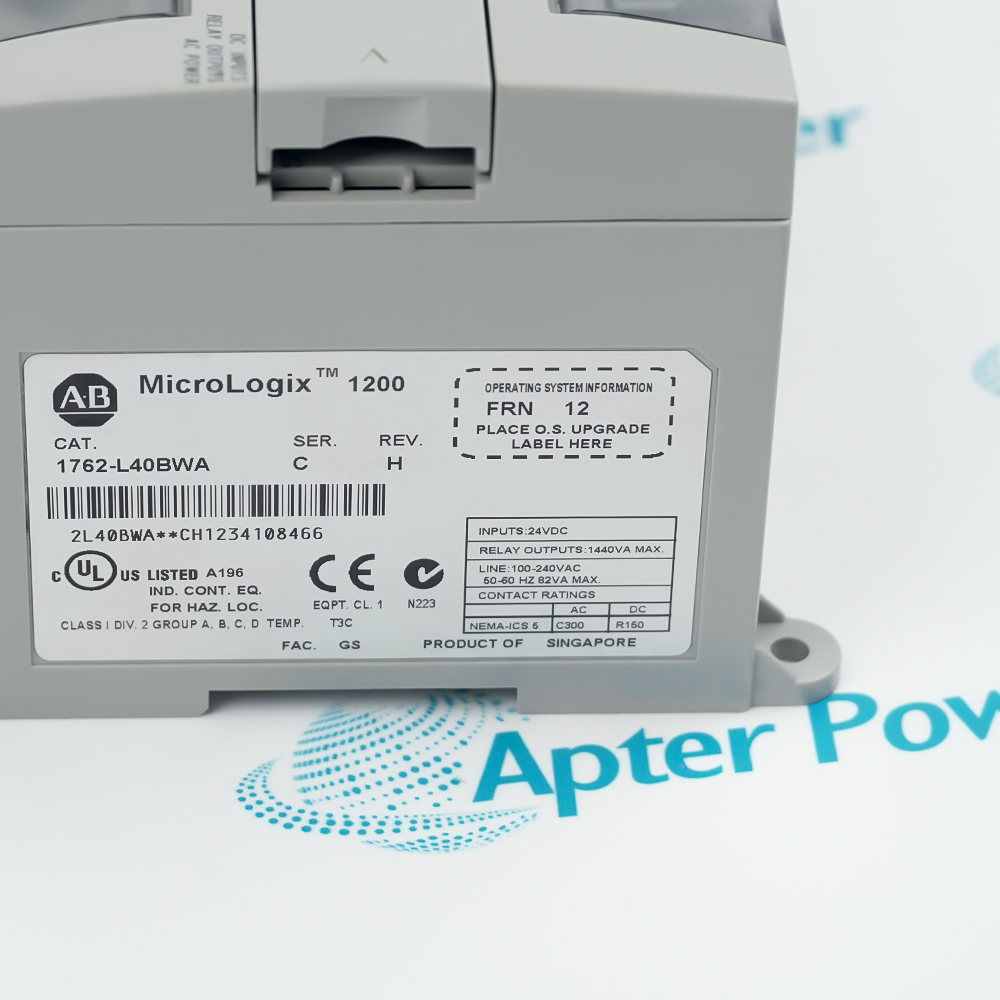

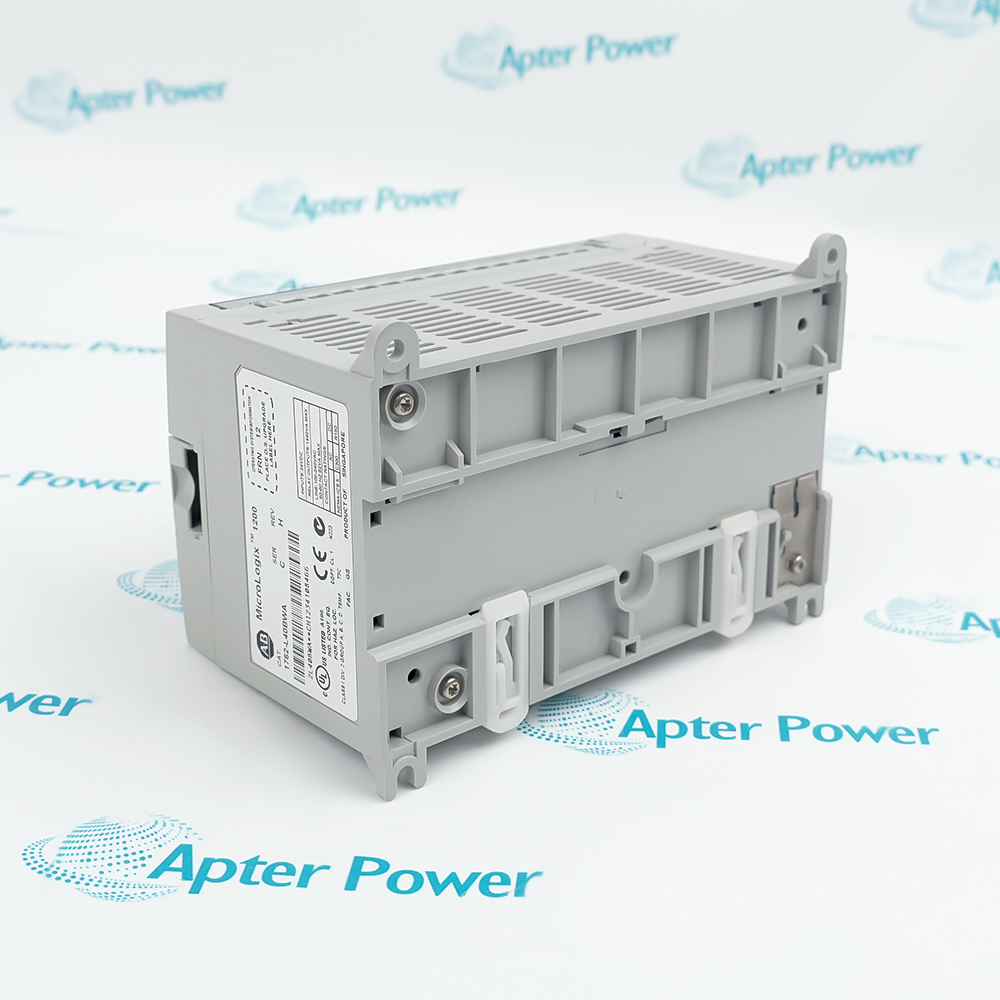

Allen-Bradley 1762-L40BWA
Allen-Bradley 1762-L40BWA
Allen-Bradley 1762-L40BWA
Allen-Bradley 1762-L40BWA
Allen-Bradley 1762-L40BWA
Allen-Bradley 1762-L40BWA
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

MicroLogix 1200
24 Digital Inputs - 24V DC
16 Relay Output
120/240V AC Power Supply
Get a quick price for 1762-L40BWA
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 1762-L40BWA

  • Manufacturer:
    Allen-Bradley
  • Product Category:
    PLC Systems
  • Spare Part Number:
    1762L40BWA
  • Estimated shipping dimensions:
    19.5x12.5x9.5cm
  • Weight:
    0.9 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Product Series:
    MicroLogix 1200 (Bul. 1762)
  • Component Type PLC & I/O:
    Controller with onboard I/O
  • Memory, Program:
    4 kB memory
  • Memory, Data:
    2 kB memory
  • Quantity, Total Input:
    24 qty
  • Quantity, Digital Input:
    20 qty
  • Type, Digital Input:
    24V DC Snk/Src type
  • Quantity, Fast Digital Input, Shared:
    4 qty, shared
  • Type, Fast Digital Input, Shared:
    24V DC Snk/Src type, shared
  • Operating Temperature, Max:
    55 °C max
  • Operating Temperature, Min:
    0 °C min
  • Storage Temperature, Max:
    85 °C max
  • Storage Temperature, Min:
    -40 °C min
  • Relative Humidity, Max:
    95 %RH
  • Digital Input Type:
    24V DC type
  • Number of Relay Outputs:
    16 qty
  • Number of Digital Outputs:
    16 qty

Information

Overview Manuals Common Applications Product Precautions
The 1762-L40BWA is an AC-powered (120/240V) programmable controller belonging to the MicroLogix 1200 family. It features a built-in 40-point I/O configuration, consisting of 16 relay outputs and 24 24V DC digital inputs, the latter of which includes 20 standard channels paired with 4 high-speed inputs.
    • Isolated RS-232 / RS-485 serial port for network communication
    • Provides four latching or pulse-catch inputs and four interrupt inputs
    • Built-in independent 20kHz high-speed counter
The 1762-L40BWA controller demonstrates high reliability in harsh electromagnetic environments and during long-term continuous operation. The 16 built-in digital relay outputs offer versatile load compatibility, allowing direct mixed connections of AC or DC loads with different voltage levels, while providing arc interference resistance. This simplifies peripheral electrical wiring within the control cabinet and reduces the cost of intermediate isolation relays.

The device is compatible with the RSLogix 500 programming environment, utilizing ladder logic for program design. Its built-in function blocks enable mathematical calculations, PID loop control, and data processing. Together with the Programmable Limit Switch (PLS) function, the system can drive hardware outputs directly within microseconds based on the current value of the high-speed counter, preventing position control errors caused by program scan cycle delays.

Whether applied to frequently cycling textile machinery, high-precision food filling lines, or distributed sorting systems requiring highly stable network communication, the 1762-L40BWA serves as a core choice for building small, independent control networks due to its hardware-software integration, environmental adaptability, and operational lifespan.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 Allen Bradley 1762-L40BWA Controller Module Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Water and Wastewater Treatment
Used for automation in small-to-medium pump stations, filtration systems, and chemical dosing processes.

Packaging Machinery
Serves as the main controller for semi-automatic or fully automatic packaging equipment.

Plastics and Rubber Industry
Controls automation for small extruders, plastic blenders, and scrap recycling shredders.

Printing and Papermaking Equipment
Used for logic control in auxiliary paper cutters, single-color printing presses, and paper stacking equipment.

Electronics and Semiconductor Auxiliaries
Controls ultrasonic cleaning lines, exhaust gas scrubbers, and chemical waste drainage systems.

Metal Processing and Machine Tool Auxiliaries
Controls machine tool chip conveyors, coolant circulation systems, and pneumatic pick-and-place gantry loaders.
 When using the 1762-L40BWA, strictly connect 120/240V AC power and prevent high voltage from entering DC inputs. Accurately calculate 5V and 24V backplane current when adding expansion modules up to a maximum of 6 to avoid overloading. Install external RC snubbers or freewheeling diodes for inductive loads to protect relay contacts. Avoid hot-plugging the serial port and consider relay mechanical lifespan in high-frequency switching applications.

Alternative Names

1762-L408WA 1762-L4OBWA 1762-LA0BWA 1762L408WA 1762L40BWA 1762L4OBWA 1762LA0BWA I762-L40BWA I762-LAO8WA I762L40BWA I762LAO8WA

Technical notes

The 1762-L40BWA is a high-density controller unit within the Allen-Bradley MicroLogix 1200 PLC platform, featuring 24 integrated digital inputs compatible with both sink and source 24V DC signaling.

FAQ View All FAQ

  • What is the 1762-L40BWA?
    It is the main programmable logic controller (PLC) base unit within the Allen-Bradley MicroLogix 1200 series by Rockwell Automation.
  • How many built-in I/O points does the 1762-L40BWA have?
    It features a total of 40 embedded I/O points, including 24 digital inputs (24V DC) and 16 relay outputs.
  • What type of input signals does the 1762-L40BWA support?
    Its 24 digital inputs support nominal 24V DC signals in either sink or source wiring configurations.
  • What is the current rating for the relay outputs of 1762-L40BWA?
    The maximum continuous current per relay output point is typically 2.0A, provided that the total current per common terminal does not exceed its rated limit.
  • How to connect and use the 1762-L40BWA?
    Wire the AC power supply first, connect field sensors to the input terminals, and link actuators (like contactors) to the relay outputs. Then, connect a PC via the serial port to program and download code using RSLogix 500 software.
