1747-DCM

Direct Communication Module
In Stock

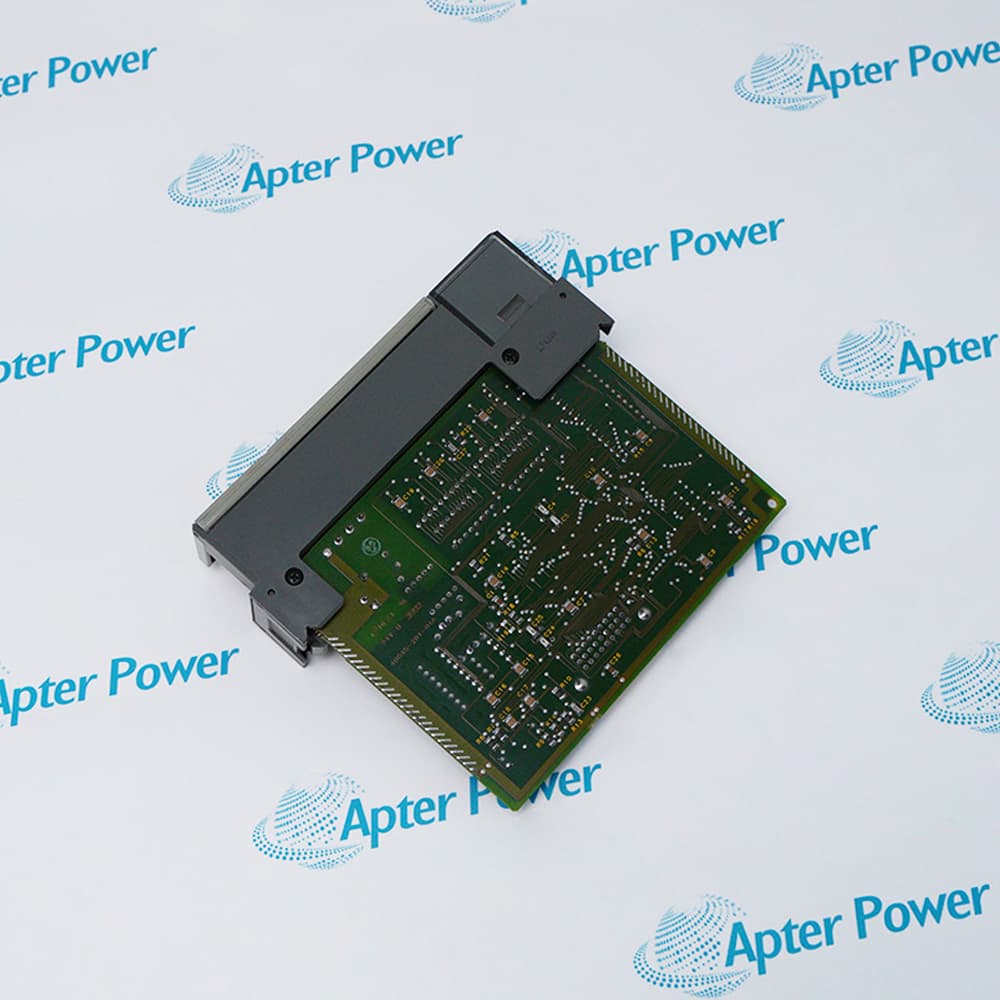

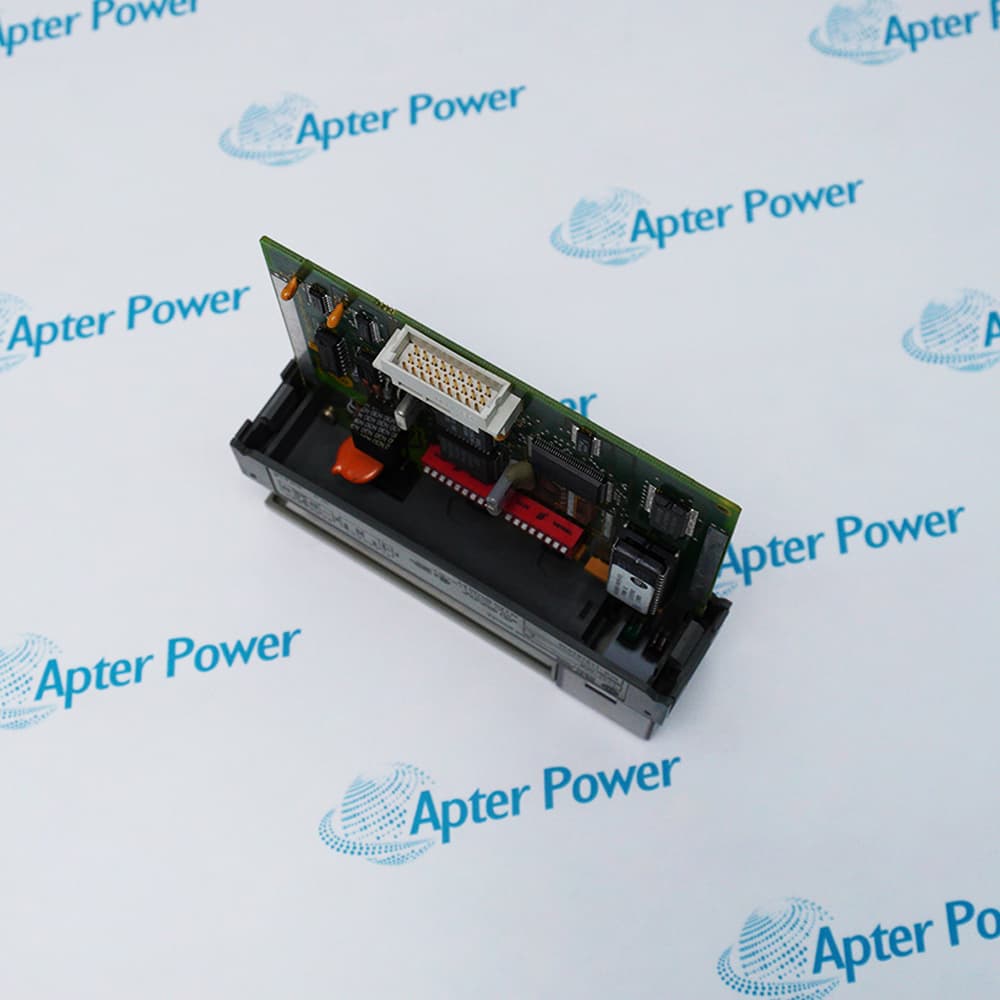

Allen-Bradley 1747-DCM
Allen-Bradley 1747-DCM
Allen-Bradley 1747-DCM
Allen-Bradley 1747-DCM
Allen-Bradley 1747-DCM
Allen-Bradley 1747-DCM
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

DISCONTINUED BY MANUFACTURER
DIRECT COMMUNICATION MODULE
SLC500
REMOTE I/O
RIO COMMUNICATION LINK TRANSFER
Get a quick price for 1747-DCM
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 1747-DCM

  • Manufacturer:
    Allen-Bradley
  • Product Category:
    PLC Systems
  • Spare Part Number:
    1747-DCM
  • Estimated shipping dimensions:
    15x5x15cm
  • Weight:
    0.17 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Terminating resistor:
    82 Ohms; 150 Ohms
  • Compatible controllers:
    SLC 500 Fixed and Modular style
  • Operation modes:
    Standard and non-extended node
  • LED indicators:
    FAULT; COMM
  • Backplane Current:
    360 mA @ 5VDC
  • Communication Port:
    Universal Remote I/O Adapter
  • Backplane Current (5 Volts):
    360 milliamps

Information

Overview Manuals Common Applications Engineering Specifications
The 1747-DCM is an SLC 500 Direct Communication Module that allows an SLC 500 controller to appear as a remote I/O adapter to a master PLC-5 or SLC 500 controller on an Allen-Bradley Remote I/O link. This module provides a direct interface between an SLC 500 fixed or modular controller and a remote scanner, behaving as a standard remote I/O rack on the communication network.
    • Remote I/O Adapter
    • Selectable Communication Rates/span>
    • Flexible Rack Addressing
The module supports communication rates of 57.6K, 115.2K, and 230.4K baud and can be configured as a full, half, or quarter rack via onboard DIP switches. It facilitates high-speed data transfer between a local SLC 500 and a remote scanner, using the SLC 500 processor's input and output image tables to exchange up to 8 words of input and 8 words of output data per rack address.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Allen-Bradley 1747-DCM Direct Communication Module Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 Oil and Gas
Allen-Bradley provides integrated control and safety systems for upstream production and midstream pipeline monitoring. These solutions ensure high availability and robust performance in hazardous environments, supporting critical emergency shutdown (ESD) and fire and gas (F&G) applications.

 Aerospace and Defense
Automated systems are deployed in aircraft component manufacturing and precision assembly processes. The technology supports high-performance motion control and rigorous data tracking required for compliance with stringent aerospace quality standards and production tolerances.

 Automotive and Tire
Rockwell Automation delivers end-to-end smart manufacturing solutions for powertrain assembly and vehicle body shops. By utilizing integrated architecture, plants achieve synchronized motion control and real-time diagnostic capabilities to maximize throughput and minimize downtime.

 Food and Beverage
Solutions focus on batch processing, high-speed packaging, and maintaining food safety through precise environmental control. The hardware is designed to withstand frequent washdown procedures while providing comprehensive material tracking and genealogy across the production chain.

 Mining and Metals
Ruggedized control platforms manage heavy-duty equipment such as crushers, conveyors, and smelting furnaces. These systems are engineered for extreme temperatures and high-vibration conditions, optimizing energy consumption and ensuring personnel safety in deep-mine operations.

 Water Wastewater Treatment
Automation technology provides centralized monitoring and distributed control for pumping stations and chemical dosing systems. The platform supports remote access and secure data logging to ensure compliance with environmental regulations and reliable municipal water distribution.

The 1747-DCM must be installed in any slot of an SLC 500 modular chassis, except for slot 0, and requires a single-slot capacity. When connecting the module to the Remote I/O link, use Belden 9463 or equivalent cable to ensure a maximum link distance of 10,000 feet at 57.6K baud. To prevent communication errors, terminate both ends of the Remote I/O link with a resistor that matches the characteristic impedance of the cable The module uses an internal optical isolation of 1500V AC to protect the SLC backplane from external line transients and ground loops.

Revisions

Revision Part #

Also known as

1747-DCM Ser A
1747-DCM-A, Rev A

FAQ View All FAQ

  • What is the primary function of the 1747-DCM module within an SLC 500 system?
    The 1747-DCM allows an SLC 500 controller to appear as a remote I/O adapter to a master PLC-5 or SLC 500 controller on an Allen-Bradley Remote I/O link.
  • How is the 1747-DCM module addressed by the scanner or master controller?
    The module supports discrete I/O rack addressing, where it can be configured as a full, half, or quarter rack using the onboard DIP switches for the starting rack address.
  • What are the communication rate options for the 1747-DCM on the Remote I/O link?
    The 1747-DCM supports standard Remote I/O baud rates of 57.6k, 115.2k, and 230.4k baud, which are selected via the module's DIP switch settings.
  • How does the 1747-DCM transfer data between the SLC 500 processor and the master controller?
    It uses an image table transfer method where the SLC 500 processor writes to the output image and reads from the input image to exchange data with the master scanner.
  • What is the maximum distance for a Remote I/O link using the 1747-DCM module?
    The maximum cable distance is 10,000 feet (3,048 meters) at 57.6k baud using Belden 9463 cable, decreasing as the communication baud rate increases.
