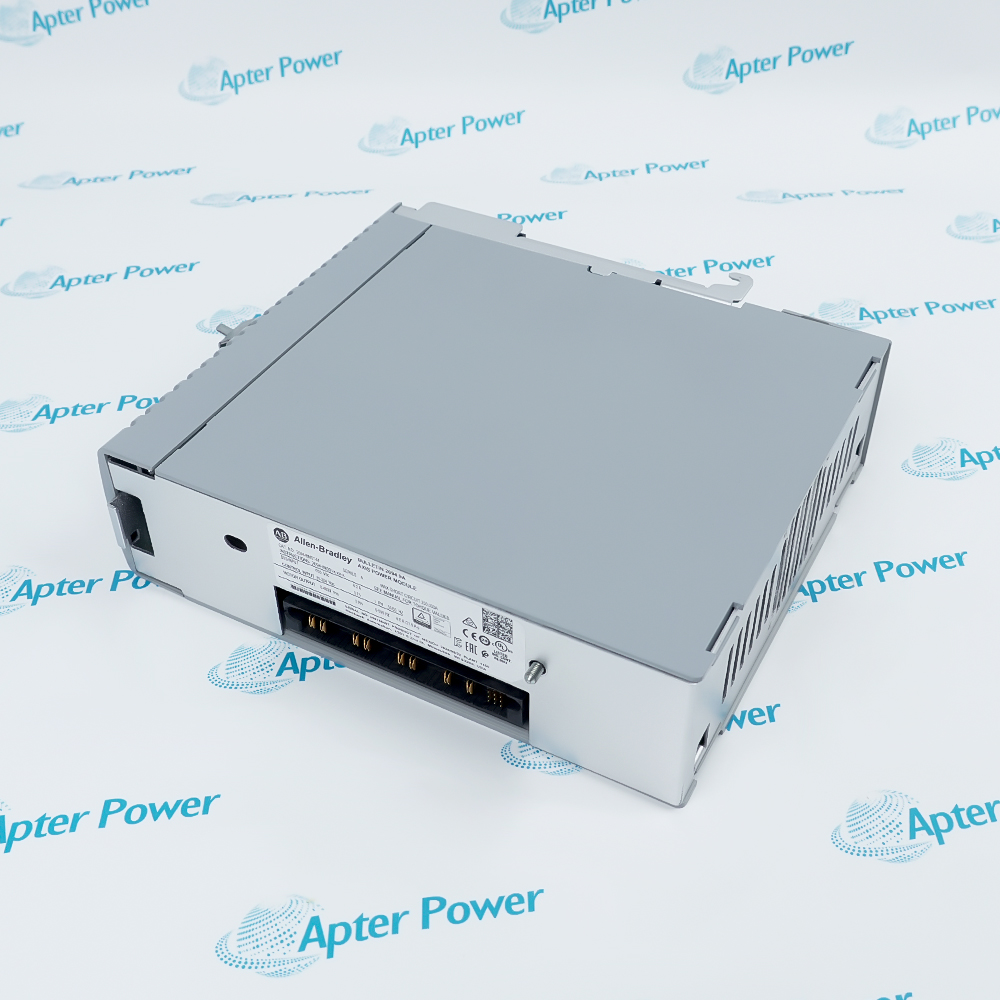

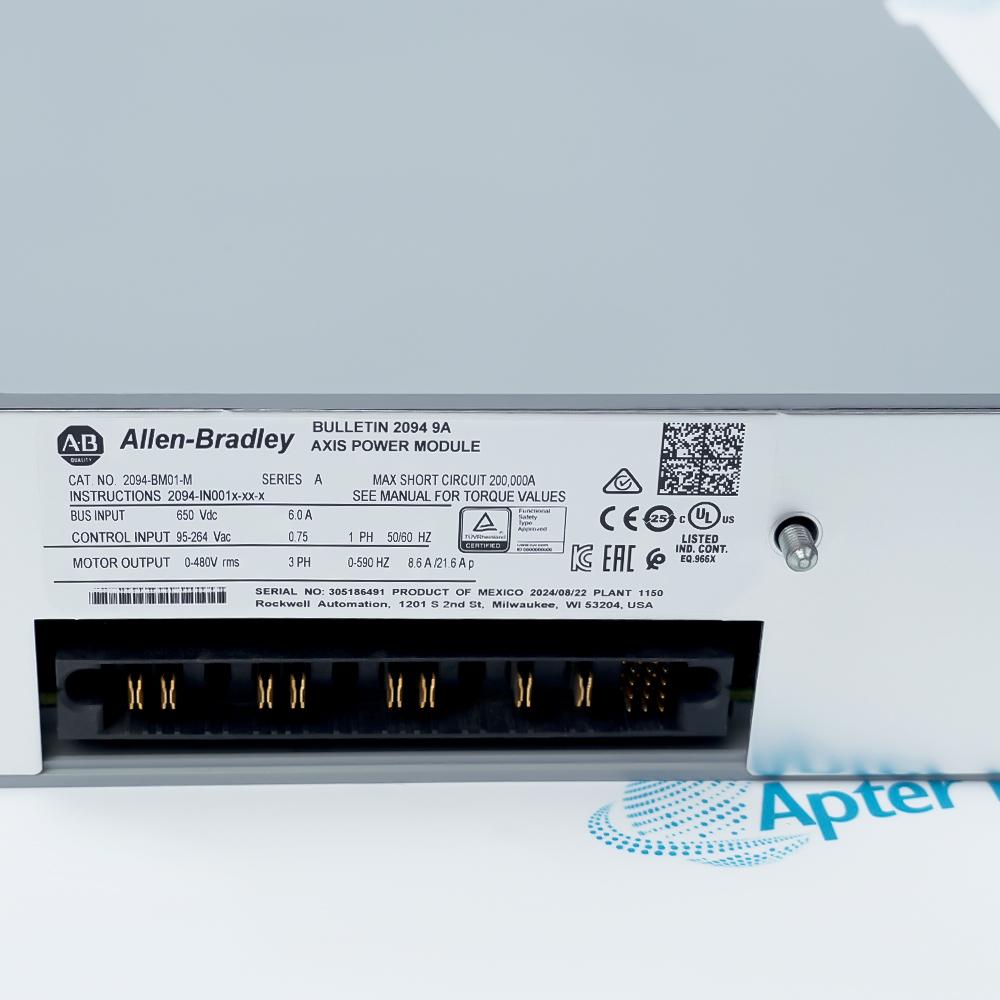

The 2094-BM01-M is an Allen-Bradley component compatible with Kinetix 6000 Drive systems. Operating as an Axis Module (AM), this unit falls under the 400VAC voltage class, delivering a continuous current of 6.1 A and a peak current of 15.3 A.
Greater flexibility in your machine design through compact size
Integrates seamlessly into the Logix platform for multi axis integrated motion
Reduces the total number of connections through simplified wiring and modular design
Operating on a 460V three-phase alternating current input, this single-wide axis module delivers a steady continuous output current of 6.1 Amperes and a peak current capability of 8.6 Amperes, translating into a nominal power delivery of 3.9 kilowatts. It establishes full operational synchronicity with an extensive spectrum of industrial prime movers, seamlessly managing Allen-Bradley MPL, MPM, MPF, and MPS rotary servo motors, alongside LDAT series linear thrusters. Network communication and motion synchronization are sustained over a standardized EtherNet/IP structure, enabling transparent data exchange with Logix control platforms. Furthermore, the unit incorporates dedicated hardware interfaces for universal feedback device options, ensuring immediate connection compatibility with high-resolution encoders and absolute feedback systems.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Allen Bradley 2094-BM01-M Integrated Axis Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Semiconductor
Employed in wafer handling stages, pick-and-place machines, high-speed die bonders, and PCB drilling equipment, providing ultra-high dynamic response and nano-scale positioning repeatability.
Pharmaceutical
Used in pill press machines, automated injection filling lines, and medical consumable packaging lines, leveraging built-in safety monitoring (Safe Speed/STO) to ensure operator and equipment safety in sterile environments.
Automotive
Applied in welding robots, gluing machines, and fastening assembly systems for automotive parts to control multi-axis servo motor trajectories, ensuring high-precision assembly processes.
Lithium Battery
Applied in electrode coating machines, roller presses, and precision winding machines within lithium battery production to achieve precise constant tension control of the battery electrodes.
Robotics
Serves as the core drive module for Cartesian robots and 3D gantry palletizing manipulators, achieving wide-range, precise multi-axis coordinated material handling via EtherNet/IP or SERCOS networks.
During the operation and maintenance of the 2094-BM01-M, strict adherence to the following protocols is mandatory. First, always isolate all incoming power and wait a minimum of 5 minutes for the residual DC bus capacitor voltage to safely discharge before handling the module or power rail to prevent fatal electrical shock. Second, due to thermal operational loads, you must strictly maintain the minimum 50 mm vertical clearance above and below the unit for adequate airflow, and never hot-swap or disconnect any components while power is applied. Lastly, ensure all motor and feedback cables are properly shielded and grounded against electromagnetic interference, and verify that all power rail mounting screws are torqued strictly to official specifications to eliminate the risk of electrical arcing caused by loose connections.
The 2094-BM01-M is a Power Axis Module (AM) within the Kinetix 6200/6500 servo drive family by Rockwell Automation (Allen-Bradley).
Which product line does the 2094-BM01-M belong to?
It belongs to the Kinetix 6000 multi-axis servo drive platform, typically mounted onto a multi-axis IAM (Integrated Axis Module) power rail system to operate.
How is the 2094-BM01-M assembled and installed?
It must be installed vertically onto a dedicated Kinetix 2094 Power Rail, establishing high-voltage DC bus and control power connections via sliding slots on the back.
Which control module must be paired with the 2094-BM01-M?
It requires a control module card, such as the 2094-SE02F-M00-S1 (Sercos) or 2094-EN02D-M01-S1 (EtherNet/IP), to be plugged into the front of the unit.
What feedback types are supported by the 2094-BM01-M?
It supports high-resolution Stegmann Hiperface encoders, Sin/Cos encoders, and standard incremental encoder feedback.
